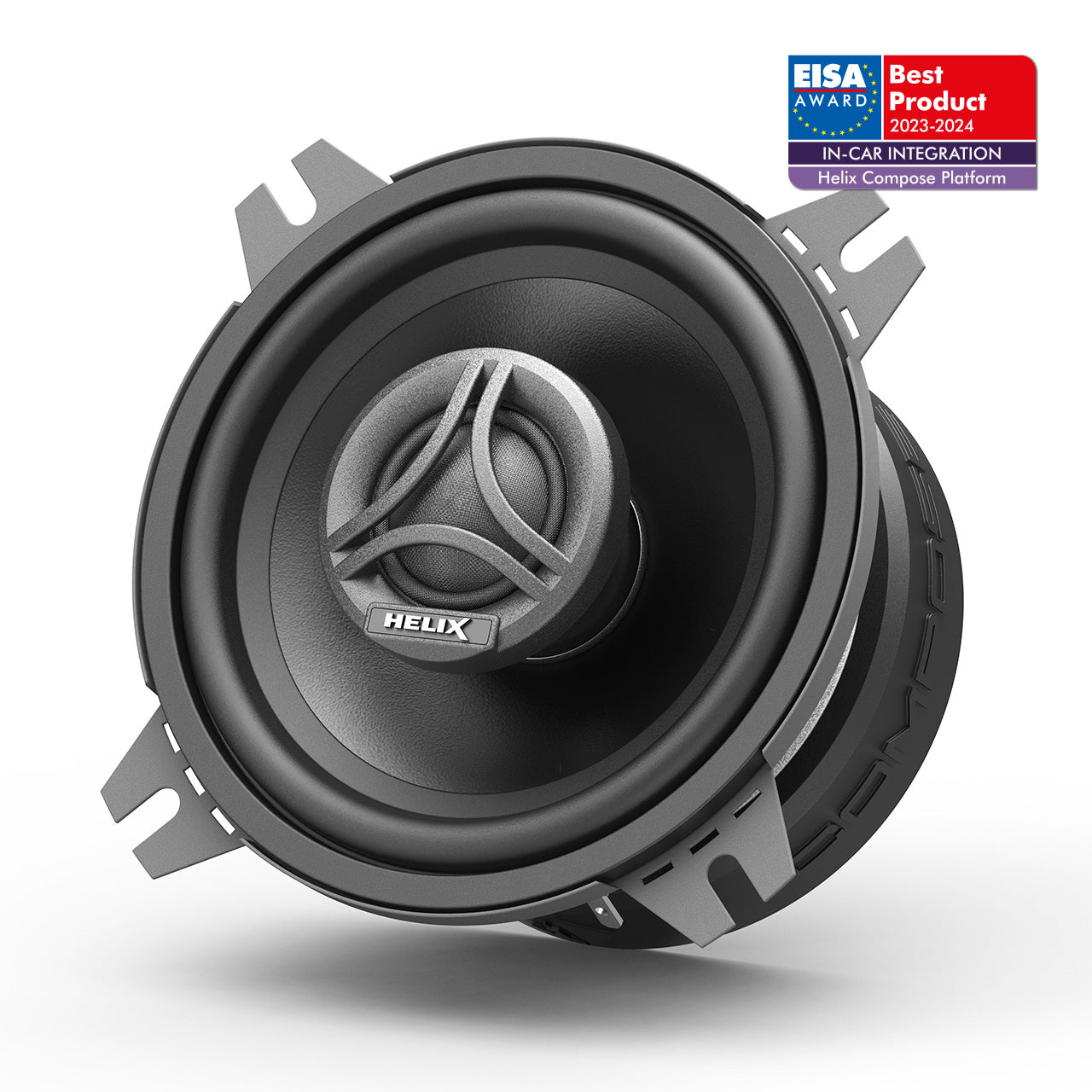

HELIX CB C100.2-S3
HELIX COMPOSE. The perfect speaker for any composition.
Born from the ever-increasing challenges of modern automotive technology and the typical HELIX pursuit of smart solutions, we have made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform, which, in line with the motto "developed in-car, for the car," combines the benefits of classic universal speakers with those of vehicle-specific systems. Innovative materials and the latest technologies, combined with intelligent, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality, and immense dynamics that fit any car. HELIX COMPOSE – the evolution of universal speakers.
Essentials for an outstanding sound experience
You may have already guessed from the name: our BASIC component systems are the perfect introduction to the world of HELIX COMPOSE, providing all the essential...
Technical data
Power handling RMS / Max. P 60 / 90 Watts
Frequency response 100 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 86 dB @ 2.83V / 1m
82 dB @ 1W / 1m
Outer diameter ø 99.2 mm / 3.91”
Installation diameter ø 89.5 mm / 3.52”
Installation depth 48.9 mm / 1.93”
Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 113 Hz
Mechanical Q factor Qms 4.97
Electrical Q factor Qes 1.05
Total Q factor Qts 0.87
Compliance Cms 272 μm/N<0}Equivalent air volume Vas 0.8 L
Force factor B*l 3.9 Tm
Cone area Sd 45 cm2
Moving mass Mms 7.2 g
Mechanical resistance Rms 1.04 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height
8.9 mm
Max. linear excursion Xmax +/- 2.5 mm
Tweeter
Voice coil diameter ø 20 mm
Features
Tweeter Silk dome and neodymium magnet
Midbass
Injected polypropylene cone
Crossover Integrated, 6 dB highpass
Scope of delivery
2 x CB C100.2-S3
1 x Mounting material
