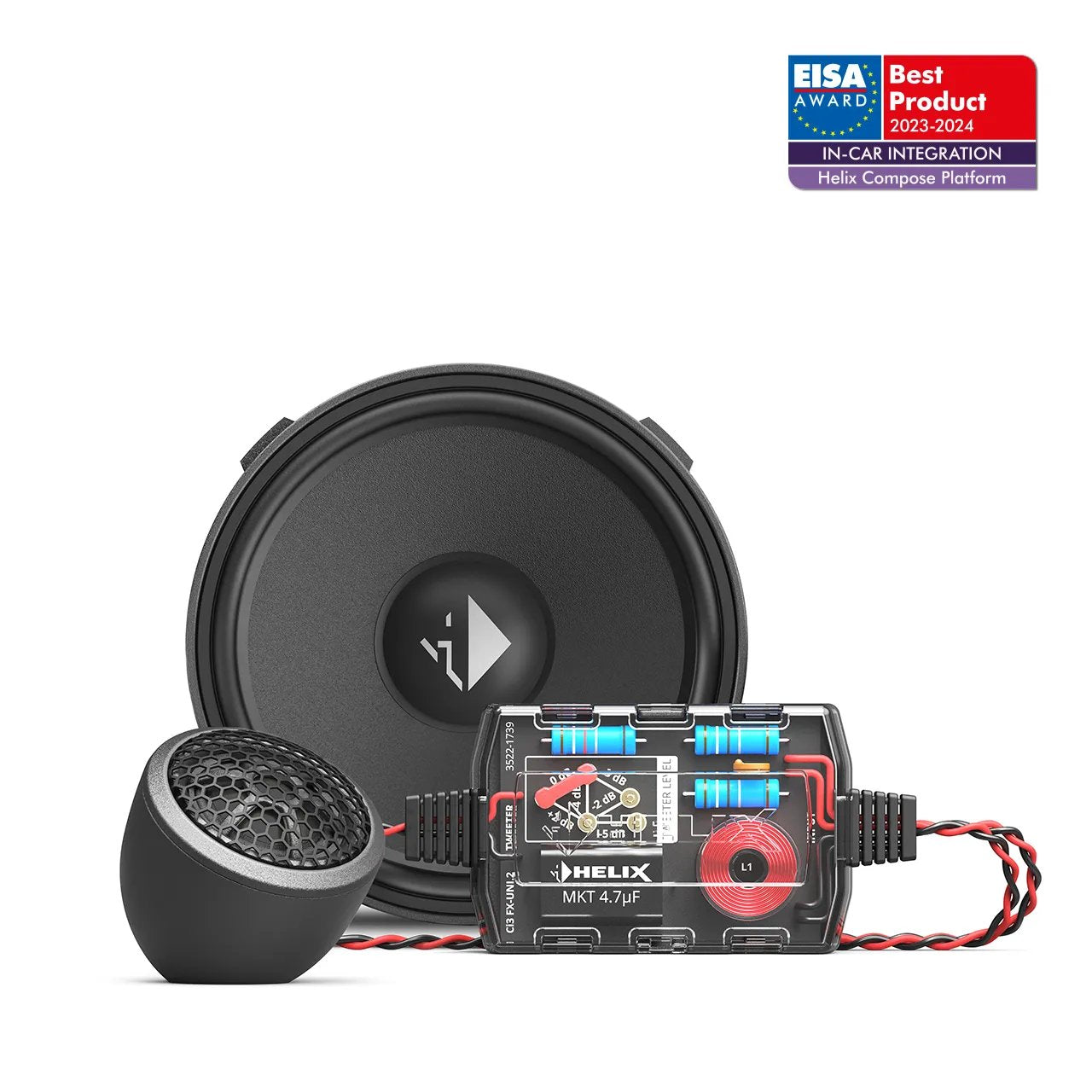

- Helix Ci3 K100.2FM-S3 Mk2 - 3 Ω
- Helix Ci3 K100.2FM-S3 Mk2 - 3 Ω - Išardytas garsiakalbis su atskirais komponentais
Helix Ci3 K100.2FM-S3 Mk2 - 3 Ω
Helix Ci3 K100.2FM-S3 Mk2 - 3 Ω - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
The perfect speaker for any composition.
Born from the ever-increasing challenges of modern car audio technology and the typical HELIX pursuit of smart solutions, we have made it our mission to progressively redesign proven universal speaker systems. The result: our innovative HELIX COMPOSE platform, which, true to the motto "engineered in-car, for the car," combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies combined with clever, practical engineering – the best of both worlds in harmony: high efficiency, stunning sound quality, and immense dynamics that suit any vehicle. HELIX COMPOSE – universal speakers, evolved.
Performance highlight
i3 coaxial systems give you everything you'd expect from a great 2-way system: a first-class sound experience that, thanks to high-quality materials and particularly clever engineering, provides
Technical data
Power handling RMS / Max. P 80 / 120 Watts
Frequency response 120 Hz - 25,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 91 dB @ 2.83V / 1m
87 dB @ 1W / 1m
Outer diameter ø
Tweeter: 32.0 mm / 1.26”
Midrange: 98.0 mm / 3.86”
Installation diameter ø
Tweeter: 32.0 mm / 1.26”
Midrange: 89.0 mm / 3.50”
Installation depth
Tweeter: 9.8 mm / 0.39”
Midrange: 30.0 mm / 1.18”
Dimensions crossover
103.3 x 50.4 x 25.0 mm /
4.07 x 1.98 x 0.98”
Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 146 Hz
Mechanical Q factor Qms 4.49
Electrical Q factor Qes 1.02
Total Q factor Qts 0.83
Compliance Cms 280 μm/N
Equivalent air volume Vas 1.1 L
Force factor B*l 3.4 Tm
Cone area Sd 53 cm2
Moving mass Mms 4.3 g
Mechanical resistance Rms 0.87 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height
4.8 mm
Max. linear excursion Xmax +/- 2.0 mm
Tweeter
Impedance Z 4 Ω
Resonance frequency Fs 1800 Hz
Voice coil diameter ø 20 mm
Features

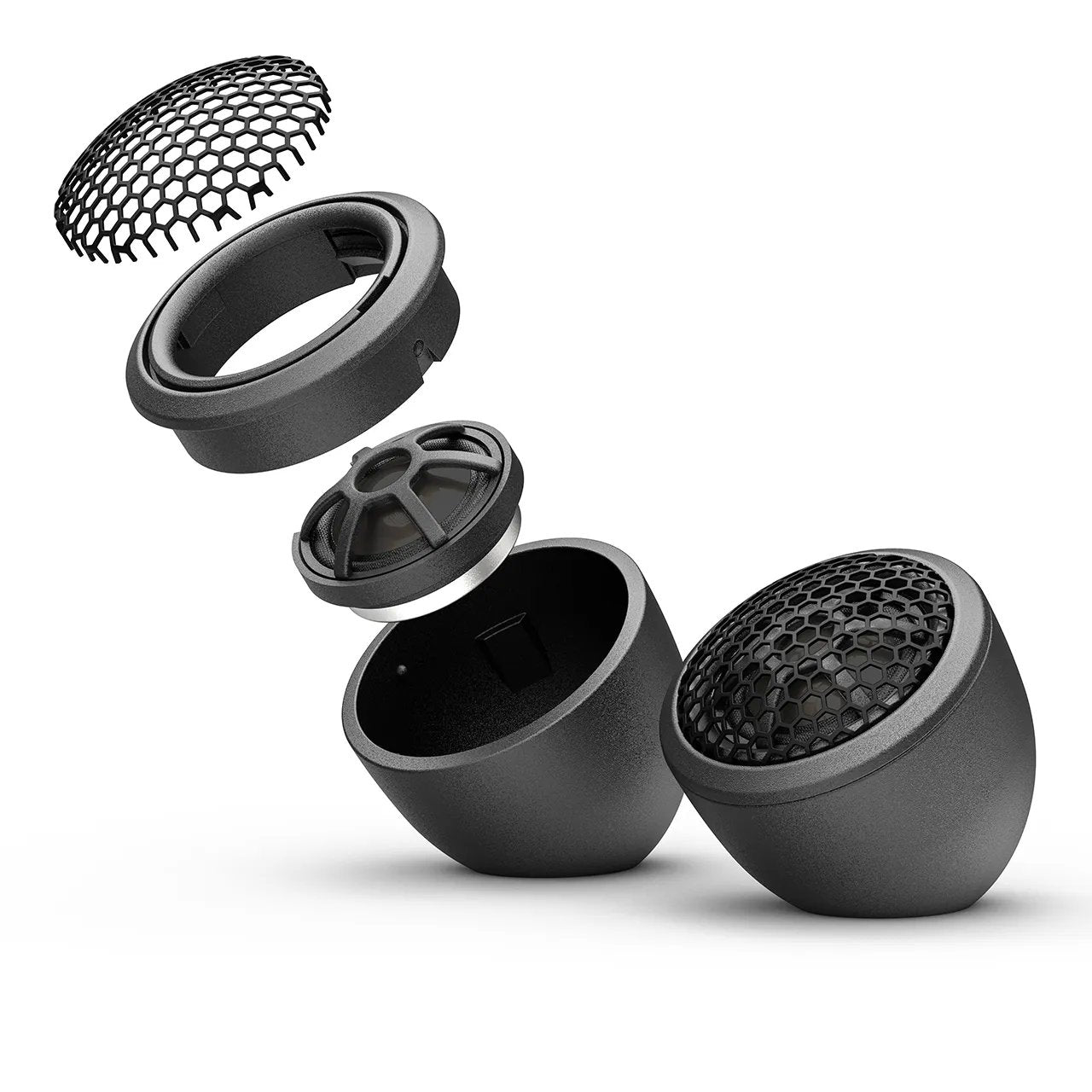

Tweeter
Ultra compact, titanium dome, neodymium magnet and FlexMount20
Midrange
Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100
Crossover
Tweeter: 12 dB highpass, protection and level adjustment
Helix Ci3 K100.2FM-S3 Mk2 - 3 Ω
