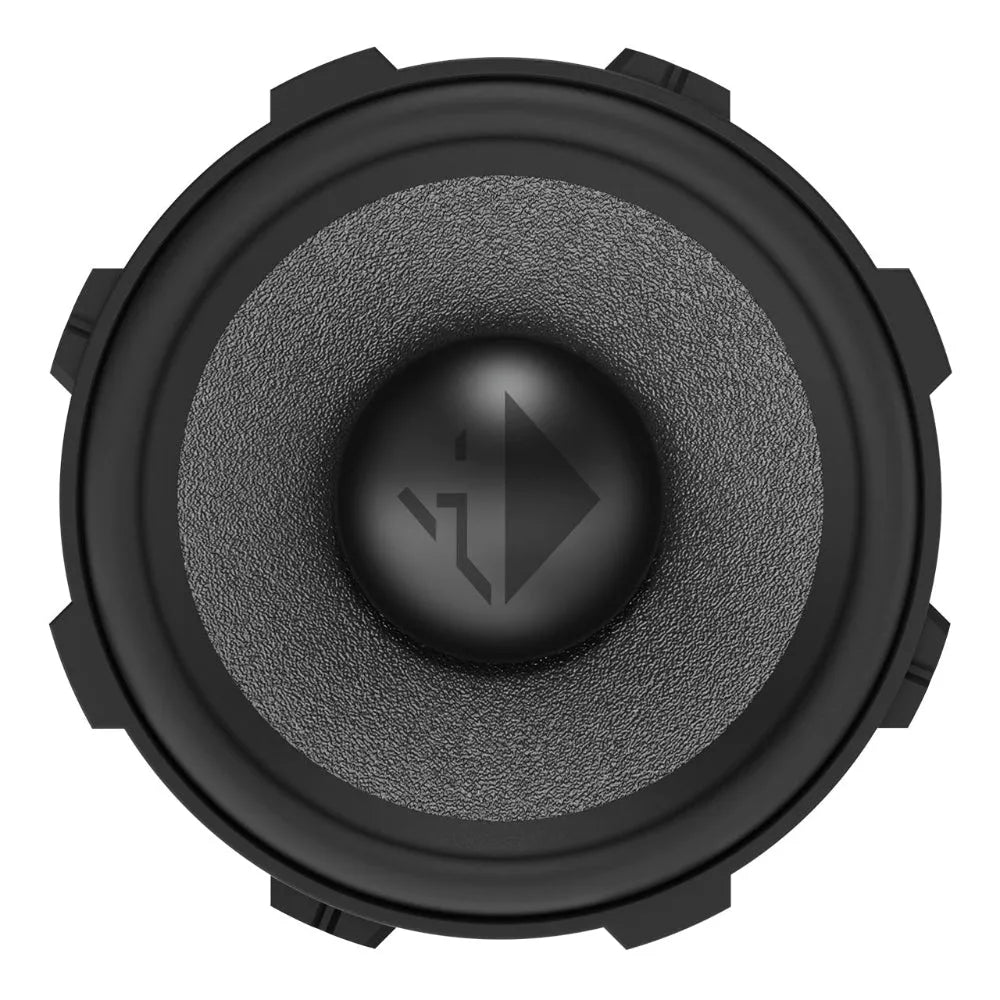

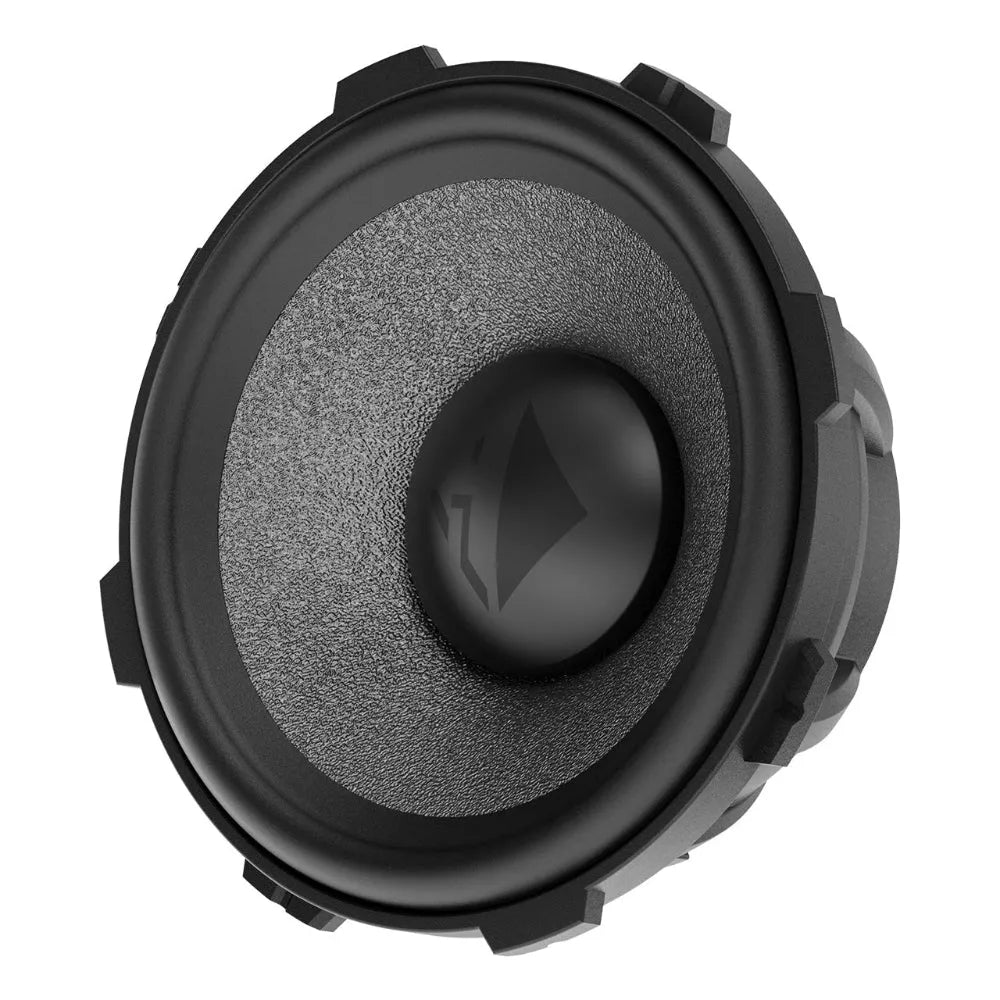

Helix Ci5 M50FM-S3, 5cm car midrange speaker

INFORMACIJA

The Helix Ci5 M50FM-S3 is a high-end 50mm car speaker designed for discerning music listeners looking for maximum audio detail in an ultra-compact format. Featuring COMPOSE i5 series technology, 3Ω efficiency and FlexMount50 mounting system, this model is ideal for OEM upgrades, center channels and DSP-driven sound systems where every detail of the space matters.

Power (RMS / Max): 70 / 100 W
Resistance: 3 Ω
Frequency range: 300 – 20,000 Hz
Sensitivity: 89 dB @ 2.83 V / 1 m
Mounting diameter: 50.9 mm
Installation depth: 25.2 mm
Outer diameter: 59.8 mm

DESCRIPTION

HELIX COMPOSITE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

The Sound Sensation for sophisticated music lovers
The HELIX COMPOSE i5 series is the link between i7 and i3, created for sophisticated music lovers with a sparked ambition for a true hi-fi experience. A lovechild of phenomenal sound and unmatched practicality: Developed with the vision of unique speaker highlights that are also true problem solvers. All speaker impedances are perfectly matched for the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance at any time. In addition, we implemented our COMPOSE-exclusive mechanical technologies that offer unbeatable practical benefits.

Audiophile wideband performance for flexible integrations
The Ci5 M50FM-S3 expands the COMPOSE platform with a highly advanced 2" wideband driver that convinces with its exceptionally compact design: thanks to its noticeably reduced outer diameter compared with typical 2" drivers as well as the implemented FlexMount technology, the Ci5 M50FM-S3 can be installed even in very tight OEM mounting locations. This makes it particularly suitable for installation positions where space constraints, unfavorable mounting angles or OEM housing limitations make conventional two- or three-way configurations difficult to realize.
Its exceptionally broad usable frequency range enables system layouts that can operate without a separate tweeter. The high power handling and clean, low-distortion high-frequency reproduction also make it an excellent choice for center applications, full-range systems or DSP-based setups that demand outstanding sound quality within minimal space.

Smart engineering for maximum efficiency, dynamics and detail resolution
The impressive performance of the Ci5 M50FM-S3 is based on a series of precisely coordinated engineering features. The specially shaped surround and innovative magnet assembly enable an unusually large linear excursion for this driver size, resulting in remarkable power handling and extremely low-distortion playback. This combination also forms the basis for an exceptionally smooth and wide frequency response for a 2” driver, free from the typical peaks or dips found in many compact wideband speakers.
At the same time, the unusually large cone area as well as the significantly reduced outer diameter (compared to conventional 2" speakers) maximizes performance and lends the driver impressive dynamic capability. Another key factor in its extended high-frequency reproduction is the aluminum dustcap, directly bonded to the voice coil. Its lightweight and rigid construction improves transient behavior well into the upper frequency ranges, contributing significantly to the Ci5 M50FM-S3's outstanding transparency and detail resolution.
The silicon-coated paper cone provides high internal damping, a natural, precise tonal character and suppresses unwanted resonance frequencies. Completing the engineering package is the powerful push-pull neodymium magnet system, whose efficient magnetic guidance increases sensitivity while keeping distortion to a minimum – the foundation for clean, confident sound performance even at demanding playback levels.

High efficiency
HELIX COMPOSE equals smart engineering and accordingly implements highly efficient 3 Ohm technology, which perfectly harmonizes with all HELIX and MATCH amplifiers and at the same time allows a clearly perceptible plus in efficiency and maximum sound pressure.

High-tech polymer basket
The Ci5 M50FM-S3 speaker basket is made of a high-tech polymer composite, which has been additionally reinforced with glass spheres. The result: maximum stability with minimal self-resonance, while also eliminating flux modulation of the magnetic system and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and thus simplified installations in cramped installation conditions.

FlexMount50 – Universal meets car-specific
FlexMount is a mounting system based on specially developed adapter rings, allowing the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. Thus, the universal loudspeaker effortlessly becomes a vehicle-specific loudspeaker, that can be easily installed in the original installation position of the vehicle in an acoustically optimized way with the matching FlexMount adapter ring.

Find the right FlexMount for your car!

Features
2” / 50 mm advanced wideband speaker with exceptional sound performance and versatile physical integration options
High efficiency and 3 Ohms technology for maximized power output of the amplifier
Silicon coated paper cone for excellent impulse response and unmatched frequency response
Maximized cone area and an aluminum dust-cap directly coupled to the voice coil, achieving a wide frequency response of 300 – 20,000 Hz
High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
Special rubber surround and optimized magnet system for large linear cone excursion
Dedicated surround manufacturing allows for a smaller installation diameter and a maximized effective cone area compared to typical 50 mm speakers

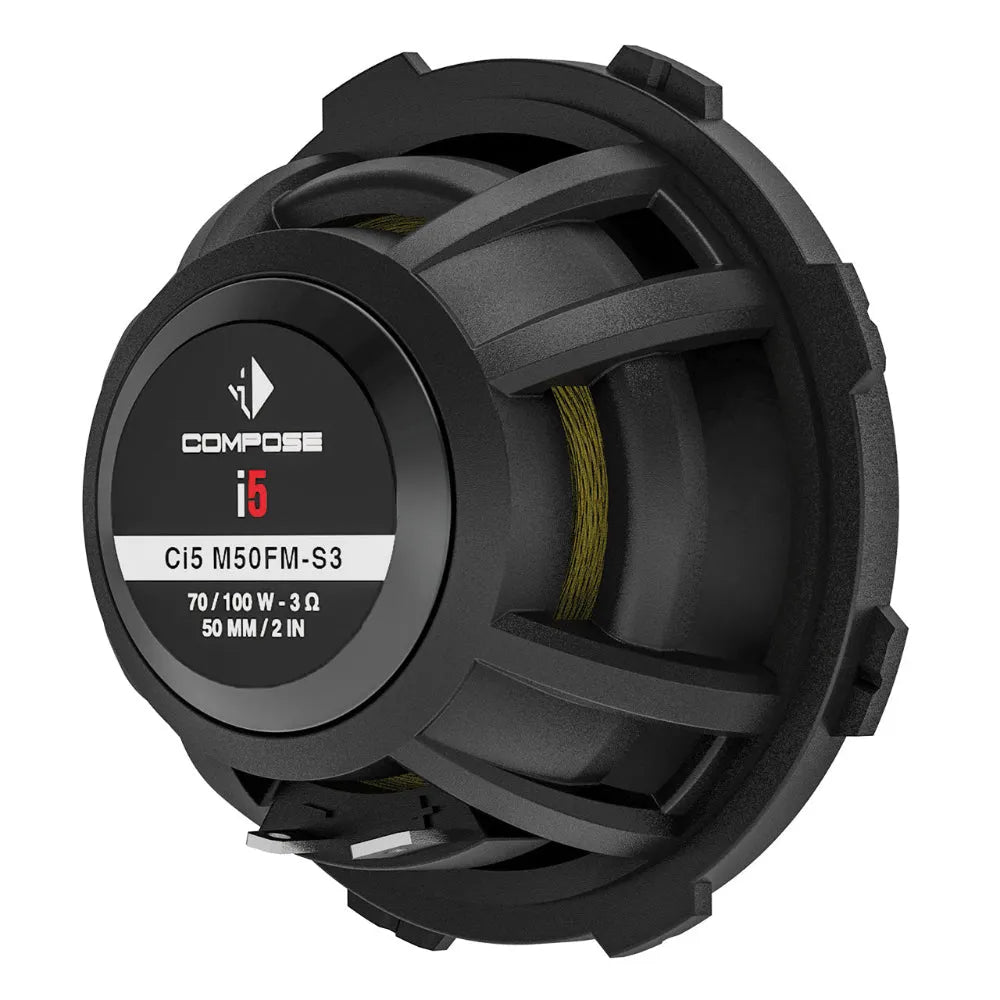

Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion
Universal FlexMount50 mounting ring for car-specific adaptation (eg Audi, Ford, Mercedes etc.) or universal use included in delivery
Universal mounting ring with grille included in delivery

TECHNICAL DATA

Power handling RMS / Max. P
70 / 100 Watts
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Frequency response 300 Hz - 20,000 Hz
Resonance frequency Fs 240 Hz
Mechanical Q factor Qms 3.09
Electrical Q factor Qes 0.80
Total Q factor Qts 0.68
Compliance CMS
300 µm/N

Equivalent air volume Vas 0.16 L
Force factor B*I
2.8 Tons

Sensitivity SPL 89 dB @ 2.83 V / 1m
85 dB @ 1W / 1m
Cone area Sd 19.6 cm²
Moving mass Mms 1.43 g
Cone material Silicon coated paper cone
Mechanical resistance Rms 0.71 kg/s
Voice coil diameter ø 20 mm
Voice coil winding height 7 mm
Max. linear excursion Xlin +/- 2.5 mm
Max. mechanical excursion Xmax +/- 3.5 mm
Outer diameter ø 59.8 mm / 2.34"
Outer diameter with universal mounting ring ø 70.0 mm / 2.75"
Installation diameter ø 50.9 mm / 2.00"
Installation depth 25.2 mm / 0.99"
Features Powerful push-pull neodymium magnet system,
FlexMount50
Compatibility
FlexMount50

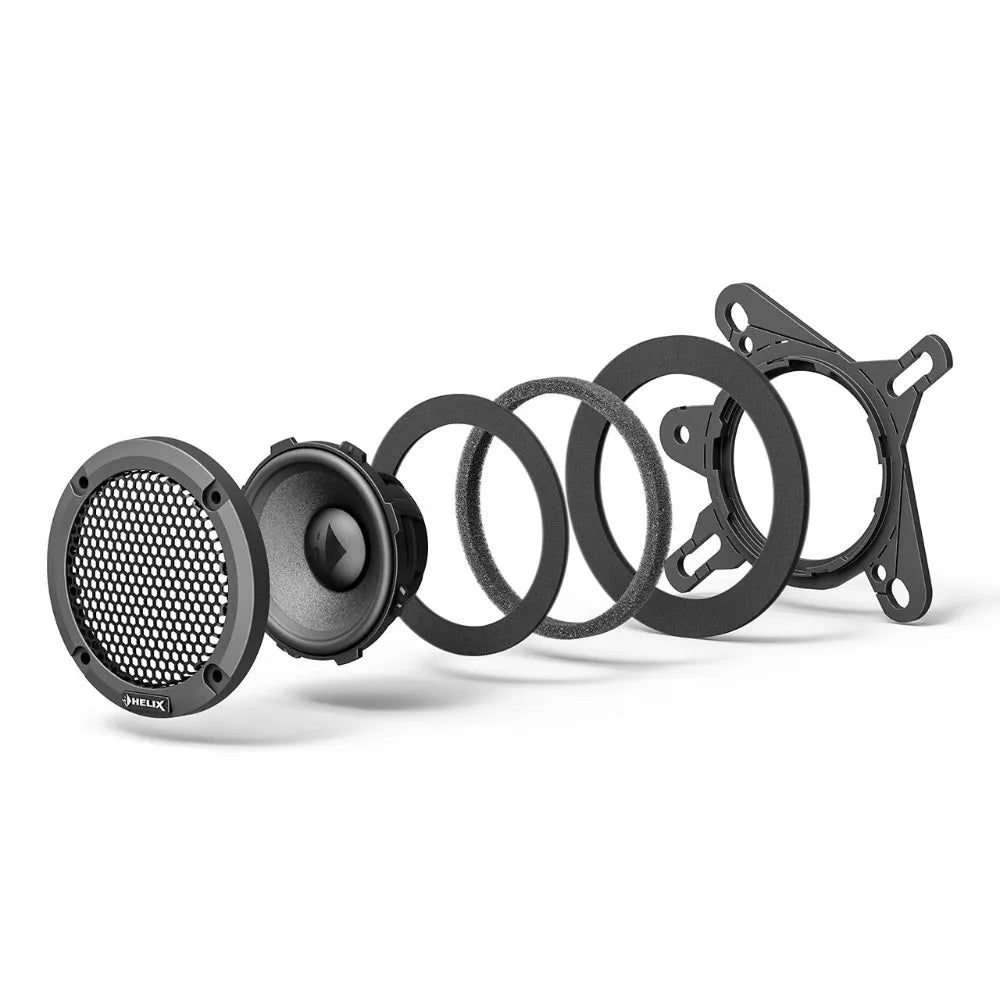

Scope of delivery

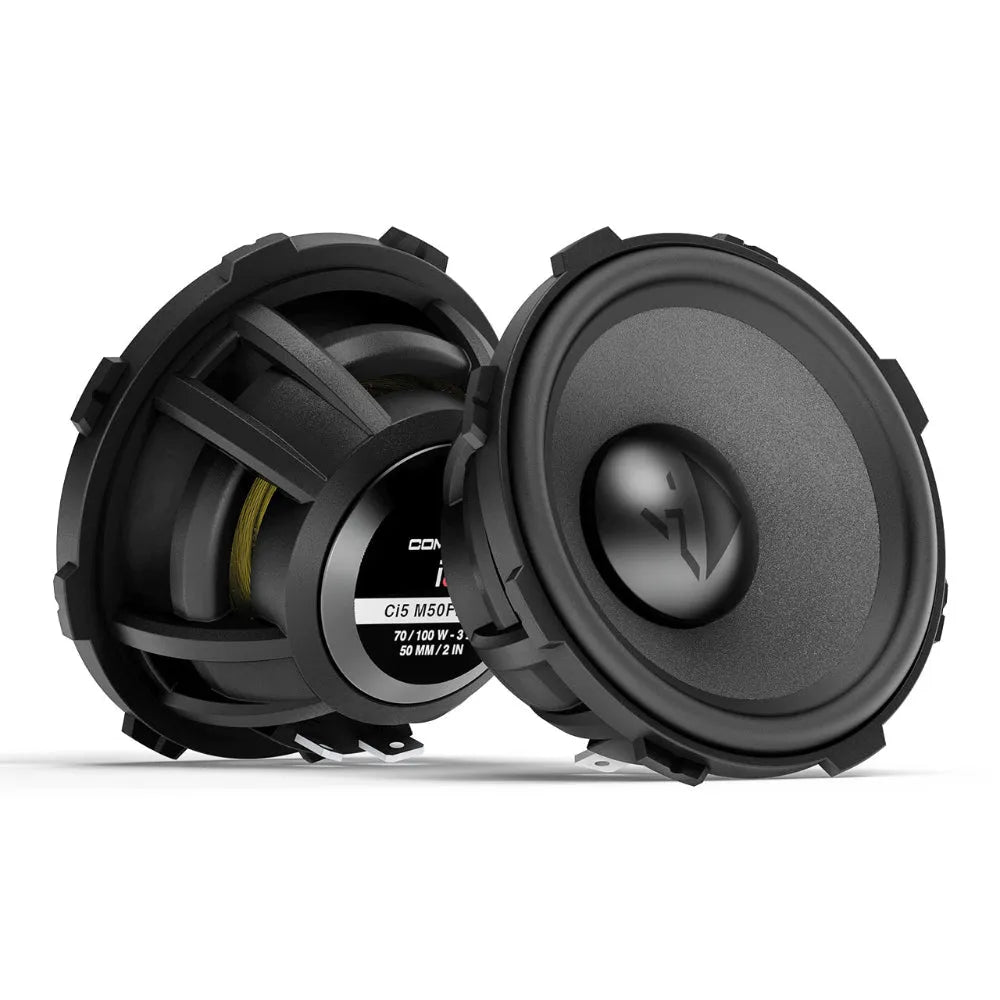

2 x Ci5 M50FM-S3
2 x Universal FlexMount CFM50 MULTI.1
2 x Speaker gasket
2 x Mounting ring with grille
1 x Mounting material
