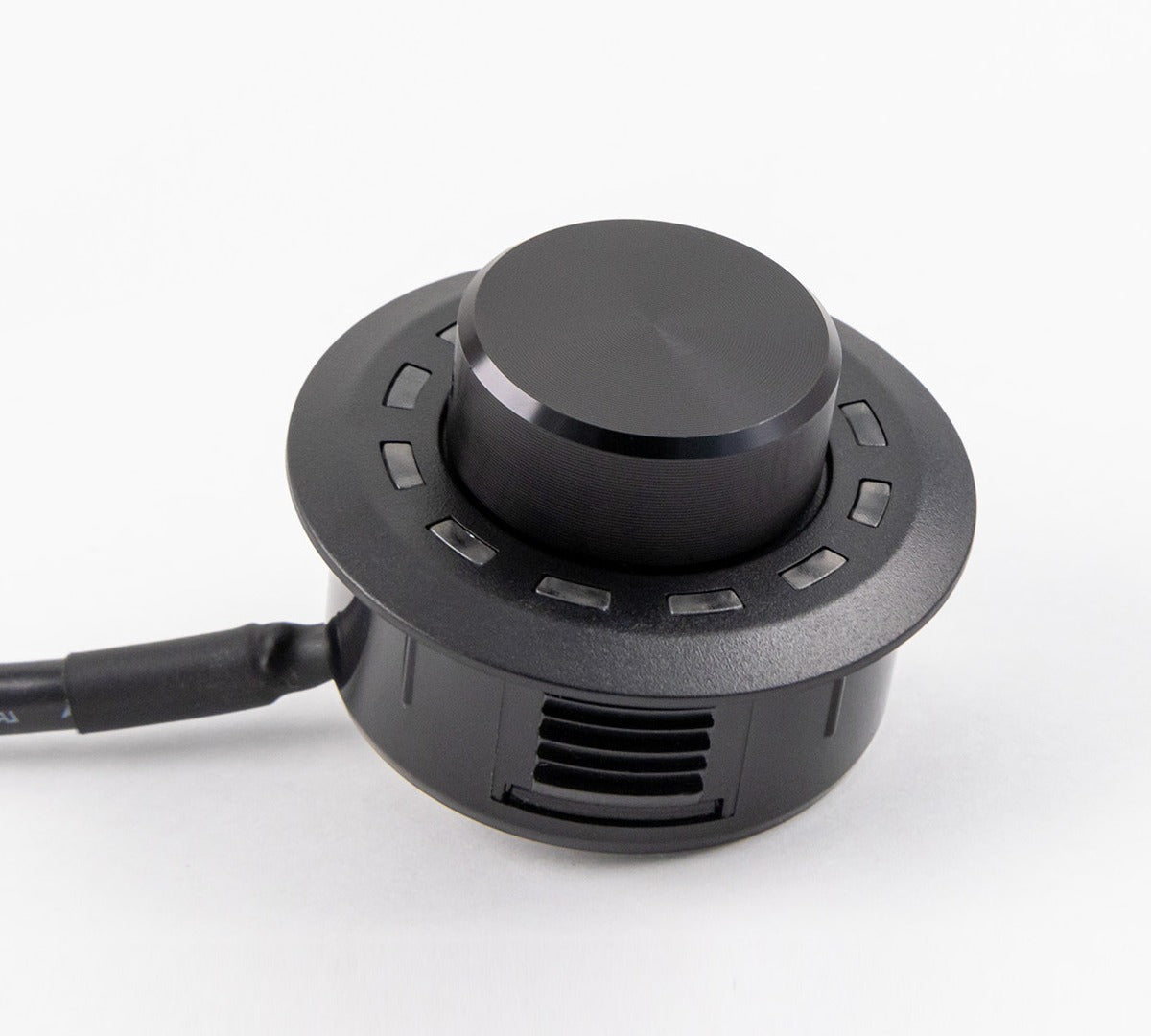

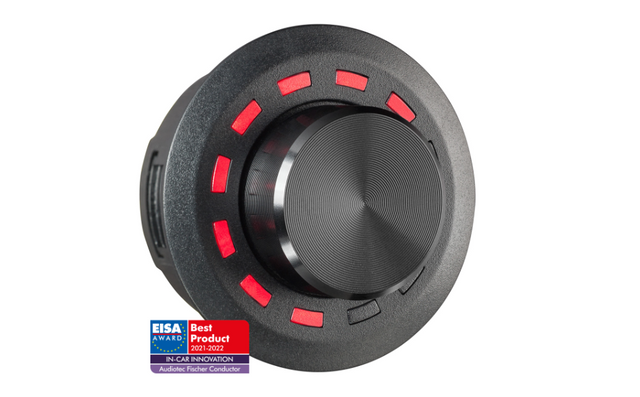

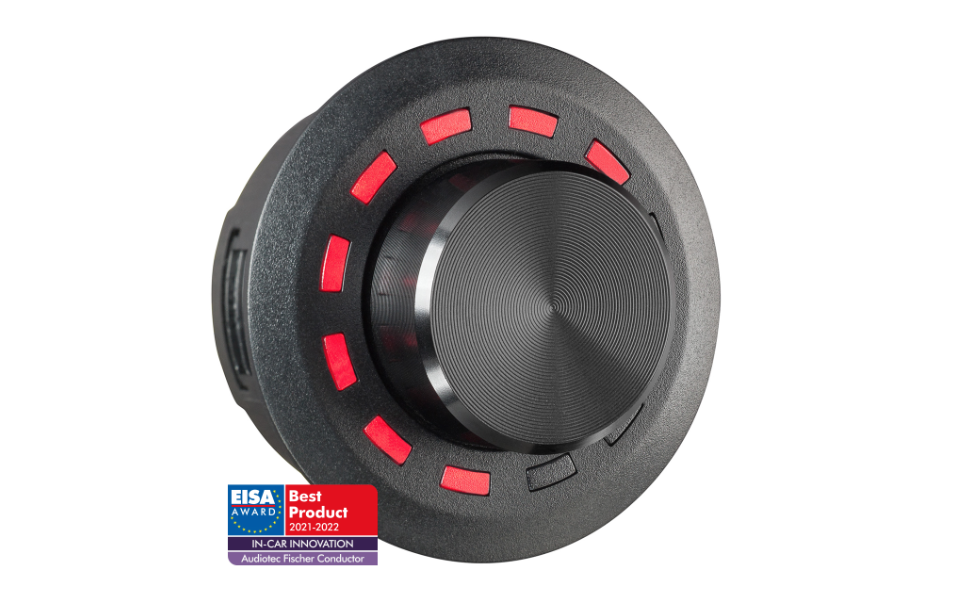

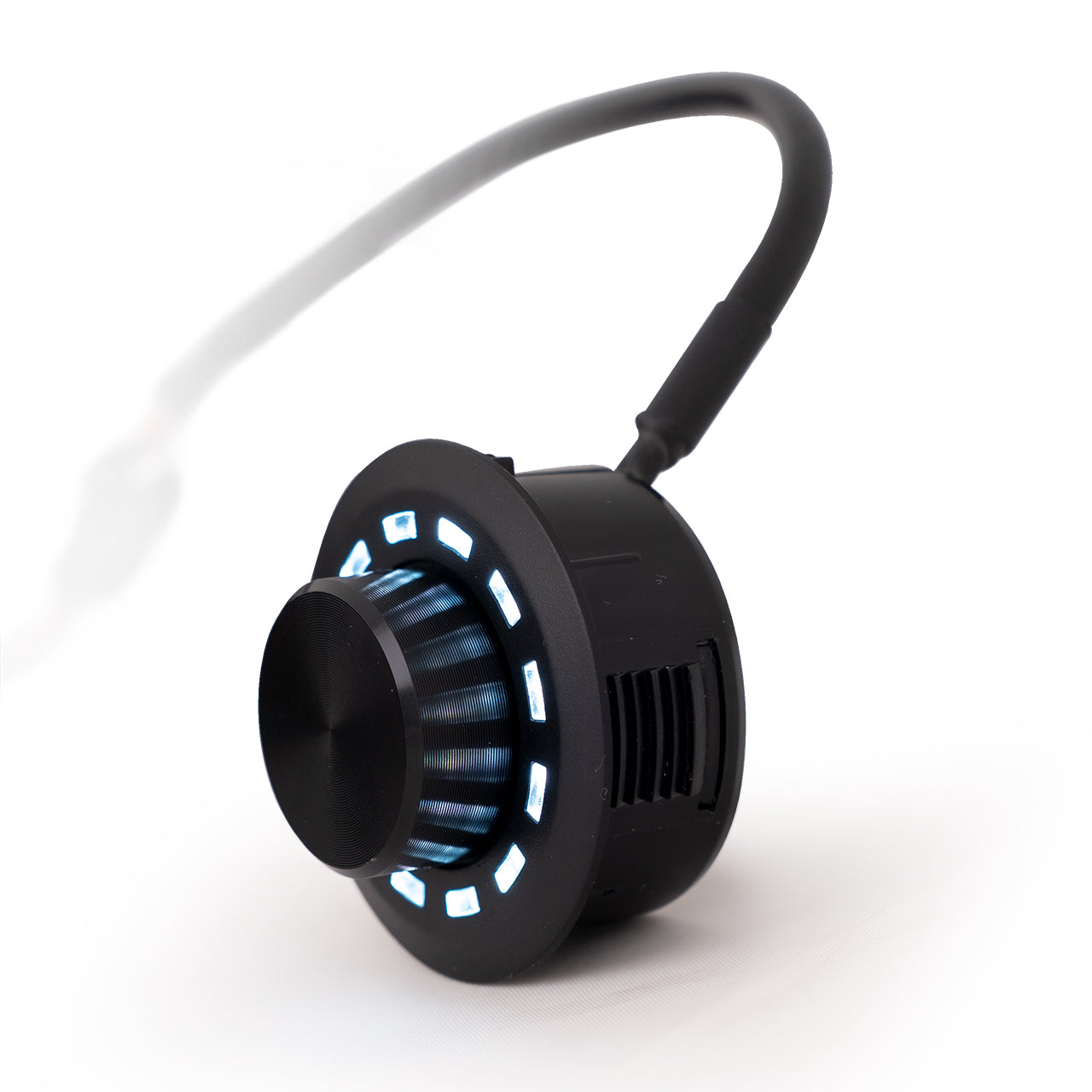

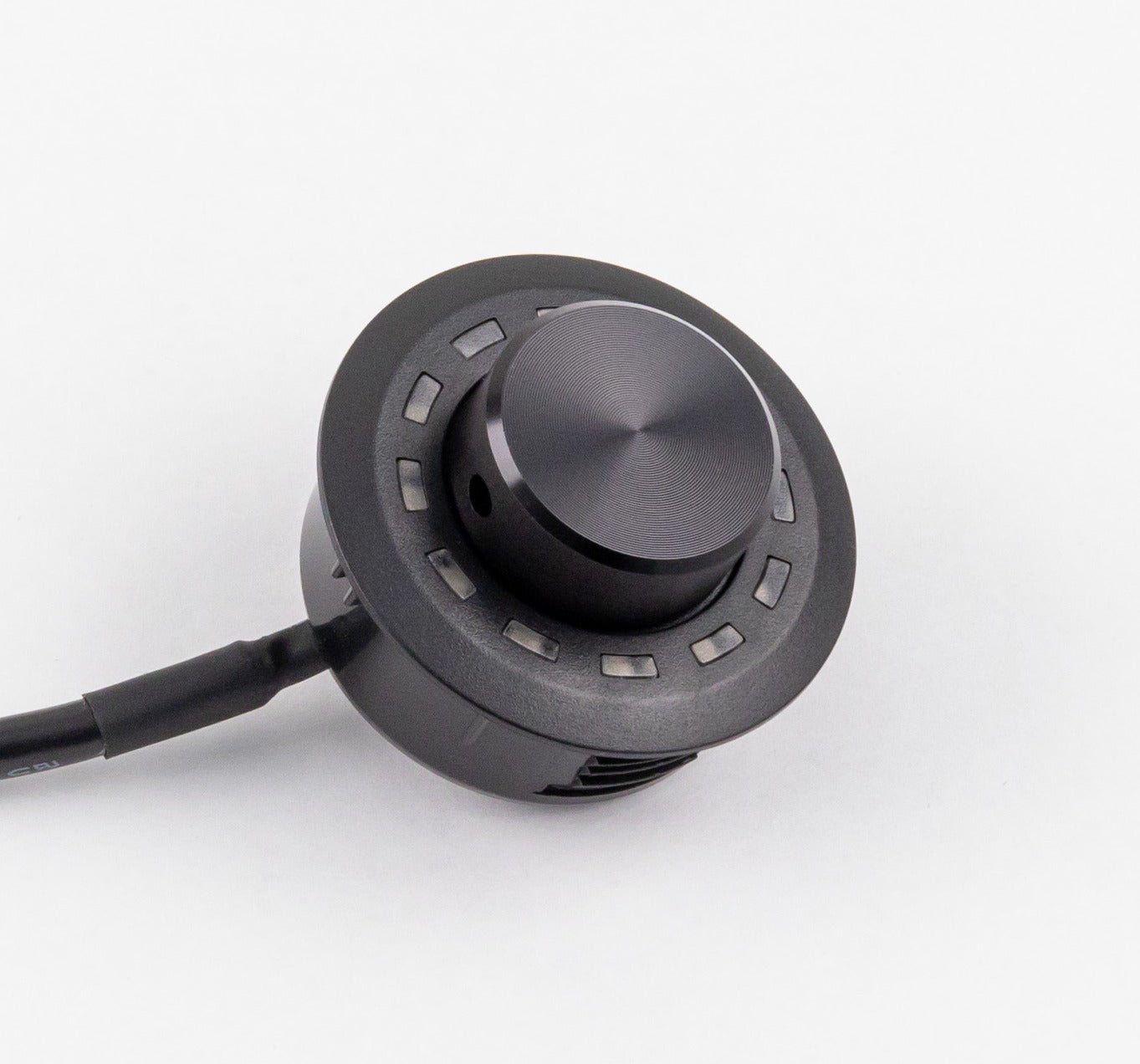

HELIX Conductor for SCP, smart sound controller

Control your car audio intuitively. Configure up to four audio menus with individual colors and easily manage playback

€119.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

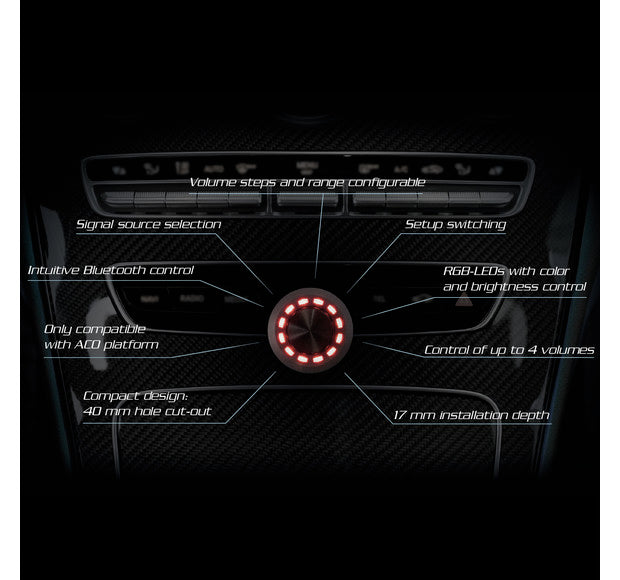

The HELIX CONDUCTOR is the remote control for ACO. SCP connection. FEATURES: Up to 4 individual sound menus, configurable (Master, Digital, HEC/AUX, Subwoofer, Rear Att.) • Volume range selectable (60 dB, 24 dB, 12 dB). • Volume steps selectable (1 dB steps, 0.5 dB steps). • Individual color selectable for each sound menu. Volume setting selection between all 10 memory locations. Intuitive Bluetooth playback control and pairing activation (for Bluetooth expansion card only). 12 x RGB-LEDs for visual feedback.

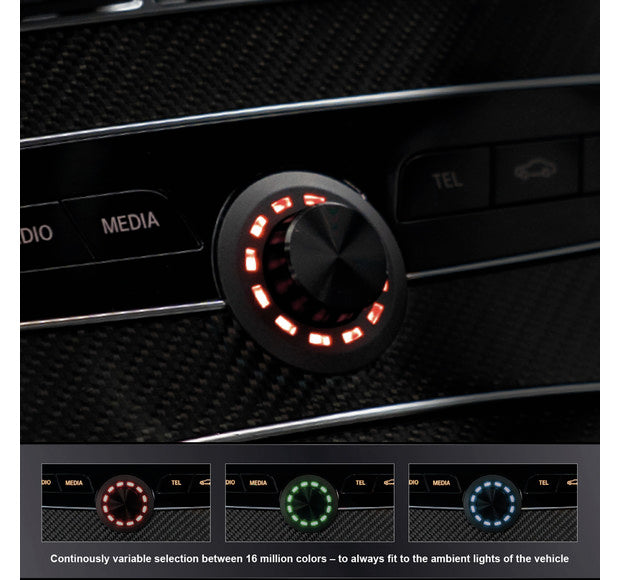

• Wide color spectrum with over 16 million colors.
• Brightness and automatic dimming function configurable. Easy installation.
• Flush mount installation with Ø 40 mm hole cutout. • 5 m cable set with split switch and single switch supply.
• An optional housing version for dashboard mounting will be available soon.

All configuration and updates via DSP PC-Tool software. DSP PC-Tool 4.75a or newer.

COMPATIBILITY:

BRAX:
HELIX DSP PRO MK3
DSP.3S
DSP MINI MK2
V TWELVE DSP MK2

MATCH:
UP 10DSP
UP 8DSP
M 5.4DSP

Note: The CONDUCTOR is not compatible with WIFI CONTROL or DIRECTOR.
Note 2: The CONDUCTOR is not compatible with UP 7DSP / UP 7BMW

Technical data

Housing: ABS housing with machined aluminum knob.
Hardware: Rotary encoder, 12 x RGB-LEDs &
48 MHz ARM processor.
Connection: Smart Control Port ( SCP )
MiniDIN or NanoFit.
Cable length: 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable.

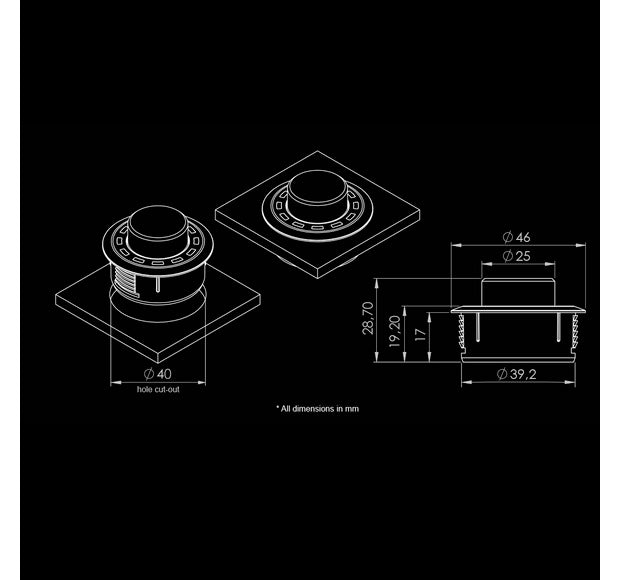

Dimensions: (Ø x H) Ø 46 x 28.7 mm /
Ø 1.81 x 1.13”.
