HELIX DIRECTOR for SCP

INFORMACIJA

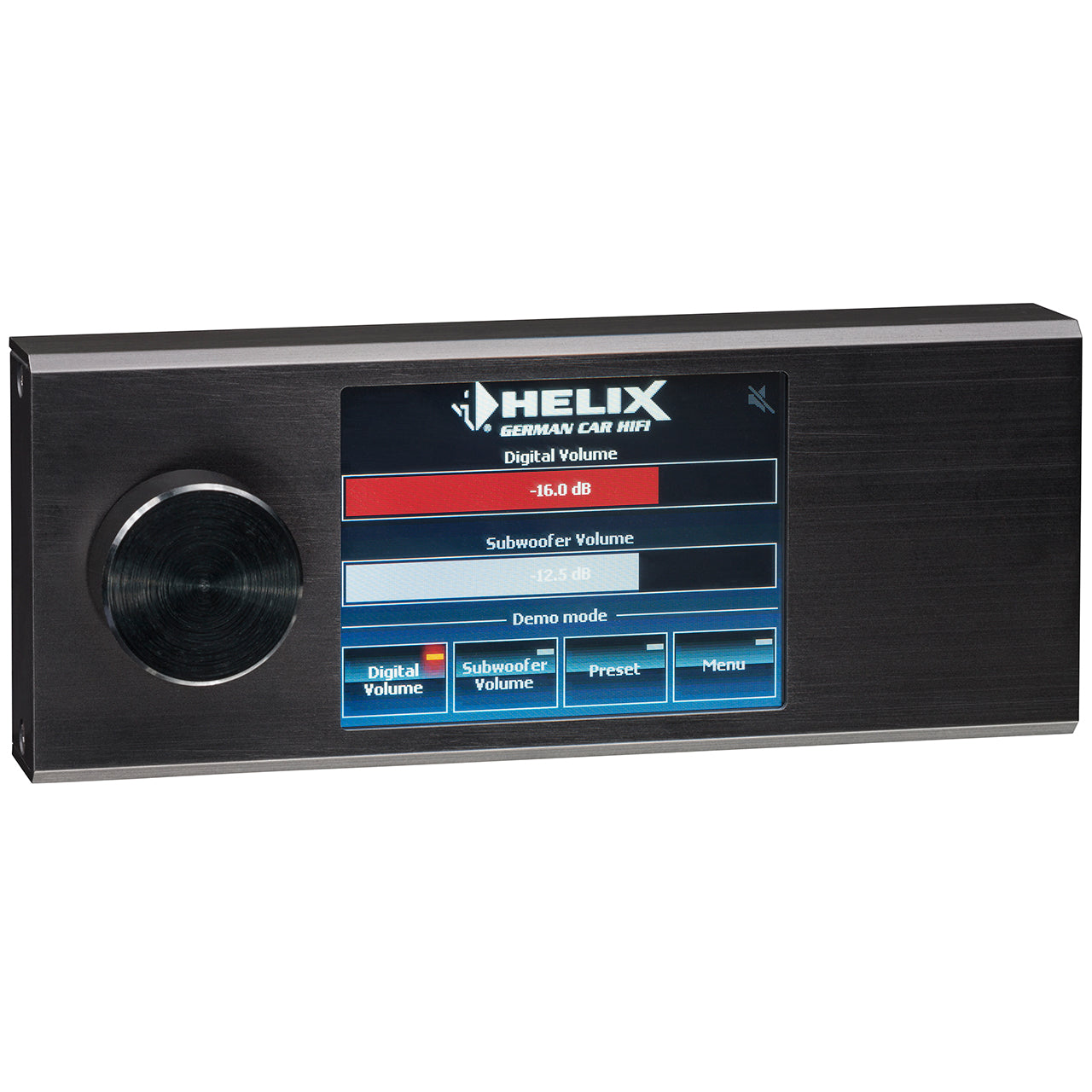

DIRECTOR - Screen Remote Control Everything under control! With the new DIRECTOR remote control, you are in charge! The 2.8” / 7 cm full-color touchscreen and intuitive menu navigation make it easy to control many functions – for example: Source selection Volume control for all sources Subwoofer volume control HEC BT module control and configuration Switching between sound setups. In addition, it provides enough memory for 20 additional sound setups and has a USB port, allowing direct access to your DSP device via the DIRECTOR - a great relief if you want to adjust your configuration while your processor/amplifier is hidden somewhere in the trunk. The high-resolution, full-color touchscreen is integrated into a robust aluminum block. The DIRECTOR is compatible with all DSP products supported by DSP PC-Tool version 3 and higher.

Technical data

Features
2.8“ / 7 cm touchscreen display and powerful ARM processor
Easy handling of the main functions
Volume control of all sources
Volume control of the subwoofer
Source selection
Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
Switching between sound setups
Memory locations for 20 additional sound setups (only devices without ACO platform)
Automatic dimming function of the display
Display rotation adjustable to 180°
Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
Exclusive solid aluminum housing
17’ / 5.2 m connection cable included
Technical data
Dimensions (H x W x D)
53.50 x 135 x 18 mm
2.07 x 5.32 x 0.71″

Compatibility
DIRECTOR for SCP
BRAX
HELIX DSP PRO MK3
DSP.3S
DSP MINI MK2
P SIX DSP ULTIMATE (not in 24V applications)
MATCH
UP 10DSP
UP 8DSP
M 5.4DSP

Scope of delivery:
1 x Remote control DIRECTOR
1 x Connection cable for Smart Control Port, 17′ / 5.2 m length
1 x Instruction manual
