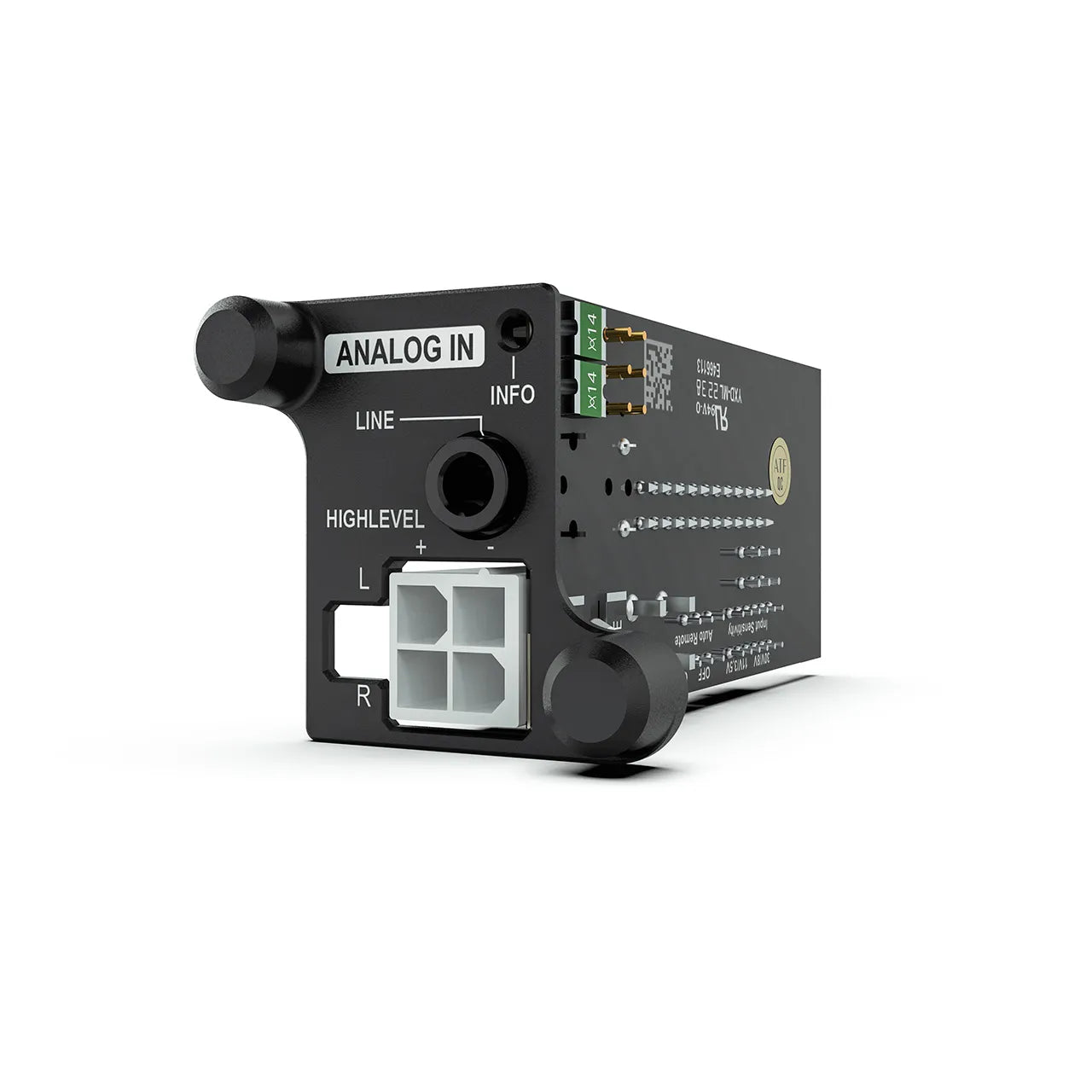

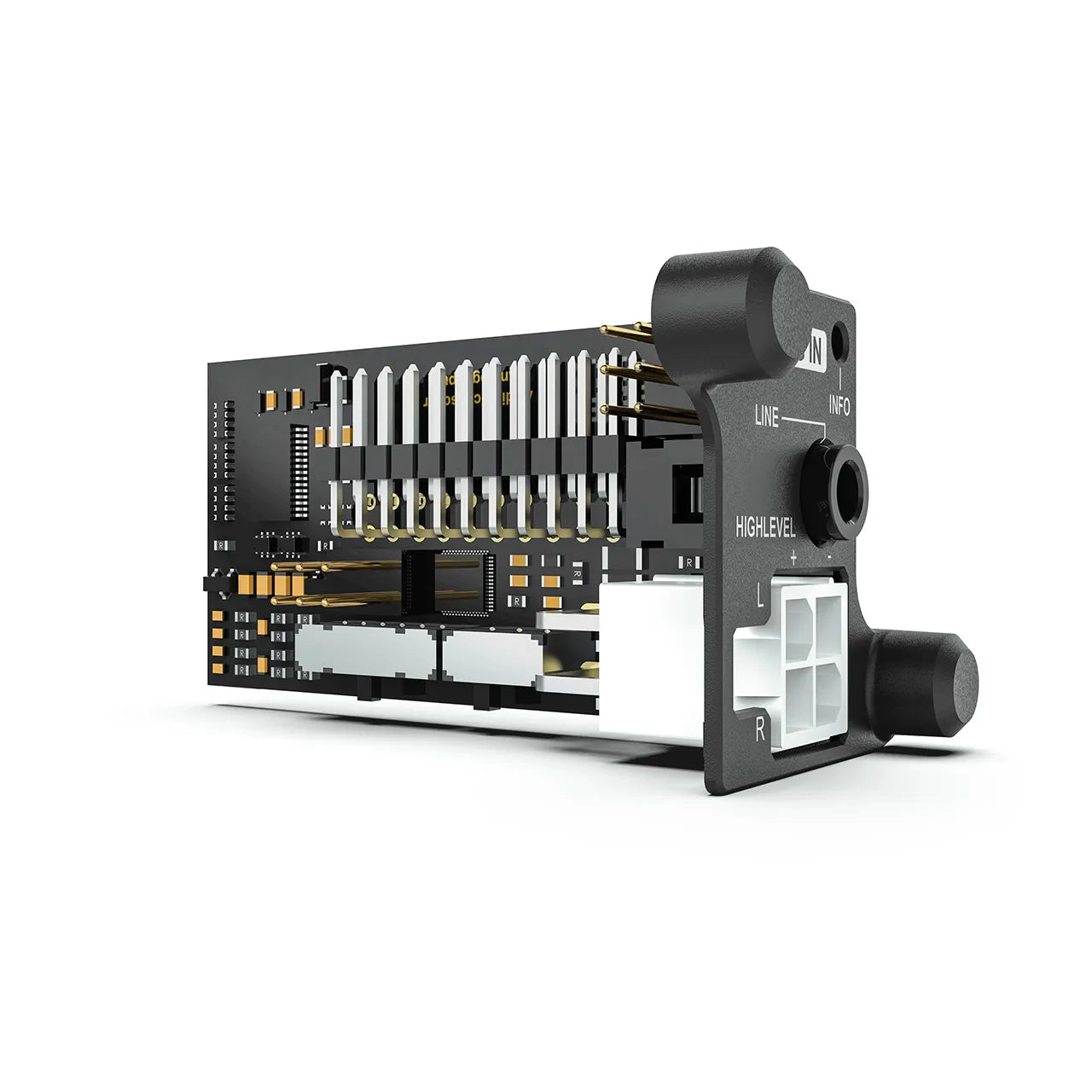

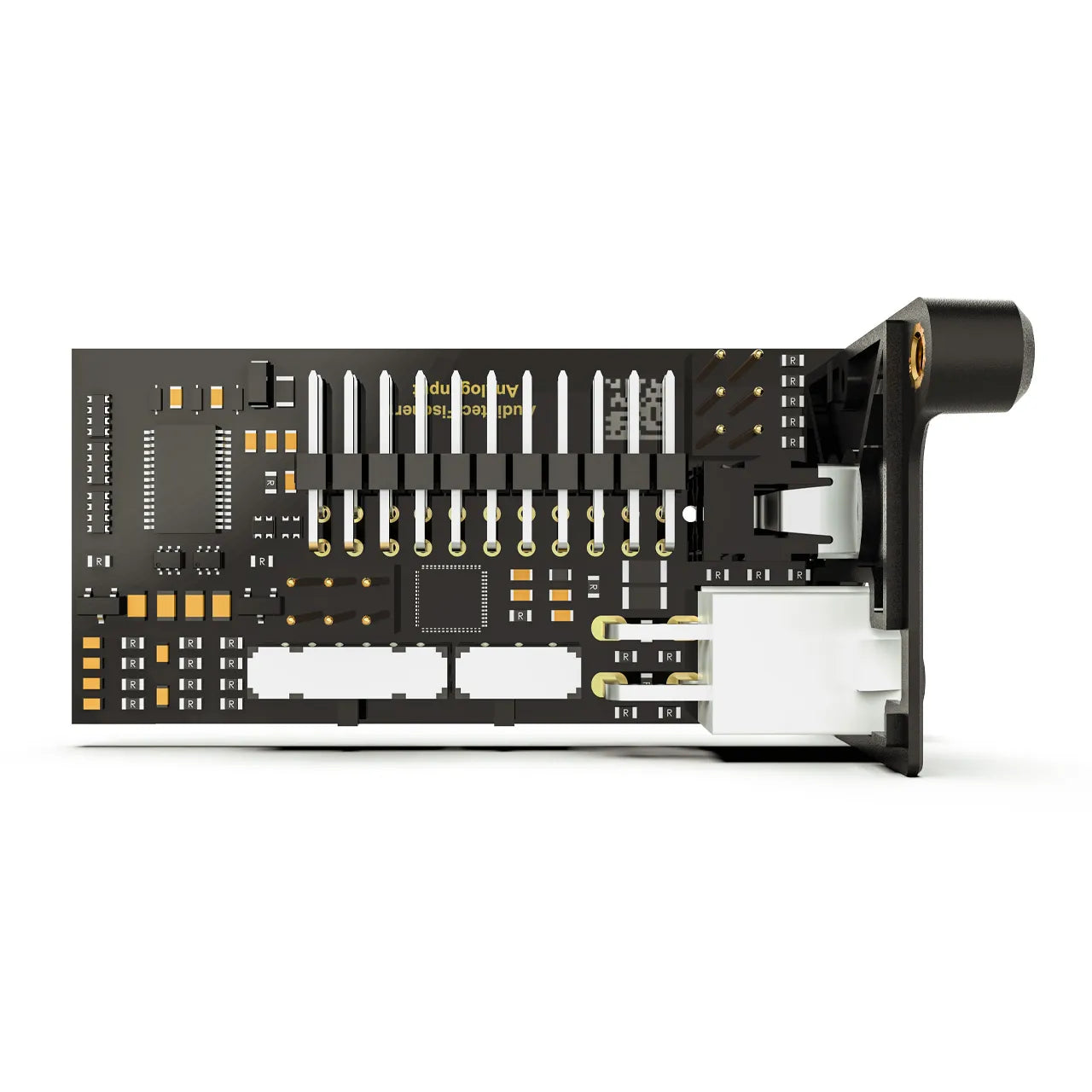

Extension Card 2.0 – ANALOG IN
Two additional channels – maximum flexibility
The Extension Card 2.0 ANALOG IN expands your DSP or DSP amplifier with two analog input channels – ideal for complex application scenarios, connecting additional signal sources such as a TV or smartphone, or integrating into OEM premium sound systems. Whether high-level or low-level signal: this module provides the right interface, offering flexible use and full configuration via DSP PC-Tool.

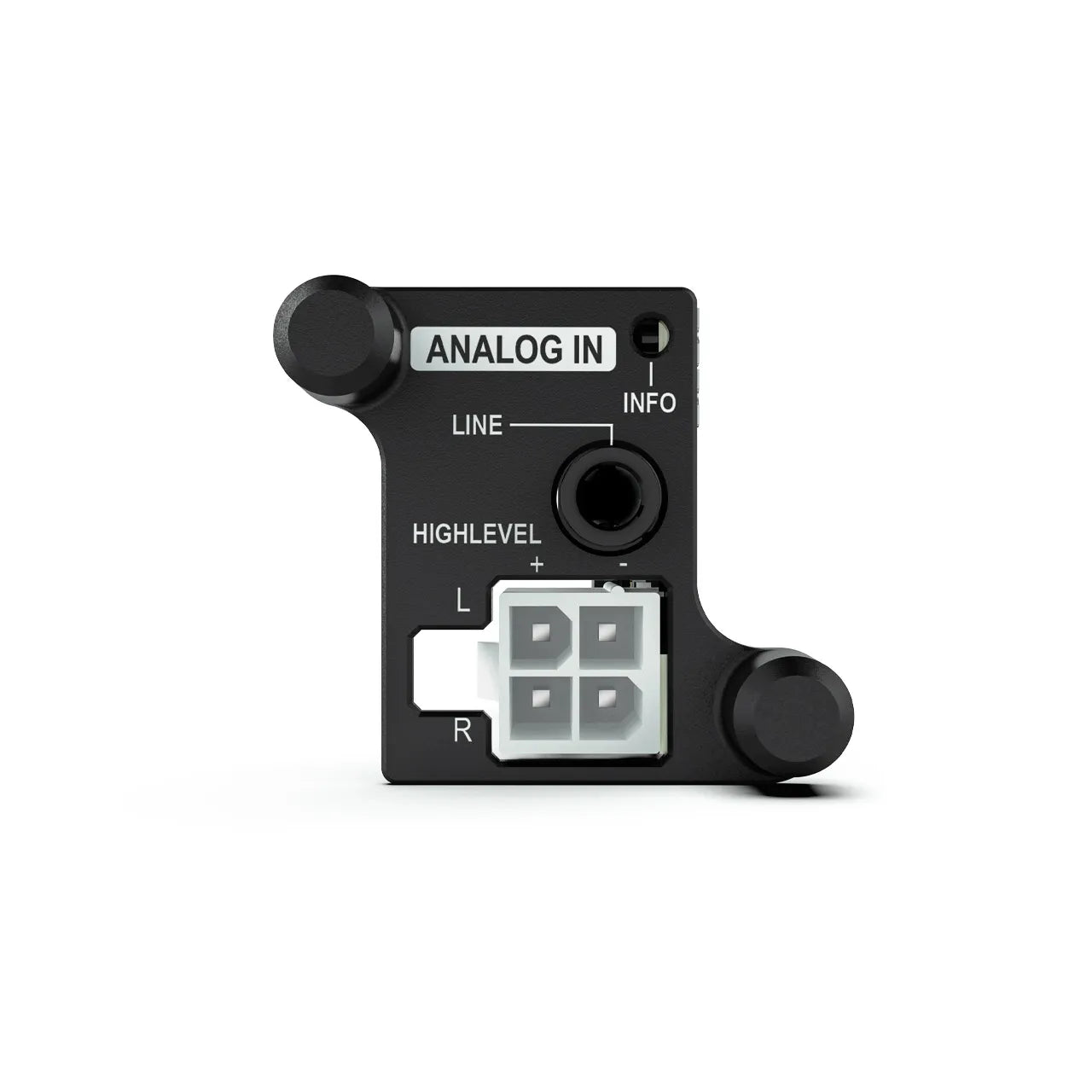

Extensive connectivity
The high-quality high-level input with ADEP.3 circuit, auto remote function, and adjustable input sensitivity from 1.5 to 30 V ensures seamless integration with OEM head units or factory amplifiers. For signal sources with low-level output, the module offers an additional 3.5 mm stereo input with adjustable input sensitivity from 0.5 to 8 V.

Freely configurable via DSP PC-Tool
Inputs can be freely configured in the DSP PC-Tool – either as additional main inputs.

Technical data

Technical data

Input voltage highlevel
1.5 - 30 Volts (adjustable)
Input voltage lowlevel
0.5 - 8 Volts (adjustable)
Lowlevel input
3.5 mm jack
Additional features
ADEP.3, Auto Remote function

Compatibility
All HELIX and MATCH DSP devices featuring Extension Card 2.0 slot

Scope of delivery
1 x ANALOG IN module
1 x MOLEX connection cable for the highlevel input
1 x Mounting screws
