HELIX G TWO, car starter audio amplifier

2-channel car starter audio amplifier.

€279.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

2-channel car starter audio amplifier. One of the best value for money in its segment.

  • Power: 600W.
  • Frequency range: 10 Hz - 40,000 Hz.
  • Amplifier class: AB.
  • Resistance: 4 ohms.
DESCRIPTION

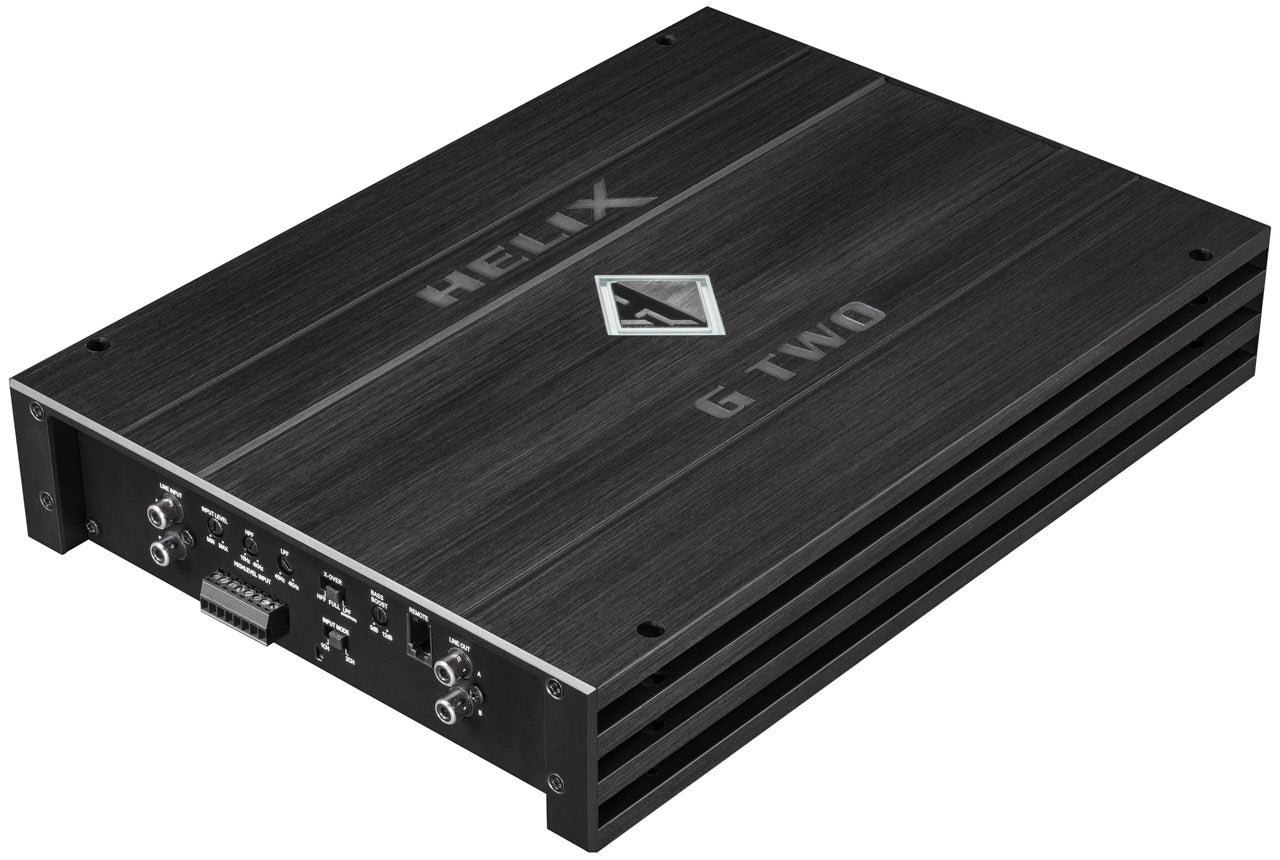

HELIX G TWO

The new G amplifiers are more than just impressive power packs. They unite innovative technology, extensive functionality and best sound with a very attractive price to performance ratio.

If we do not talk about their more obvious features, such as fully active crossovers with highpass, lowpass, bandpass, bass boost and input mode switch for flexible input signal routing and smart high level input with ADEP circuits, we can still talk about how the G series also provides Start-Stop capability which is an exceptional feature in this price range. Wait, that's not all... a remote control for adjusting the subwoofer level is included as part of the deal.

With such an extensive list of features in this piece of equipment, it is really not hard to realize a sound system in your car that has a great sound and lots of power for when you need it most.

Furthermore, the G amplifiers have the compact and straight HELIX design that has become synonymous with HELIX. In addition, for those who love a good light show, the logo has been illuminated for your viewing pleasure.

Features
  • Start-Stop capability down to 6V supply voltage
  • Smart high-level input with ADEP circuit (Advanced Diagnostics Error Protection)
  • Fully active crossover with highpass, lowpass, bandpass and bass boost
  • Extremely stable output stage with high-current power transistors
  • Cable remote control for volume adjustment of the channels A and B
  • "Input mode" switch for flexible input signal routing
  • High level input sensitivity up to 14 Volts max.
  • 2-channel PreOut for the connection of additional amplifiers
  • SMD (Surface Mounted Device) manufacturing technology combines minimum space requirements with maximum reliability
  • Exclusive compact and clean design with illuminated HELIX logo



Special features:

Smart high level input


The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (eg fader function) appear quite often - but not with the G TWO.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Start-Stop capability

The switched power supply of the HELIX G TWO ensures operation even if the battery's voltage drops down to 6 Volts during engine cranking.

TECHNICAL DATA

SPECIFICATIONS

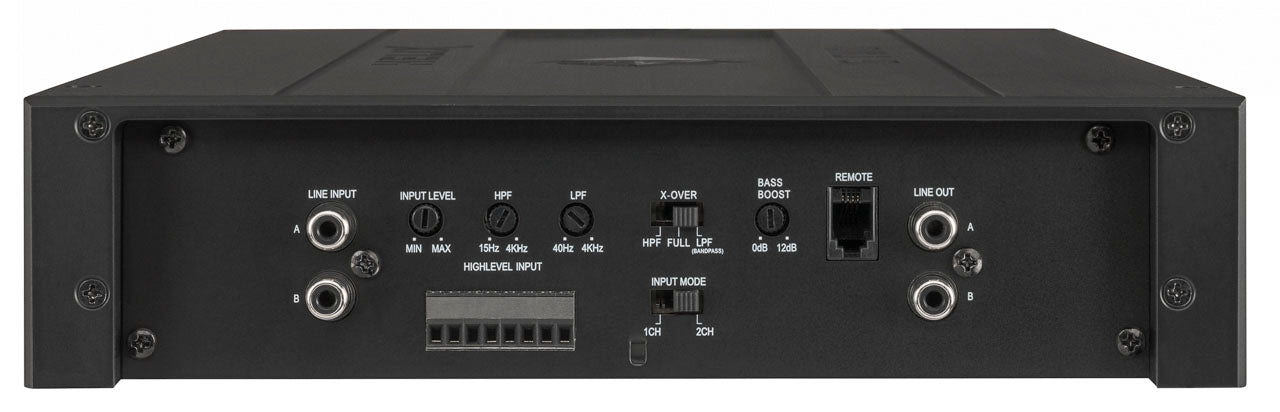

Inputs 2 x RCA/Cinch
2 x High-level speaker input
1 x Remote In
1 x Remote control input
Input sensitivity RCA / Cinch 1 - 6 Volts
High level 2.5 - 14 Volts
Input impedance RCA / RCA 30 kOhms
Input impedance high level 12 Ohms

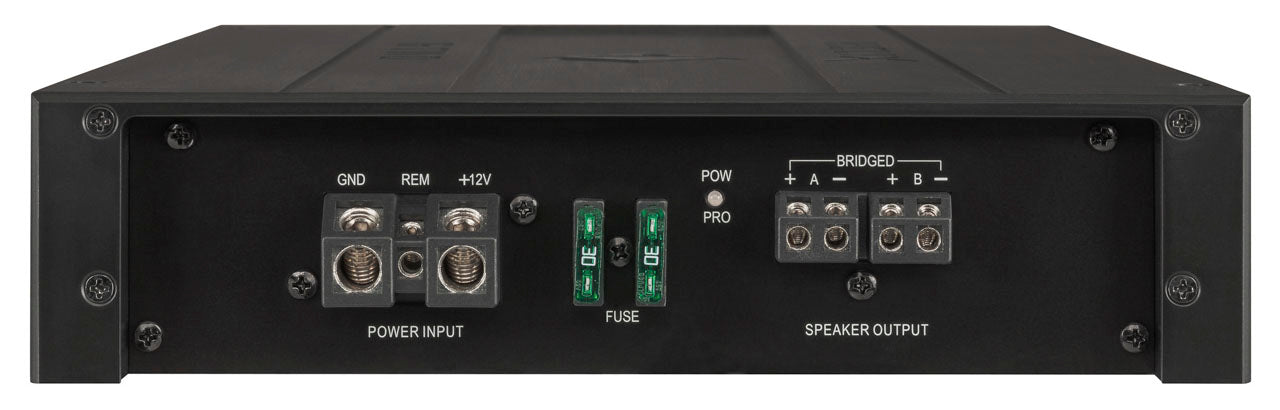

Outputs 2 x Speaker output
2 x RCA/Cinch
Output voltage RCA / RCA 1 - 6 Volts RMS
Signal converter for digital input -
Frequency response 10 Hz to 40,000 Hz
Bass boost 0 - 12 dB / 45 Hz
Highpass 15 Hz - 4,000 Hz adjustable
Lowpass 40 Hz - 4,000 Hz adjustable
Bandpass 15 Hz - 4,000 Hz adjustable
Subsonic -
Phase -
Slope high- / lowpass Butterworth 12 dB/Oct.
Slope subsonic / lowpass -
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 106 dB (A-weighted)
Distortion (THD) 0.02%
Damping factor 200
Operating voltage 9.6 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 1000mA
Fuse 2 x 30 A Maxi-fuse (APX)
Additional features Active, adjustable crossover, bass boost, input mode switch, high level input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), Start-Stop capability, remote control for volume adjustment
Dimensions (H x W x D) 57 x 334 x 241 mm /
2.24 x 13.15 x 9.50”

WHAT'S IN THE PACKAGE?

1 x Amplifier HELIX G TWO
1 x Cable remote control
1 x Mounting material
1 x Instruction manual
DOCUMENTS

INSTRUCTIONS

User Manual (EN).
