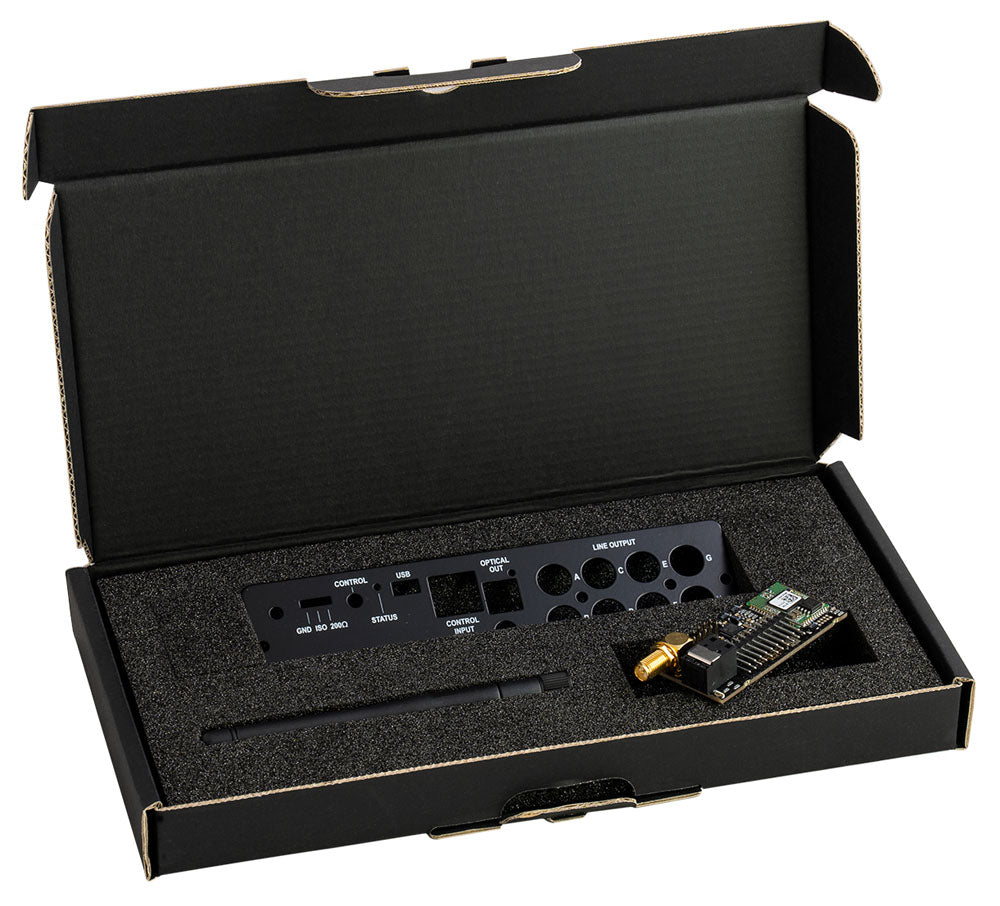

Helix HEC BT HD – P SIX DSP

INFORMACIJA

MATCH MEC BT HD Wireless audio streaming in HD quality via Bluetooth® The BT HD expansion card extends your MATCH device with Bluetooth® audio streaming functionality in HD quality up to 576 kbps and 24 Bit/48 kHz sample rate, thanks to the BT5.0+EDR standard. The module supports SBC, AAC, aptX & aptX HD audio codecs. In addition, the module is equipped with an optical digital output in SPDIF format. Thanks to high-quality audio support via the Qualcomm® aptX™ HD audio codec, wireless and continuous audio streaming in HD quality is possible. Furthermore, direct digital signal transmission from the BT HD module to the DSP without additional AD-DA conversion allows for lossless audio processing and thus exceptional sound quality. Full control The MEC BT HD supports control commands such as play/pause, track forward/backward, connect, pair, and disconnect for the connected DSP remote control (e.g., CONDUCTOR and DIRECTOR). The DIRECTOR screen also displays the current artist and title, as well as the currently used audio codec. Wireless DSP tuning Increased data transfer according to the BT5.0 standard, combined with DSP PC-Tool software V5 (available in early 2022) and a computer with Bluetooth® wireless technology, allows for wireless configuration of all DSP devices with the ACO platform. Inconvenient connection via USB cable is now a thing of the past. Everything included For seamless installation, the scope of delivery naturally includes a device-specific side panel and a high-quality antenna for maximum transmission quality.

Technical data

.
