HELIX IK E8.1-DVC2

INFORMACIJA

HELIX IK E8.1

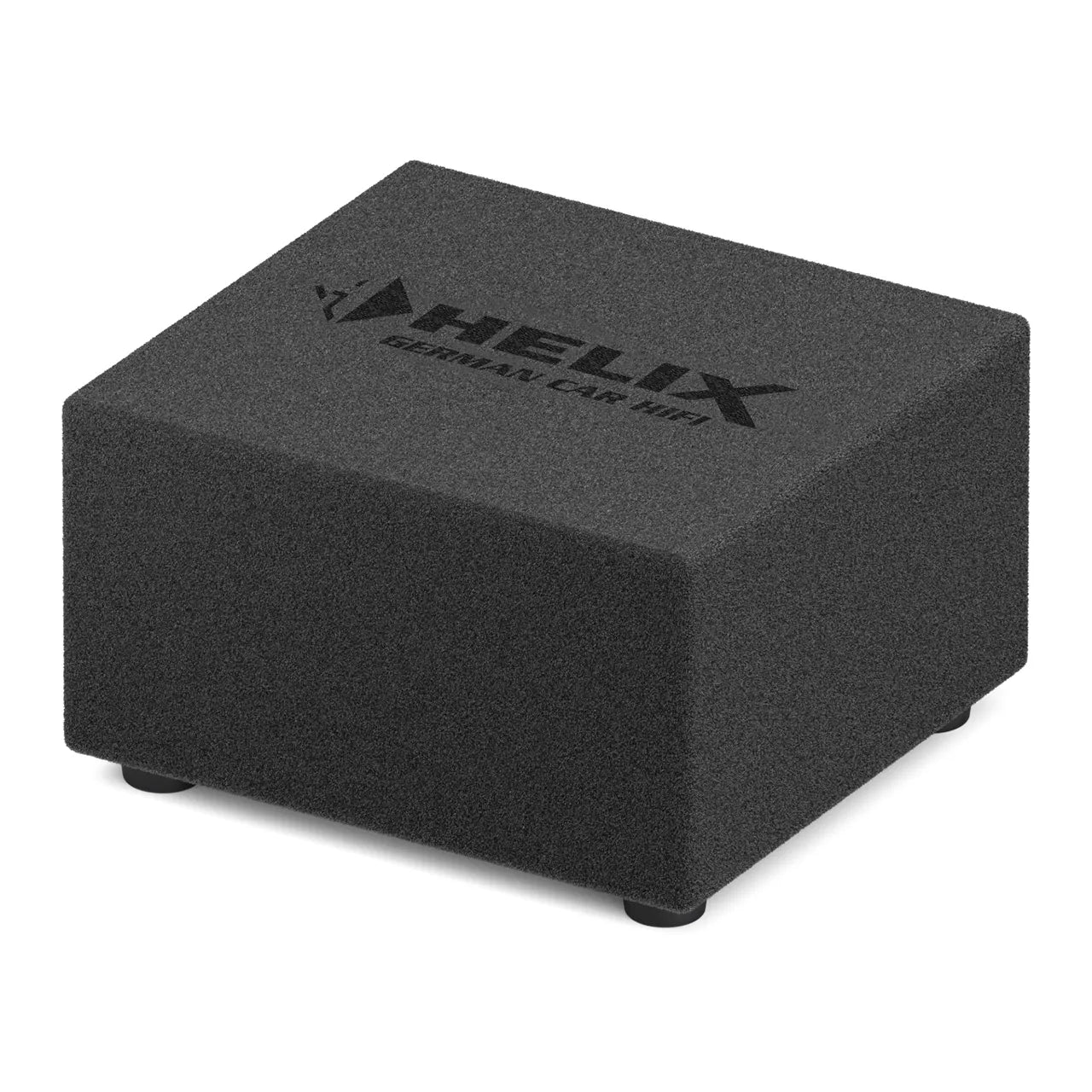

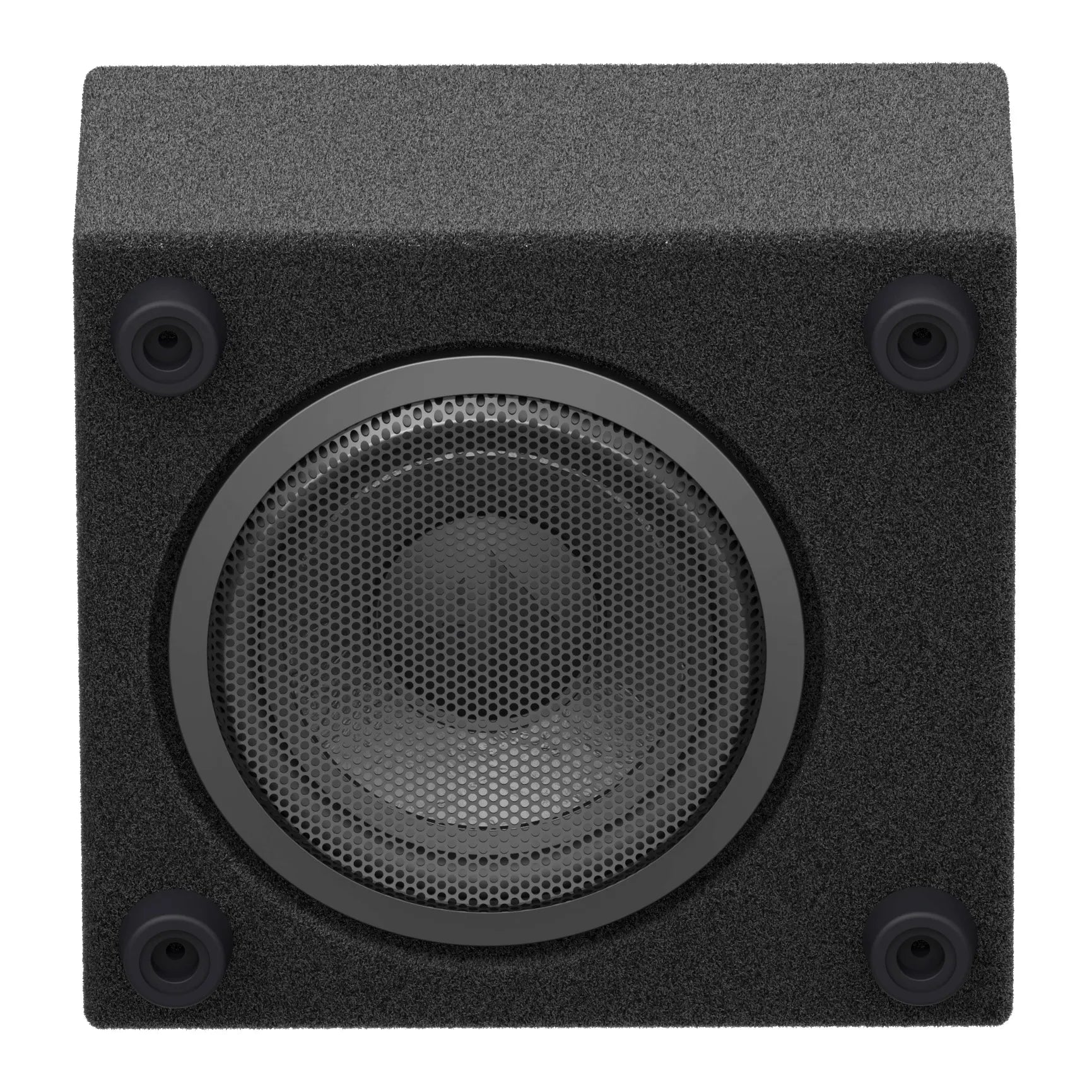

The HELIX IK E8.1 combines compactness with a powerful bass punch. Its downfire enclosure ensures optimal bass distribution while offering robust protection for the speaker, making it a clever solution for tight spaces without compromising on sound quality.

Compact and Efficient Design

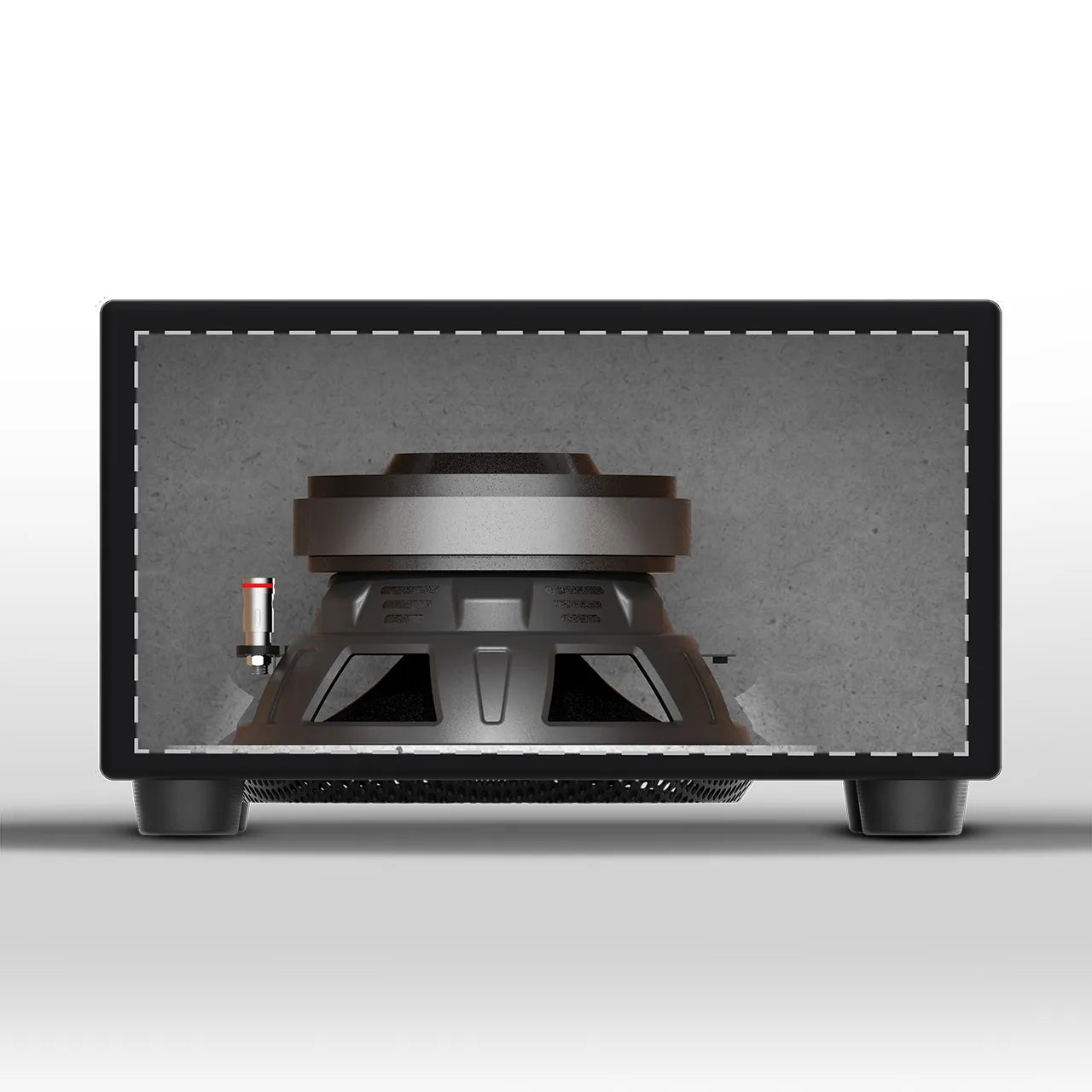

The IK E8.1's sophisticated and compact ported enclosure design delivers impressive sound pressure and deep bass, even in the tightest spaces. Equipped with an 8” (200 mm) subwoofer with a hand-scooped paper cone, this subwoofer ensures rich, powerful bass performance throughout the car.

Convenient Installation and Configuration

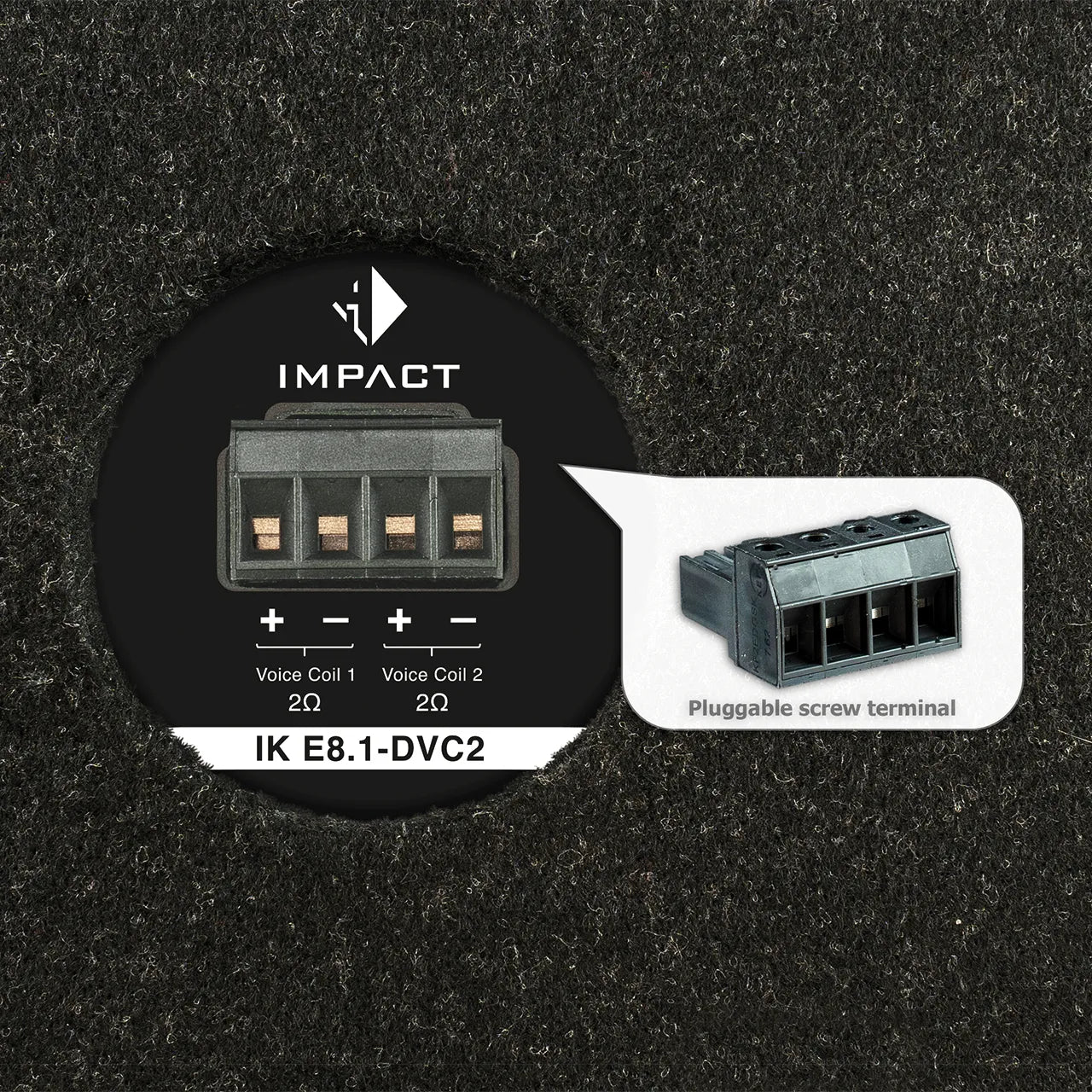

With a plug-in screw terminal, installing or removing the subwoofer is quick and secure. With options for 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) configurations, there's a perfect deep bass specialist for every amplifier setup to maximize power output.

Built for Durability
The enclosure i

Technical data

Technical data:

Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 2 x 2 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity
SPL
91 dB @ 2.83V / 1m
85 dB @ 1W / 1m

Dimensions (H x W x D)
184 x 310 x 285 mm
7.2 x 12.2 x 11.2″


Recommended DSP settings:

″Self-define″ highpass 44 Hz / Q = 1.6
EQ filter: 115 Hz / Q = 0.9 / -3.5 dB

Scope of delivery
1 x Downfire enclosure subwoofer IK E8.1-DVC2
1 x Data sheet
