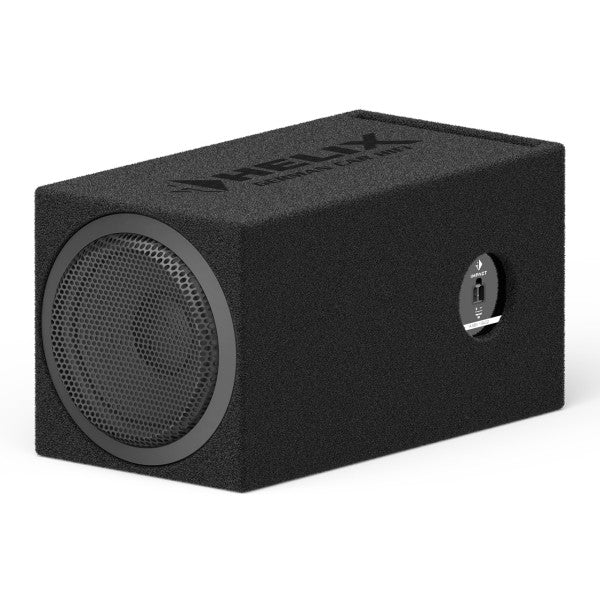

HELIX IK EB6.1, compact car subwoofer, 150W

INFORMACIJA

HELIX IK EB6.1 - proves that exceptional bass reproduction can be achieved in an extremely compact design. Despite its small dimensions, the IK EB6.1 produces stunning sound pressure and quality, comparable to much larger subwoofers. Available in 1 × 2 Ω (SVC2) or 2 × 2 Ω (DVC2) versions, you can easily adapt to your amplifier and get the most power.

Rated power (RMS): 150 W
Recommended amplifier power: 75-150 W RMS
Resistance: 2 × 2 Ω / 1 × 4 Ω / 1 × 1 Ω; 1 × 2 Ω
Sensitivity: 89 dB (2.83 V/1 m), 86 dB (1 W/1 m); 92 dB (2.83 V/1 m), 86 dB (1 W/1 m)

DESCRIPTION

The IK EB6.1 proves that outstanding bass performance can come in a remarkably compact package. Thanks to its diminutive design, this subwoofer is the ideal problem solver for particularly space-saving installations, with its form factor making it perfect for integration into unused battery compartments in vehicle interiors.

Compact design, impressive performance
Despite its small dimensions, the IK EB6.1 delivers incredible sound pressure and audio performance comparable to much larger subwoofers. Equipped with a powerful 6” (160 mm) high-excursion woofer featuring an ultra-stiff, hand-scooped paper cone, this subwoofer provides rich, deep bass with impressive dynamics.

Optimized bass reflex enclosure
The sophisticated bass reflex enclosure maximizes sound pressure and low-frequency performance, ensuring a full-bodied bass experience inside the vehicle.

Flexible connection
With the option of a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.

Easy installation and robust construction

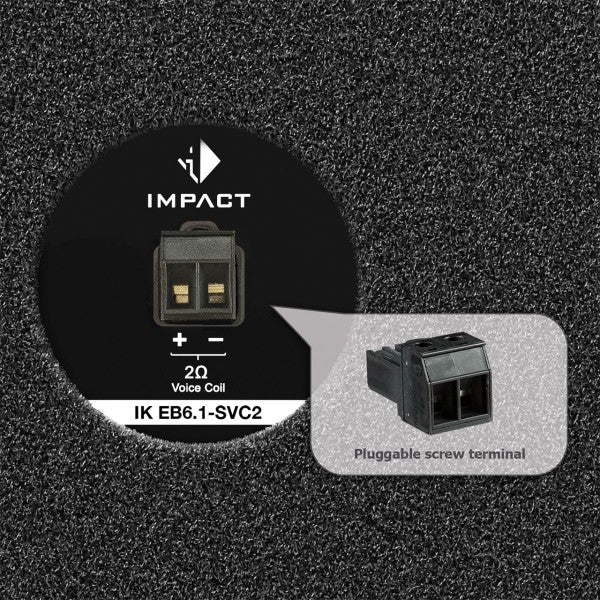

Thanks to the pluggable screw terminal, installation and removal are quick and secure. The sturdy carpet surface with the embroidered HELIX logo adds a touch of style, while the solid metal grille protects the woofer cone from damage, ensuring long-lasting reliability.

Features
Impressive sound pressure and audio performance comparable to larger subwoofers
Ultra-compact subwoofer in car battery format allows installation in unused battery compartments in vehicle interiors
Bass reflex enclosure technology for maximum sound pressure
Powerful 6” / 160 mm high excursion woofer with extremely stiff, hand-scooped paper cone and single voice coil ensures rich, deep bass
1 x 2 Ohms impedance for maximum power output of the amplifier
Pluggable screw terminal for quick and safe installation and removal
Sturdy carpet surface with embroidered HELIX logo
Solid metal grille for perfect protection of the woofer cone

TECHNICAL DATA

IK EB6.1-SVC2 – 1 x 2 Ohms

Power handling RMS P 150 Watts
Recommended amplifier power RMS 75 - 150 Watts
Impedance: 1 x 2 Ω
Max. linear excursion Xmax +/- 6.0 mm
Port tuning frequency Fb 48 Hz
Sensitivity SPL 92 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Dimensions (H x W x D) 175 x 175 x 340 mm /
6.9 x 6.9 x 13.4"
Integrated subwoofer chassis HELIX IK W6-SVC2
Recommended DSP settings "Self-define" highpass 40 Hz / Q = 1.0;
EQ filter: 55 Hz / Q = 2.0 / -2 dB

IK EB6.1-DVC2 – 2 x 2 Ohms

Power handling RMS P 150 Watts
Recommended amplifier power RMS 75 - 150 Watts
Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 6.0 mm
Port tuning frequency Fb 48 Hz
Sensitivity SPL 89 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Dimensions (H x W x D) 175 x 175 x 340 mm /
6.9 x 6.9 x 13.4"
Integrated subwoofer chassis HELIX IK W6-DVC2
Recommended DSP settings "Self-define" highpass 40 Hz / Q = 1.0;
EQ filter: 55 Hz / Q = 2.0 / -2 dB
