HELIX IK ER8.2-DVC2, 600W subwoofer for spare wheel space

INFORMACIJA

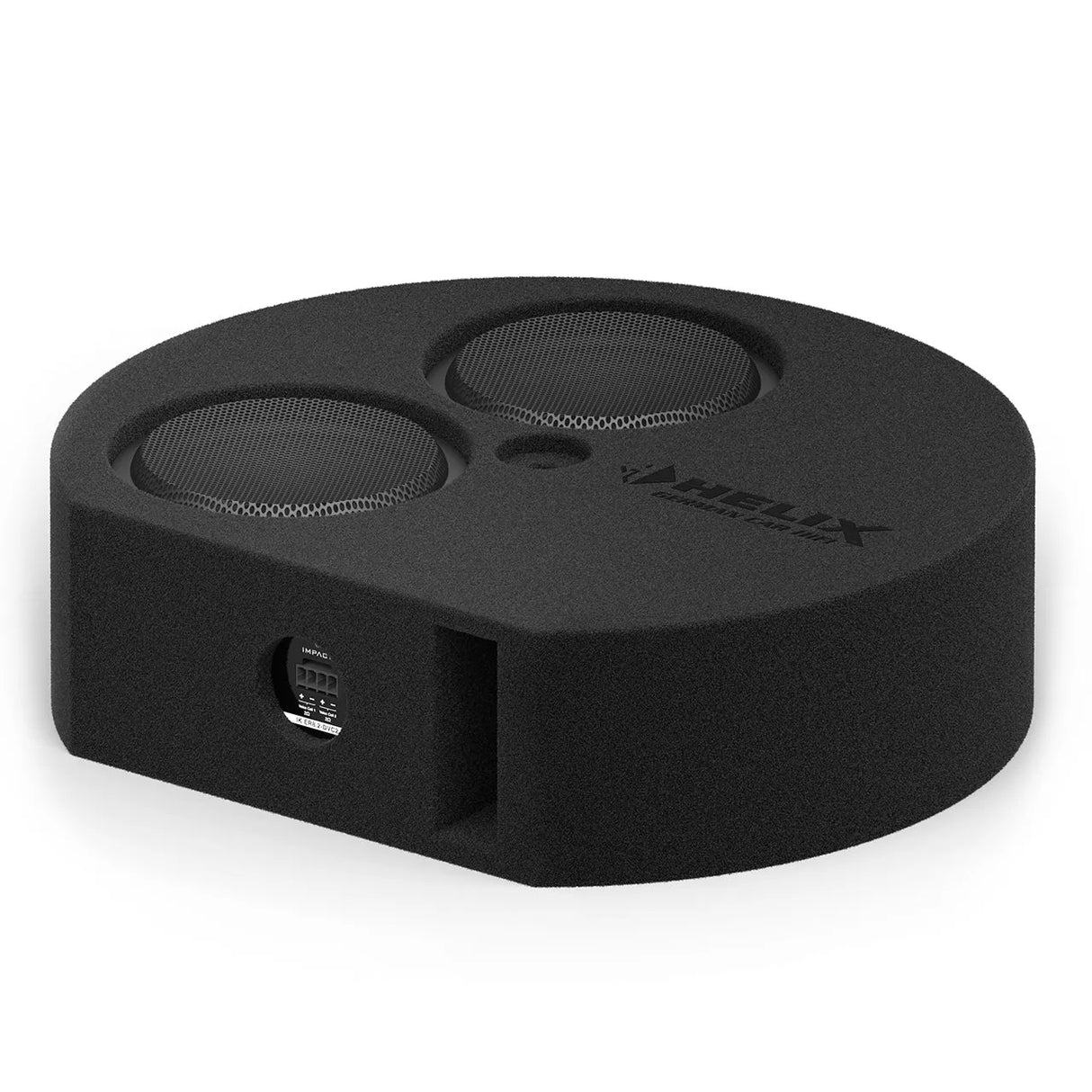

. Thanks to its round, shallow housing, it can be integrated into the spare wheel wells, thus maximizing the use of space in the car.

• Recommended amplifier power: 150-600W
• Impedance: 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
• Sensitivity: 92 dB @ 2.83V / 1m; 89 dB @ 1W / 1m


DESCRIPTION

Compact, space-saving, and equipped with dual woofer power for breathtaking bass performance: The HELIX IK ER8.2-DVC2 is the ultimate choice for bass enthusiasts seeking a space-efficient subwoofer that delivers uncompromising low-frequency performance. Thanks to its round, shallow enclosure, it can be integrated into spare wheel recesses, maximizing the available space in the vehicle.

Outstanding bass in minimal space
The sophisticated, vented construction of the IK ER8.2-DVC2 not only ensures excellent sound quality but also delivers a bass performance that sets new standards. Equipped with two powerful 200 mm drivers with hand-scooped paper cones (2 x HELIX IK W8), this subwoofer generates low frequencies that are not only audible but also tangible. Even in tight spaces, it delivers bass dynamics that impress in terms of both impact and precision – a must-have for those looking to experience the ultimate deep bass.

Flexible installation and configuration
Thanks to the pluggable screw terminal, installing or removing the subwoofer is quick and secure. Additionally, the configurable voice coil impedance (2 x 2 Ohms, 1 x 4 Ohms, or 1 x 1 Ohm) allows flexible system integration with various amplifiers, catering to different configurations effortlessly.

Built for Durability
The subwoofer chassis are flush-mounted, ensuring a sleek, space-saving design while providing enhanced protection. The enclosure features a sturdy carpet surface with the embroidered HELIX logo, adding both style and resilience to the unit. For added security, the included mounting kit ensures reliable fixation within the spare wheel recess.

FEATURES

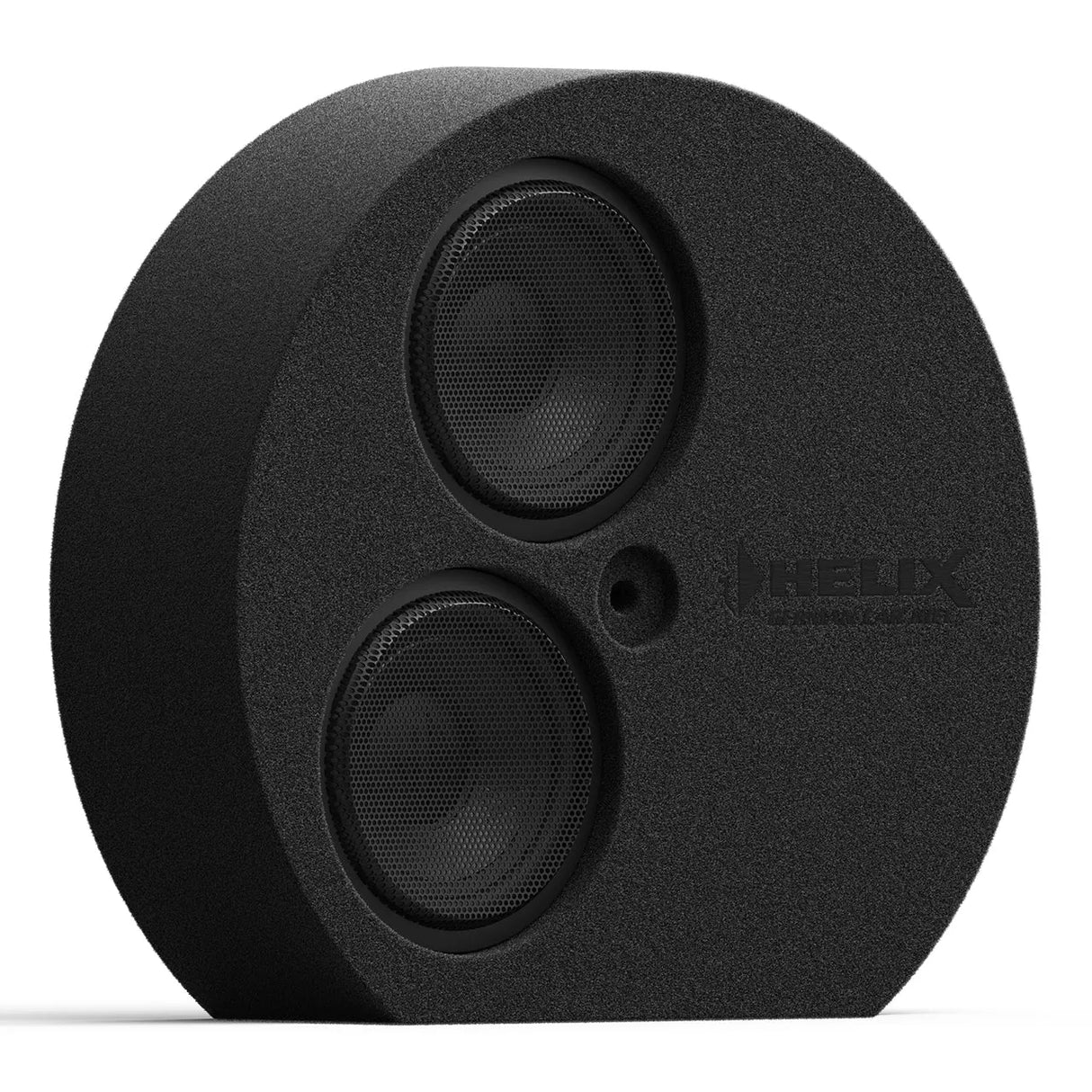

• Compact round enclosure designed for space-optimized integration in spare wheel recesses
• Sophisticated, vented construction design delivers outstanding sound quality and ideal bass dispersion in the vehicle
• Equipped with two powerful 200 mm / 8” high excursion woofers with hand-scooped paper cones for high-performance bass

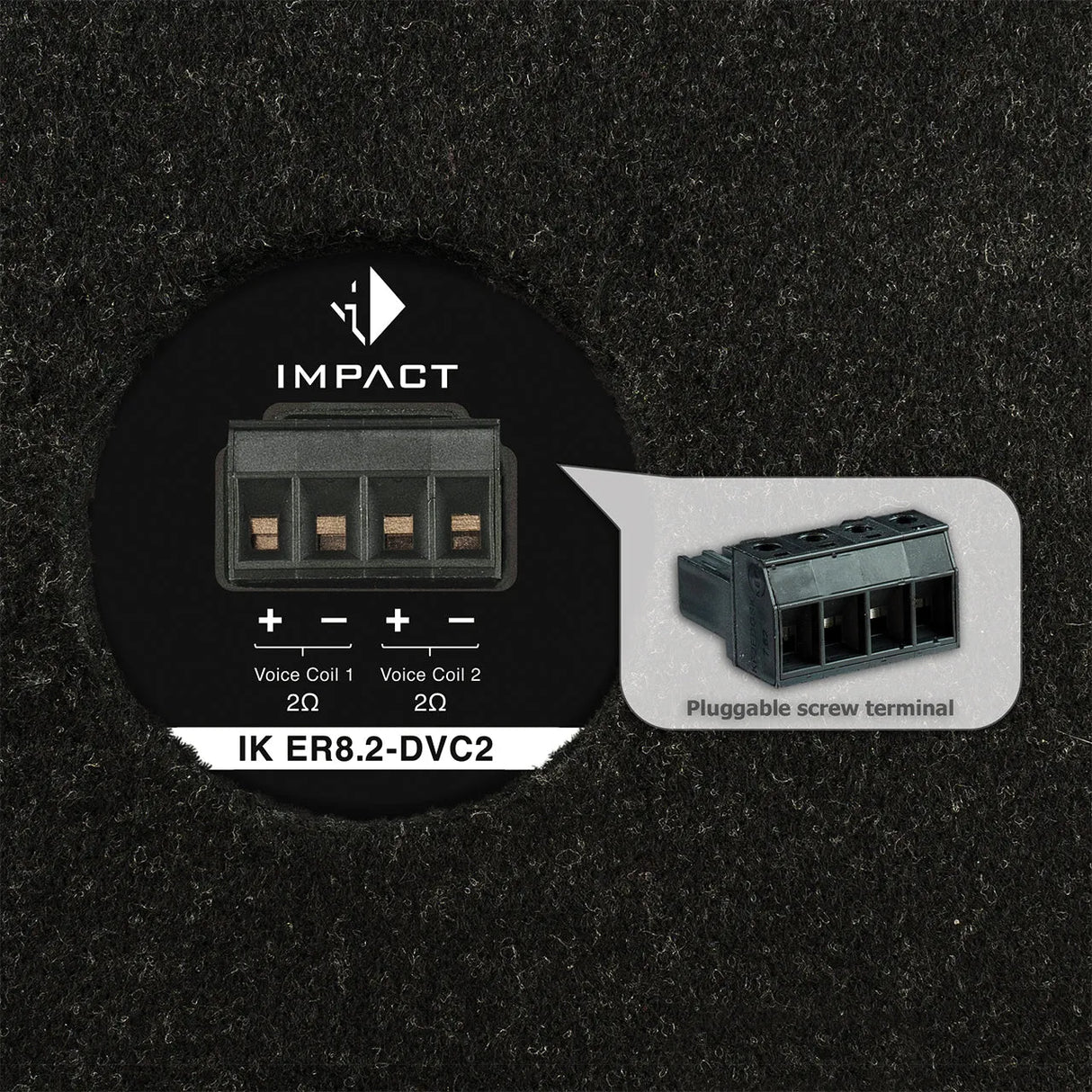

• Pluggable screw terminal for quick and safe installation and removal
• Impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
• Flush-mounted subwoofer chassis for space-saving design and enhanced protection
• Sturdy carpet surface with embroidered HELIX logo
• Including mounting kit which facilitates secure fixation of the enclosure in spare wheel recesses (see data sheet)

TECHNICAL DATA

DOCUMENTS

User manual (EN)
