Helix  |  Bar code: 4057204333317

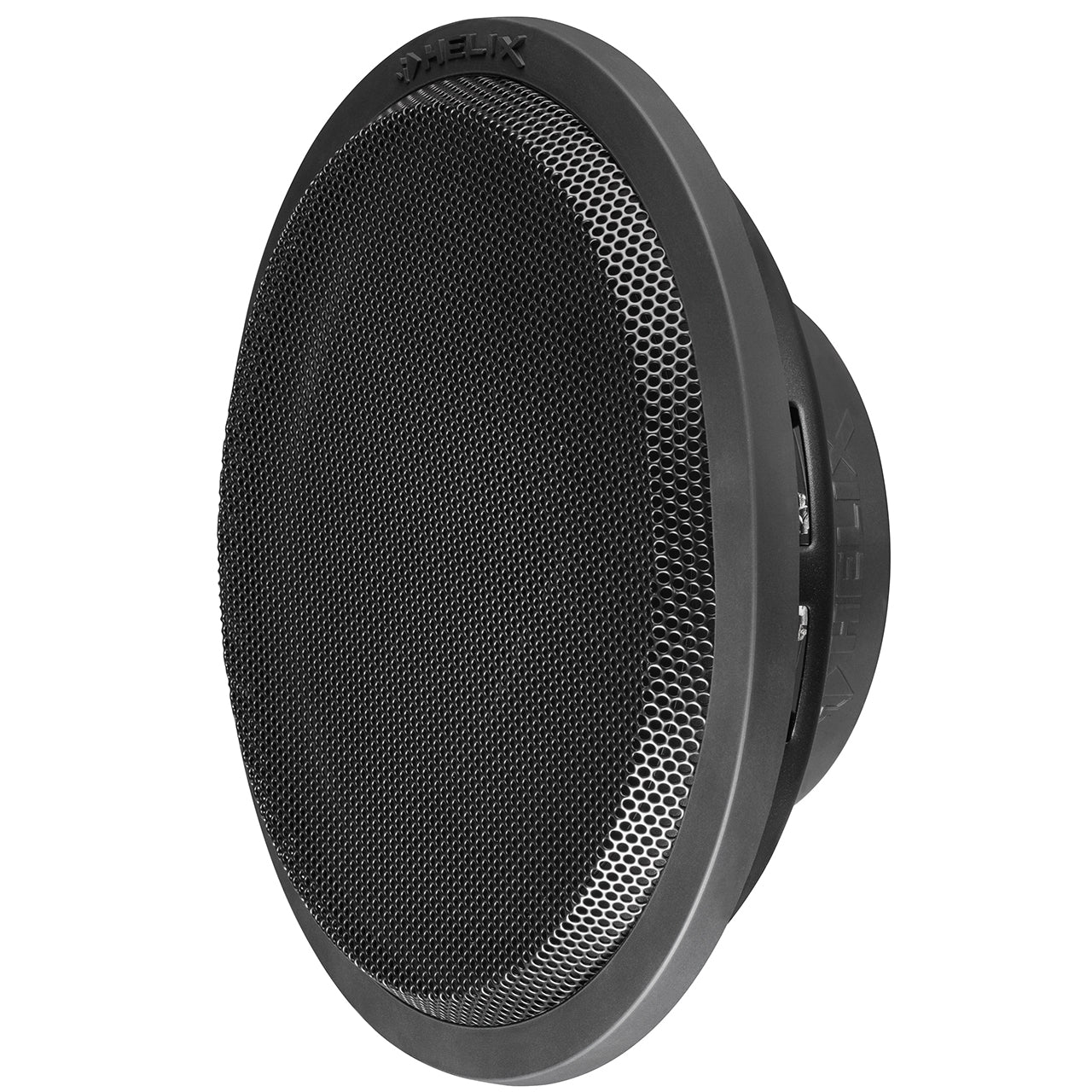

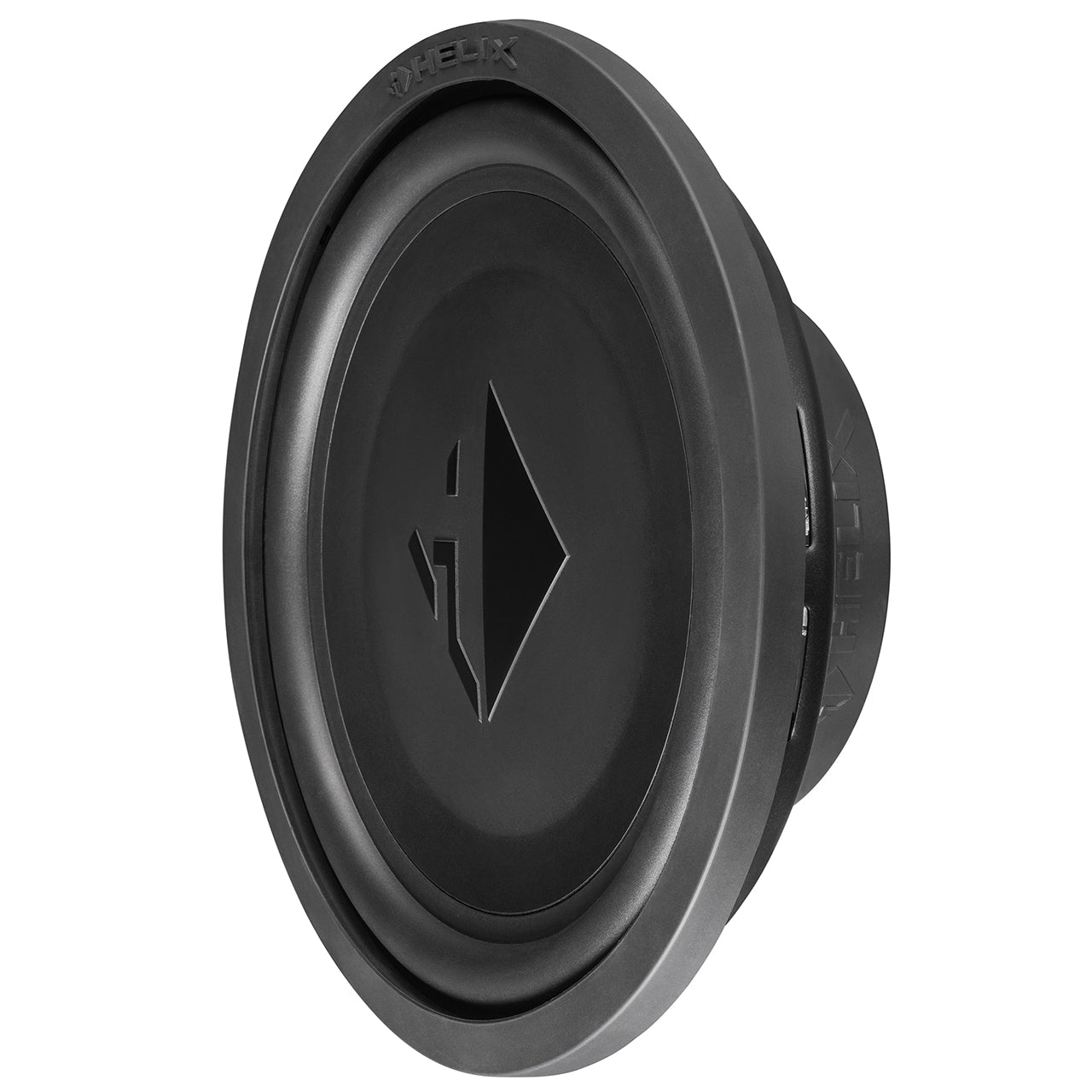

Helix IK S12-DVC2 (2x2Ohm)

A flat yet powerful subwoofer that allows you to enjoy rich sound even in compact spaces. Its design ensures excellent sound pressure without compromise.

€239.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

HELIX IK S12

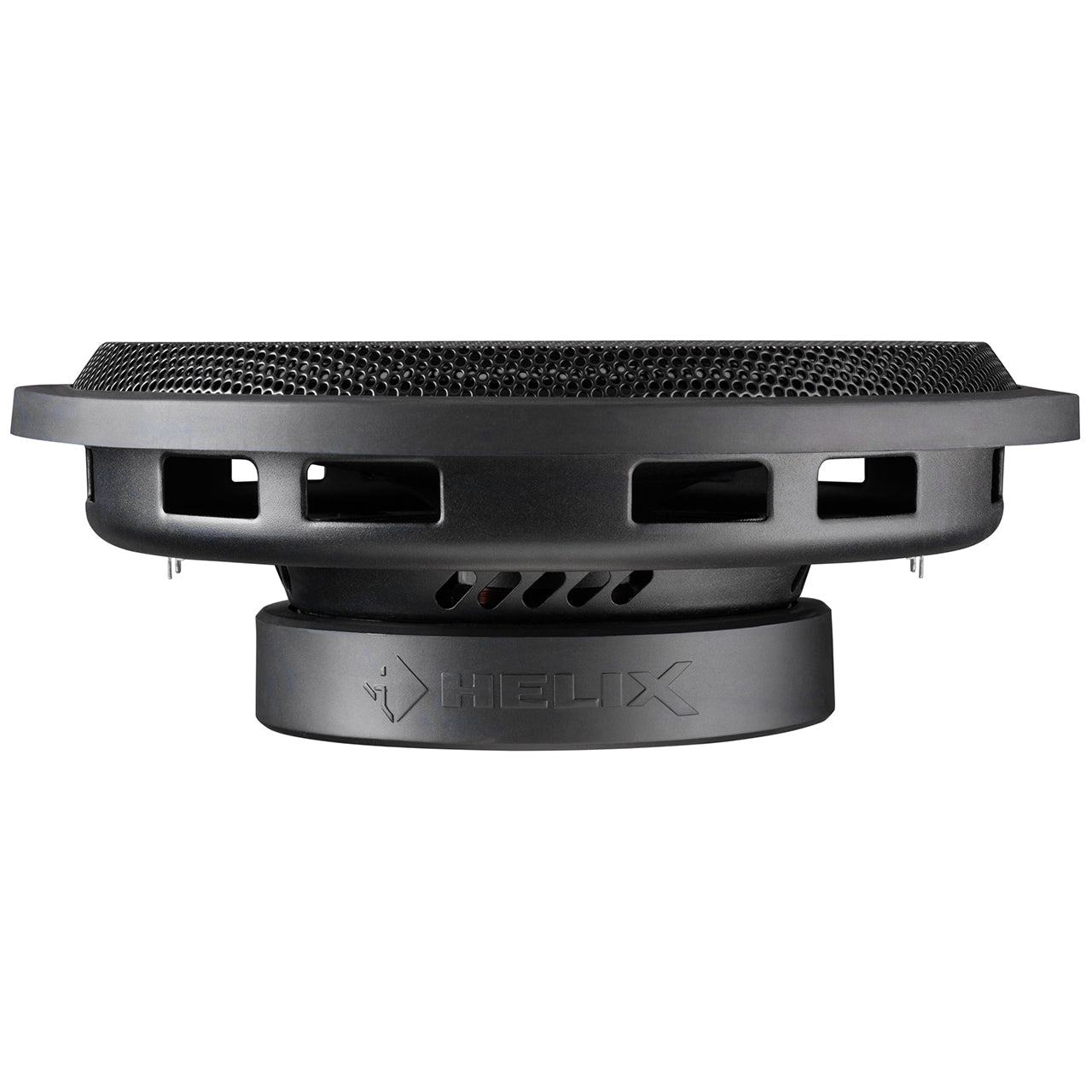

Shallow dimensions – deep bass performance
With the shallow HELIX IK S subwoofers, the realization of particularly flat and compact enclosure designs should not be an issue. Their extremely low mounting depth opens up new installation possibilities that do not require any acoustic compromises. Furthermore, thanks to large voice coils and a low resonant frequency, the HELIX IK S series delivers extraordinary bass performance that is in no way inferior to larger dimensioned loudspeakers.

Intelligent down to the last detail
The incredibly stiff sandwich paper cone in conjunction with our heavy-duty motor system effortlessly converts amplifier power into powerful sound pressure without any compression effect, while still demonstrating finesse when it comes to subtle beats. A special highlight: the magnet system has threaded holes on the rear, allowing the loudspeaker to be fastened to the rear panel of the enclosure.

Technical data

Power handling RMS / max. P 300 / 600 Watts
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.8 Ω
Resonance frequency Fs 36 Hz
Mechanical Q factor Qms 5.41
Electrical Q factor Qes 0.52
Total Q factor Qts 0.48
Compliance Cms 95 μm/N
Equivalent air volume Vas 40 L
Force factor B*I 17.2 Tm
Sensitivity SPL 91.0 dB @ 2.83V / 1m
88.0 dB @ 1W / 1m
Cone area Sd 523 cm²
Moving mass Mms 220 g
Cone material Sandwich paper cone
Mechanical resistance Rms 7.9 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44″
Installation diameter ø 276.8 mm / 10.90″
Installation depth 95.5 mm / 3.76″

Recommended enclosure volumes

Sealed box
Net volume 22 L
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 35 Hz cut-off frequency and Q = 1.5
additional EQ filter 75 Hz / Q = 1.5 / -3 dB

Vented box
Net volume 40 L
Port diameter ø 100 mm / 3.94″
Port area 78 cm²
Port length 32 cm / 12.6″
Port tuning frequency Fb 36 Hz
Lower limiting frequency (-3dB) 37 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 36 Hz cut-off frequency and Q = 1.0
additional EQ filter 75 Hz / Q = 0.7 / -2 dB

Scope of delivery
1 x Subwoofer HELIX IK S12-DVC2
1x Grille
1 x Gasket
1x Enclosure connecting terminal
1 x Data sheet
