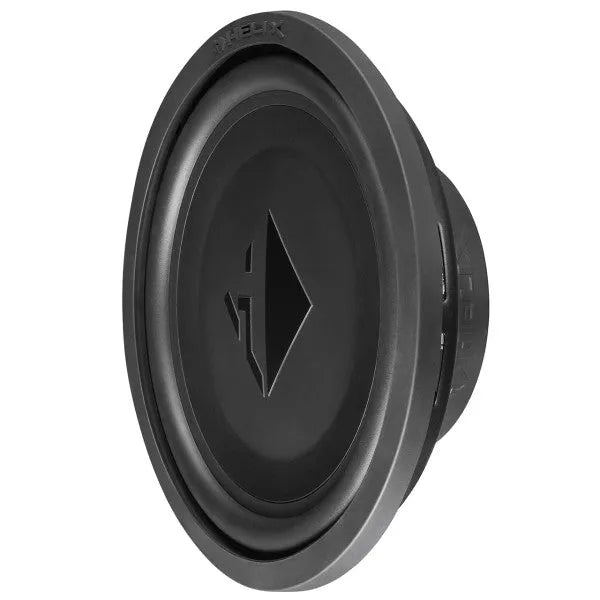

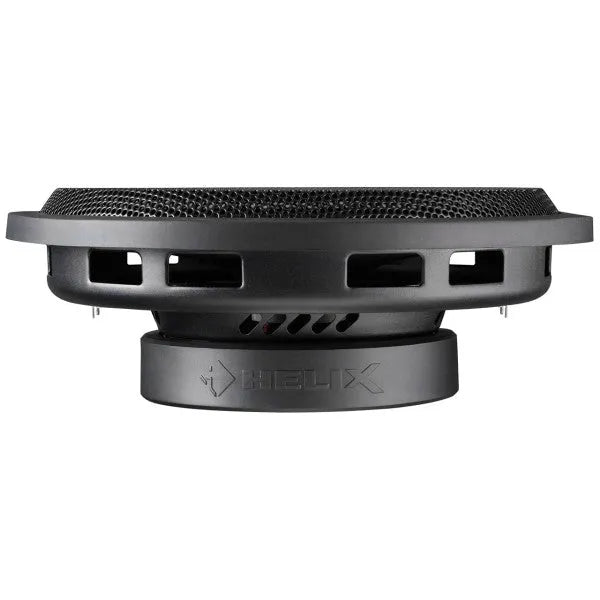

HELIX IK S12 Subwoofer, low-frequency speaker
HELIX IK S12 Subwoofer, low-frequency speaker - SVC - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
Thanks to its exceptional technical characteristics and low resonance frequency, it delivers impressive bass sound that is not inferior to larger subwoofers.
DESCRIPTION
- Low installation depth: Optimized for compact sound system designs.
- Dual 2 x 2 Ω voice coil: Flexible amplifier configuration for maximum efficiency.
- Stability: The thread at the end of the magnet allows the subwoofer to be stably attached to the box, reducing vibrations.
- Robust construction: Sandwich-type paper cone and long-travel rubber skirt ensure high mechanical stability.
- High-quality terminals: Gold-plated screw terminals ensure a reliable connection.

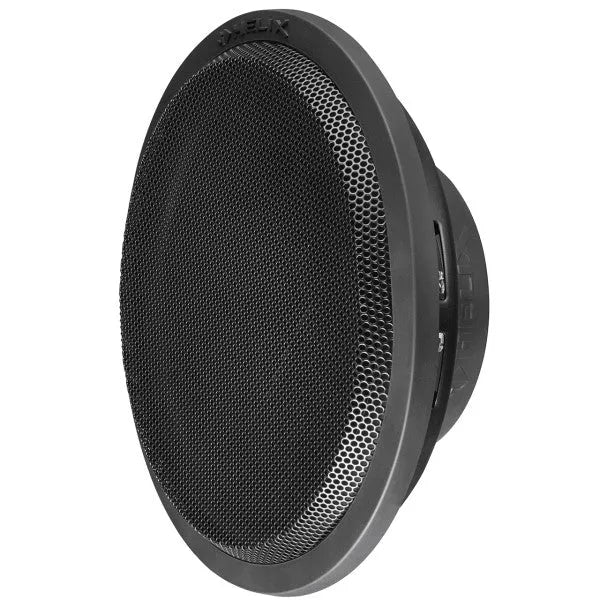

- Complete set: Protective grille, gasket and box connection terminal are included.
TECHNICAL DATA
Power handling RMS / max. P 300 / 600 Watts
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.8 Ω
Resonance frequency Fs 36 Hz
Mechanical Q factor Qms 5.41
Electrical Q factor Qes 0.52
Total Q factor Qts 0.48
Compliance Cms 95 μm/N
Equivalent air volume Vas 40 L
Force factor B*I 17.2 Tm
Sensitivity SPL 91.0 dB @ 2.83V / 1m
88.0 dB @ 1W / 1m
Cone area Sd 523 cm²
Moving mass MMS 220 g
Cone material Sandwich paper cone
Mechanical resistance Rms 7.9 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44"
Installation diameter ø 276.8 mm / 10.90"
Installation depth 95.5 mm / 3.76"
Recommended enclosure volumes
Sealed box
Net volume 22 L
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings Recommended "self-define" highpass filter with 35 Hz cut-off frequency and Q = 1.5;
additional EQ filter 75 Hz / Q = 1.5 / -3 dB
Vented box
Net volume 40 L
Port diameter ø 100 mm / 3.94"
Port area 78 cm²
Port length 32 cm / 12.6"
Port tuning frequency Fb 36 Hz
Lower limiting frequency (-3dB) 37 Hz
Recommended DSP settings Recommended "self-define" highpass filter with 36 Hz cut-off frequency and Q = 1.0;
additional EQ filter 75 Hz / Q = 0.7 / -2 dB
Scope of delivery
HELIX IK S12 Subwoofer, low-frequency speaker
