Helix  |  Bar code: 4057204324001

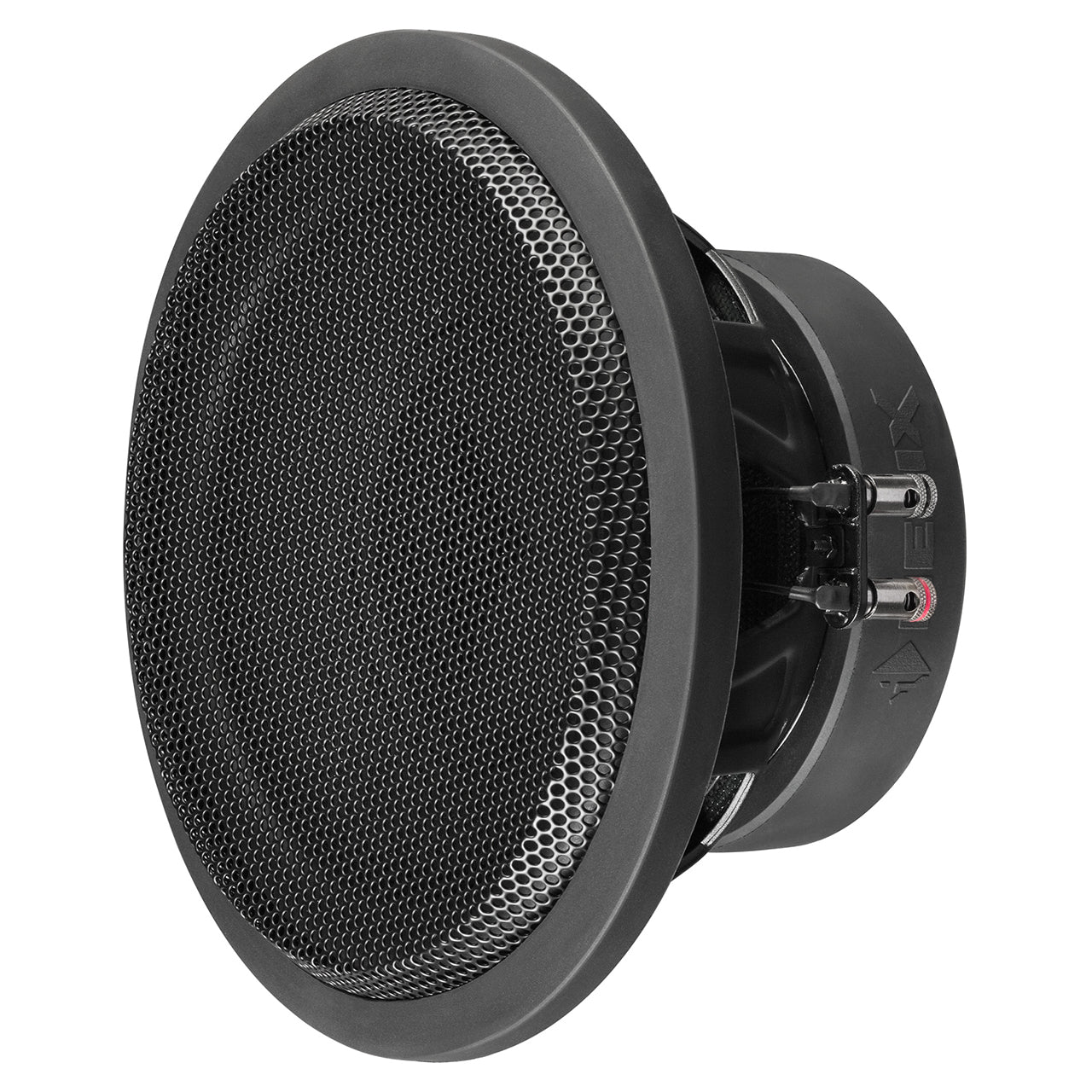

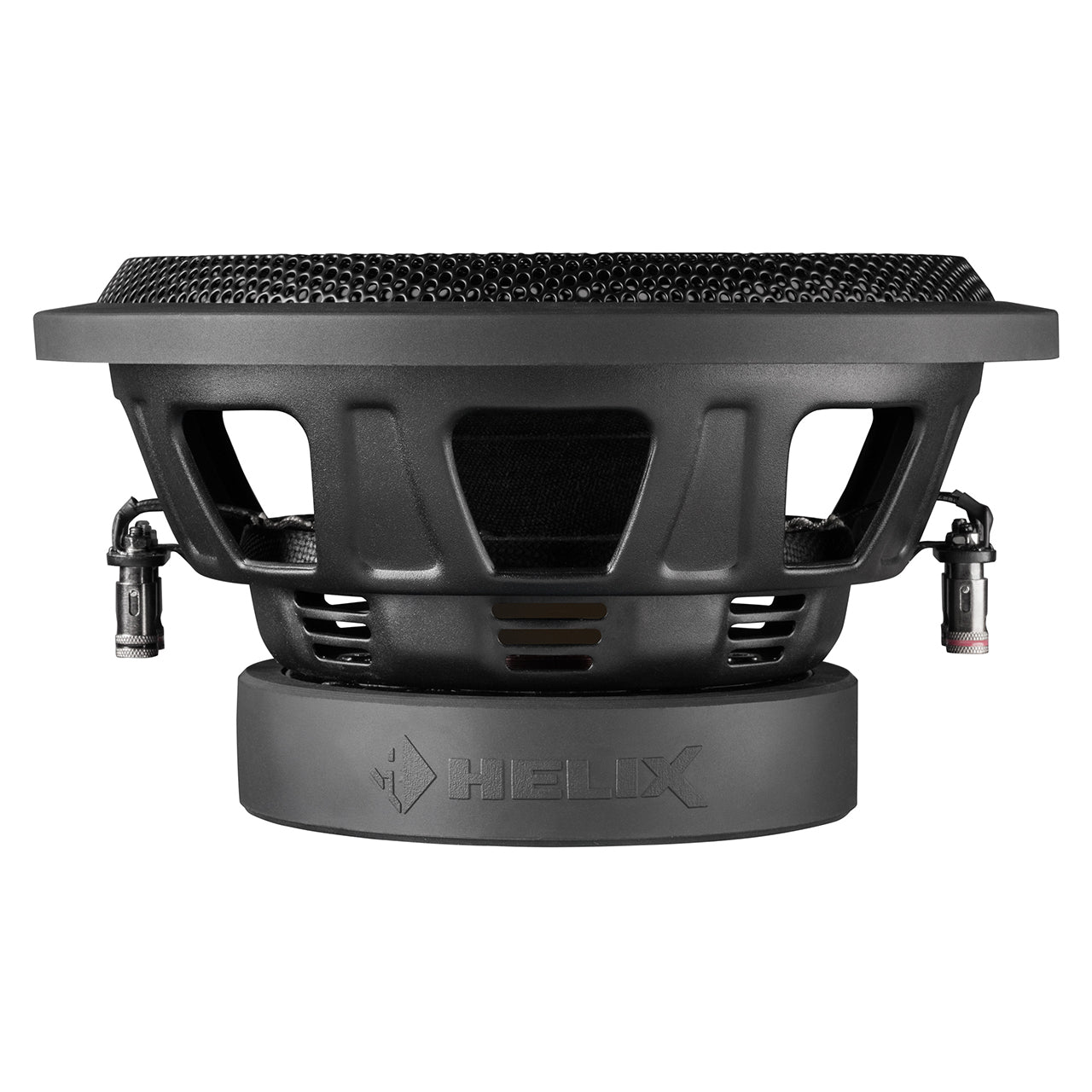

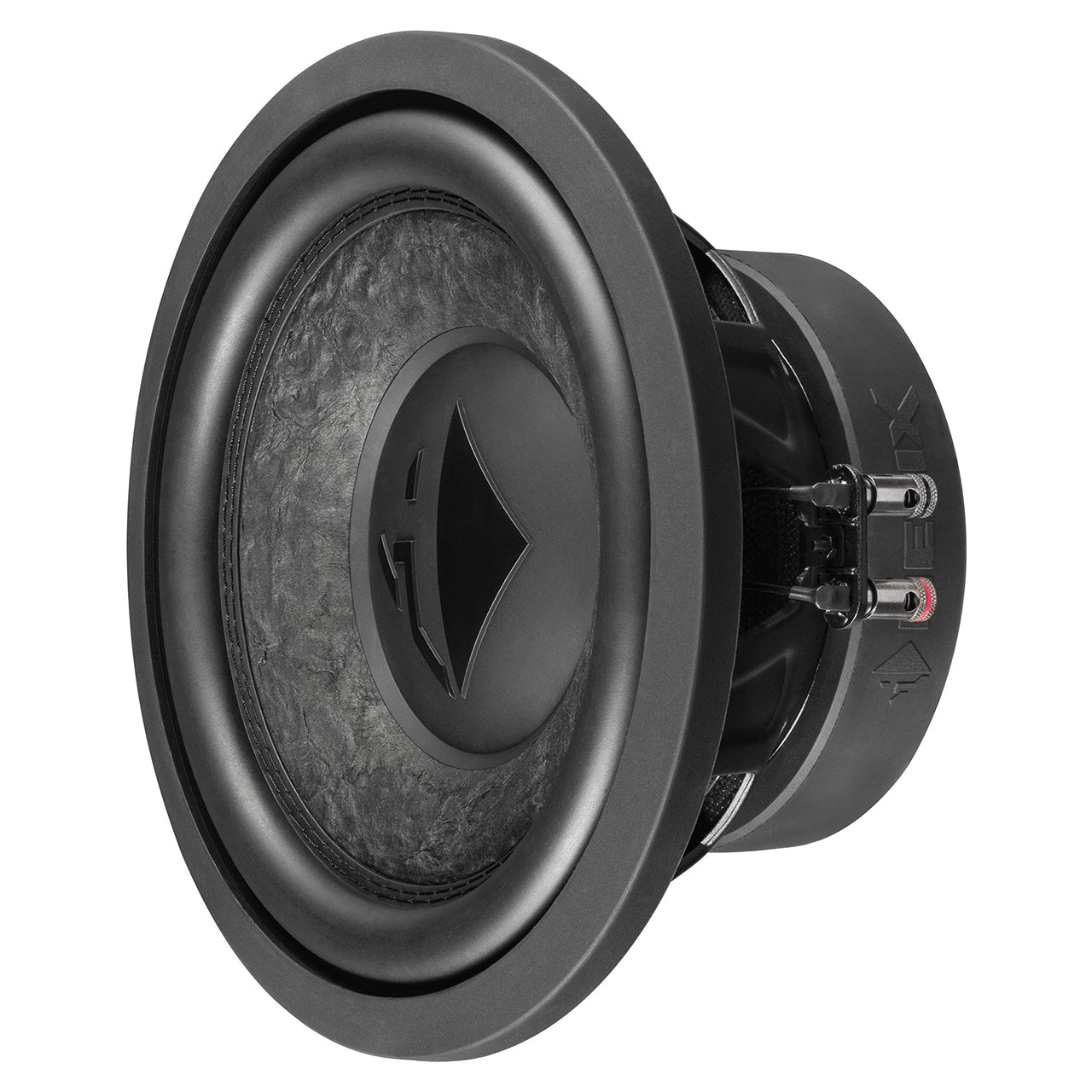

HELIX IK W10-SVC2-1 x 2 Ohm

Compact subwoofer with astonishing bass performance, designed for efficient space utilization and maximum sound pressure. Its robust enclosure and flexible connectivity ensure excellent sound reproduction for any amplifier configuration.

€179.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

HELIX IK W10
Stunning bass performance from compact dimensions
With the new KW basket, we are expanding our IMPACT subwoofer range, offering powerful loudspeakers designed for use in very compact enclosures. Especially when it comes to making the most efficient use of available space in a vehicle, these speakers create completely new installation possibilities without ever compromising acoustic performance.

Intelligent down to the last detail

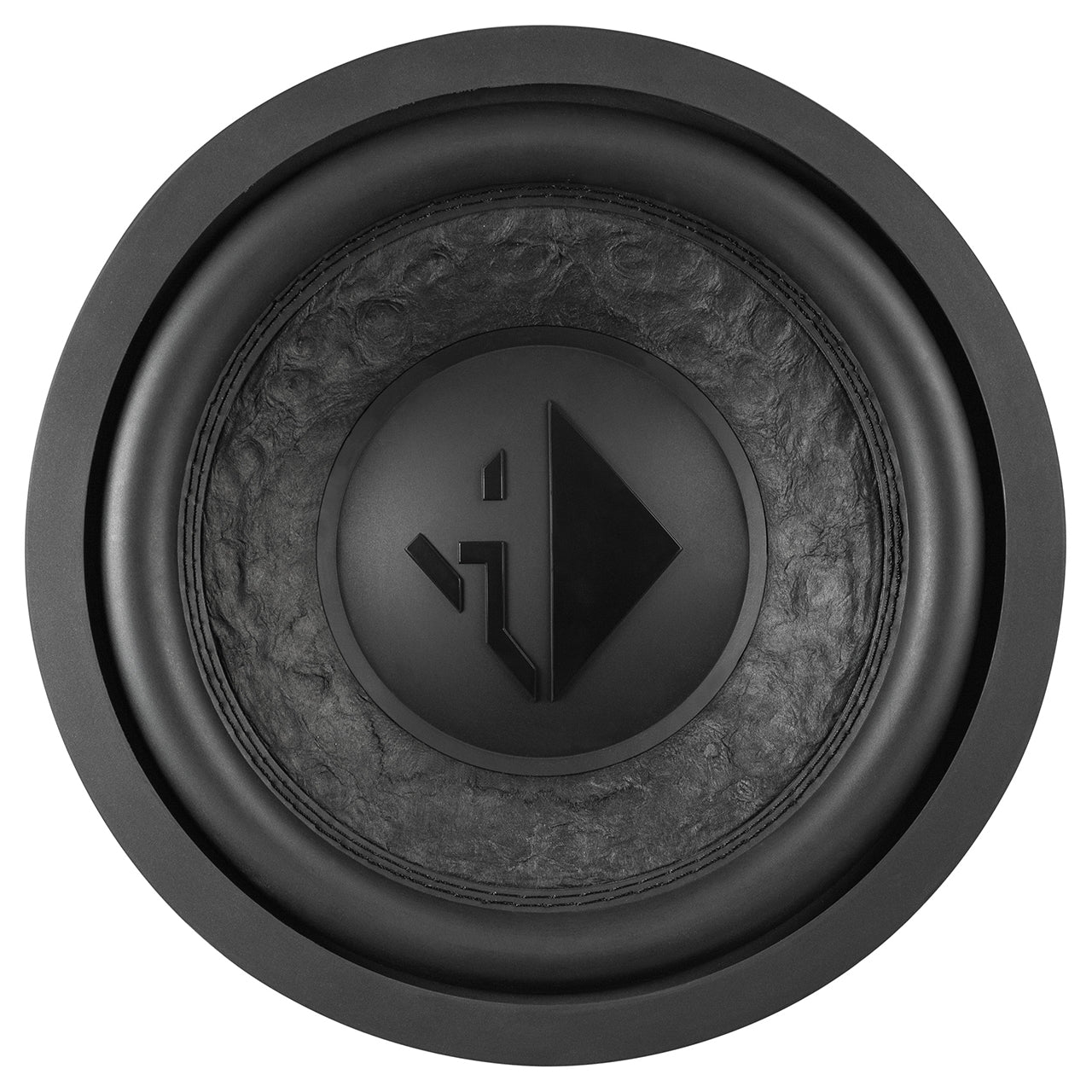

The extremely rigid cone made of hand-scooped paper fibers, combined with the heavy-duty drive system, not only effortlessly converts amplifier power into high sound pressure without compression effects, but also sounds punchy with subtle rhythms.

Flexible connection – 2 x 2 or 1 x 2 Ohm
The baskets are available as a 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) version. Thus, these subwoofers always offer the right solution for every amplifier configuration to obtain maximum performance.

Technical data

Technical data:

Power handling RMS / max. P 300 / 600 Watts
Impedance Z 1 x 2 Ω
Resonance frequency Fs 36 Hz
Mechanical Q factor Qms 4.50
Electrical Q factor Qes 0.43
Total Q factor Qts 0.39
Compliance Cms 218 μm/N
Equivalent air volume Vas 34 L
Force factor B*I 12.3 Tm
Sensitivity SPL
91.0 dB @ 2.83V / 1m
88.0 dB @ 1W / 1m

Cone area Sd 333 cm²
Moving mass Mms 91 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms 4.56 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 262 mm / 10.31″
Installation diameter ø 232 mm / 9.13″
Installation depth 126 mm / 4.96″

Recommended enclosure volumes:

Sealed box
Net volume 12 L
Lower limiting frequency (-3dB) 53 Hz
Recommended DSP settings “Self-Define” Highpass: 45 Hz / Q = 1.5
EQ Filter: 120 Hz / Q = 1.0 / -3 dB

Vented box
Net volume 19 L
Port diameter ø 70 mm / 2.76″
Port area 38 cm²
Port length 22 cm / 8.66″
Port tuning frequency Fb 43 Hz
Lower limiting frequency (-3dB) 43 Hz
Recommended DSP settings
“Self-Define” Highpass: 37 Hz / Q = 1.5
EQ Filter: 115 Hz / Q = 0.7 / -2 dB

Scope of delivery
1 x Subwoofer HELIX IK W10-DVC2
1 x Grille
1 x Gasket
1 x Data sheet
