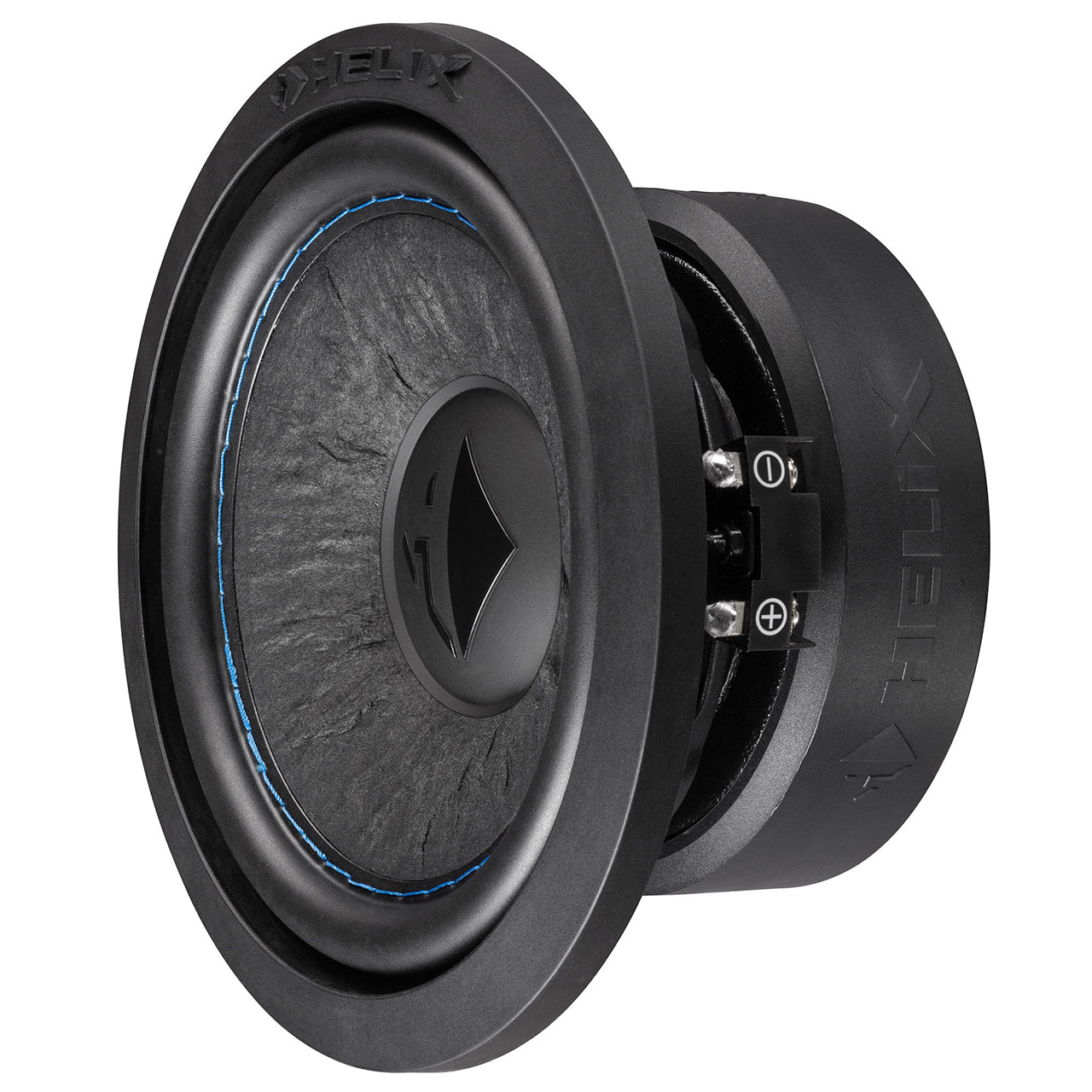

Helix IK W6-DVC2 (2x2Ohm)

INFORMACIJA

HELIX IK W6
Rich bass from compact dimensions
The K series subwoofers can be used in very compact enclosures, where they perform excellently with exceptional bass performance. Especially when it comes to utilizing available space in the car, these speakers open up entirely new installation possibilities without any acoustic compromises.

Clever down to the last detail
The particularly stiff, hand-scooped paper cone combined with the heavy-duty motor system not only effortlessly and without compression effects converts amplifier power into high sound pressure, but also brings out subtle beats with clarity.

Flexible connectivity
Designed as a 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) variant, you can find the right low-bass specialist for any amplifier configuration to get the maximum performance out of it.

“All inclusive” for the DIY master

Technical data

Power handling RMS / Max. P 150 / 300 Watt
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 2.0 Ω
Resonance frequency Fs 50 Hz
Mechanical Q factor Qms 3.92
Electrical Q factor Qes 0.32
Total Q factor Qts 0.30
Compliance Cms 261 μm/N
Equivalent air volume Vas 5.3 L
Force factor B*I 12.3 Tm
Sensitivity SPL 89.0 dB @ 2.83V / 1m
86.0 dB @ 1W / 1m
Cone area Sd 123 cm²
Moving mass Mms 37 g

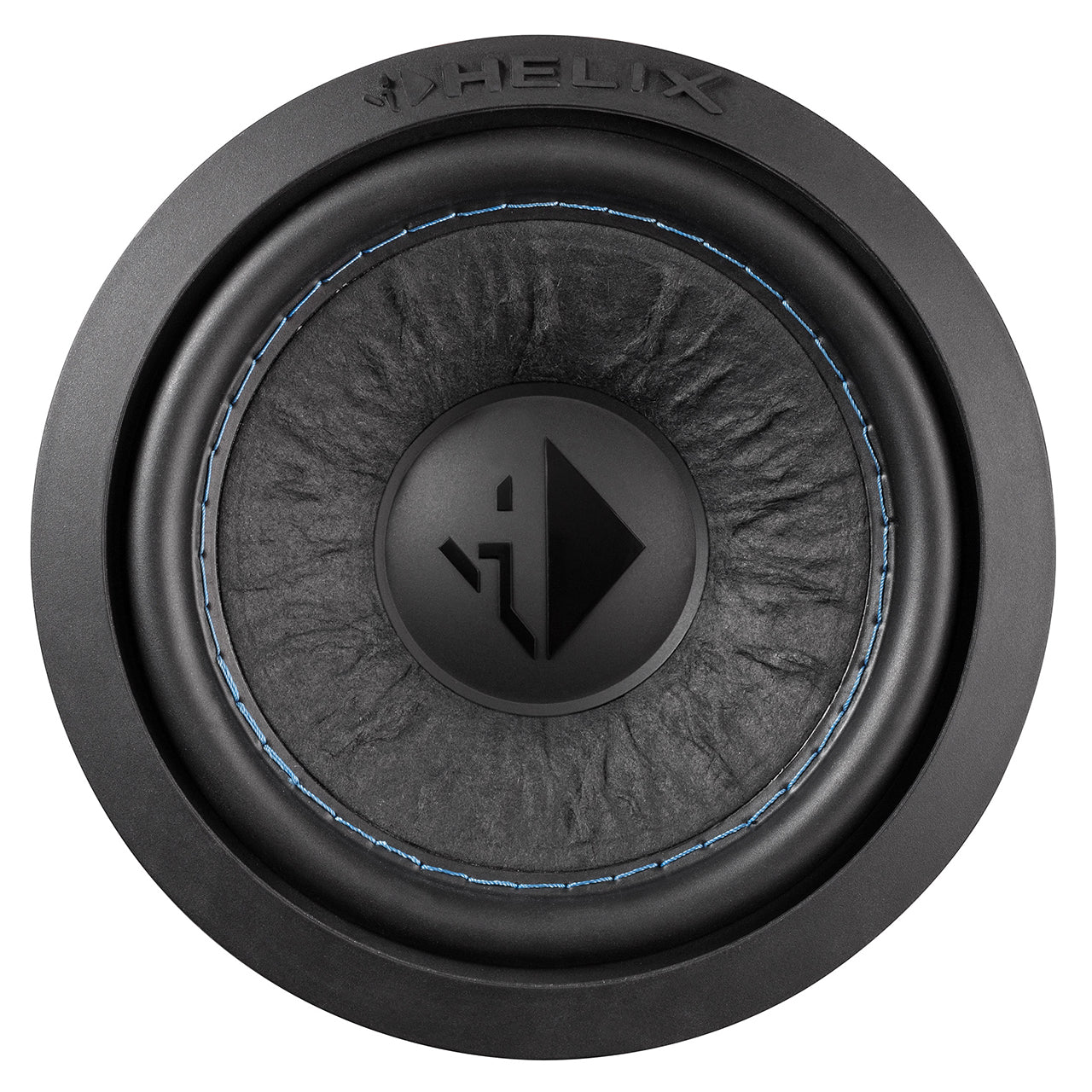

Cone material Hand-scooped paper cone
Mechanical resistance Rms 3.04 kg/s
Voice coil diameter ø 37 mm
Voice coil winding height 18 mm
Max. linear excursion Xmax +/- 6.0 mm
Outer diameter ø 164.2 mm / 6.46″
Installation diameter ø 132.5 mm / 5.22″
Installation depth 74.3 mm / 2.93″

Recommended enclosure

Vented box
Net volume 7 L
Port diameter ø 50 mm
Port area 20 cm²
Port length 34 cm (angled port)
Port tuning frequency Fb 45 Hz
Lower limiting frequency (-3dB) 43 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 45 Hz cut-off frequency and Q = 1.2
additional EQ filter 80 Hz / Q = 1.0 / +1.0 dB

Scope of delivery
1 x Subwoofer HELIX IK W6-DVC2

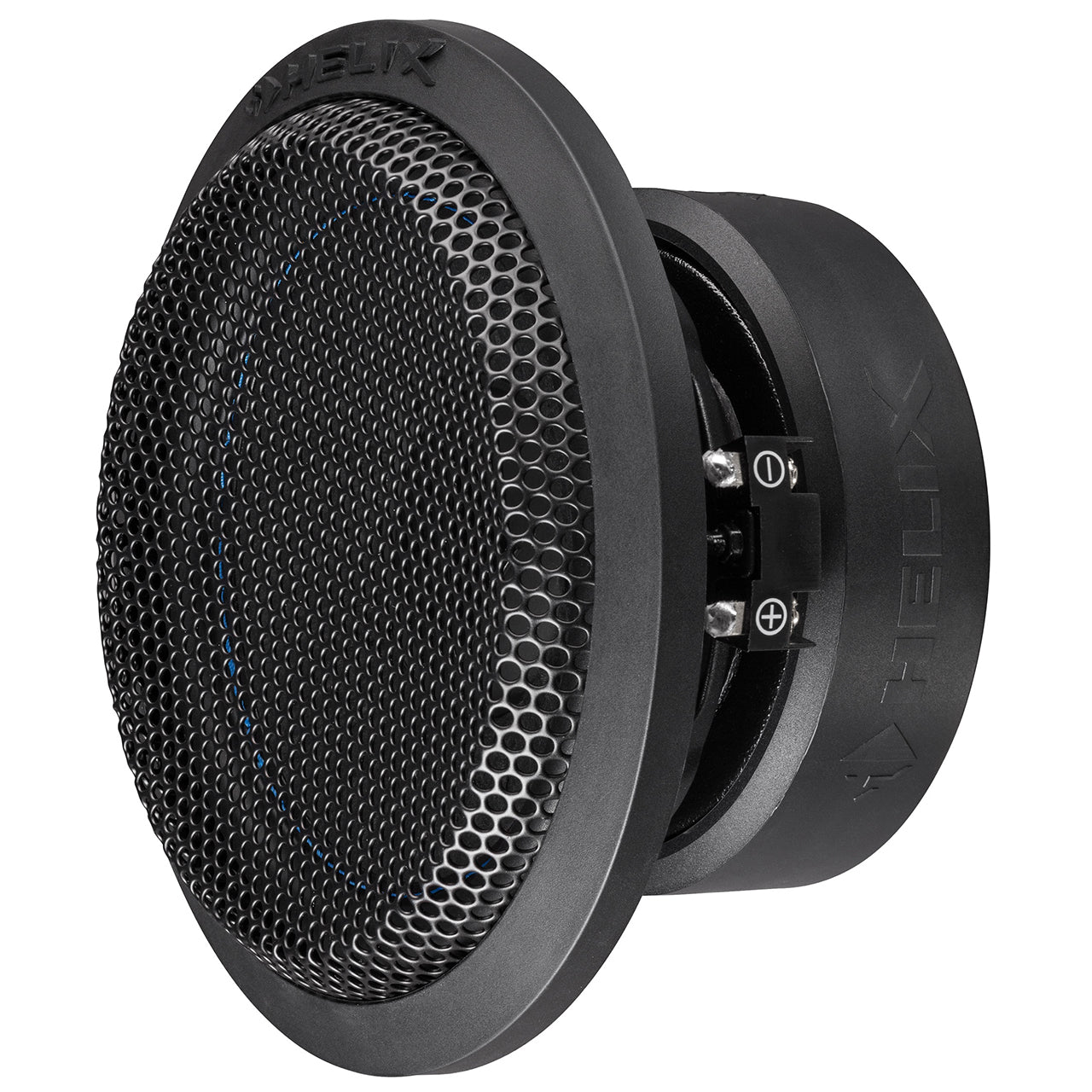

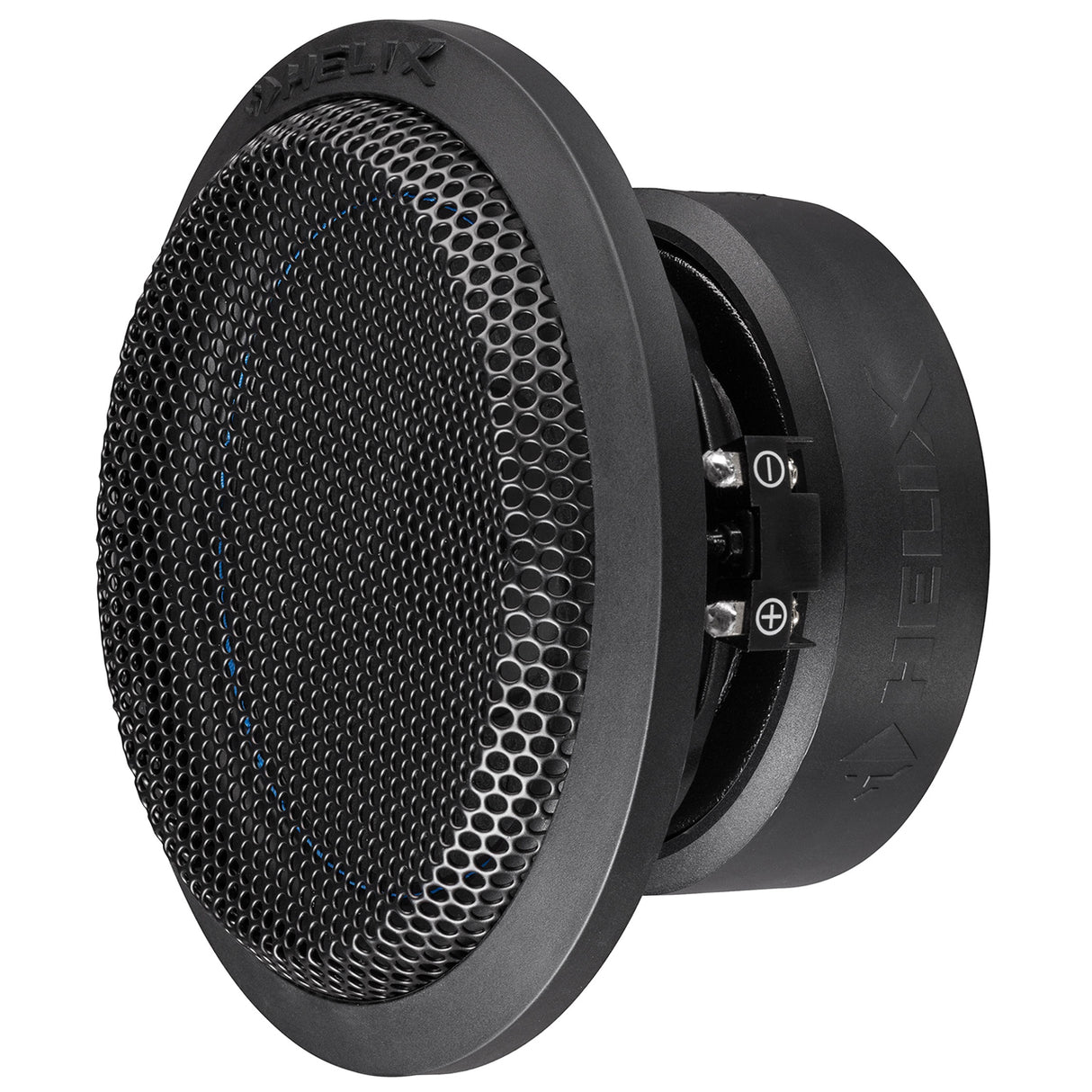

1 x Grille
1 x Gasket
1 x Data sheet
