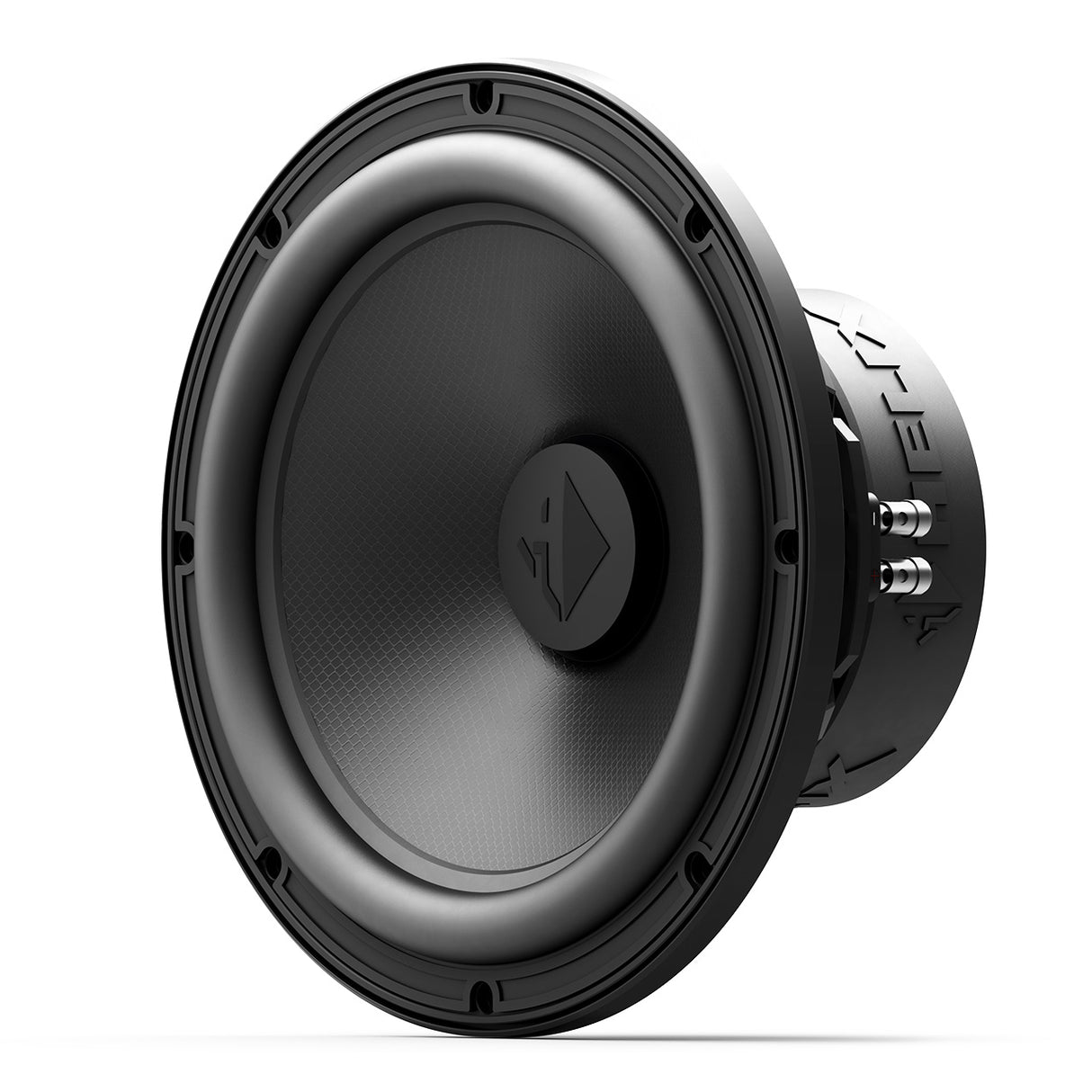

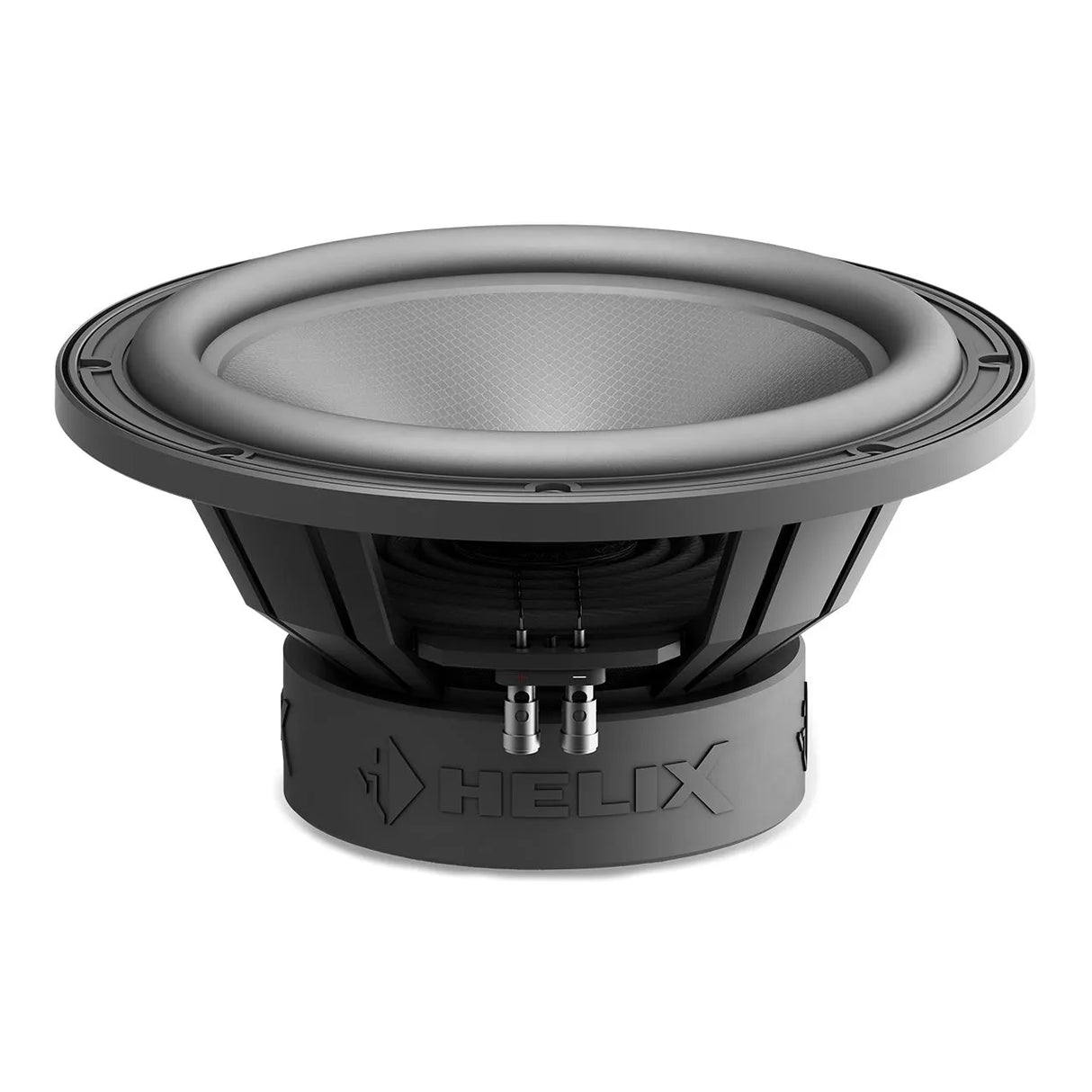

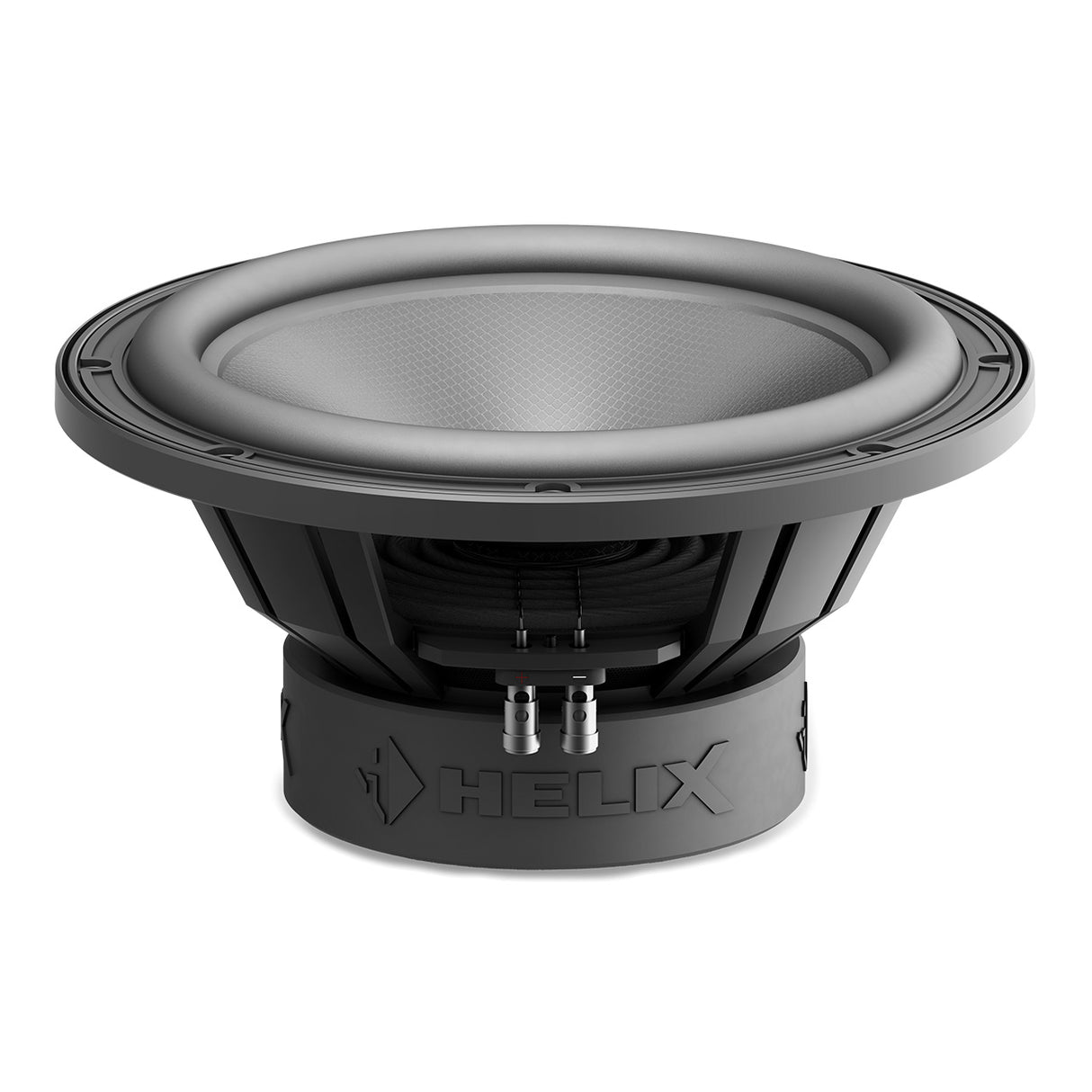

Helix IQ W12-DVC2, 12" car subwoofer, 750W RMS
Helix IQ W12-DVC2, 12" car subwoofer, 750W RMS - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
- Free delivery in Lithuania from 100 €: courier or parcel locker
- Pick up at our showroom in Kaunas, Armatūrininkų g. 1
- We install at our service centre in Kaunas. Book installation
- Pay in instalments available
- 14-day returns
▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.
Delivery
Delivery
In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.
Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.
Pick up in store
Pick up in store
You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.
We recommend calling before you arrive: +370 683 90000
Opening hours: Mon-Fri 9:00-18:00
INFORMATION
The Helix IQ W12-DVC2 is a high-end 12-inch subwoofer designed for those looking for powerful, accurate and flexible bass. Its unique Tuneable Mass System (TMS) technology allows you to adjust the mass of the diaphragm, thereby changing the character of the bass - from fast and "hard" impact to extremely deep and rich bass reproduction.
Power: RMS / MAX 750 / 1500 W
Recommended amplifier power: from 300 W RMS
Impedance: 2 × 2 Ω
Sensitivity: 90 dB (2.83V/1m) / 87 dB (1W/1m)
DESCRIPTION
Audiophile-Grade Subwoofer with Maximum Versatility
The HELIX IQ W12-DVC2 sets new benchmarks in the realm of high-performance subwoofers. Designed for discerning music enthusiasts who appreciate both powerful output and superior sound quality, this subwoofer combines cutting-edge technology, a robust construction, and outstanding flexibility. Thanks to its proprietary Tuneable Mass System (TMS), it allows for precise customization of the bass response, enabling it to unfold its full potential in any application – whether in compact sealed enclosures or high-output bass reflex systems.
Engineered for High Power and Deep Bass Performance
With the recommended power range of 300 to 750 Watts RMS, the HELIX IQ W12-DVC2 offers a wide range of applications and is particularly optimized for high-power amplifier configurations, ensuring consistently precise bass reproduction – even at extreme levels. Its 3-layer Fiberglass-Mylar honeycomb cone provides maximum rigidity and optimal internal damping, effectively minimizing distortion while ensuring tight, controlled, and dynamic low-frequency performance. Exceptional transient response ensures that even complex bass passages are reproduced clearly and with absolute precision.
A highly efficient cooling system, featuring a large-diameter vented pole piece and an airflow-optimized basket design, enables continuous air circulation, preventing overheating and thermal compression. This ensures consistent performance, even under prolonged high-output operation, allowing the subwoofer to maintain full power and control at all times.

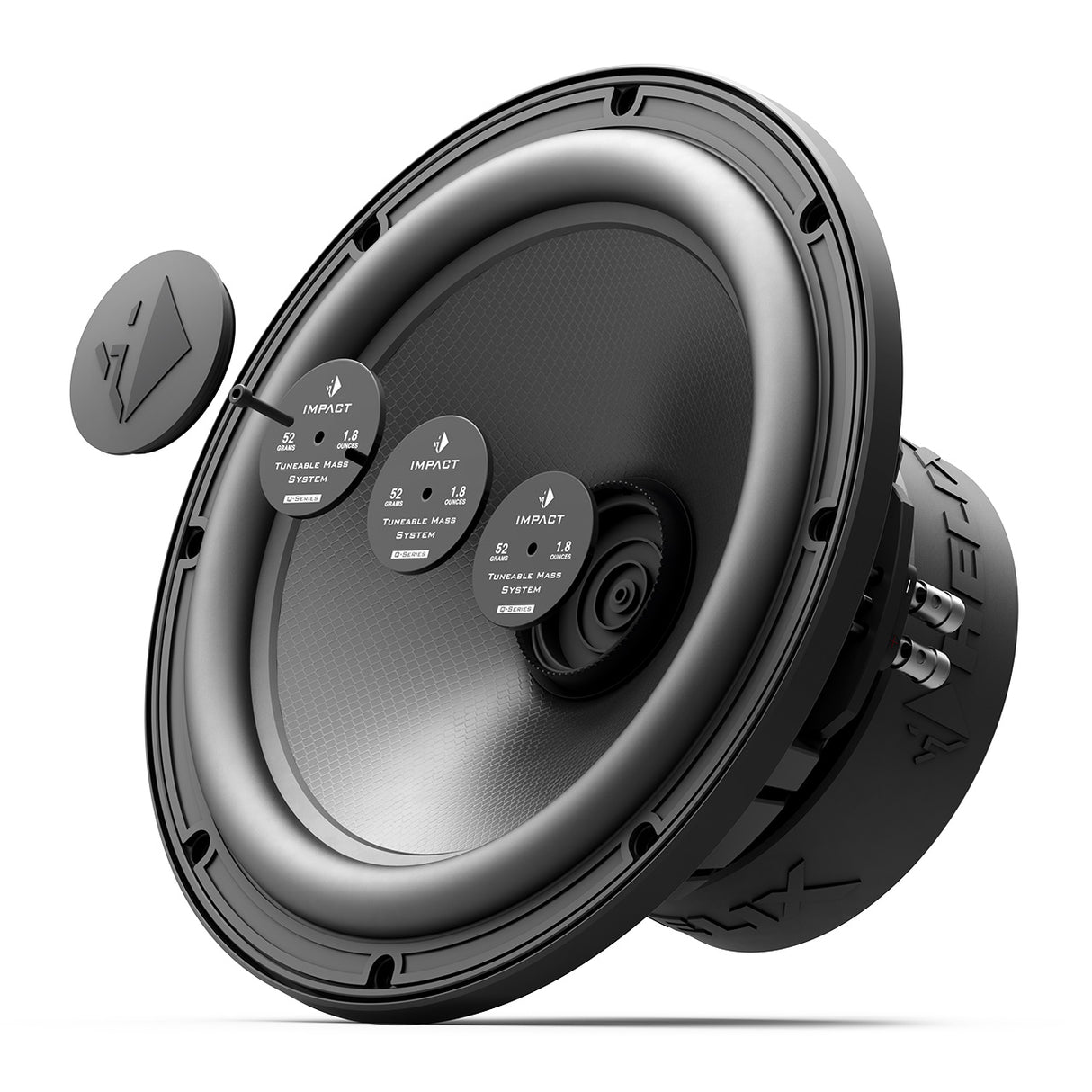

Proprietary Tuneable Mass System (TMS) - Fine-Tuning for Your Sound
The Tuneable Mass System (TMS) introduces an innovative approach to bass adjustment, offering a unique way to customize the acoustic characteristics of the subwoofer. By adding or removing specific weights within the dustcap, the moving mass of the driver can be modified, directly influencing the subwoofer's response and efficiency.
Depending on the chosen configuration, the subwoofer's sonic profile changes significantly. Without additional weight, the subwoofer maintains a higher resonant frequency, ensuring maximum efficiency and fast transient response – ideal for high-output setups and tight, punchy bass reproduction. Adding mass lowers the resonant frequency, allowing for deeper and more authoritative bass, making it particularly well-suited for sealed enclosures or low-tuned bass reflex systems.
This fine-tuning capability enables precise adaptation to enclosure volume and in-car acoustics. A higher moving mass extends low-frequency performance, whereas a lower moving mass improves efficiency, making the subwoofer suitable for operation with moderate amplifier power. This unparalleled flexibility makes the HELIX IQ W12-DVC2 the ideal choice for those seeking ultimate sound precision and adaptability.
Flexible Connection for Seamless System Integration
Equipped with a 2 × 2 Ohms dual voice coil, the HELIX IQ W12-DVC2 offers maximum compatibility with various amplifier setups. Depending on the wiring configuration, it can be operated, aside from the typical 2 x 2 Ohms configuration, at either 1 Ohm or 4 Ohms, making it the perfect match for high-power monoblock amplifiers as well as multi-subwoofer configurations. This ensures seamless integration into both existing and newly designed sound systems.
Beyond its electrical adaptability, the subwoofer is designed for versatile enclosure compatibility. In sealed enclosures, it delivers tight, controlled bass with outstanding transient response, while in bass reflex systems, it provides exceptional low-frequency extension and immense output capability. This adaptability makes the HELIX IQ W12-DVC2 the ideal choice for a wide range of system applications.
Sophisticated and Robust Construction for Long-Lasting Performance
Delivering powerful low-frequency performance requires an exceptionally rigid and durable construction. The HELIX IQ W12-DVC2 features a meticulously engineered diecast aluminum basket, ensuring maximum stability while eliminating unwanted resonance. This guarantees consistent and precise bass reproduction, even during extreme cone excursions.

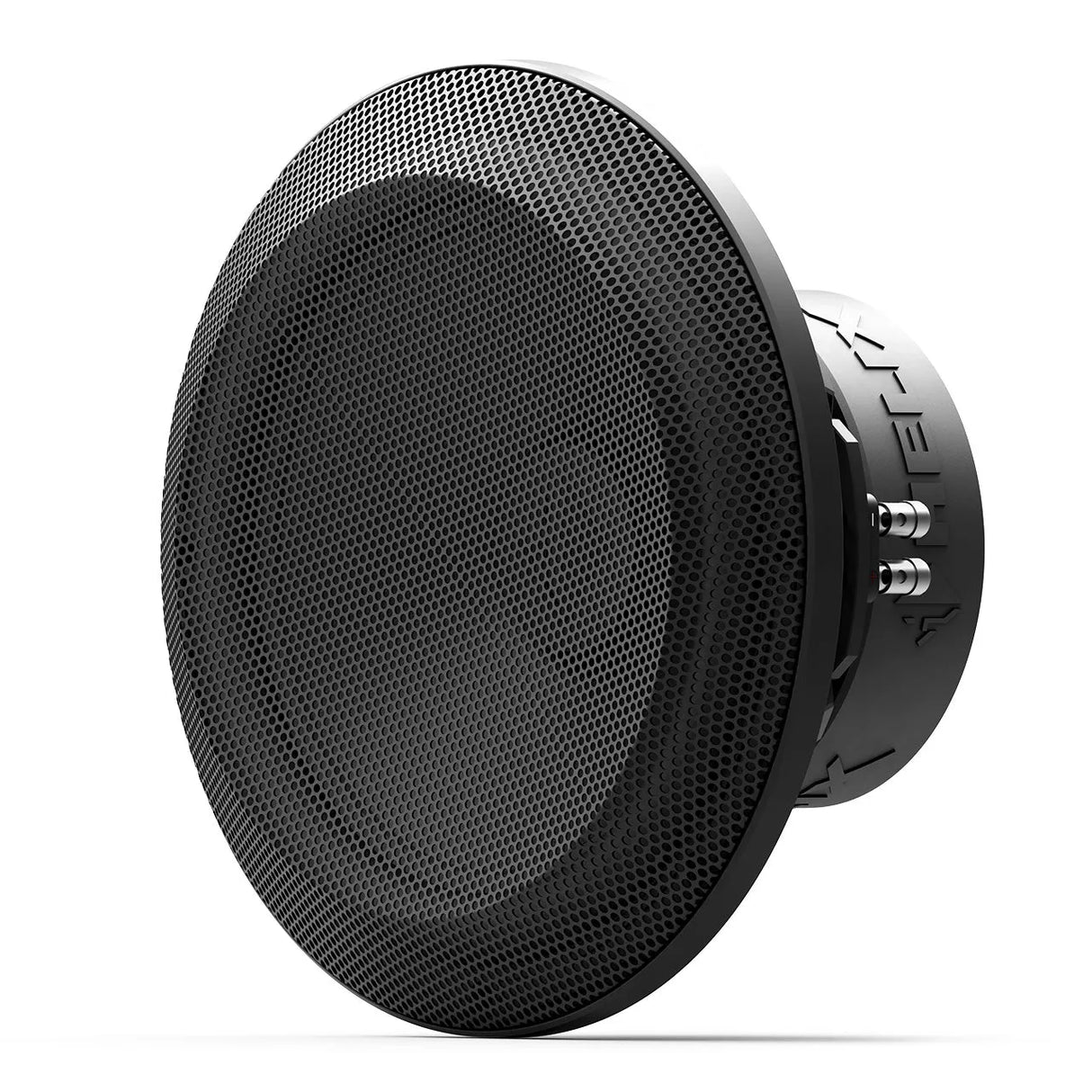

Additionally, the subwoofer is equipped with a protective grille that is directly integrated into the basket. This secure mounting not only provides optimal protection for the cone but also allows for seamless integration into the vehicle's interior. This ensures a safe and stylish installation, which can be particularly advantageous in tight installation spaces or vehicles with limited mounting options, contributing to long-term reliable performance. Thanks to its sturdy construction, the HELIX IQ W12-DVC2 remains highly durable even under heavy loads, delivering pure and consistent sound quality for years to come.
Features
Audiophile grade subwoofer – ensures sublime sound quality with superior low frequency extension and accurate dynamics
Engineered for high power – handles up to 750 Watts RMS for most demanding system designs
Proprietary Tuneable Mass System (TMS) – adjustable cone weight allows fine-tuning of Thiele-Small-Parameters pre- and post-installations
Powerful deep bass, unique dynamics – 3-layer Fiberglass-Mylar honeycomb cone for maximum precision and optimum inner damping
Flexible connection - 2 x 2 Ohms dual voice coil for flexible system configuration
Compact enclosure compatibility – high-performance subwoofer designed for space-saving installations
Versatile in use – suitable for sealed and bass reflex enclosures for maximum flexibility in system design
Sophisticated design – features a meticulously developed die-cast aluminum basket with an integrated grille for durability
TECHNICAL DATA
Technical data
– +1 TM +2 TM +3 TM
Power handling RMS / max. P 750 / 1,500 Watts
Recommended amplifier power RMS from 300 Watts
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.9 Ω
Resonance frequency Fs 36 Hz 32 Hz 29 Hz 27 Hz
Mechanical Q factor Qms 5.37
Electrical Q factor Qes 0.53 0.59 0.64 0.69
Total Q factor Qts 0.48 0.53 0.57 0.62
Compliance Cms 96 μm/N
Equivalent air volume Vas 35 L
Force factor B*I 18.1 Tm
Sensitivity SPL 90 dB @ 2.83V / 1m
87 dB @ 1W / 1m
Cone area Sd 515 cm²
Moving mass Mms 199 g 252 g 305 g 358 g
Cone material Fiberglass-Mylar honeycomb cone
Mechanical resistance Rms 8.5 kg/s
Voice coil diameter ø 63 mm
Voice coil winding height 34 mm
Max. linear excursion Xmax +/- 12 mm
Outer diameter ø 327.1 mm / 12.88"
Installation diameter ø 281 mm / 11.06"
Installation depth 144.7 mm / 5.70"
Recommended enclosure volumes
Sealed box
Net volume 33 L 47 L 65 L 115 L
Lower limiting frequency (-3dB) 53 Hz 44 Hz 37 Hz 31 Hz
Bass reflex housing
Net volume 70 L 90 L 110 L 140 L
Port diameter ø 100 mm
Port area 78 cm²
Port length 27 cm 31 cm 37 cm 39 cm
Port tuning frequency Fb 31 Hz 26 Hz 22 Hz 19 Hz
Lower limiting frequency (-3dB) 27 Hz 22 Hz 19 Hz 16 Hz
TM = Tuning Mass
Scope of delivery
1 x Subwoofer IQ W12-DVC2
1 x Installation gasket
2 x Mounting material
1 x Grill
2 x Grille removal tool
3 x Tuning mass (TM)
1 x Data sheet
