HELIX IQ W8-DVC2
Audiophile-Grade Subwoofer with Maximum Versatility

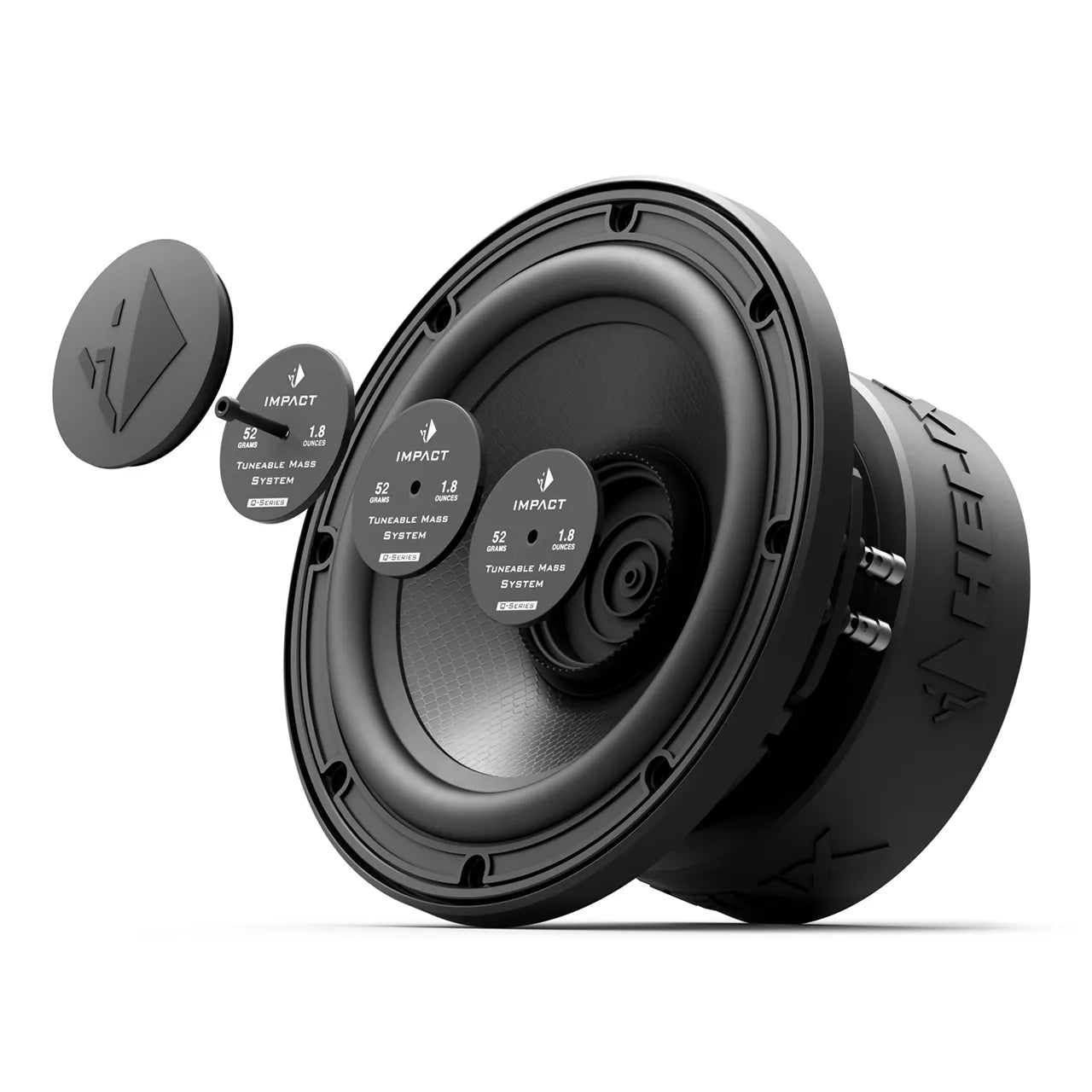

The HELIX IQ W8-DVC2 sets new standards for high-performance subwoofers. Developed for discerning music enthusiasts who appreciate both powerful output and high sound quality, this subwoofer combines cutting-edge technology, robust construction, and excellent flexibility. Thanks to its patented Tuneable Mass System (TMS), it allows for precise bass customization, enabling it to unleash its full potential in any application – whether in compact sealed enclosures or high-power bass reflex systems.

Designed for high power and deep bass
With a recommended power range of 300 to 750 W RMS, the HELIX IQ W8-DVC2 offers a wide range of applications and is especially optimized for high-power amplifier configurations, ensuring consistently precise bass – even at extreme levels. Its 3-layer fiberglass-Mylar honeycomb cone ensures maximum

Technical data

Power handling RMS / max. P 750 / 1,500 Watts
Recommended amplifier power RMS from 300 Watts
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.9 Ω
Resonance frequency Fs 43 Hz
Mechanical Q factor Qms 5.30
Electrical Q factor Qes 0.49
Total Q factor Qts 0.45
Compliance Cms 123 μm/N
Equivalent air volume Vas 8.5 L
Force factor B*I 15.5 Tm
Sensitivity SPL 86 dB @ 2.83V / 1m
83 dB @ 1W / 1m
Cone area Sd 222 cm²
Moving mass Mms 115 g ( Tuneable )
Cone material Fiberglass-Mylar honeycomb cone
Mechanical resistance Rms 5.8 kg/s
Voice coil diameter ø 63 mm
Voice coil winding height 32 mm
Max. linear excursion Xmax +/- 12 mm
Outer diameter ø 226 mm / 8.90″
Installation diameter ø 183 mm / 7.21″
Installation depth 114.5 mm / 4.51″

Sealed box
Minimum: Net volume 6 L

Bassreflex-box
Minimum: Net volume 13 L


TM = Tuning Mass
Scope of delivery
1 x Subwoofer IQ W8-DVC2
1 x Installation gasket
2 x Mounting material

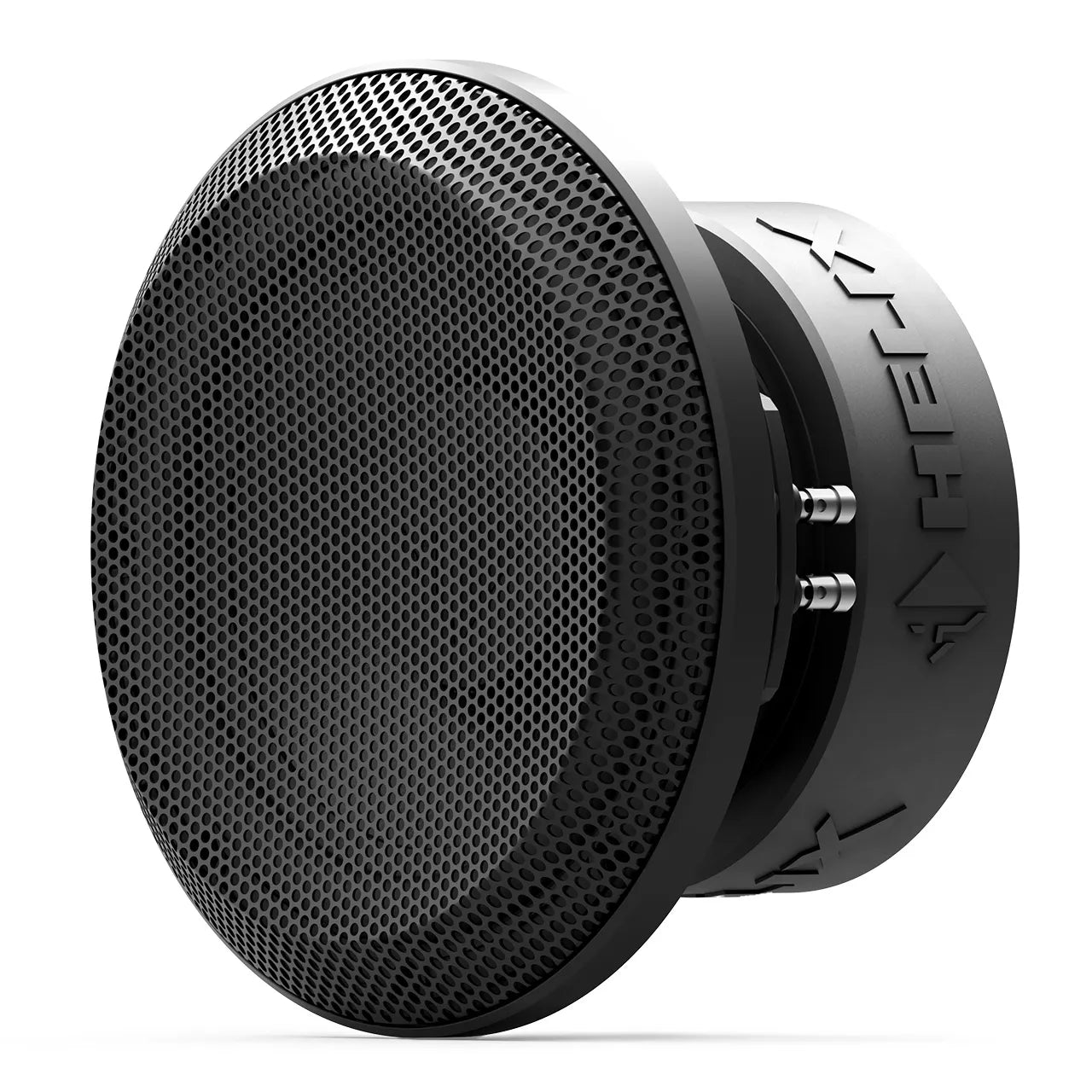

1 x Grille
2 x Grille removal tool
3 x Tuning mass (TM)
1 x Data sheet
