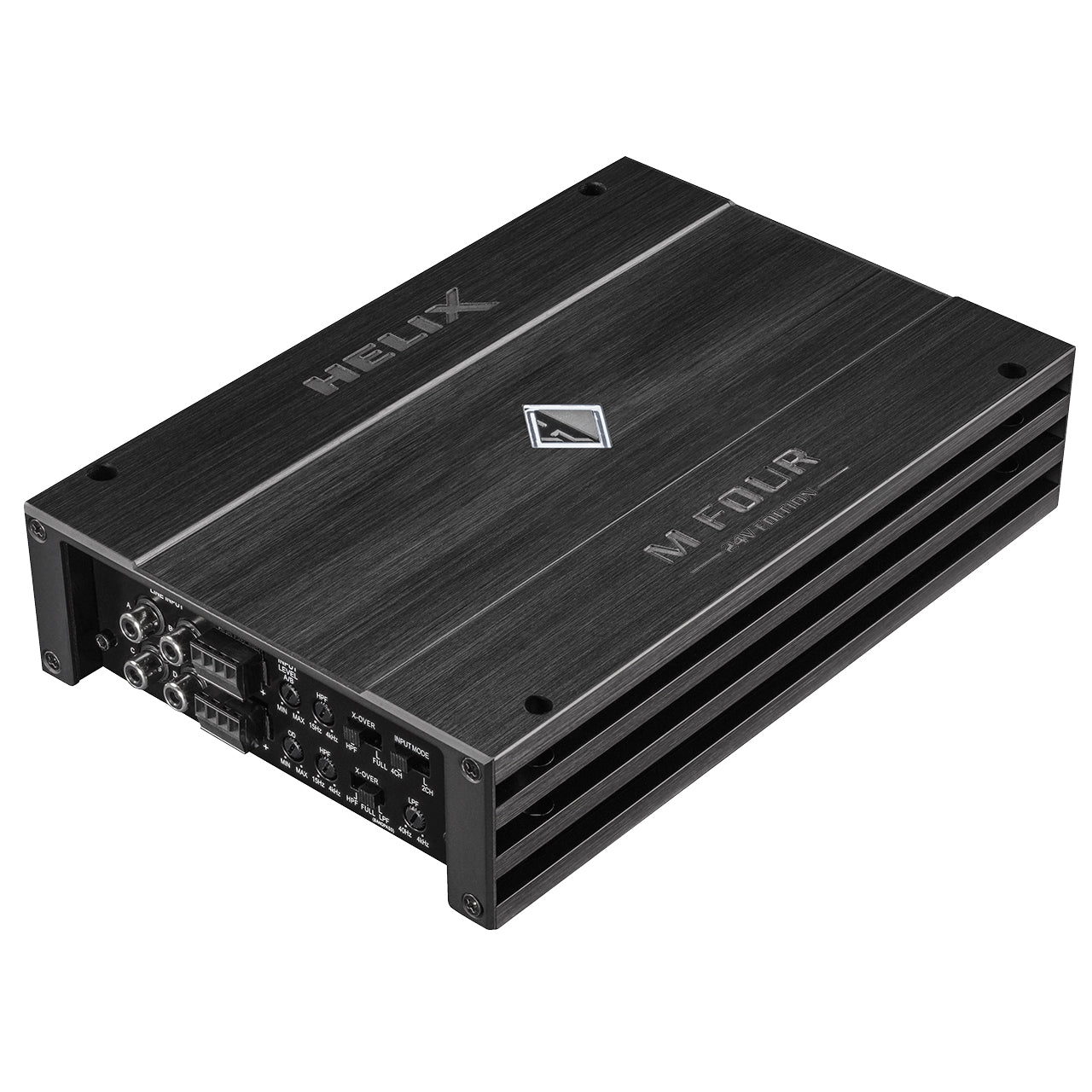

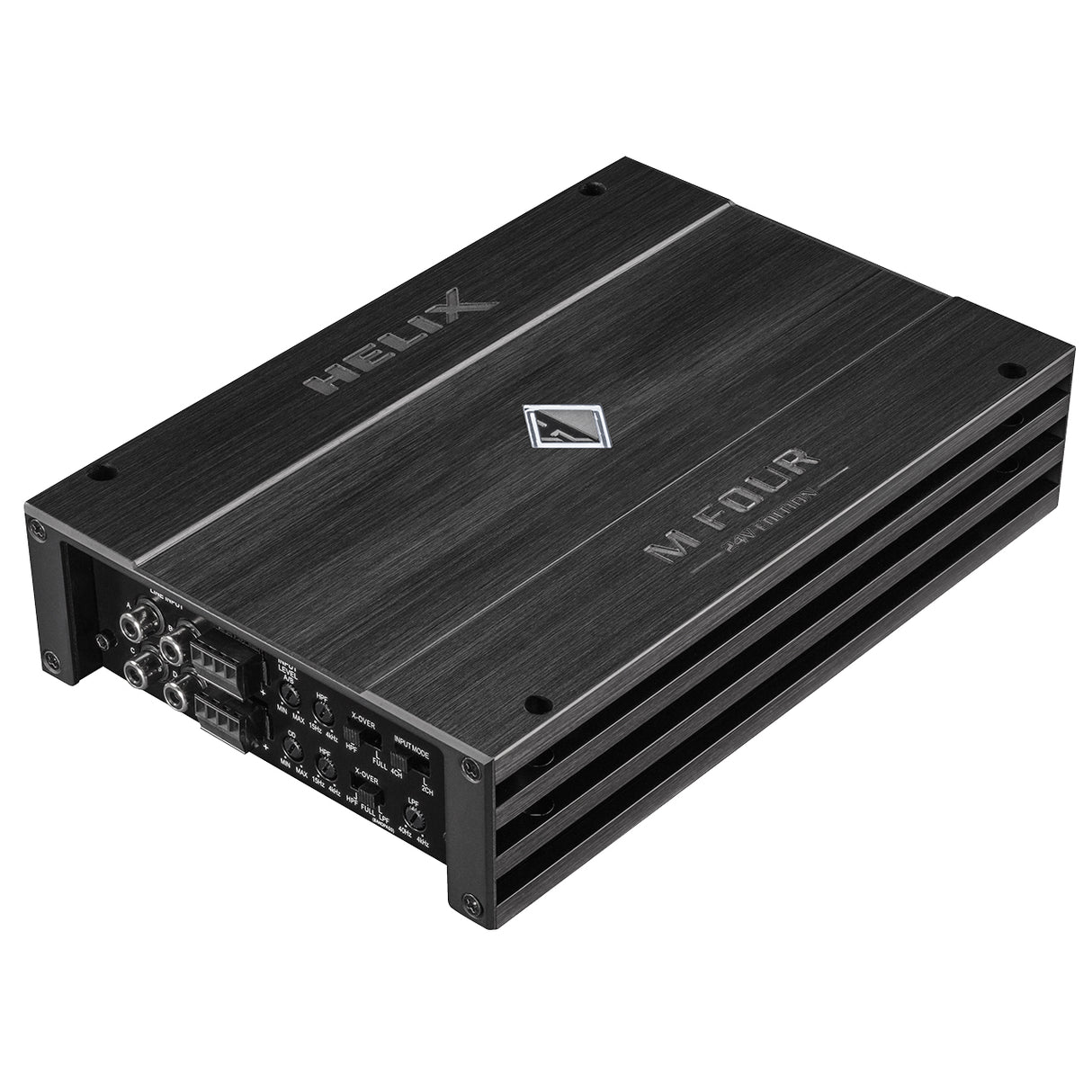

HELIX M FOUR - 24V Edition
If you want to boost the sound of your front and rear speakers, the M FOUR - 24V Edition is exactly the "tool" you need. With a generous 100 W RMS per channel into both 4 Ω and 2 Ω loads, this amplifier will quickly heat up your voice coils despite its super-compact dimensions. On the other hand, the M FOUR - 24V Edition remains completely cool, thanks to its highly efficient Class D design topology. 3-channel or 2-channel configurations are possible, providing up to 2 x 200 W RMS of clean and undistorted output power.

Needless to say, the M FOUR - 24V Edition is equipped with many smart features, such as the "start-stop" function and our proprietary "ADEP" high-level input, making it easily cope with all installation challenges of modern cars. Finally, a wide range of audio features will ensure the best sound quality.

Features
Small footprint Class D amplifier with high output power of 100 W RMS @ 4 and 2 Ω load
"Start-Stop" function, operating down to 12V supply voltage
Smart high-level input with ADEP circuit (Advanced Diagnostics Error Protection) and automatic turn-on function
Integrated active crossover with high-pass, low-pass, and band-pass filters
"Input mode" switch for flexible input signal routing
SMD (surface mount device) manufacturing technology combines minimal space requirement with maximum reliability
Exclusive, ultra-compact and clean design with illuminated HELIX logo and low heat dissipation, thanks to extraordinary efficiency
Special features:
Smart high-level input
The latest generation of OE car radios includes sophisticated diagnostics for connected speakers. If a conventional amplifier is connected, error messages often appear and certain functions are lost (e.g., fader function) - but not with the M FOUR - 24V Edition.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems, without loading the OE radio's speaker outputs at high volumes.

Technical data

Output power RMS ≤ 1% THD+N
- @ 4 Ohms 4 x 100 Watts
- @ 2 Ohms 4 x 100 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms 2 x 200 Watts
- bridged @ 2 Ohms -
Max. output power per channel* Up to 135 Watts RMS @ 4 / 2 Ohms
Amplifier technology Class D

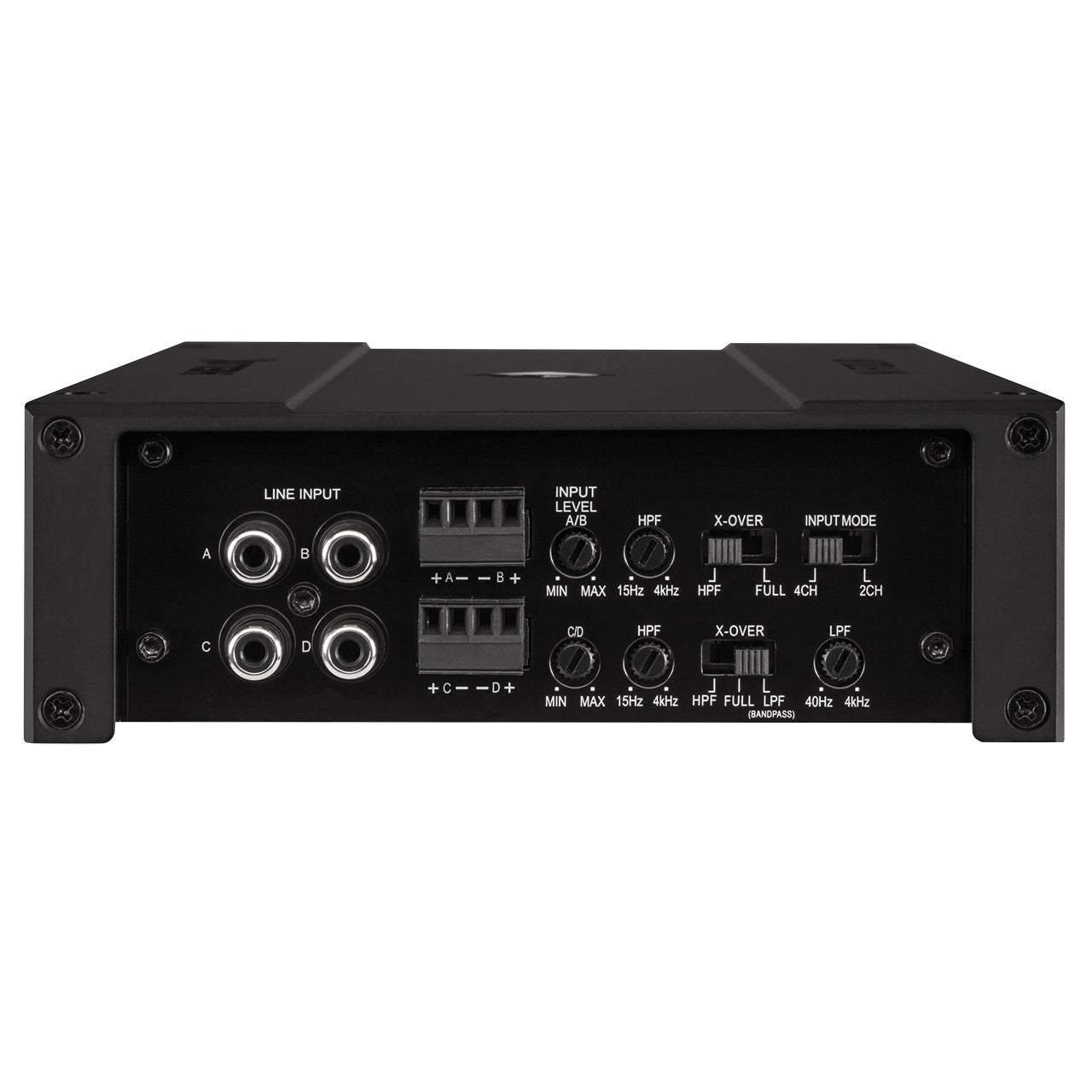

Inputs 4 x RCA / Cinch
4 x Highlevel speaker input
1 x Remote In
Input sensitivity RCA / Cinch 0.5 - 6 Volts
Highlevel 1.3 - 13 Volts
Input impedance RCA / Cinch 20 kOhms
Input impedance highlevel 9 - 33 Ohms

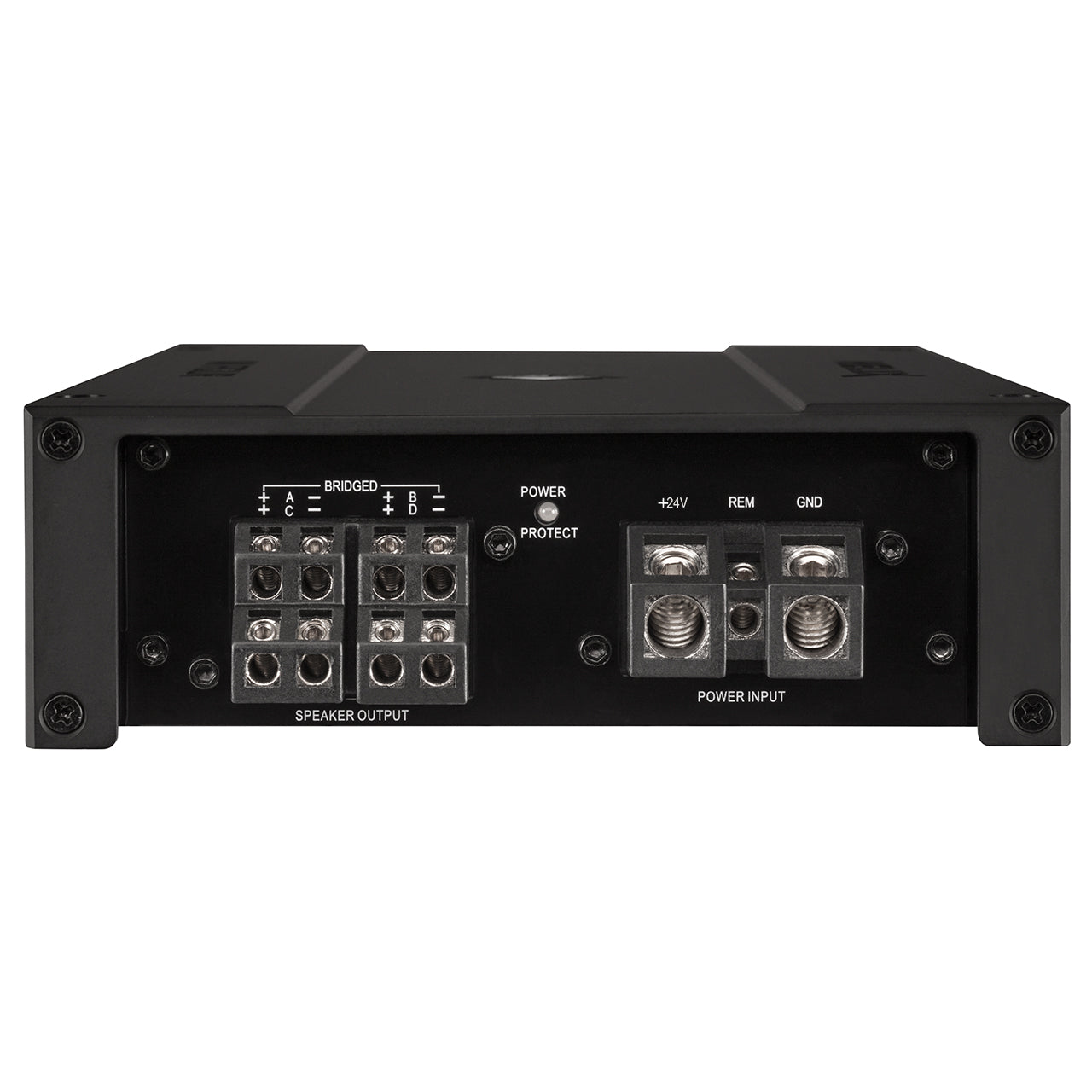

Outputs 4 x Speaker output
Output voltage RCA / Cinch -
Signal converter for digital input -
Frequency response 10 Hz - 30,000 Hz
Bass boost -
Highpass 15 Hz - 4,000 Hz adjustable
Lowpass 40 Hz - 4,000 Hz adjustable
Bandpass 15 Hz - 4,000 Hz adjustable
Subsonic -
Phase -
Slope high- / lowpass 12 dB/Oct.
Slope subsonic / lowpass -
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 98 dB (A-weighted)
Distortion (THD) 0.05 %
Damping factor 100
Operating voltage 18 - 36 Volts (max. 5 sec. down to 12 Volts)
Idle current 550 mA
Fuse 2 x 15 A Maxi-fuse (APX)
Power rating DC 24 V ⎓ 25 A max.
Additional features Active, adjustable crossover, input mode switch, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP)
Dimensions (H x W x D) 50 x 230 x 154 mm /
2.00 x 9.06 x 6.06”
