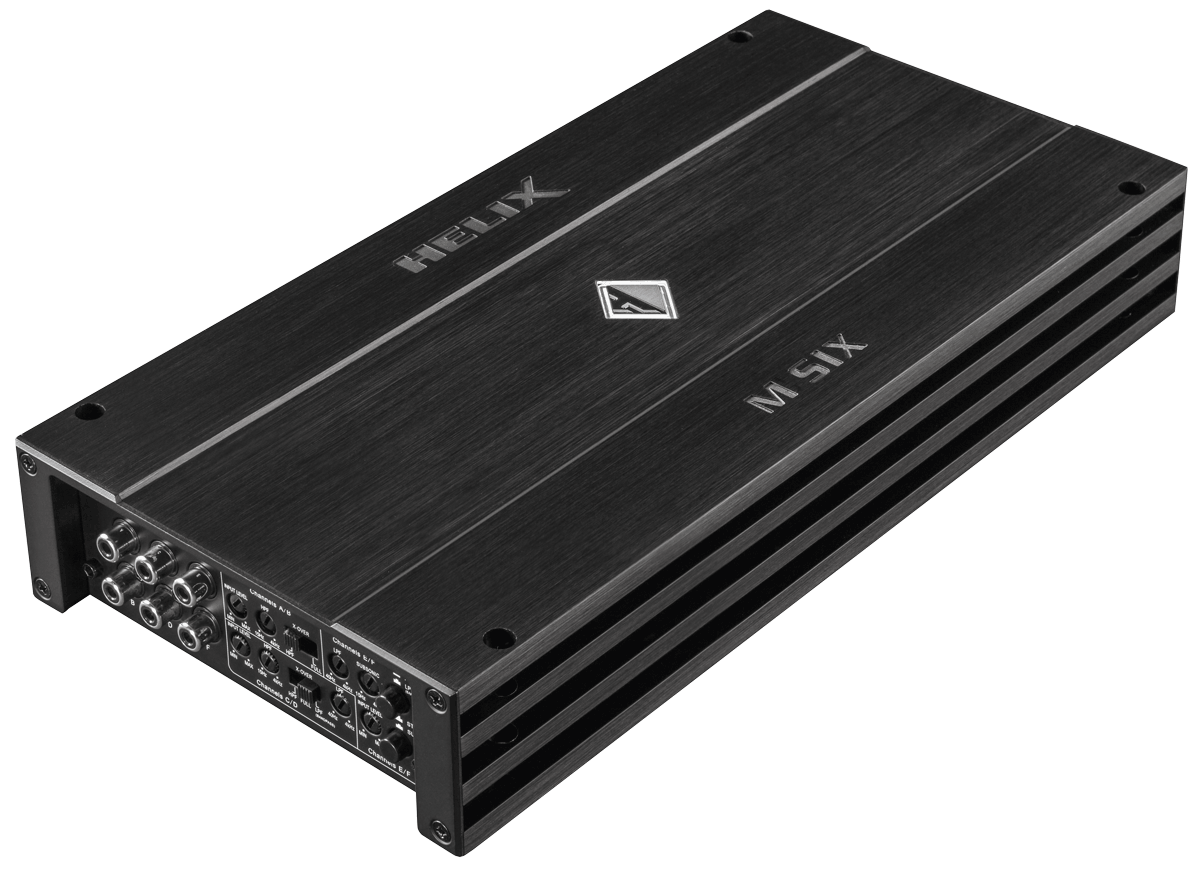

- Helix M SIX, automobilinis garso stiprintuvas

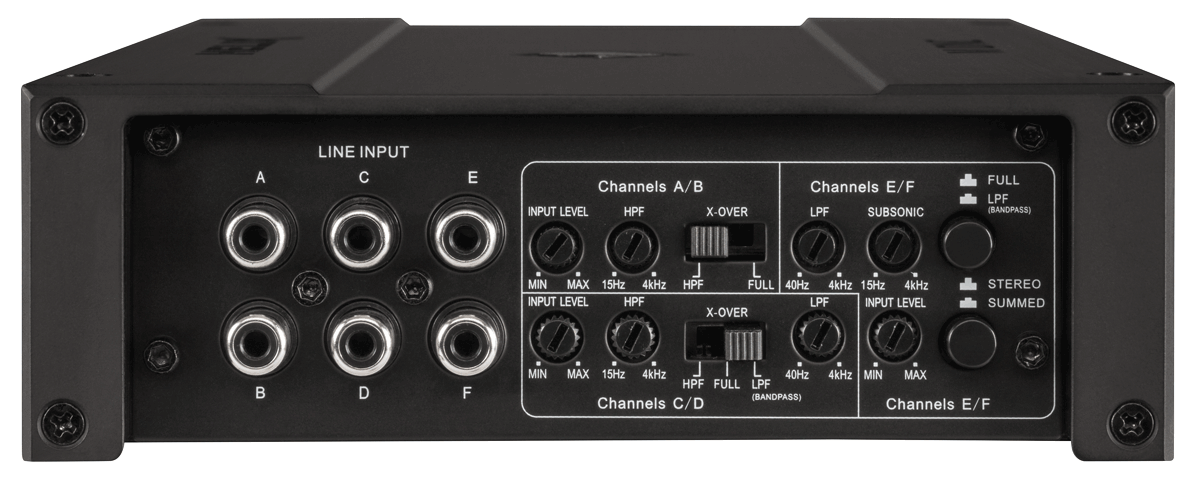

- Helix M SIX, automobilinis garso stiprintuvas - Priekis

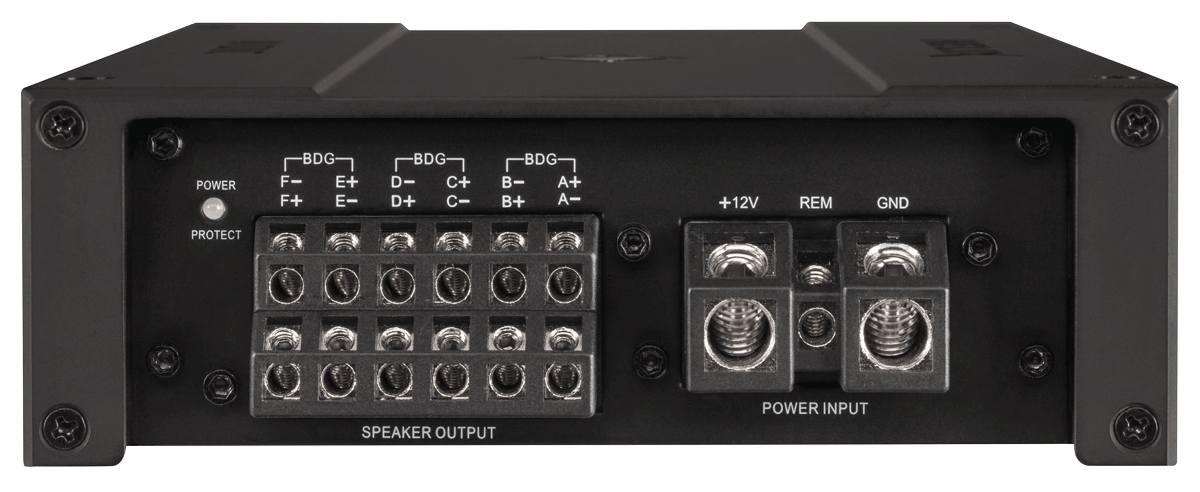

- Helix M SIX, automobilinis garso stiprintuvas - Šonas
Helix M SIX, car sound amplifier 6x100W
Helix M SIX, car sound amplifier 6x100W - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
.
- D- Class amplifier.
- START-STOP function.
- SMD support.
- RCA connector.
- High-quality Hi input.
DESCRIPTION
One for all – no matter if 3-way, 2-way or subwoofer application, the 6-channel amplifier M SIX will always be the right choice.
With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp really gets your speaker cones going despite its super-compact dimensions. On the other hand, the M SIX stays totally cool thanks to its highly efficient Class D design topology. And even bridged configurations are possible, delivering up to 3 x 200 Watts RMS of clean and undistorted output power.
In addition, a comprehensive and stunningly practical feature set leaves nothing to be desired. And finally the perfect sound tuning is no big deal thanks to its integrated crossover with all its setup options.
PROPERTIES
- Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
- Start-Stop capability down to 6V supply voltage
- 6-channel low level input
- Integrated, active crossover with highpass, lowpass, bandpass and subsonic
- "Input mode" switch for channel E & F for flexible input signal routing
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirements with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Outstanding features?
Start-Stop capability
The switched power supply of the HELIX M SIX ensures operation even if the battery's voltage drops down to 6 Volts during engine cranking.
In the package?
1 x Amplifier HELIX M SIX
1 x Mounting material
1 x Instruction manual
TECHNICAL DATA
SPECIFICATIONS
| Output power RMS / max. | |
| - @ 4 Ohms | 6 x 100 / 200 Watts |
| - @ 2 Ohms | 6 x 100 / 200 Watts |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | 3 x 200 / 400 Watts |
| - bridged @ 2 Ohms | - |
| Max. output power per channel* | Up to 130 Watts RMS @ 2 Ohms |
| Amplifier technology | Class D |
| Inputs | 6 x RCA/Cinch 1 x Remote In |
| Input sensitivity | RCA / Cinch 0.5 - 6 Volts |
| Input impedance RCA / RCA | 20 kOhms |
| Input impedance high level | - |
| Outputs | 6 x Speaker output |
| Output voltage RCA / RCA | - |
| Signal converter for digital input | - |
| Frequency response | 10 Hz - 30,000 Hz |
| Bass boost | - |
| Highpass | 15 Hz - 4,000 Hz adjustable |
| Lowpass | 40 Hz - 4,000 Hz adjustable |
| Bandpass | 15 Hz - 4,000 Hz adjustable |
| Subsonic / HPF |
15 Hz - 4,000 Hz adjustable |
| Phase | - |
| Slope high- / lowpass | 12 dB/Oct. |
| Slope subsonic / lowpass | - |
| Signal-to-noise ratio digital input | - |
| Signal-to-noise ratio analog input | 98 dB (A-weighted) |
| Distortion (THD) | 0.05% |
| Damping factor | 100 |
| Operating voltage | 10.5 - 16 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 1.550mA |
| Fuse | 2 x 35 A Maxi-fuse (APX) |
| Additional features | Active, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capability |
| Dimensions (H x W x D) | 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06” |
