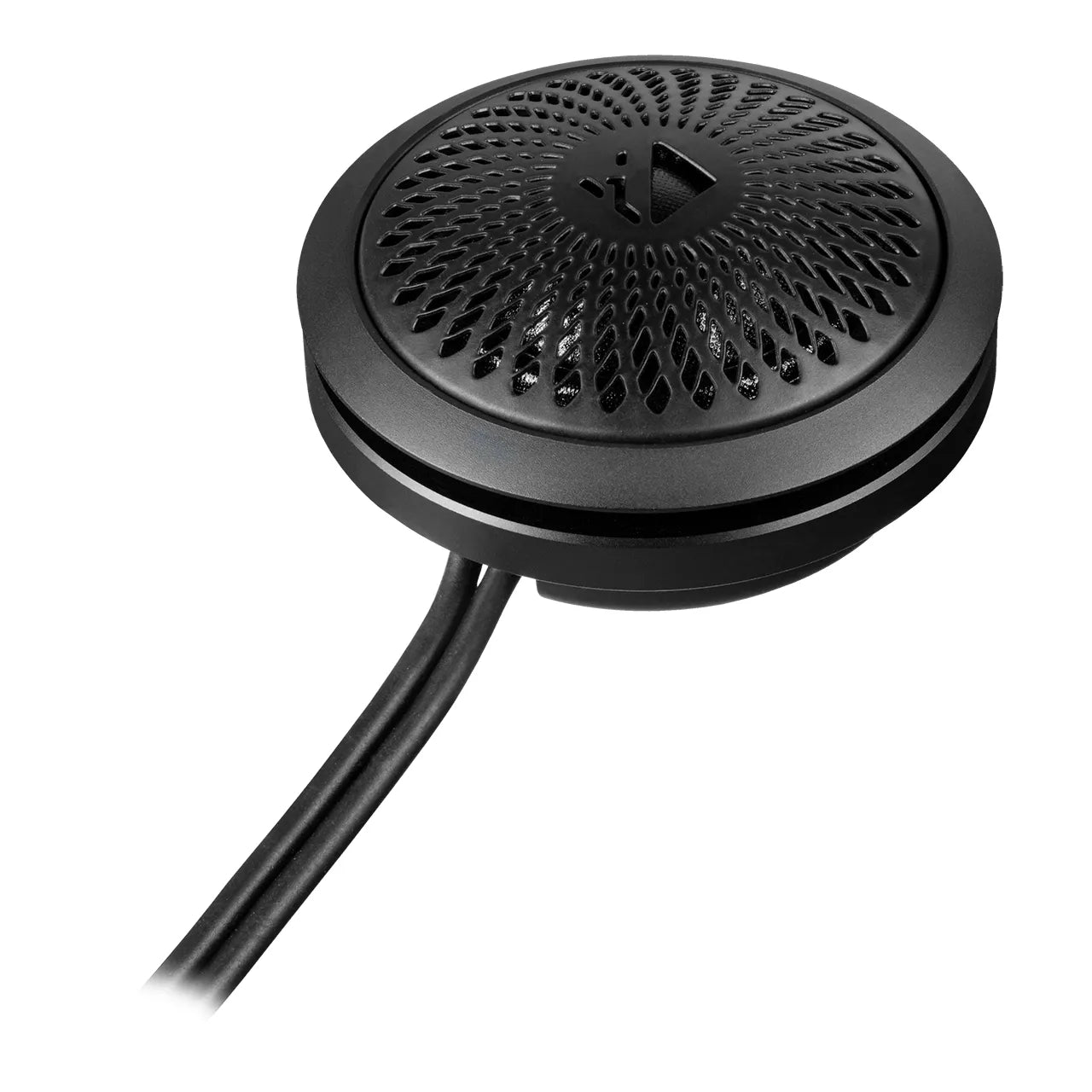

- Helix PR T25-S - Apvalus garsiakalbis su grotelėmis ir laidu

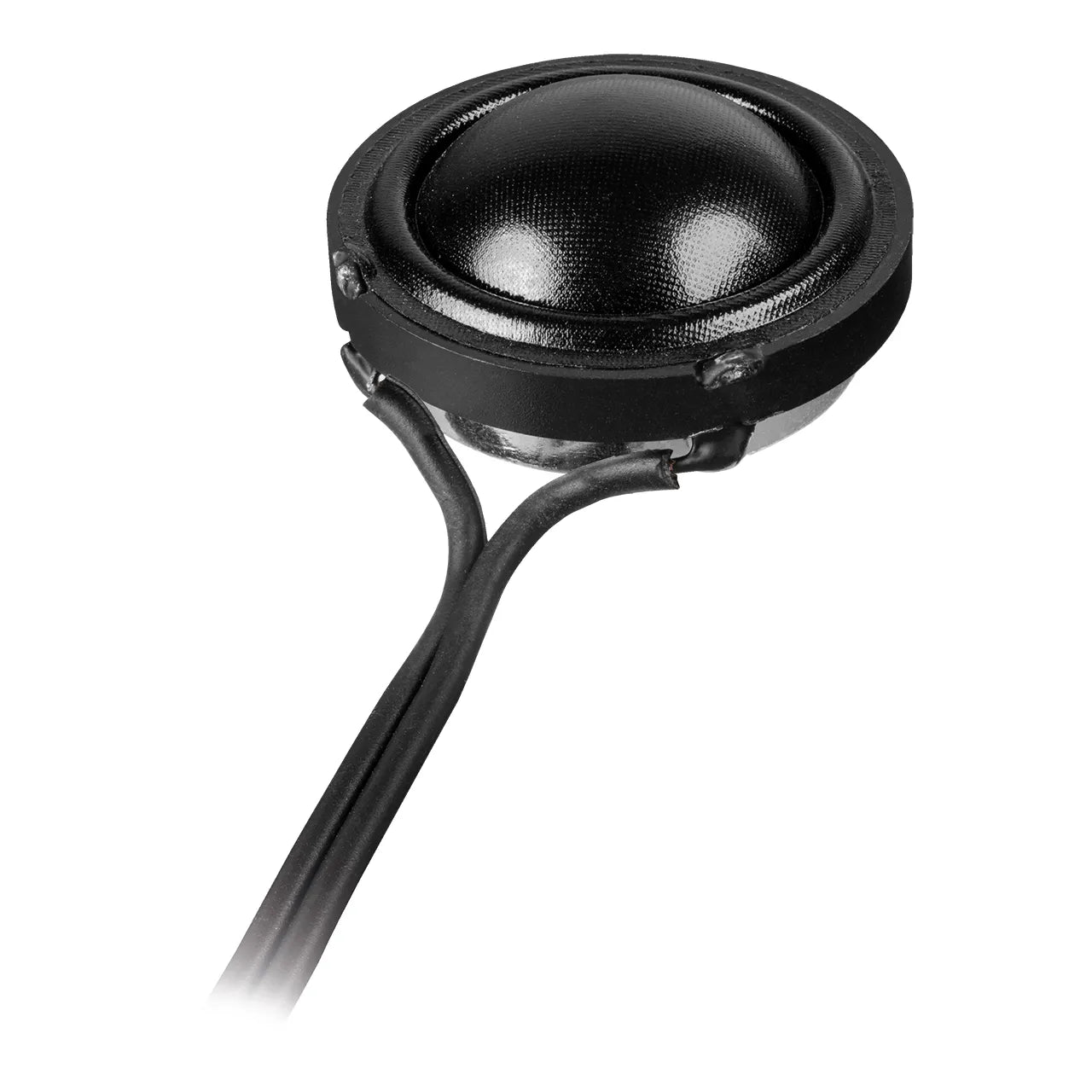

- Helix PR T25-S - Garsiakalbis su laidais iš apačios

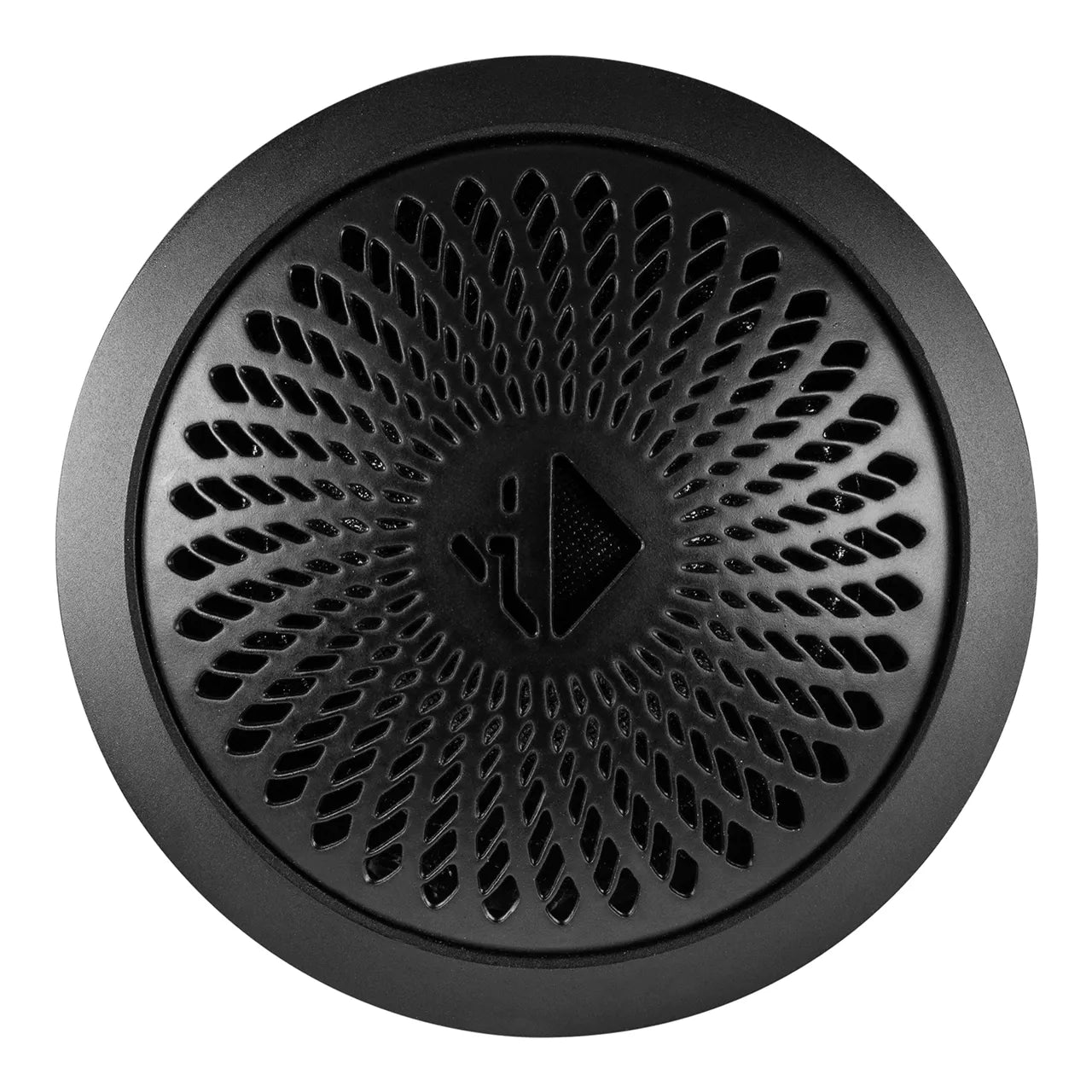

- Helix PR T25-S - Detalios grotelės su logotipu centre

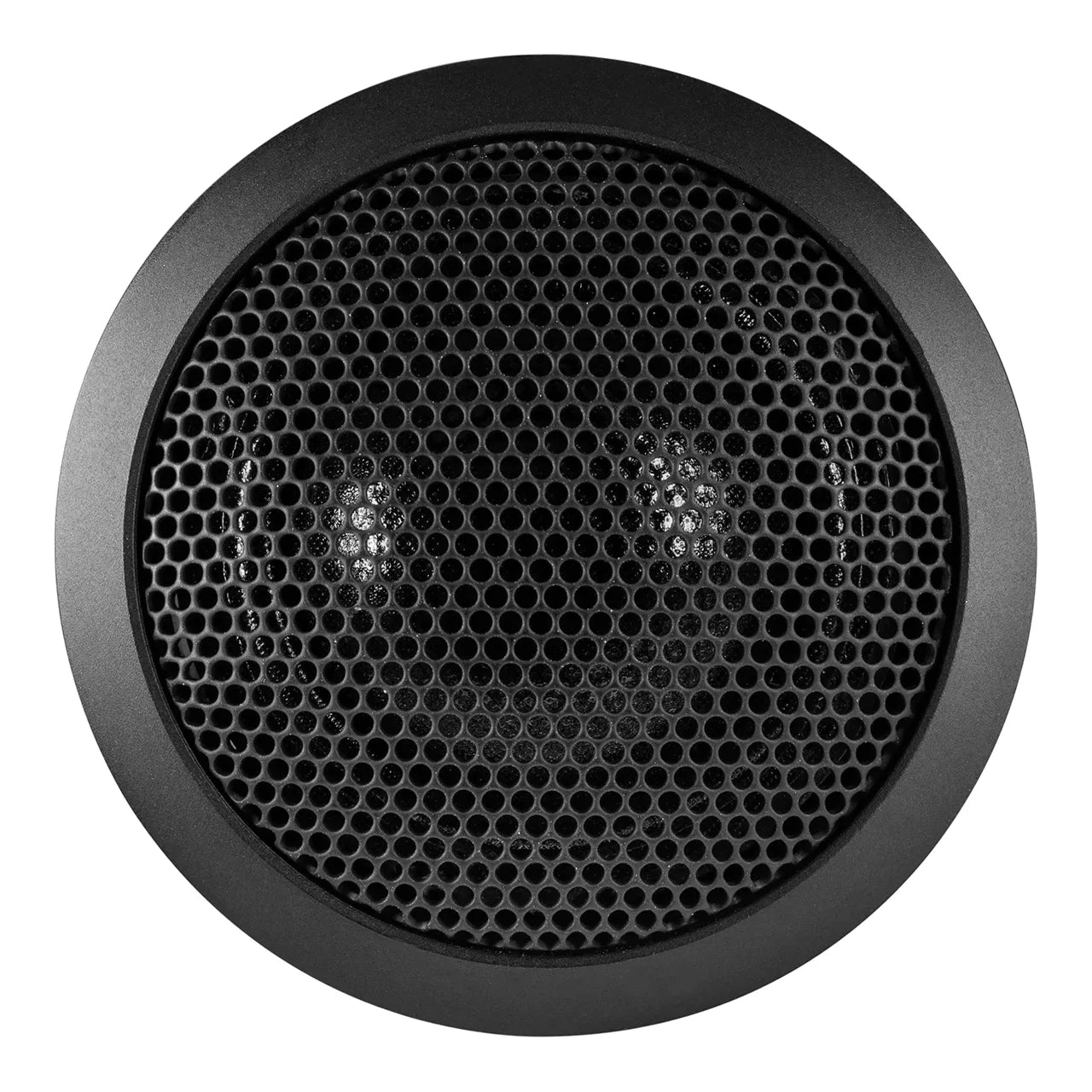

- Helix PR T25-S - Garsiakalbio tinklelio detalus vaizdas
Helix PR T25-S
Helix PR T25-S - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
HELIX PURE goes beyond simple music. It is an audiovisual journey dedicated to uncompromising sound quality and uniqueness, created for discerning audiophiles and individualists who refuse to compromise in their daily lives. The PURE R series represents the pinnacle of our PURE speakers, combining their essential characteristics to perfection: uncompromising sound quality, high-quality materials and unparalleled aesthetics.
Absolute brilliance in high frequencies
The HELIX PR T25-S premium tweeter is an example of absolute excellence in the PURE speaker range. It stands out for its minimal manufacturing tolerances and the exceptional use of premium materials, such as a coated silk dome. This component ensures precise reproduction of even the smallest details, guaranteeing smooth and natural sound reproduction, providing an unparalleled high-frequency experience. The highly efficient neodymium magnet maintains a continuously optimal, high magnetic flux.
Technical data
Technical data
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 2,500 Hz - 25,000 Hz
Resonance frequency Fs 1,400 Hz
Sensitivity
SPL
92 dB @ 2,83V / 1m
89 dB @ 1W / 1m
Voice coil diameter ø 25 mm
Cone area Sd 4.9 cm²
Moving mass Mms 0.3 g
Cone material Coated silk dome
Outer diameter
(more data see data sheet) ø 37.7 mm / 1.48″
Installation diameter
(more data see data sheet) ø 37.7 mm / 1.48″
Installation depth
(more data see data sheet) 10.6 mm / 0.42″
Recommended crossover frequencies for the highpass
Slope Minimum crossover frequency
6 dB/Octave 4,000 Hz
12 dB/Octave 3,000 Hz<24 dB/Octave 2,500 Hz
Scope of delivery
2 x Tweeter PR T25-S
2 x Aluminum flush mount housing
2 x OEM spacer
2 x Standard grille
2 x Exclusive HELIX grille
1 x Mounting material
