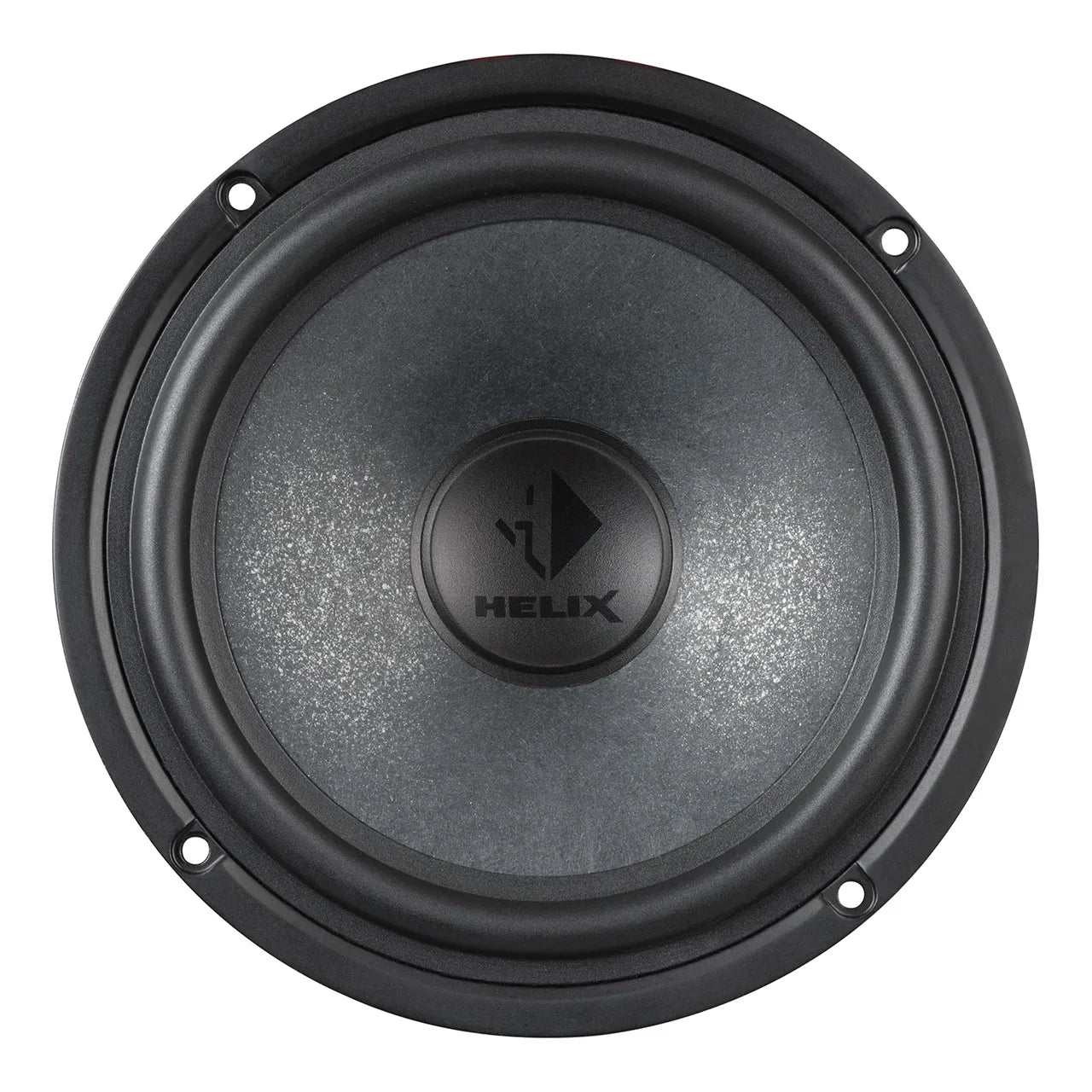

- Helix PR W165 - Garsiakalbio membranos tekstūra ir logotipas

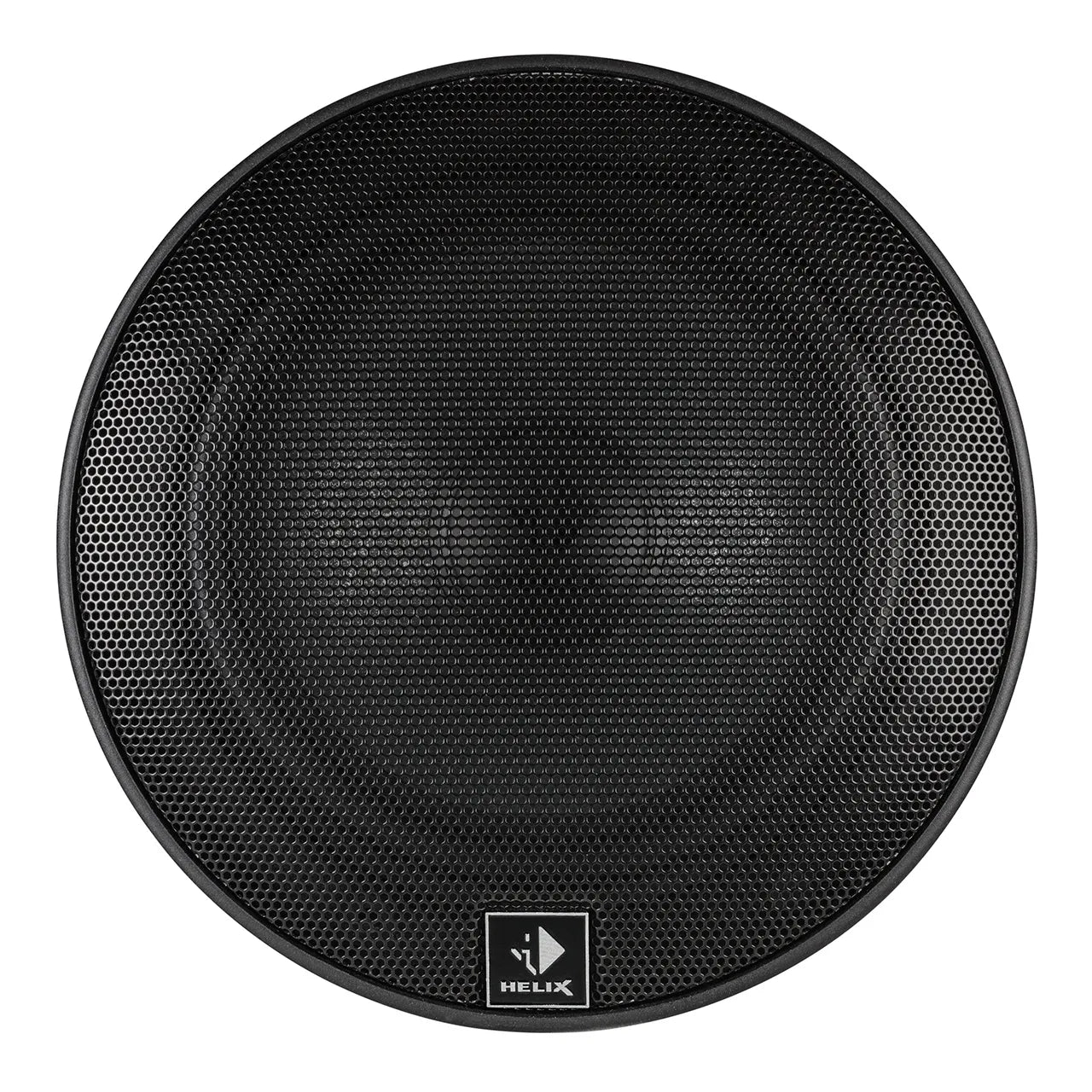

- Helix PR W165 - garsiakalbio grotelės su logotipu iš arti
Helix PR W165
Helix PR W165 - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
HELIX PURE R-series: Perfect Sound, Pure Exclusivity
HELIX PURE transcends mere music. It's an audiovisual journey dedicated to uncompromising sound quality and uniqueness, designed for discerning audiophiles and individualists who refuse to compromise in their daily lives. The PURE R-Series represents the pinnacle of our PURE loudspeakers, refining their essential characteristics: uncompromising sound quality, high-quality materials, and unparalleled aesthetics.
A Sound Experience You Can Hear and Feel
The HELIX PR W165 premium woofer is an example of absolute exclusivity in the PURE loudspeaker range. It delivers an unparalleled sound quality that you can not only hear but also feel. The stiff Mica-Paper composite cone ensures not only powerful kickbass but also balanced midrange reproduction that brings your music to life. To achieve optimal impulse response, it utilizes an extremely powerful magnet system, while the robust die-cast aluminum...
Technical data
Technical data
Power handling RMS / Max. P
100 / 200 Watts
Impedance Z 4 Ω
DC resistance Re 3.1 Ω
Frequency response 40 Hz - 4,000 Hz
Resonance frequency Fs 57 Hz
Mechanical Q factor Qms 5.35
Electrical Q factor Qes 0.63
Total Q factor Qts 0.57
Compliance Cms 440 µm/N
Equivalent air volume Vas 10.8 L
Force factor B*I 6.1 Tm
Sensitivity SPL 91 dB @ 2.83 V / 1m
88 dB @ 1W / 1m
Cone area Sd 133 cm²
Moving mass Mms 17.9 g
Cone material Mica-Paper composite cone
Mechanical resistance Rms 1.19 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height 12 mm
Max. linear excursion Xmax +/- 3 mm
Outer diameter ø 166 mm / 6.54″
Installation diameter ø 141 mm / 5.55″
Installation depth 66.5 mm / 2.62″
Scope of delivery
2 x Woofer PR W165
2 x Grille
1 x Mounting material
