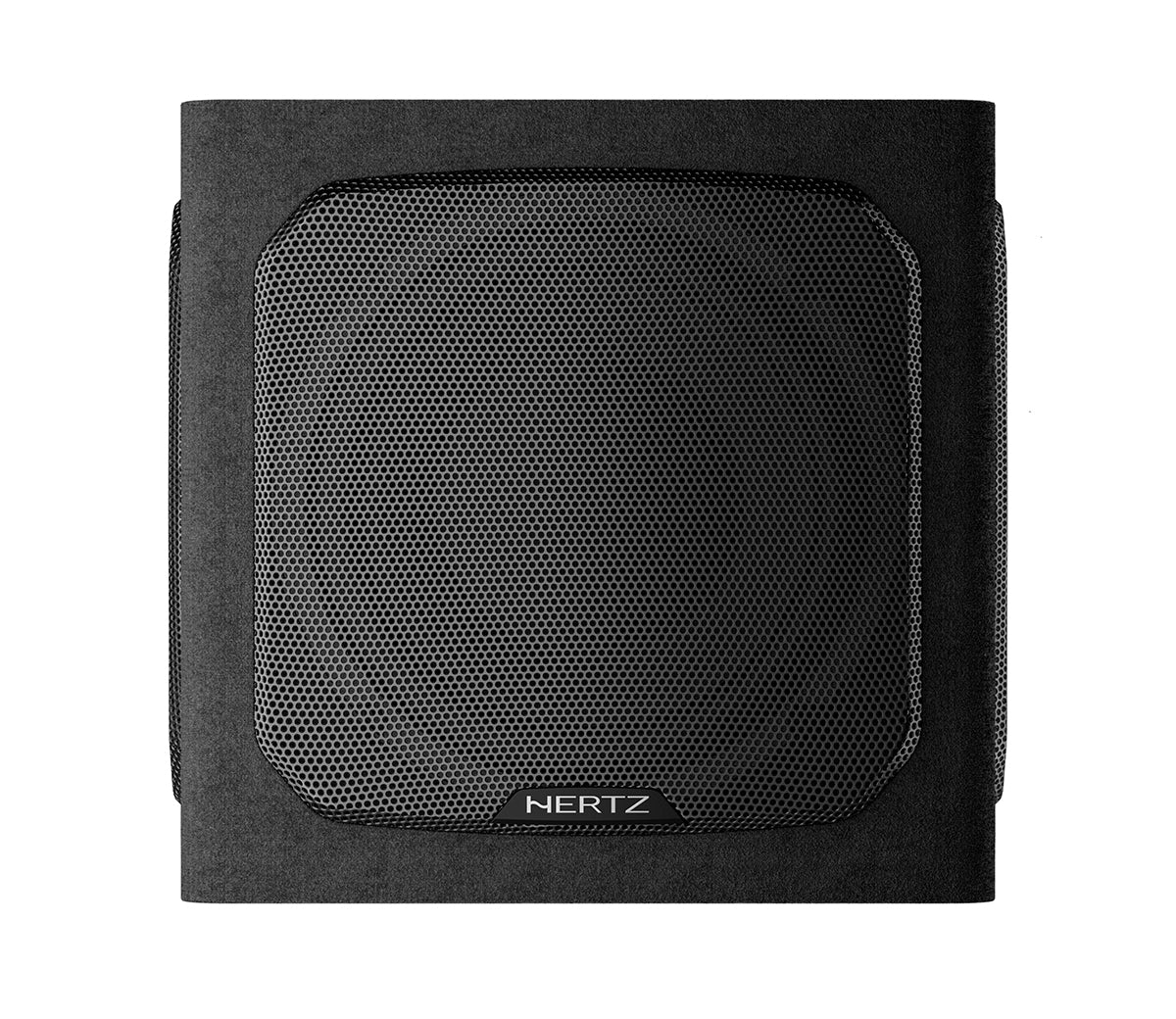

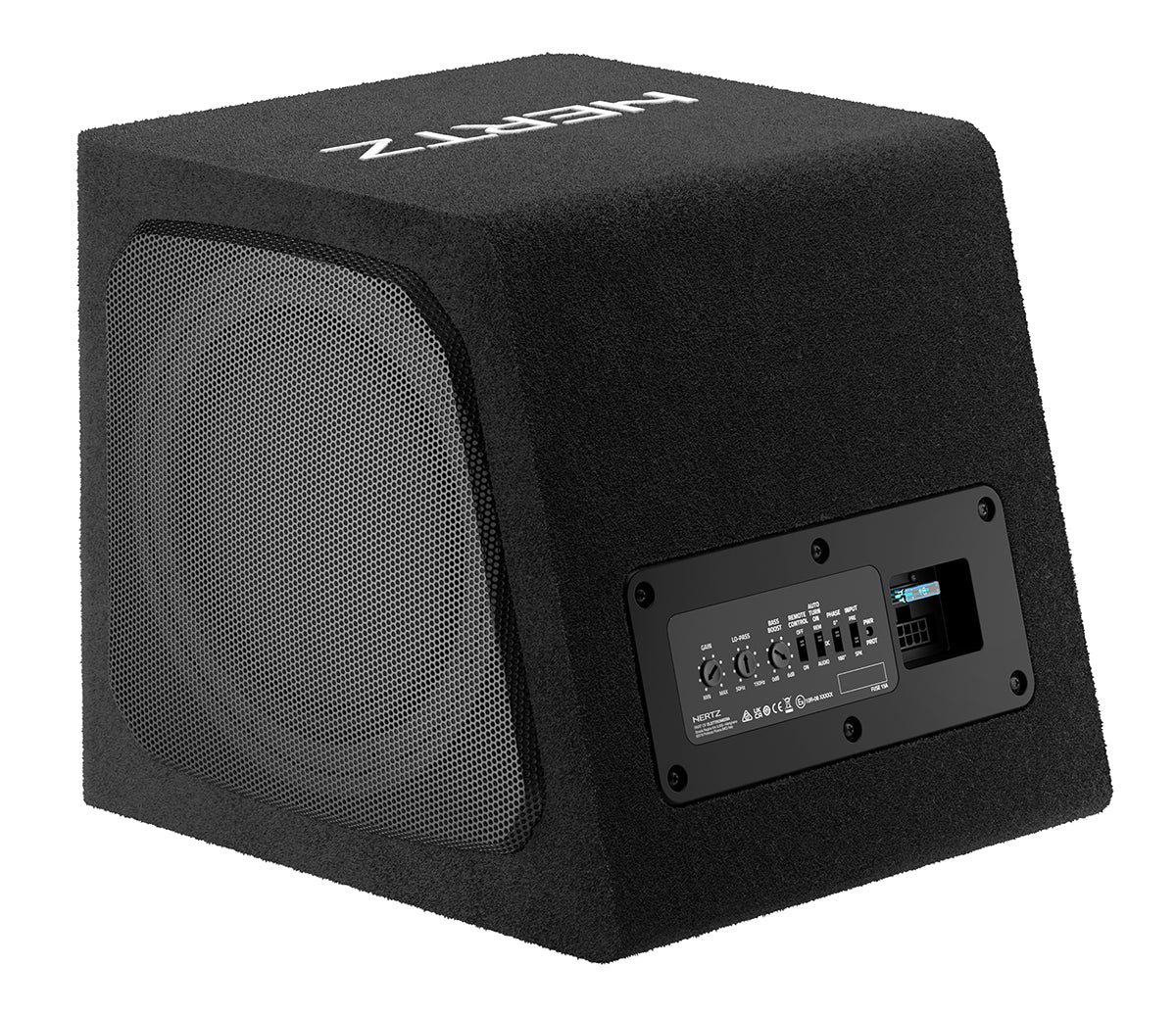

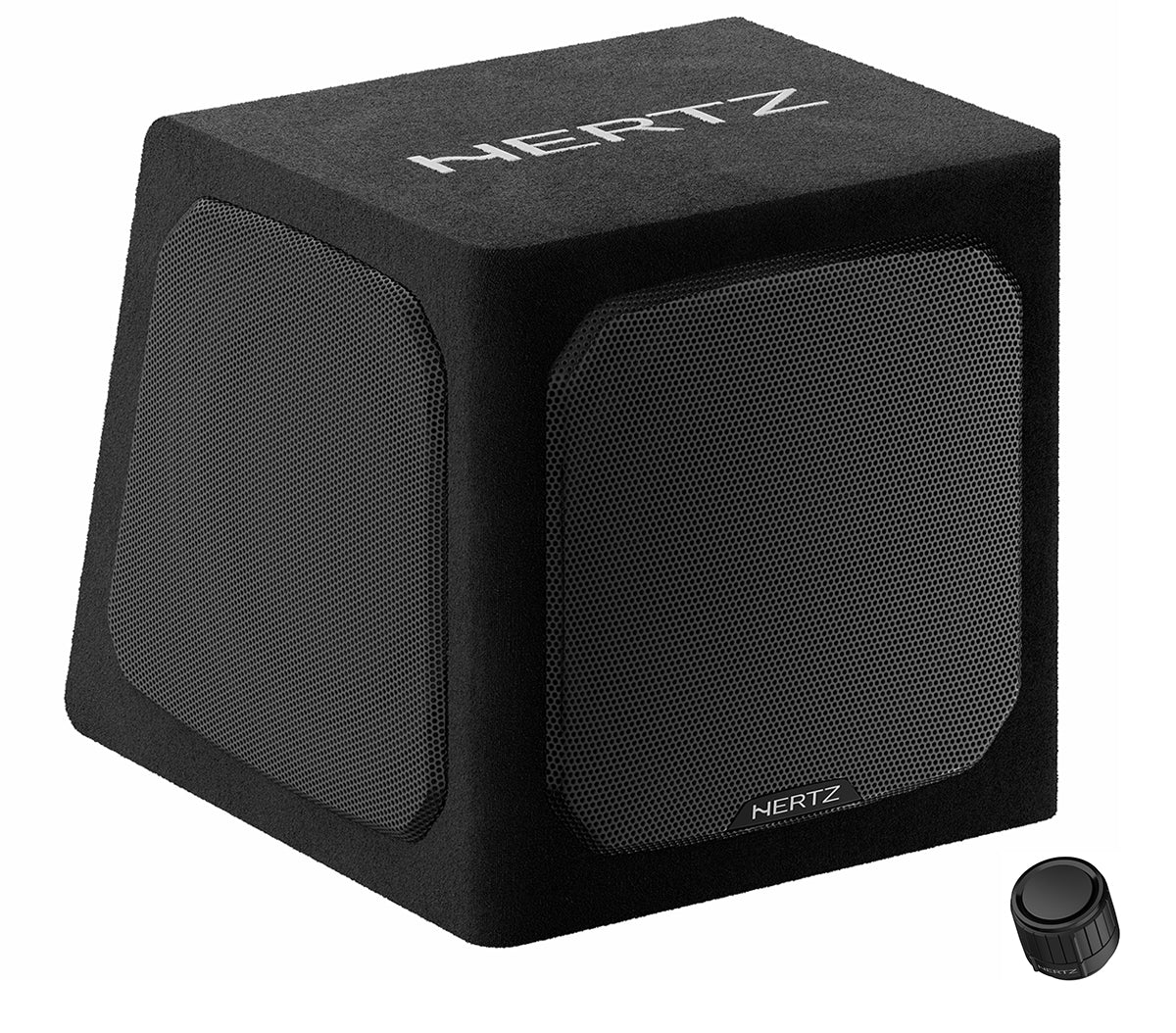

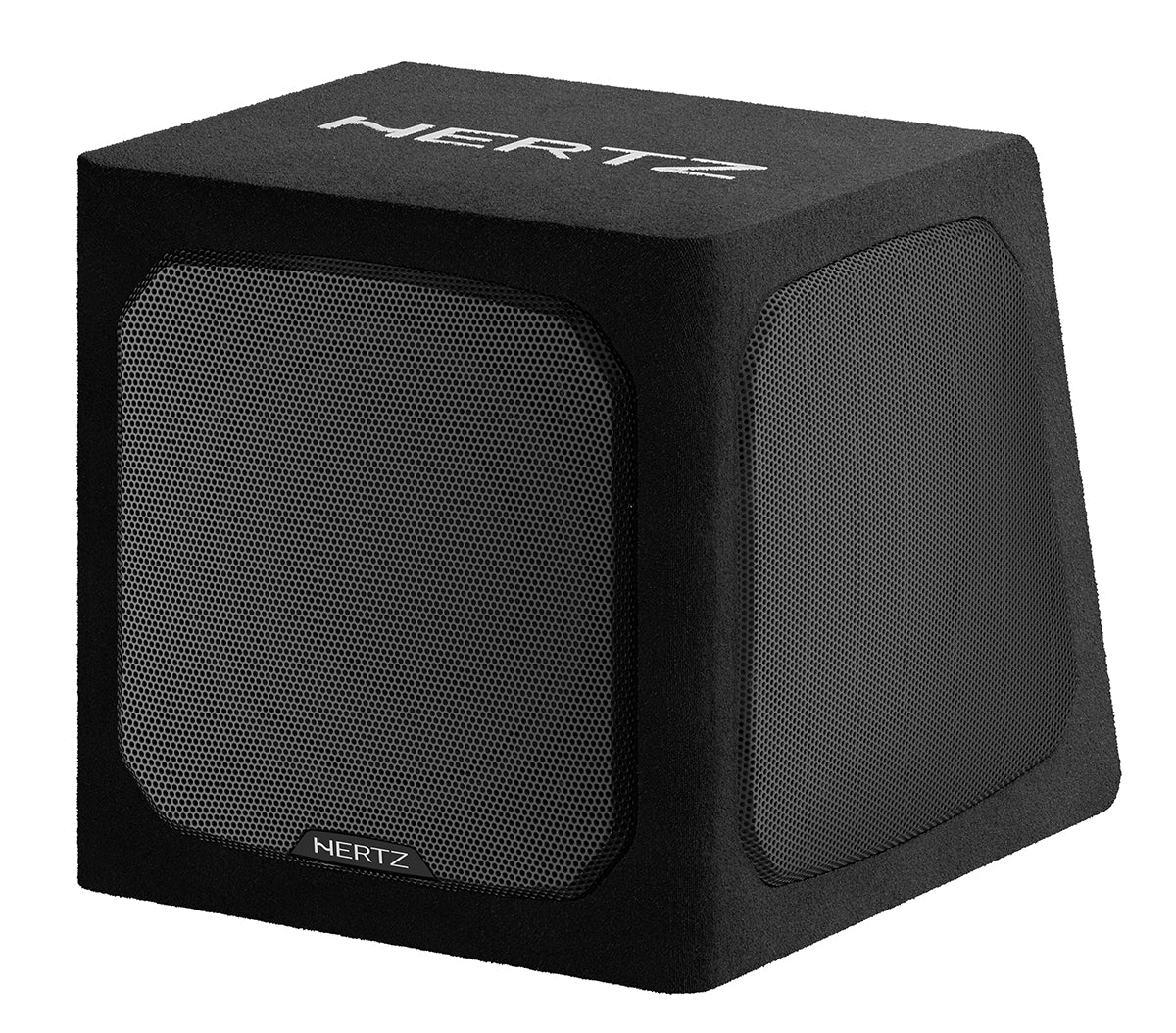

Hertz DBA 201, 440W active subwoofer

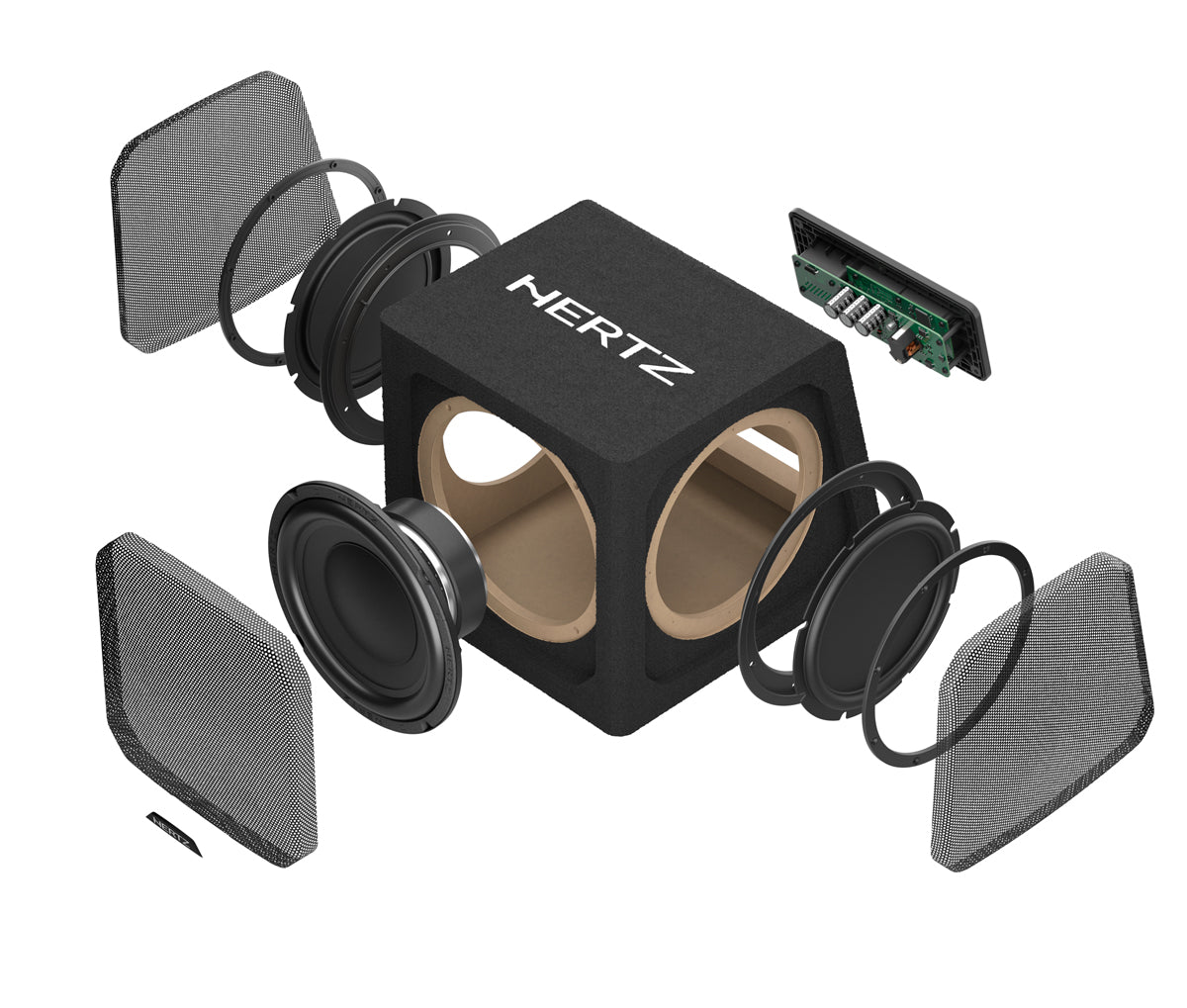

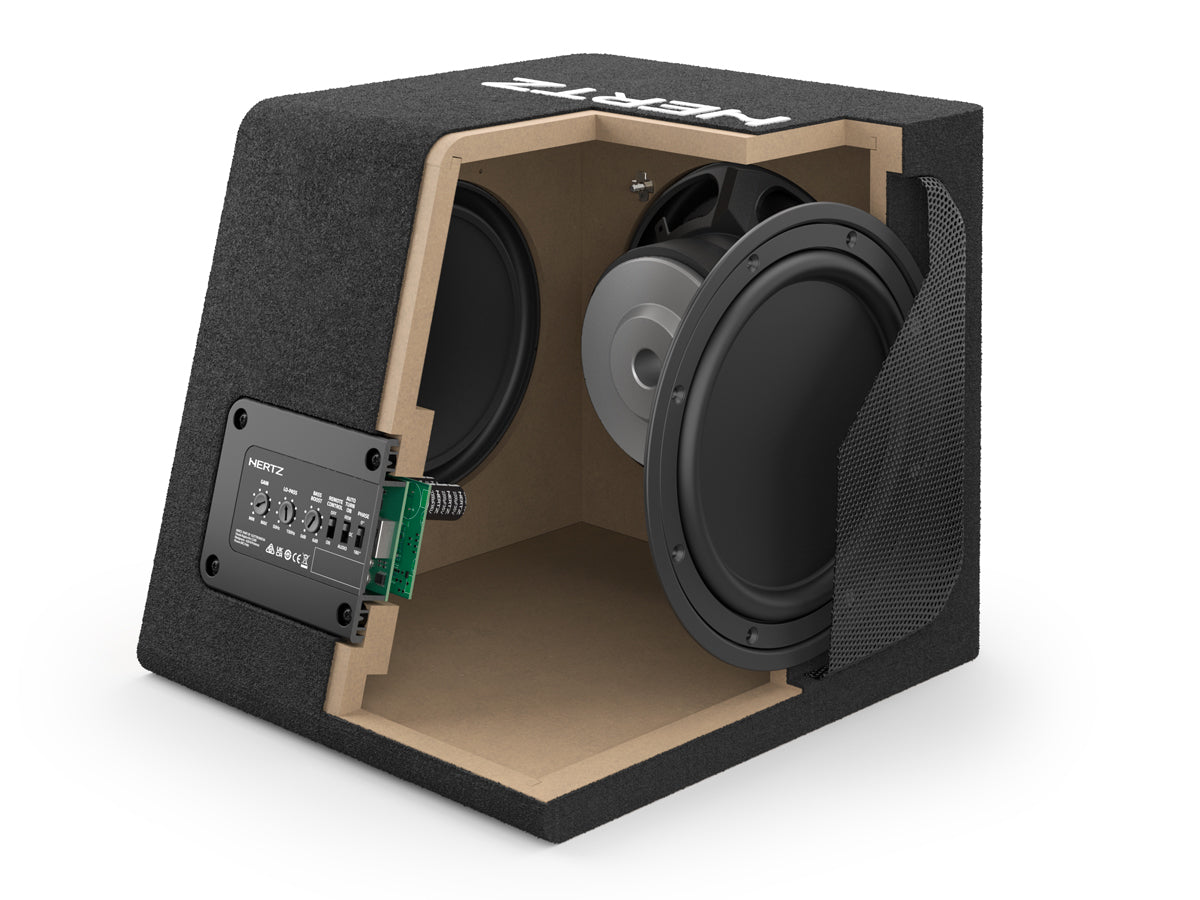

The DBA 201 active subwoofer box features a dual passive radiator enclosure made from solid MDF and optimized using FEM modeling to ensure excellent performance and maximize the subwoofer's output.
Hertz DBA 201, 440W active subwoofer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
. -440W integrated Class D audio amplifier
-Impedance: 4 ohms
-Frequency range: 32 ÷ 400 Hz
-Plug & Play connection
-Compatible with every car audio system
TECHNICAL DATA
Size mm (in.) 200 (8)
Power Handling - Continuous W 220
Power Handling - Peak W 440
Impedance Ohm 0.4
Design Active subwoofer box with double passive radiators
Voice Coil Ø 38.6 (1.52) mm (in.)
Frequency Response Hz 32 ÷ 400
Magnet size D x d x h mm (in.) 115 x 47 x 25 (4.5 x 1.8 x 0.98)
Weight of one component kg (lb.) 6.7 (10.54)
Magnet High Density Flux Ferrite
Cone Pressed paper
Voice Coil Type Copper
Operating voltage VDC (Fuse) 6.5 ÷ 18 (15A)
Start - Stop voltage VDC 6
Idling current A (Power OFF) 260 m (1 m)
Consumption @ 14.4 VDC Max musical power A 8.5
Remote IN Turn on VDC (Current) 4 (1 mA)
PRE input signal Turn ON VRMS 10 mV
SPK input DC Turn ON VDC 2
