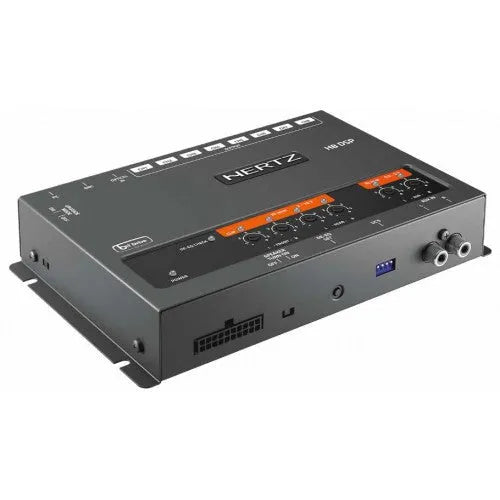

- Hertz H8 DSP, skaitmeninis garso procesorius

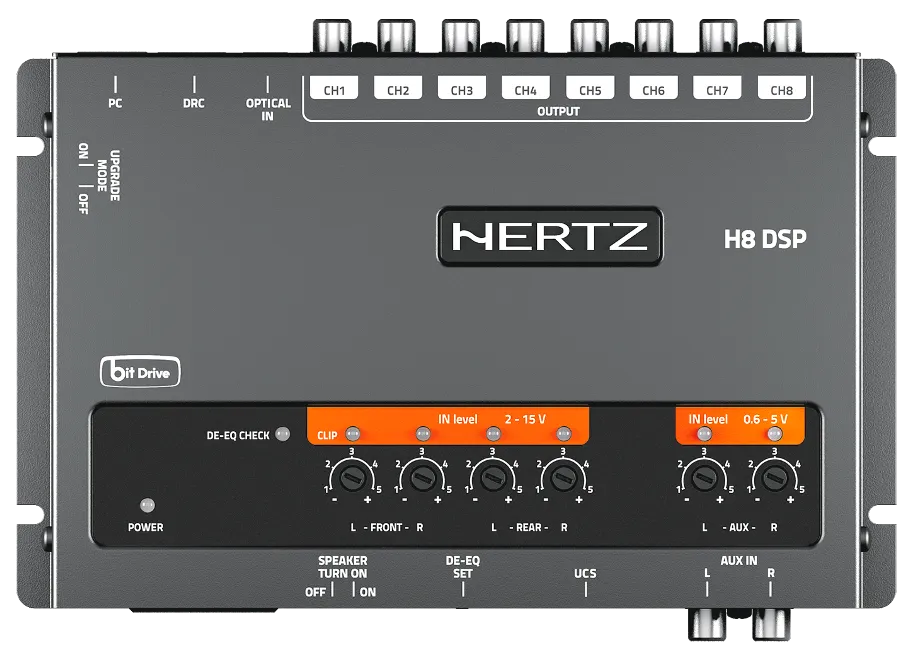

- Hertz H8 DSP, skaitmeninis garso procesorius- viršus
- Hertz H8 DSP, skaitmeninis garso procesorius- valdymas
Hertz H8 DSP, digital sound processor
Hertz H8 DSP, digital sound processor - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
The new Hertz H8 DSP sound processor has the ability to be connected to an analog or digital source, transforming simple audio into a high-end integrated system.
- Channel separation 1kHz : 85dB,
- Sensitivity (Speaker/AUX): 2.2kOhm/15kOhm,
- 1x USB connection, AUX IN, Digital Optical IN 94/24bit,
- 32 bit Cirrus Logic,
- ART automated control,
- 31-band graphic equalizer,
DESCRIPTION
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while maintaining a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminum die-casting , enables the Mille Power amplifiers to work constantly at full power without ever overheating , further maximizing thermal efficiency. The Hertzaudio car amplifier ML Power 4 (4 x 250 W 2 Ω) is the obvious choice for a top level front-rear Mille system .

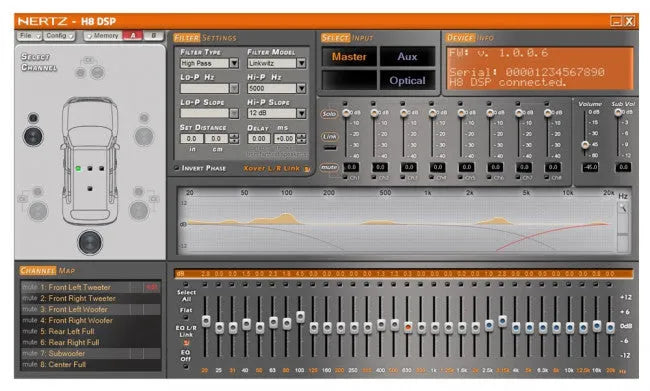

The H8 DSP firmware, based upon Flash memory, can be updated at any time without having to disassemble the device from the system: the software checks on the available updates from the bit Drive portal (https://bitdrive.it) guiding the user through all of the upgrade phases.
Thanks to the built-in USS technology (Universal Speakers Simulator), H8 DSP can also be correctly connected to head units with "speaker load detection" function that monitors the presence of a low-impedance load to enable the audio outputs.
TECHNICAL DATA
SPECIFICATIONS
| POWER SUPPLY | |
| Operating power supply voltage | 10.8 ÷ 14.4 VDC |
| Power supply | 7.5 ÷ 15 VDC |
| Idling current | 0.4 A |
| Switched off without DRC | 2.5 mA |
| Switched off with DRC | 4 mA |
| Remote IN voltage | 6.5 ÷ 15 VDC (1.3 mA) |
| Remote OUT voltage | 12 VDC (130 mA) |
| Distortion - THD @ 1 kHz, 1V RMS Output | 0.005% |
| Bandwidth @ -3dB | 10 ÷ 22k Hz |
|
S/N Ratio @ A weighted Digital input Master Input AUX Input 96 |
105 dBA 95 dBA 96 dBA |
| Channel Separation @ 1 kHz | 85 dB |
| Input sensitivity (Speaker In) | 2 ÷ 15 V RMS |
| Input sensitivity (AUX In) | 0.6 ÷ 5 V RMS |
| Input impedance (Speaker In) | 2.2 kΩ |
| Input impedance (AUX) | 15 kΩ |
| Max Output Level (RMS) @ 0.1% THD | 4V RMS |
| INPUT STAGE | |
| High Level (Speaker) | FL - FR - RL - RR |
| Low Level (Pre) | AUX IN |
| Digital Optical IN (S/PDIF max 96 kHz/24bit) | OPTICAL IN |
| OUTPUT STAGE | |
| Low Level Pre (default) | FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER |
| CONNECTIONS | |
| From / To Personal Computer | 1 x USB/B |
| DRC HE | Audio controls and Memory / Inputs selection |
| Optical / AUX select | Optical In / Aux wire control + 12V / GND enable |
| Memory A / Memory B | Memory A / B wire control + 12V / GND enable |
| CROSSOVER N.8 (one for each output channel) | |
| Filter Type | Full / High Pass / Low Pass / Band Pass |
| Filter mode and slope | Linkwitz @ 12 / 24 dB Butterworth @ 6 / 12 / 18 / 24 dB |
| Crossover frequency | 68 steps @ 20 ÷ 20k Hz |
| Phase control | 0° to 180° |
| EQUALIZER | |
| On Hi-Levels input (Speaker In) | Automatic De-Equalization On |
| Outputs | N.8 Graphic: ±12 dB @ 31 Band ISO 1/3 Oct. 20 ÷ 20k Hz |
| TIME ALIGNMENT | |
| Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inch |
| Delay | 0 ÷ 15 ms |
| Step | 0.08 ms; 2.8 cm / 1.1 inch |
| Fine set | 0.02 ms; 0.7 cm / 0.27 inch |
