Hertz  |  Bar code: 8018823132145

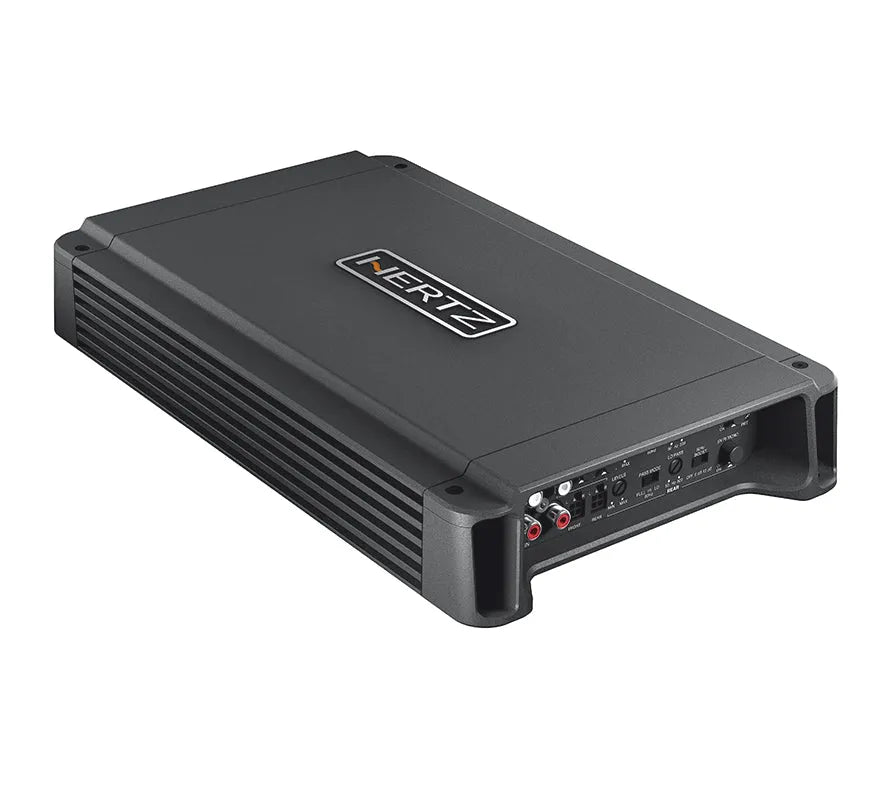

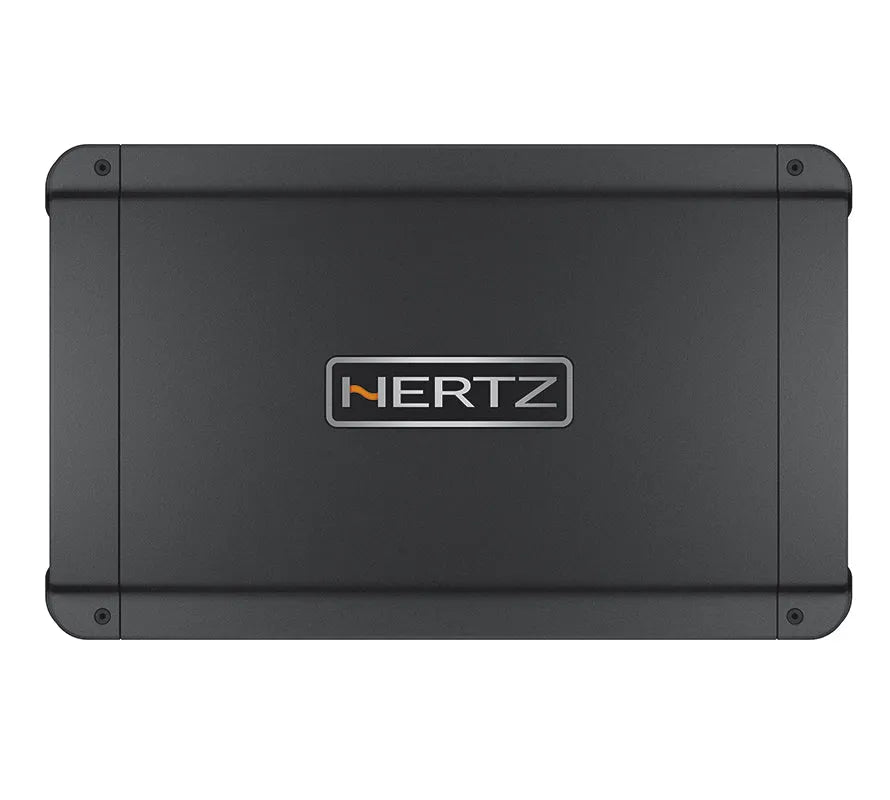

Hertz HCP 4DK, car audio amplifier

Automotive, 4-channel sound amplifier will earn the sound quality declared by the manufacturer!

  • Power: 150 W x 4 (4 Ω).
€259.00 EUR 343.00 €

Hertz HCP 4DK, car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.
  • THD: 0.03%.
  • Lo-Pass and Hi-Pass filters.
  • S/N Frequency: 105 dB @ 1V.

    • DESCRIPTION

    The new HCP 4DK features the latest generation D-Class 2Ω stable output stage reaching the impressive max power of 2000 W with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channel system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

    • e of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.

    • COMPLETED FILTER SECTION

      Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Bass Boost, Phase and Mono.

    • ART

      Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.




    TECHNICAL DATA

    SPECIFICATIONS

    Channel mode 4 - 3 - 2
    Output Power (RMS)
    @ 14.4 VDC    		 4 Ch: 150 W x 4 (4 Ω)
    4 Ch: 250 W x 4 (2 Ω)
    3 Ch: 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω)
    3 Ch: 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω)
    2 Ch: 520 W x 2 (4 Ω)
    Filters
    Bypass
    Hi-Pass
    Lo-Pass
    Band-Pass
    Subsonic
    Yes
    A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
    A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
    -
    Well
    Distortion - THD
    (100Hz @ 4Ω)    		 0.03%
    S/N Ratio
    (A weighted @ 1V)    		 105 dB
    Damping factor
    (100Hz @ 4Ω)    		 200
    Size W x D x H
    mm (in.)    		 315 x 190 x 50 (12.40 x 7.48 x 1.97)

    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
