Hertz HMS 10 B-C2, 10” Marine subwoofer 500W, 2Ω

Subwoofer for water transportation.

€214.00 EUR

Hertz HMS 10 B-C2, 10” Marine subwoofer 500W, 2Ω - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. The loudspeaker is a certified Marine class product.

  • Power: 250 W RMS
  • Power: 500 W. Max
  • Sensitivity: 88.5 dB.
  • IP65 resistance standard.
  • The speaker is UV resistant.

DESCRIPTION

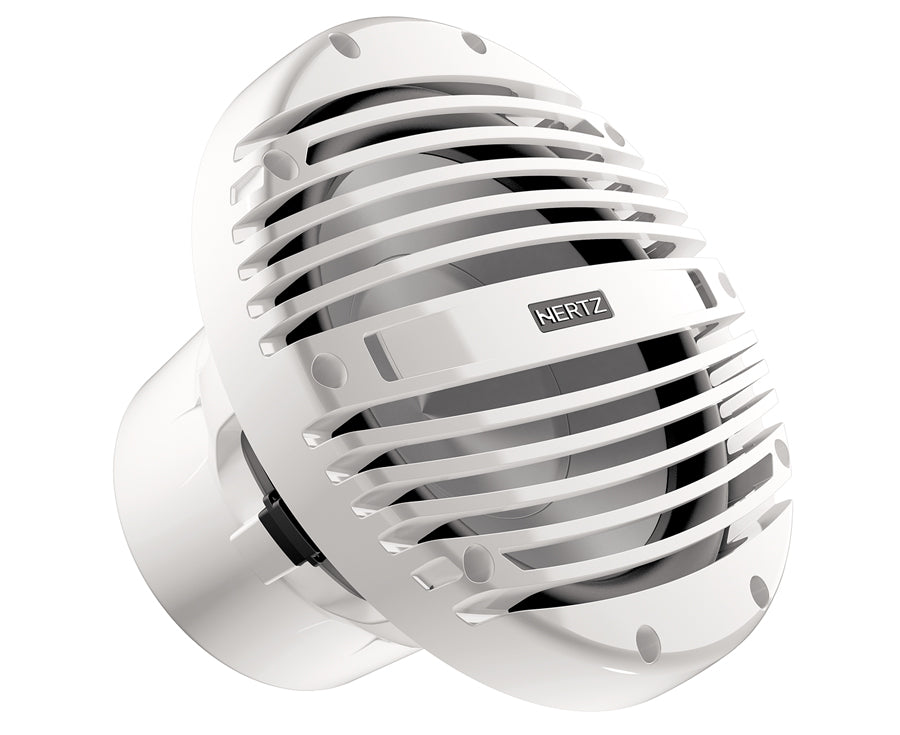

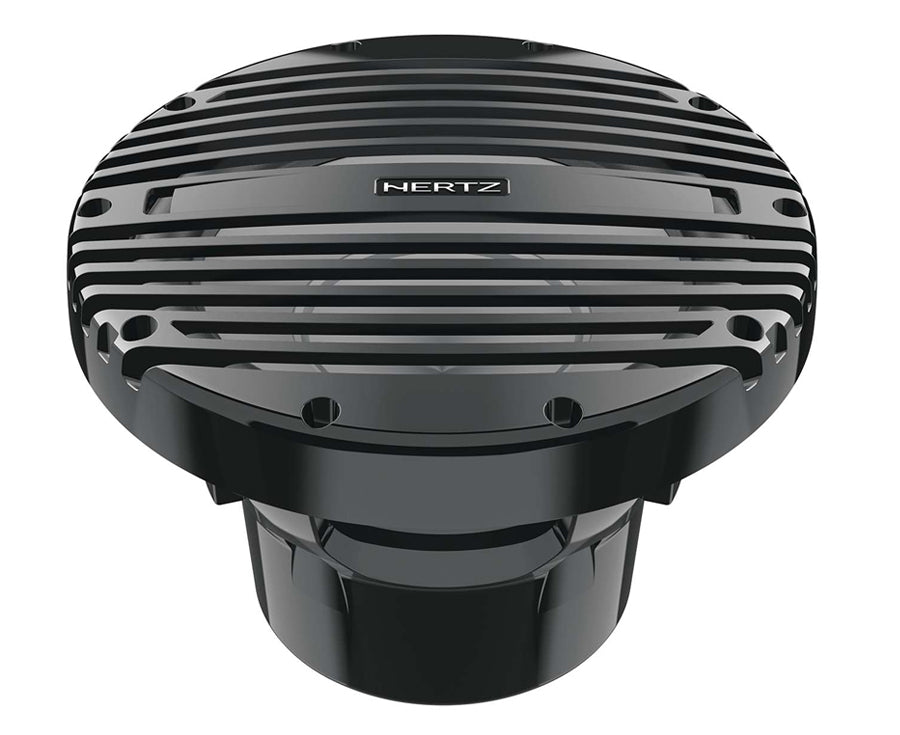

The HMS 10 B-2 (white) BC (black) long throw 10” ​​marine subwoofers are engineered for infinite baffle application. The 2 Ohm configuration makes the most of the amplifier power. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at a very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust) HMS 10 B-C2 is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.

1. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).

2. Long-throw 50mm (2”) voice coil woofer engineered for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.

3. Progressive-design aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.

4. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.

5. Gold-plated corrosion resistant brass connection terminals with silicone cap protecting leadwire junction point.

6. 2 Ohm load to make the most of amplifier power.


Technologies

  • IP 65 CERTIFICATION

  • WATER JET TESTED

    The protection grade IP65 for speakers defines all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

  • UV RESISTANT

    According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products are designed to face long time exposure to UV radiations while cruising on the open sea.

  • SALT FOG TESTED

    To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

TECHNICAL DATA

SPECIFICATIONS

Size mm (in.) 250 (10)
Power Handling - Peak W 500
Power Handling - Continuous W 250
Impedance Ω 2
Sensitivity dB SPL 88.5
Voice coil Ø mm (in.) 50 (2)
Xmax mm 12.3
X-Mech mm (in.) ±16.3 (0.64)
Re Ω 2.1
Fs Hz 43
February l 30,46
Qts 0.6
Qes 0.63
Qms 12.3
Spl dB 88.5

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
