Hertz HP 802, car audio amplifier
Hertz HP 802, car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
A car, A/B-class audio amplifier will earn the sound quality declared by the manufacturer!
- Power: 1600 W (2 Ω).
- THD: 0.05%.
- Hi-Pass and Lo-Pass filter.
- S/N Frequency: 103 dB @ 1V.
DESCRIPTION

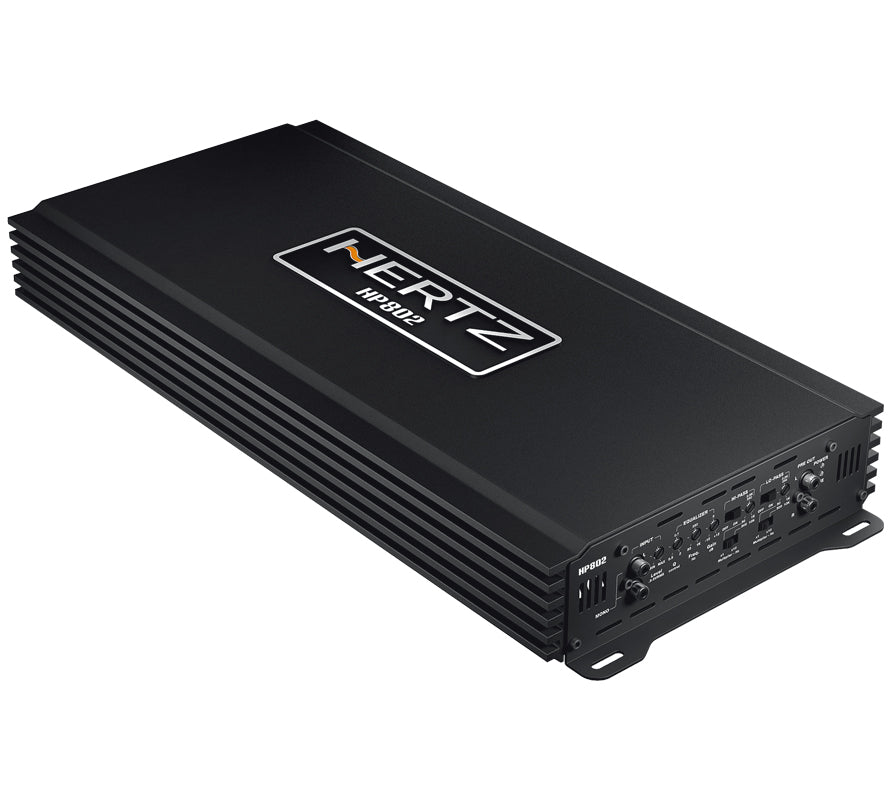

HP 802 is an AB Class stereo spl car audio amplifier, able to deliver up to 1800W. The power supply stage is overbuilt featuring components selected for their robustness, efficiency and reliability even for extended time operation. The output stage features an oversized power supply with 4 toroidal transformers, providing the ability to deliver remarkable power and work stable into 1 Ohm load.
The array of the featured filters is remarkably complex, beyond the standards of mobile electronics in this category: separate Hi-Pass and Lo-Pass filters, able to be configured into a 50 Hz – 10 Hz adjustable Band-Pass filter. A parametric equalizer is also on board, to optimize the response on amplified channels, as well as a Pre Out, to re-launch the input signal to another HP 802 in a multi-amplified system without limits on the number of ways.
OVERBUILT SUPPLY STAGE
In order to deliver such extraordinarily high power and to transfer it uninterruptedly, the power supply stage features multiple toroidal transformers, 105° Low ESR primary capacitors, TO247 Mosfets and large tank-type secondary capacitors.
CIRCUIT BOARDS AND COMPONENTS DESIGNED SPECIFICALLY FOR SPL SYSTEMS
Inside the amplifier, the electronics have been designed specifically for SPL systems, driving low impedance loads with perfect thermal stability. Power for sound pressure without compromise.
ULTRA-VERSATILE AND COMPLETE CONTROL AND FILTER SYSTEM
The Front End section features a complete crossover system, for endless configuration possibilities. HP 802 is a stereo amplifier with separate Hi-Pass and Lo-Pass filters, operable in combination to create a Band-Pass filter; it also features an adjustable parametric equalizer as well as a Pre Out to re-launch the signal to other amplifiers in a multi-amplified system.
ALUMINUM EXTRUDED HEAT SINK
Aluminum extruded heatsink with enhanced thermal performance. Following the style of Hertz, the Hertz logo has been tastefully integrated into the top of the HP heatsink, and massive fins are featured along the side of the amplifier.TECHNICAL DATA
SPECIFICATIONS
| Channel mode | 2-1 |
|
Output Power (RMS) @ 14.4 VDC |
2 Ch: 330 W x 2 (4 Ω) 2 Ch: 550 W x 2 (2 Ω) 2 Ch: 800 W x 2 (1 Ω) 1 Ch: 1100 W x 1 (4 Ω) 1 Ch: 1600 W x 1 (2 Ω) |
|
Filters Hi-Pass Lo-Pass Band-Pass |
50 ÷ 1k Hz / 500 ÷ 10k Hz 50 ÷ 1k Hz / 500 ÷ 10k Hz 50 ÷ 10k Hz (HI) 50 ÷ 10k Hz (LO) |
|
Distortion - THD (100Hz @ 4Ω) |
0.05% |
|
S/N Ratio (A weighted @ 1V) |
103 dB |
|
Damping factor (100Hz @ 4Ω) |
500 |
|
Size W x D x H mm (in.) |
544 x 240 x 65.5 (21.41 x 9.45 x 2.55) |
