Hertz ML 280.3 LEGEND, tweeter

Name: Hertz ML 280.3 LEGEND, tweeter
Brand: Hertz
SKU: ML 280.3
Price: 252.00 EUR
Availability: InStock

€252.00 EUR

Hertz ML 280.3 LEGEND, tweeter - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

Improving car audio system tweeters, which have been considered a benchmark since they were first introduced to the market, is a rather difficult task, which can only be accomplished by continuous improvement over time and maximum care for every detail that can affect the sound.

Power: 180W.
(Hi-Pass filter @ 1.8kHz - 12dB Oct.).
Frequency band: 1k - 28k Hz.
Resistance: 4 Ohms.

DESCRIPTION

To improve the car audio tweeters which was considered a reference since its first introduction into the market is a quite challenging task which could only be performed by a continued evolution in time and maximum care for each detail that might affect sound.
From these presuppositions the Hertz ML 280.3 Legend car audio speakers have been born. Through the FEA simulations, the electro-acoustic designers carried out an extensive research which led to the optimization of the Tetolon dome geometry, to minimize distortion.
This optimization method led to a revised face plate geometry for improved frequency response and lower distortion.
Another element of the tweeter especially important for sound is the rear acoustic chamber: the designers performed an exhaustive research on the geometry as well as on the employed damping material, achieving a 50% increase in overall volume, to extend response to lower frequencies with 900Hz resonance frequency.

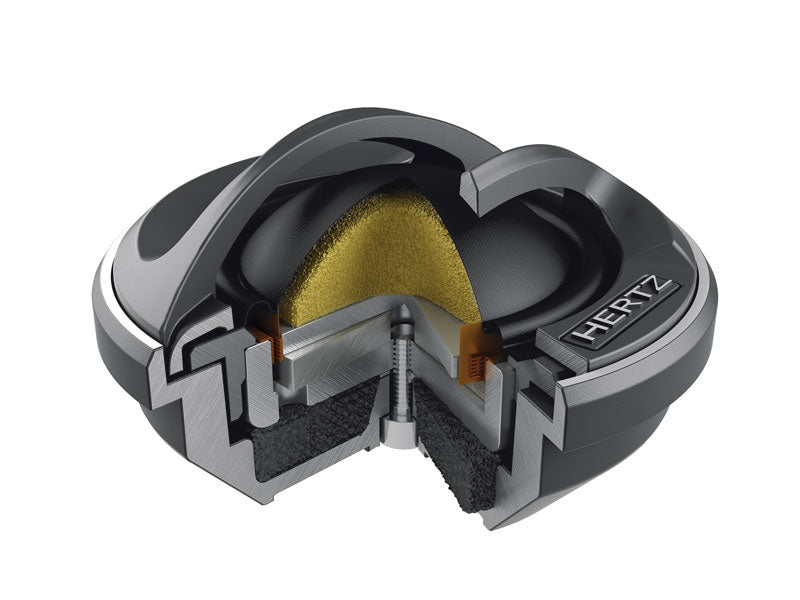

1. Neodymium magnet optimized with FEA simulations of the magnetic flux for utmost control and fast response to the transients.
2. Extremely pure copper short circuit ring , for excellent very high frequency extension.
3. Die-cast aluminum face plate with profile optimized with FEA simulations to improve frequency response and dispersion.
4. Tetolon Fiber dome optimized with FEA simulations for lower distortion and improved dispersion in high frequency range.
5. Frame structure and rear load chamber both derived from a CNC machined solid aluminum block , to ensure mechanically inert response to resonances.
6. Rear chamber sized for only 900 Hz Fs : low Fs ensures wide extension in low frequency range and low distortion also in the crossing section, allowing a decreased cut-off frequency.
7. High-density damping material underneath the dome, low-density absorbing material in the rear chamber, providing fluid acoustic emission and high damping in the low frequency response.

TECHNICAL DATA

SPECIFICATIONS

Component	Twitter
Size mm (in.)	35 (1.38)
Power Handling - Peak W	180
Power Handling - Peak Note	(Hi-Pass filtered @ 1.8kHz - 12dB Oct.)
Impedance Ohm	4
Voice Coil Ø	28 (1.1)
Frequency Response Hz	1k - 28k
Magnet size D x dxh mm (in.)	27.8 x 3.5 x 3 (1.1 x 0.14 x 0.12)
Weight of one speaker kg (lbs)	0.10 (0.22)
Magnetic	Neodymium
In the house	Tetolone
