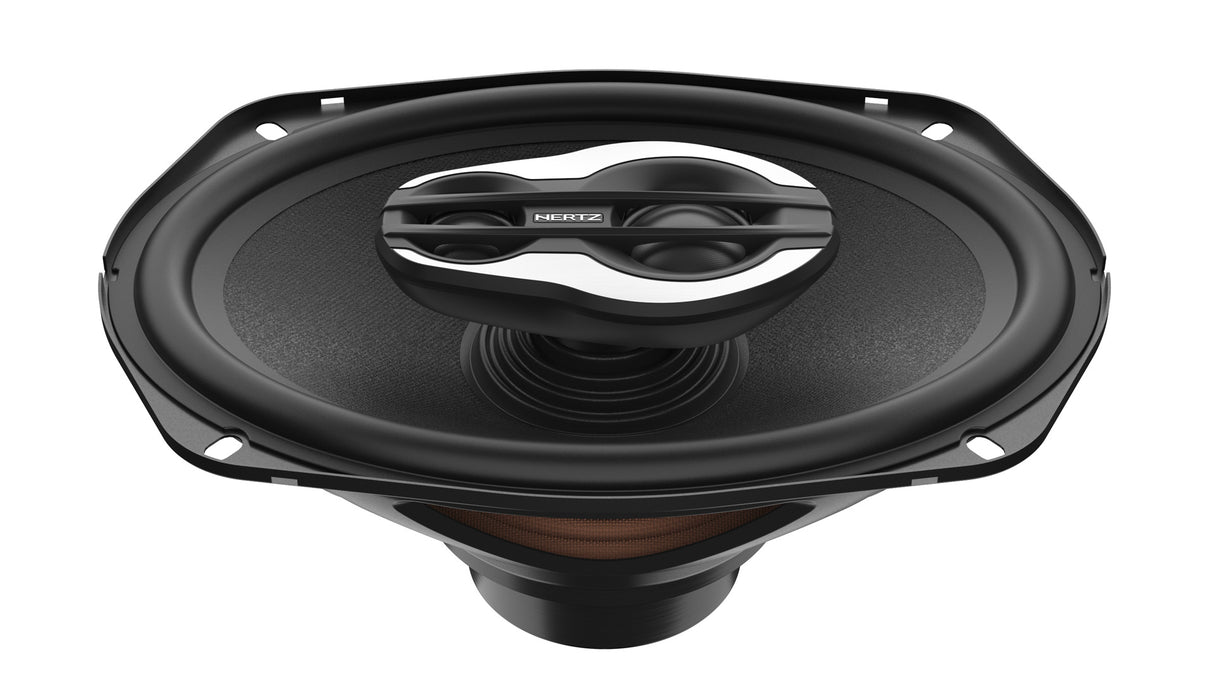

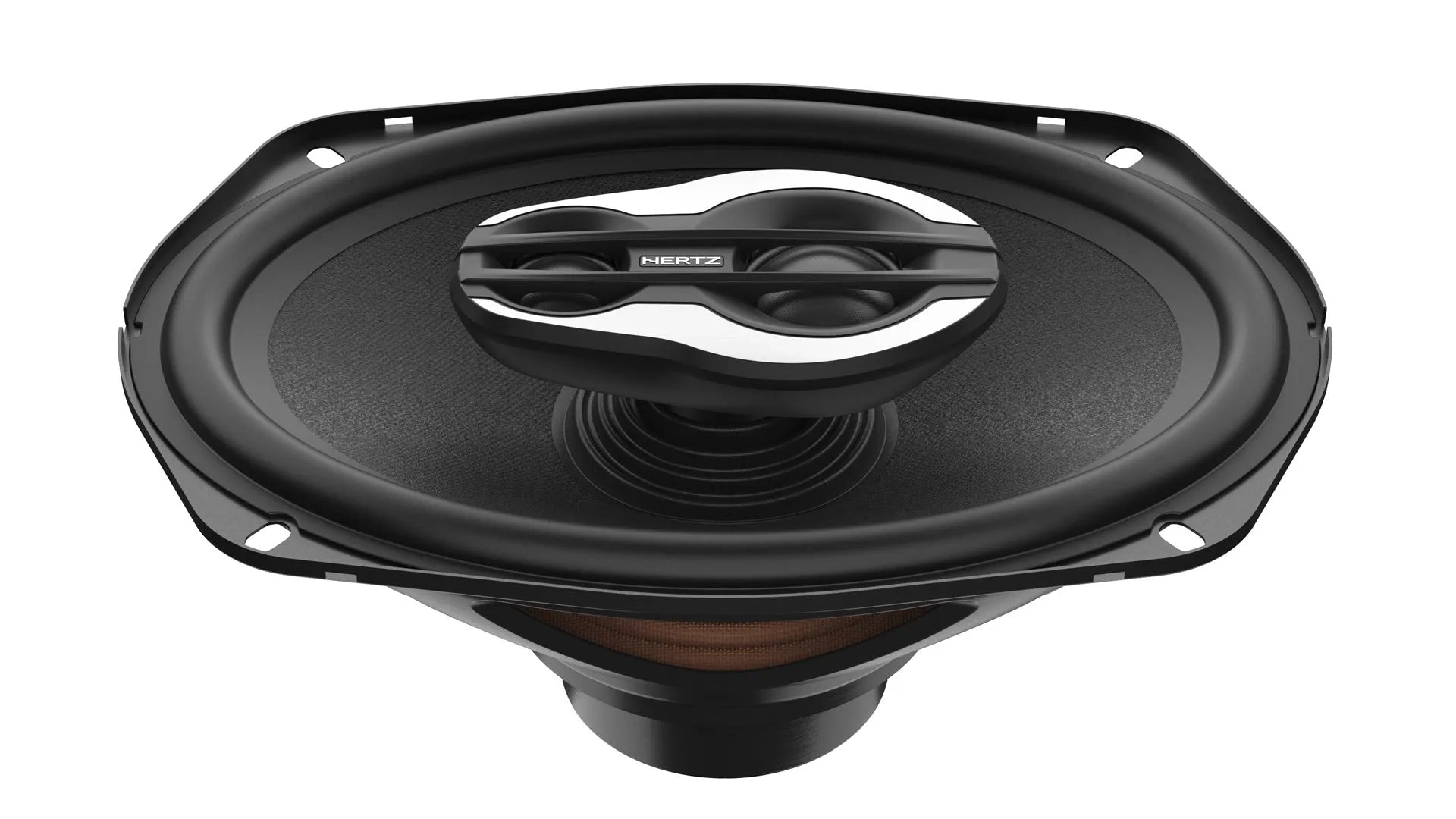

Hertz SX 690 NEO, SPL coaxial speaker

The SX 690 is a powerful SPL car speaker at a very attractive price.

€310.00 EUR

Hertz SX 690 NEO, SPL coaxial speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. Only the highest quality materials and elements were used in the creation of the speaker. Therefore, good sound is guaranteed.

  • Power: 260W.
  • Frequency band: 65-24k Hz.
  • Sensitivity: 94 dB SPL.
  • Resistance: 4 ohms.

DESCRIPTION

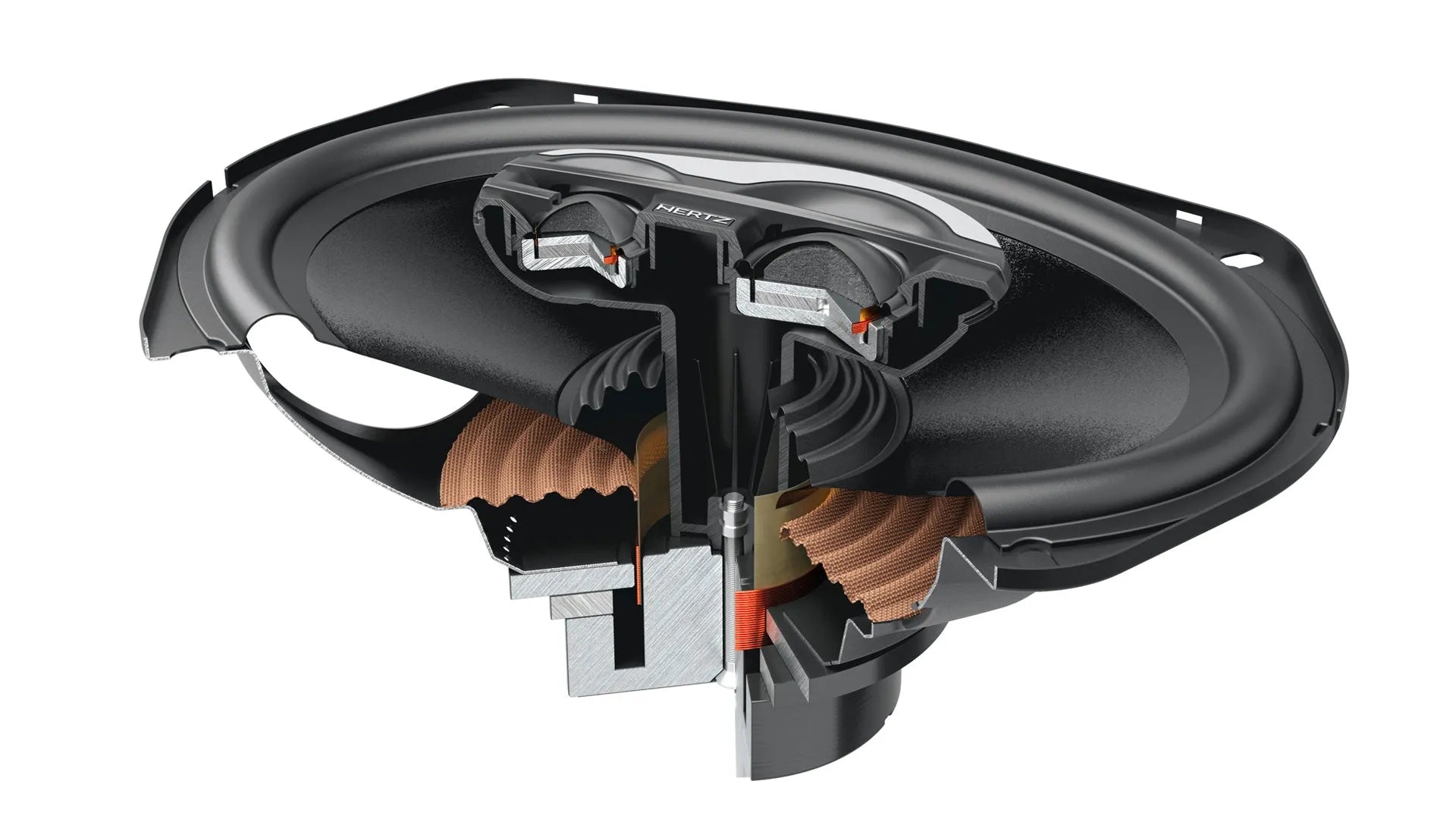

SX 690 is a real beast with a Hi-SPL Mid-Hi unit based on 1.4" dome tweeter and 1" dome supertweeter with resettable solid-state protection circuit. Cones are made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motor units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.


1. Nature-proof high stiffness pressed-paper cone featuring innovative water/humidity resistant and anti-UV treatments.

2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.

3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.

4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome supertweeter with resettable solid-state tweeter protection circuit.

5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.


Technologies

  • NATURE PROOF

    Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!

TECHNICAL DATA

SPECIFICATIONS

Power Handling - Peak W 260
Power Handling - Continuous W 130
Impedance Ω 4
Frequency response Hz 65 ÷ 24k
Sensitivity dB SPL 94
Woofer size mm (in.) in. 6 x 9
Midwoofer size mm (in.) -
Tweeter size mm (in.) 29 (1.14)
Super tweeter size mm (in.) 20 (0.8)
Woofer Voice Coil Ø mm (in.) 38 (1.5)
Tweeter voice coil Ø mm (in.) 25 (1)
Woofer magnet Special Neodymium N38 H
Midwoofer magnet -
Tweet magnet Special Neodymium N38 H
Woofer cone Water repellent pressed paper
Tweeter dome Tetolone
Supertweeter dome Tetolone
