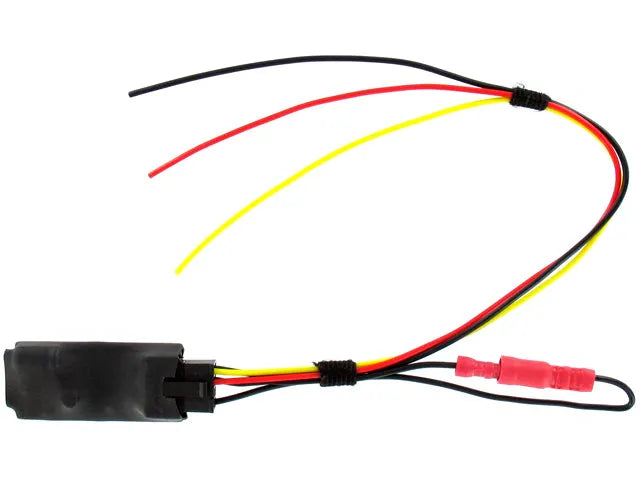

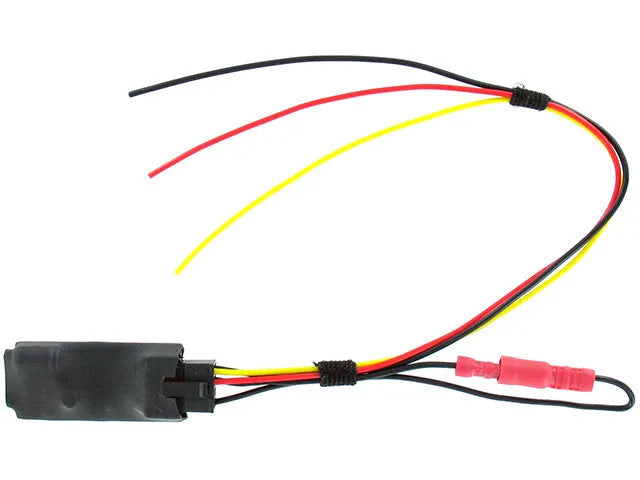

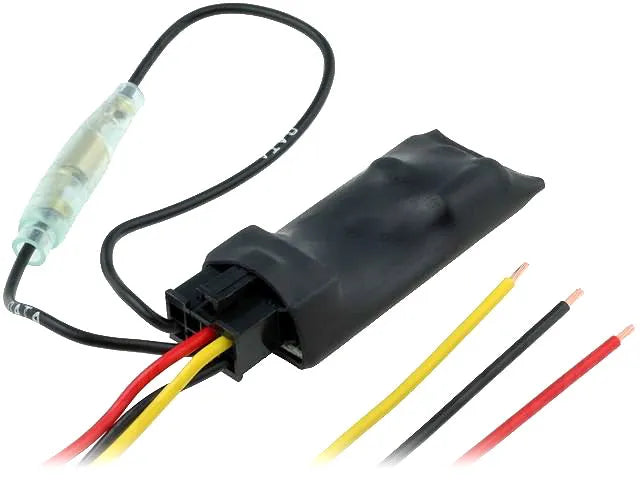

IGNI-GEN12V Ignition Signal Generator CAN-Bus

Universal ignition voltage (power) generator for cars with CAN-Bus system.
€33.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Designed for installing aftermarket head units and hands-free kits in cars with a CAN Bus. The IGNI-GEN12V generates an ignition signal a few seconds after the car is started. The signal is turned off when the engine is switched off. The specific ON/OFF time depends on the car's electrical system. The learning process only needs to be performed the first time the adapter is connected - all settings are saved in the internal memory. Settings are retained even if the battery is disconnected. The adapter only needs to be reprogrammed if changes are made to the car's electrical system, e.g., if the alternator or battery is replaced.

Main features
• Programmable universal ignition voltage generator for any car with a CAN bus
• Integrated relay protecting against voltage drop at the output - supports up to 2A current
• Ideal for head units to which amplifiers or other additional components are connected
• Programming only needs to be done once - all data is saved in the internal memory even if the adapter is disconnected

Installation
Black wire - car body ("ground")
Yellow wire - constant 12V voltage
Red wire - ignition power output signal

Programming
Start the car. Disconnect the programming contacts (black wire). Reconnect them. Note the time (the learning process begins, voltage appears in the output wire). After 1 minute from the start of the learning process, turn off the engine. Wait until the voltage in the output wire disappears (approximately 40 seconds). The learning procedure is complete. To reprogram the adapter, repeat all steps from the beginning.

IGNI-GEN12V installation manual (in English)

Manufacturer: Connects2, United Kingdom
