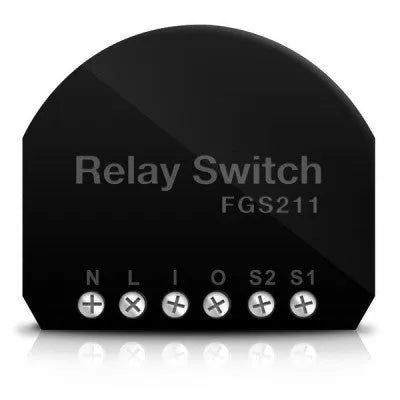

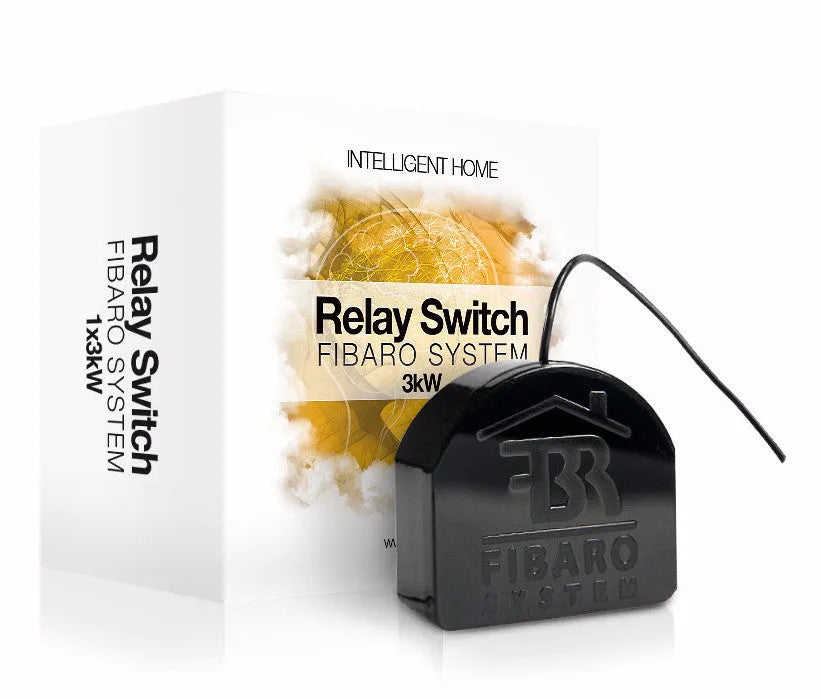

Smart Switch Fibaro Relay Switch 1x3 kW

This switch is an element of the wireless home control system, which can be used to control an electrical device or lighting element wirelessly and manually.

• Power supply: 110 - 230V AC ±10% 50/60Hz; 24-60V DC ±10%
• Radio signal strength: 1mW
• Radio signal frequency: 868.4 MHz
• Control distance: up to 50m outdoors; up to 30m inside (depending on building materials)
• Size: 42 x 37 x 17mm

• Power consumption: < 0.8W

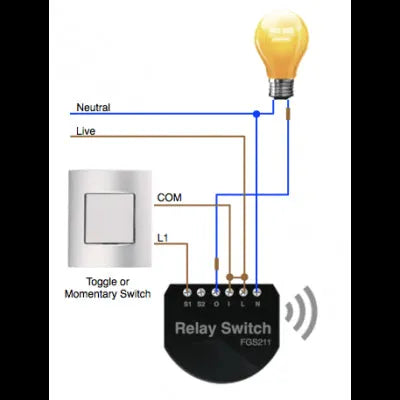

The remote-controlled fibar relay switch is designed to fit in a standard underground switch box, or in places where an electrical appliance (up to 3kW) needs to be controlled. It can communicate with any z-wave controller or device. The device can be controlled remotely with smart devices and a computer, as well as manually with bistable or monostable switches. Communication between the user and the device takes place via a Wi-Fi network and the Internet through a central controller. The switch can control AC and DC devices.

• Maximum controlled alternating current (AC) load: 16A / 230V 50/60Hz
• Maximum controlled constant current (DC) load: 10A / 30V
• Maximum controlled current power (at 230V AC voltage): 3kW
• Operating temperature: 0 - 40 °C
• Diameter of the plaster box for installation: Ø ≥ 50mm

User manual (EN)
