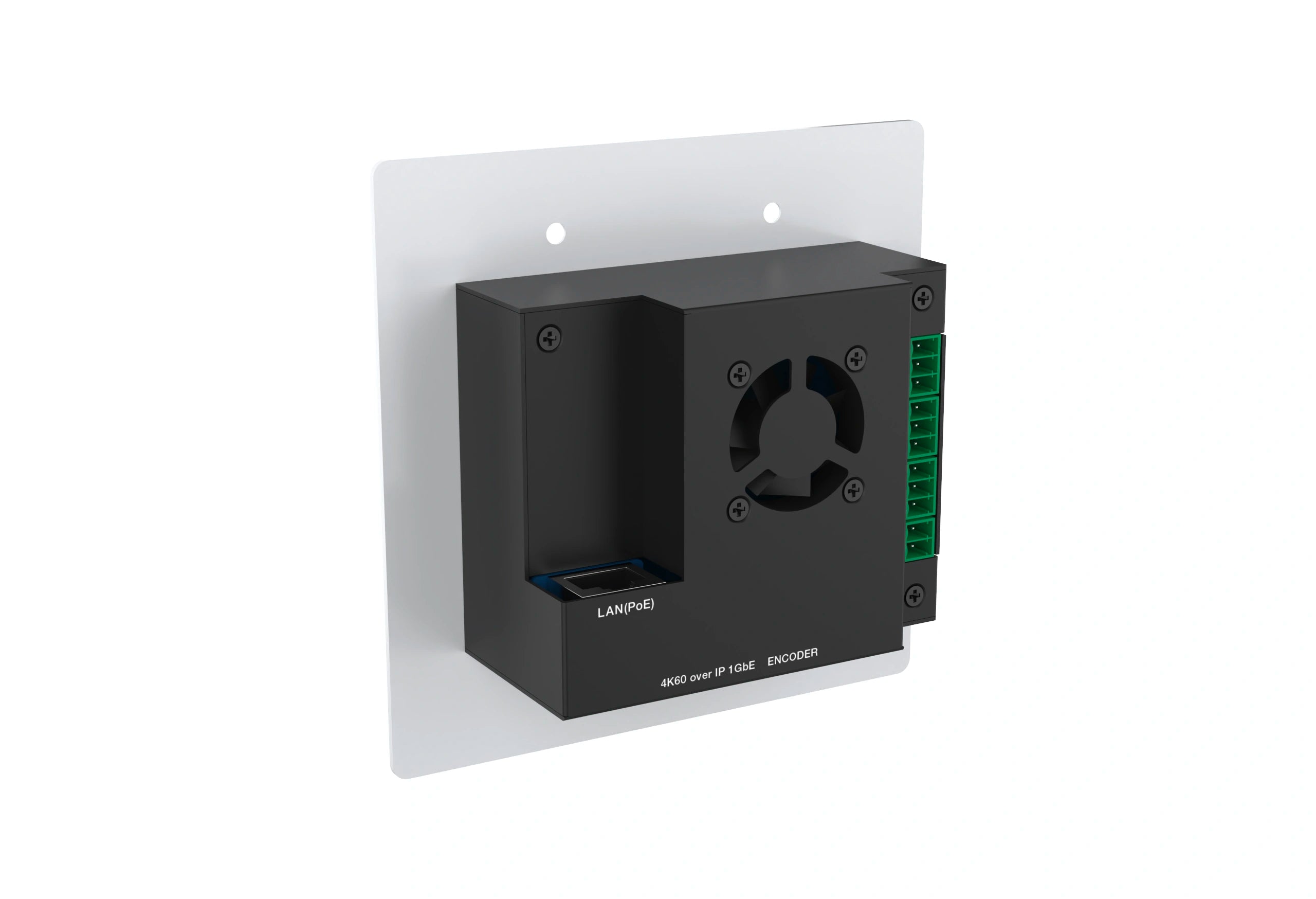

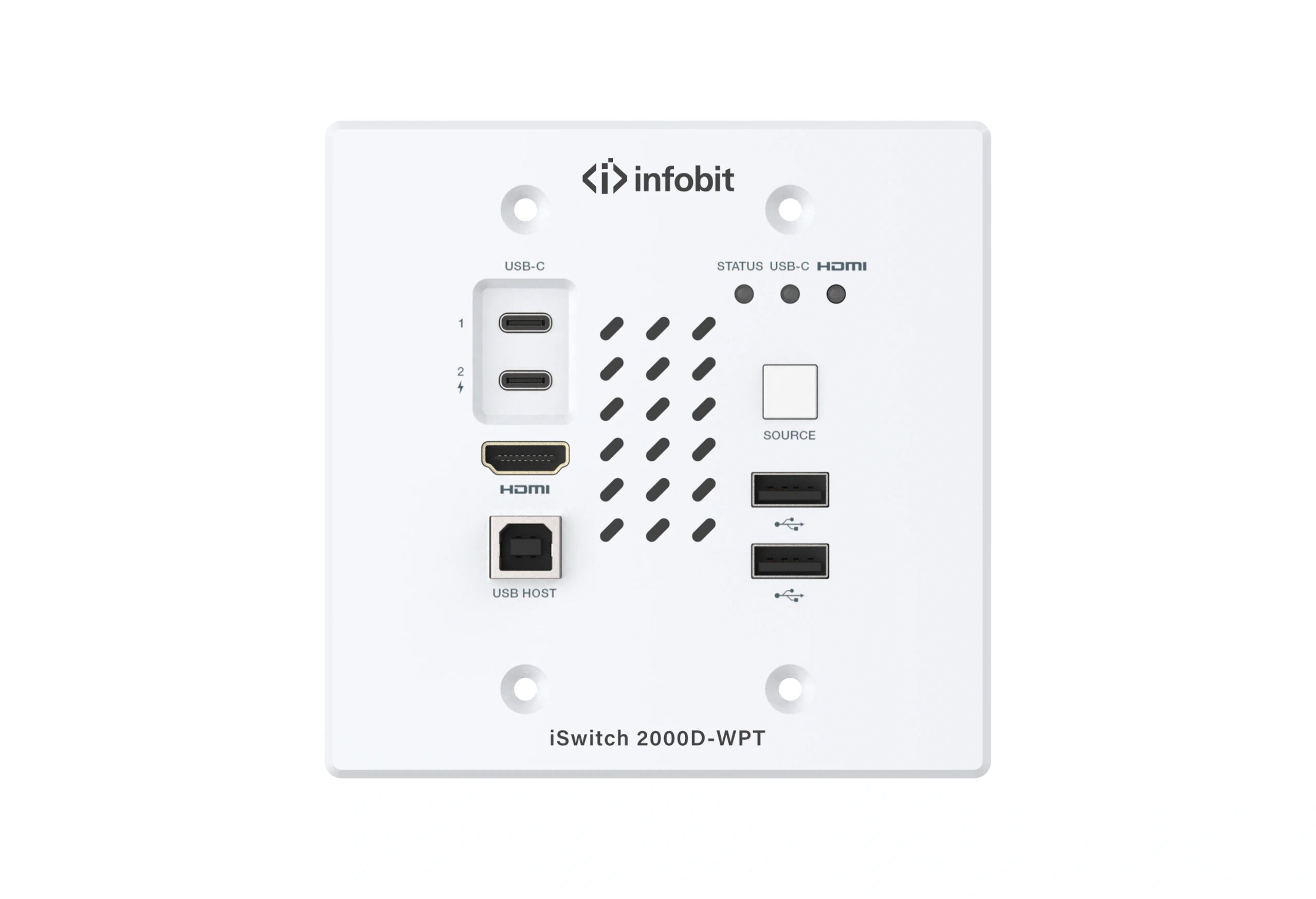

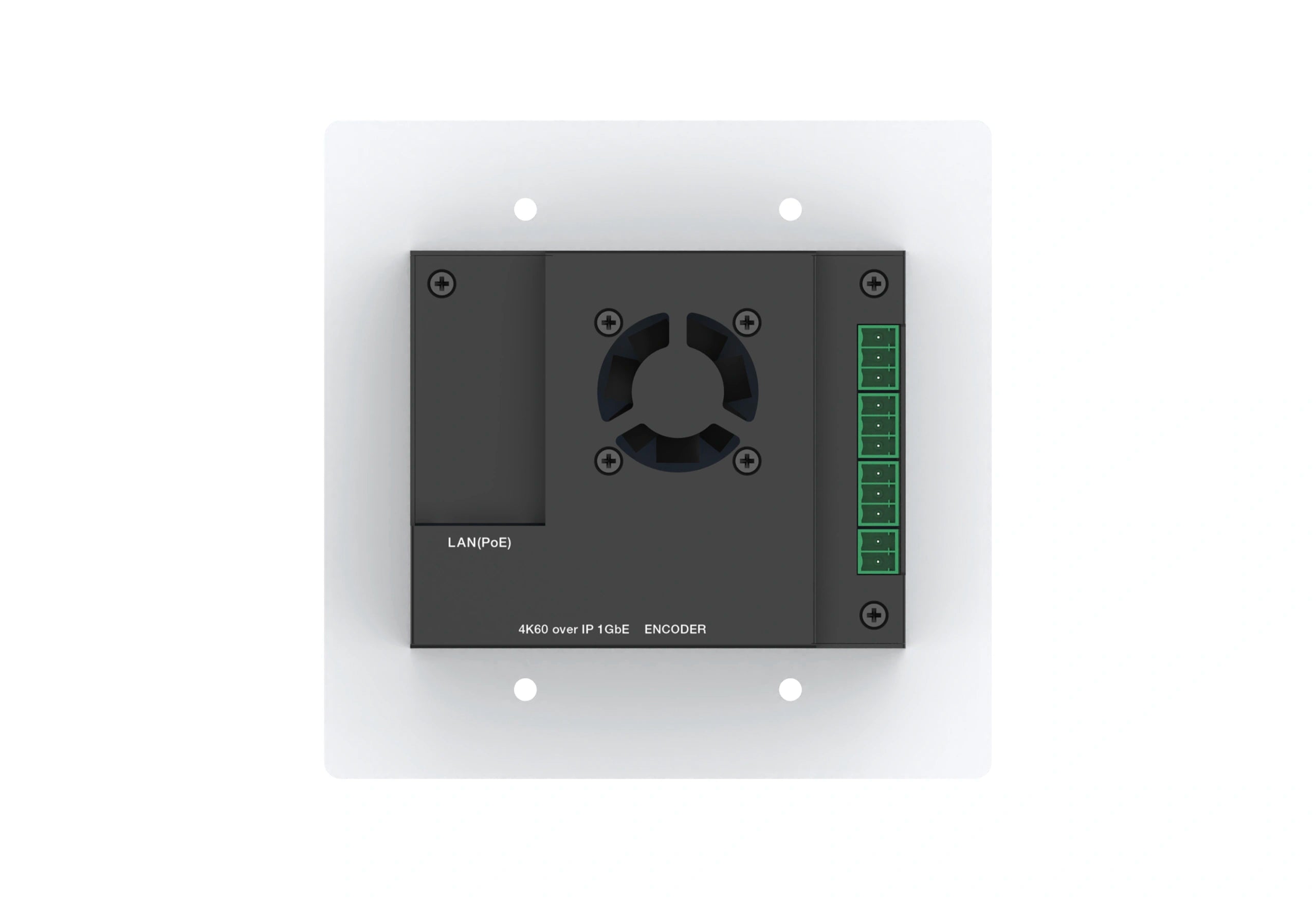

iSwitch 2000D-WPT wall plate encoder, HDMI with USB, 4K60 (4:4:4)

This 4K60 AV over IP 1GbE encoder (wall-plate) is based on JPEG2000 technology and utilizes the ASPEED AST1530 for the video codec and low-latency KVM applications.
€1,062.92 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

It features dual HDMI and USB-C inputs, with video resolution up to 4K60 4:4:4. This product supports audio embedding and de-embedding functions, as well as USB 2.0/KVM/Camera, 1G Ethernet, bi-directional RS-232 (passthrough and guest mode), and PoE. Guest mode RS-232 and CEC control are supported. Dante AV-A mode is supported if the product is licensed. The built-in JPEG Sub-stream, which supports numerous API commands for flexible configurations, is useful for 3rd-party control applications for video content preview. The system is based on Linux for software development, provides flexible control methods, and can realize intelligent networking based on a Gigabit Ethernet switch.

Features

  • Supports 18Gbps video bandwidth, HDCP 2.2, and DP 1.2
  • Input and output video resolution up to 4K60 4:4:4
  • Signal transmission distance can be extended up to 328ft/100m via CAT6/6A/7 cable
  • Transmits video, analog audio, RS-232, CEC, and USB signals over Ethernet
  • Supports USB 2.0 and KVM functions
  • US 2-Gang wall plate
  • Features dual HDMI and USB-C inputs, supporting automatic and manual switching modes
  • USB-C 1 port supports video/audio/USB data transmission and power charging
  • Audio embedding and de-embedding are supported
  • Dante AV-A mode is supported
  • Supports unicast and multicast functions
  • Supports point-to-point, video matrix, and video wall functions (video wall supports up to 9×9)
  • Built-in MJPEG Sub-stream for real-time video preview on portable devices
  • Supports transmission via 1G Ethernet switch, router, and hub devices
  • Standard PoE (802.3at PD device) or local 12V power supply
  • Built-in web page configuration and management, as well as Telnet and SSH
  • Supports HDR10, Dolby Vision, and HLG passthrough
  • Flexible control via Web GUI/TCP/RS-232 and third-party central controllers
  • Works with iSwitch 2000D-R
