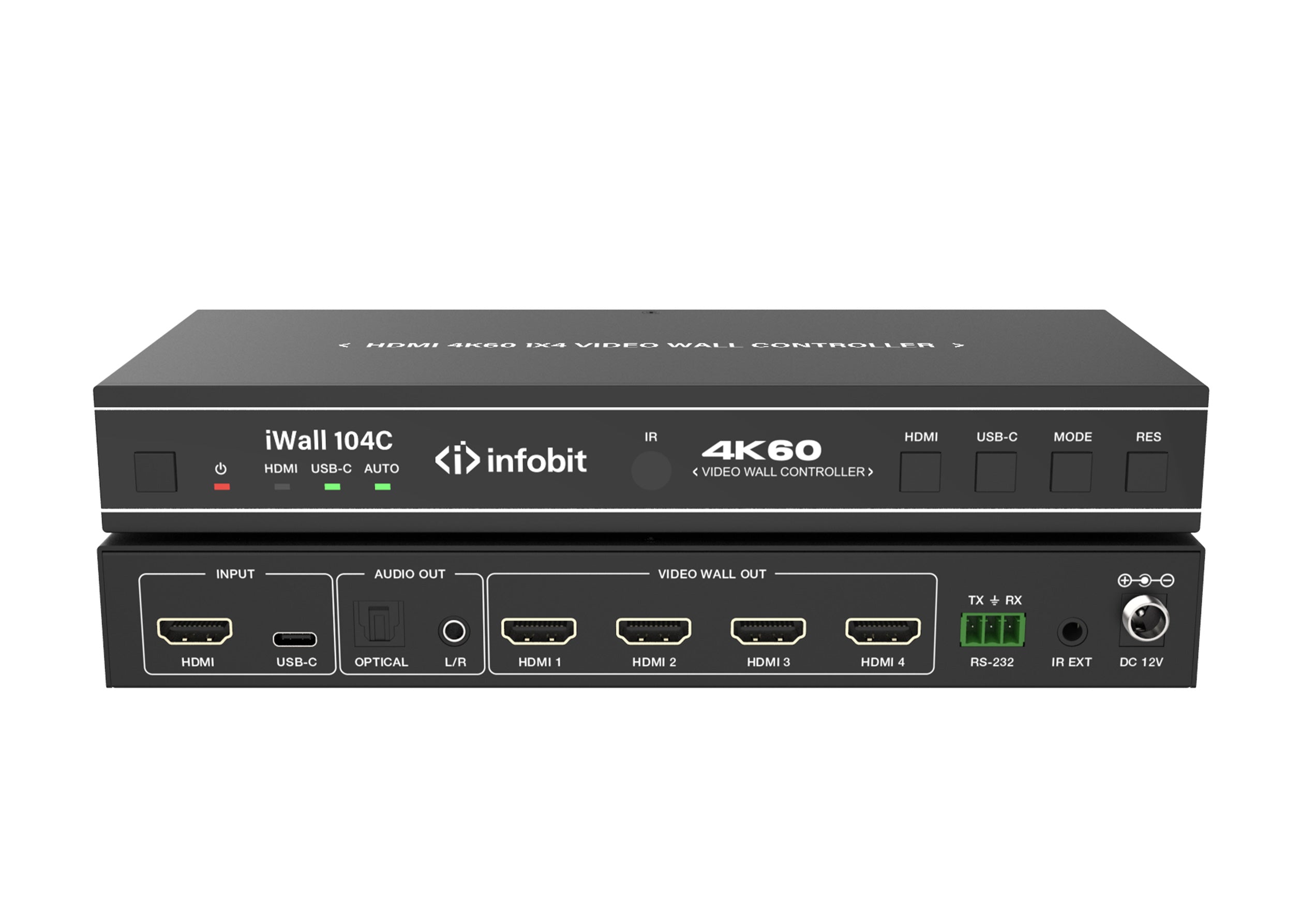

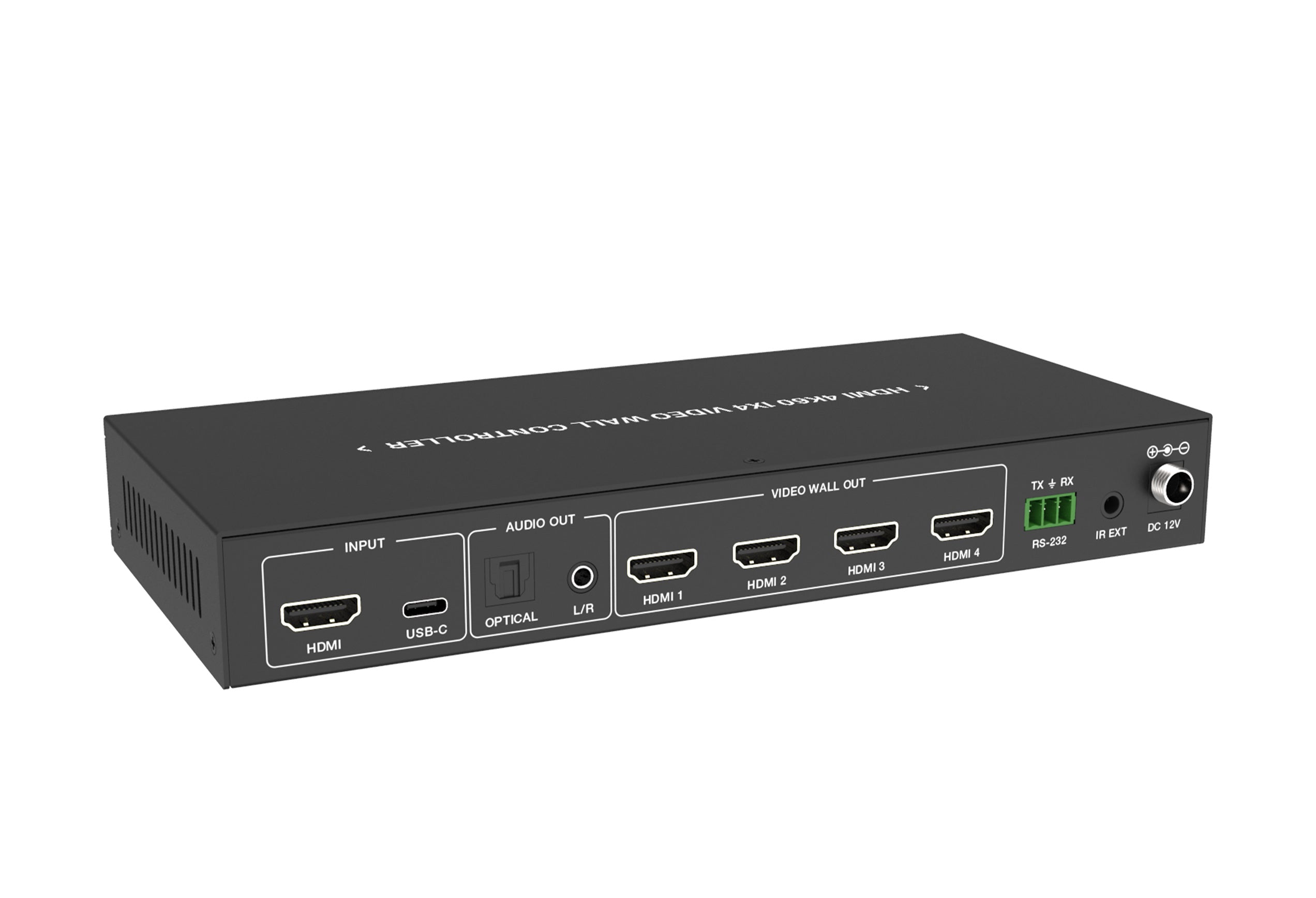

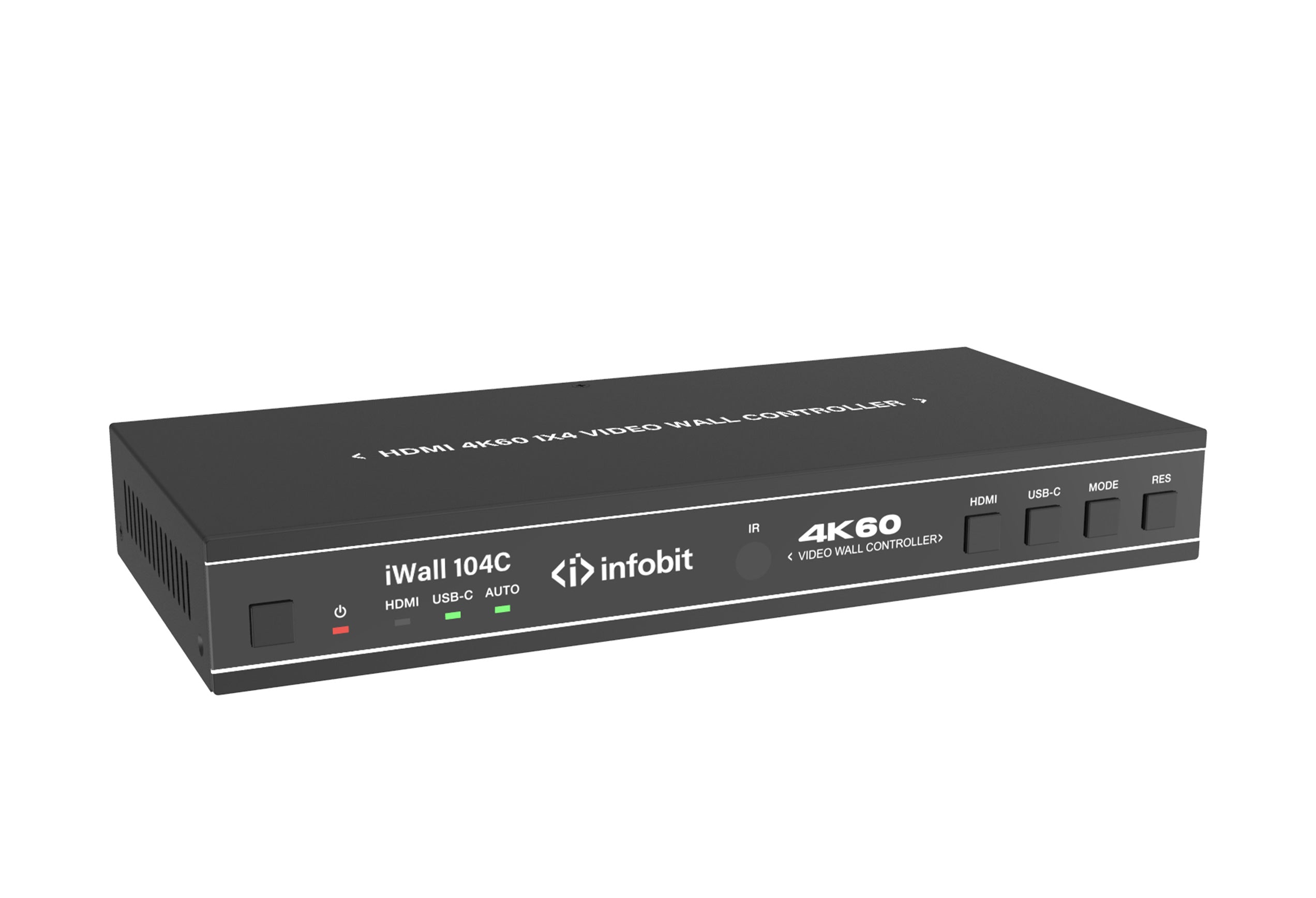

iWall 104C 4K60 HDMI Video Wall Controller, 1x HDMI and 1x USB C IN, 4x HDMI OUT

The iWall 104C switcher allows for easy control of video signals and audio outputs, ensuring high-quality transmission.

€315.81 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The 18Gbps 1x4 video wall controller is designed to precisely capture, AD convert, route, and distribute all format signals to a video wall (LCD displays) while maintaining true digital signal transmission. It features HDMI and USB-C inputs with resolutions up to 4K@60 4:4:4 and 4 HDMI outputs. It supports multiple video wall modes that can be set for video output. Additionally, optical audio and L/R analog audio de-embedding outputs are also supported.

Features

  • HDMI 2.0, HDCP 2.2, and DP1.2a compliant
  • Supports HDMI and USB-C inputs, resolution up to 4K@60Hz 4:4:4, not simultaneously
  • Supports optical and L/R analog audio de-embedding outputs
  • Supports 8 video wall modes: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2
  • Supports 180° video rotation function, convenient for ceiling mounting
  • Supports bezel adjustment
  • Advanced EDID management system
  • Control via front panel buttons, IR remote, and RS-232 commands
  • Plug and play, no driver or software required
