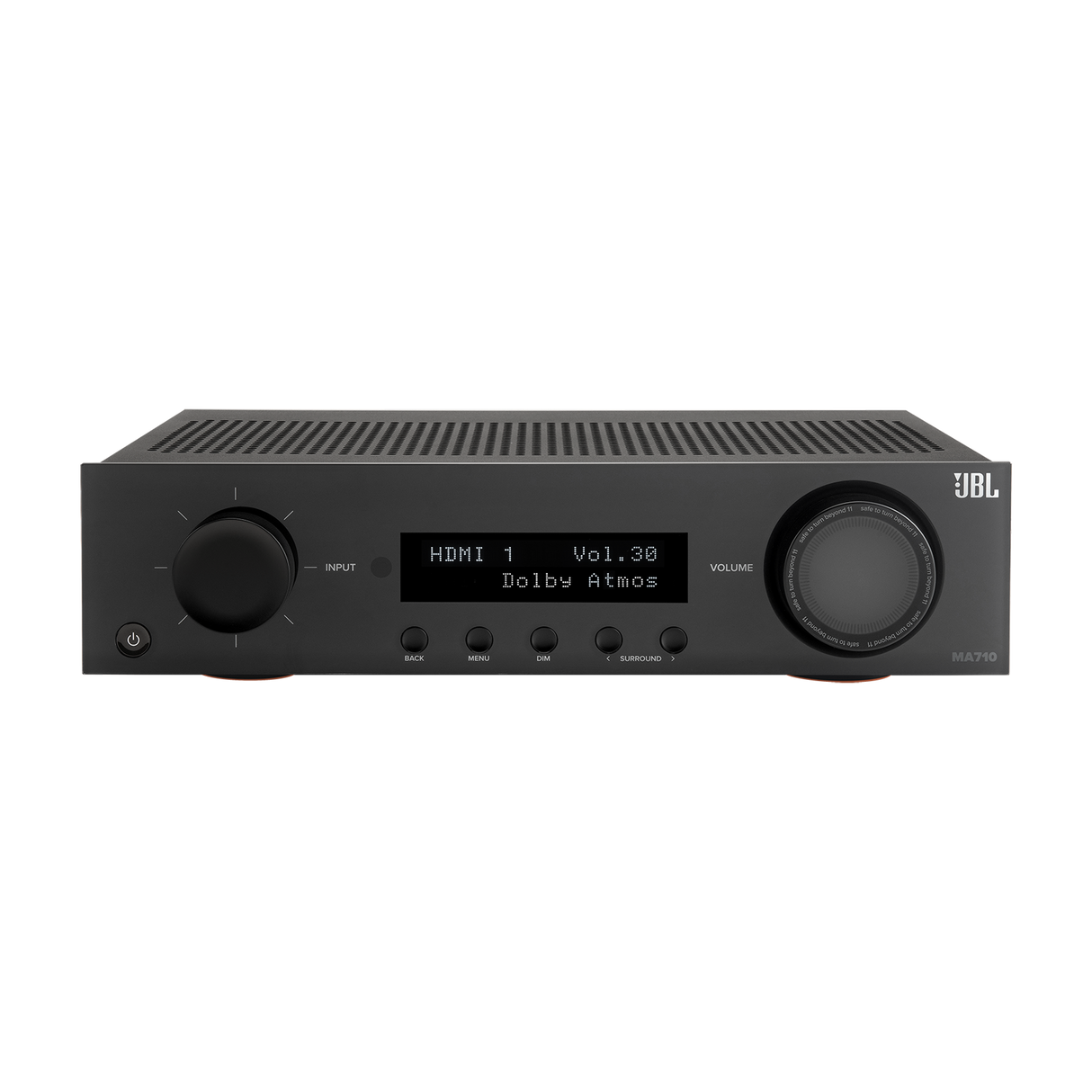

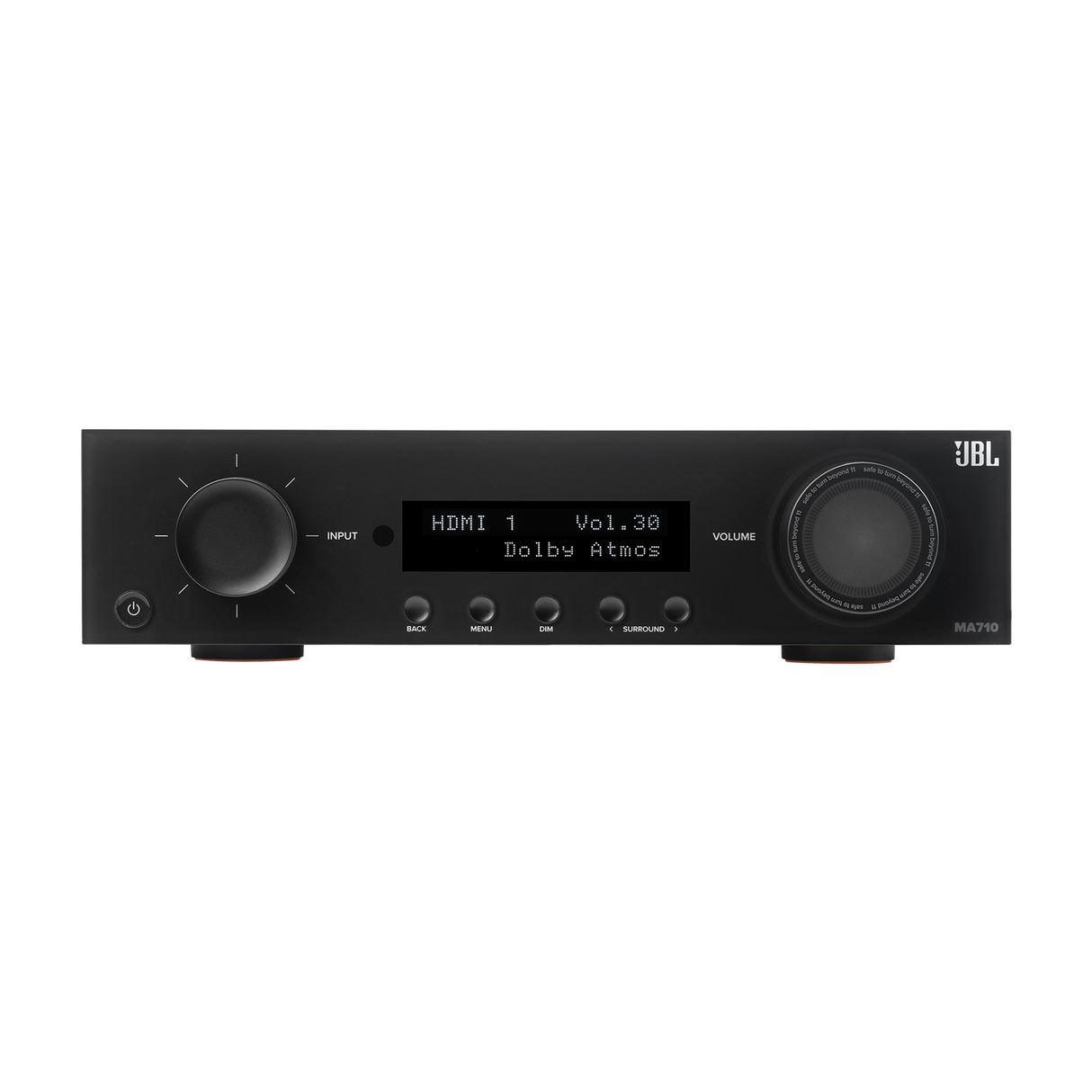

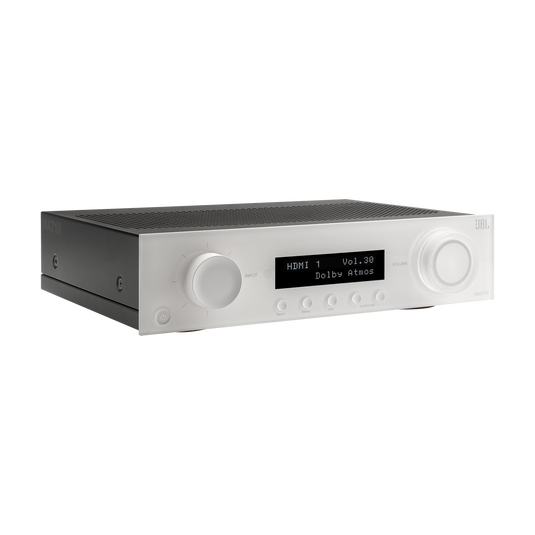

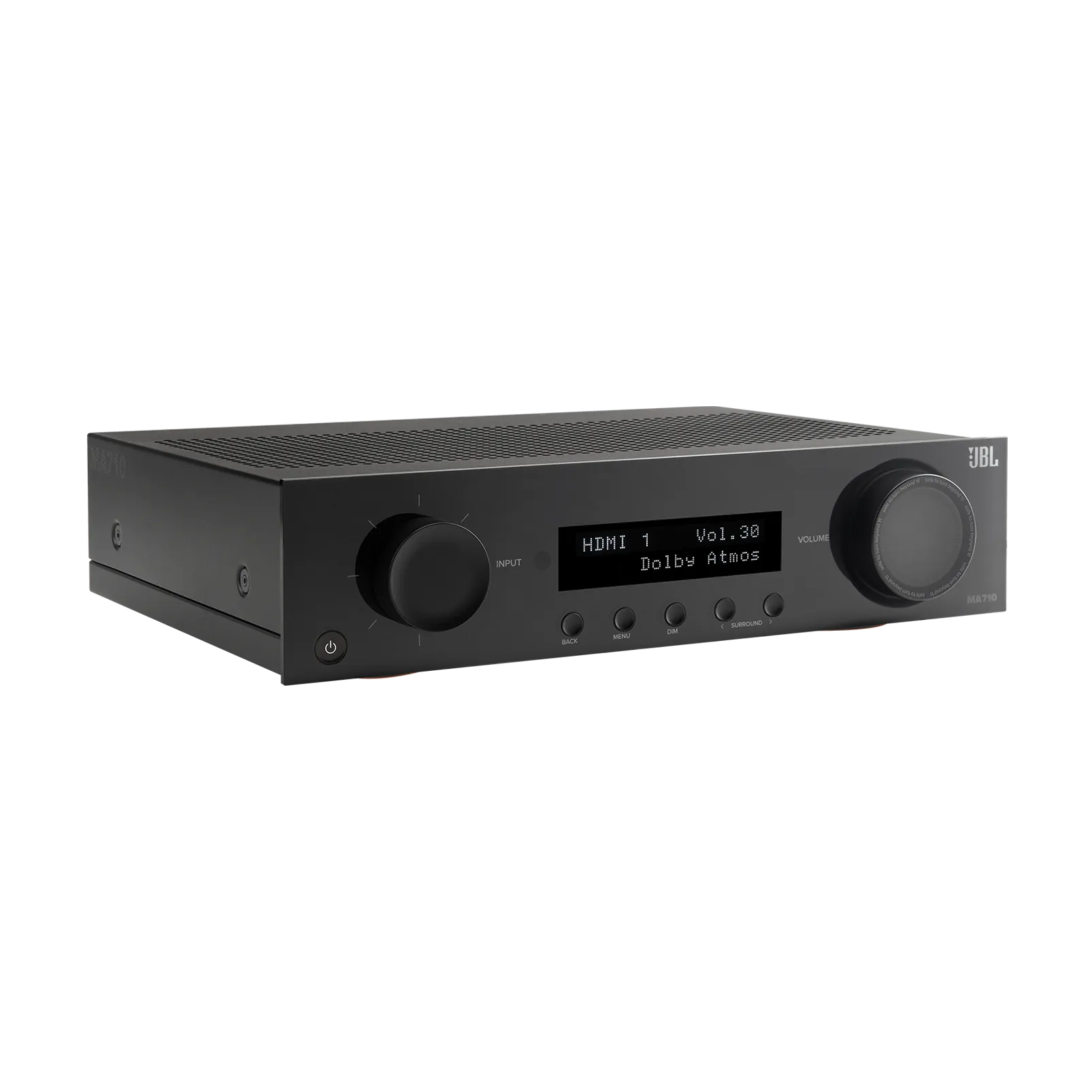

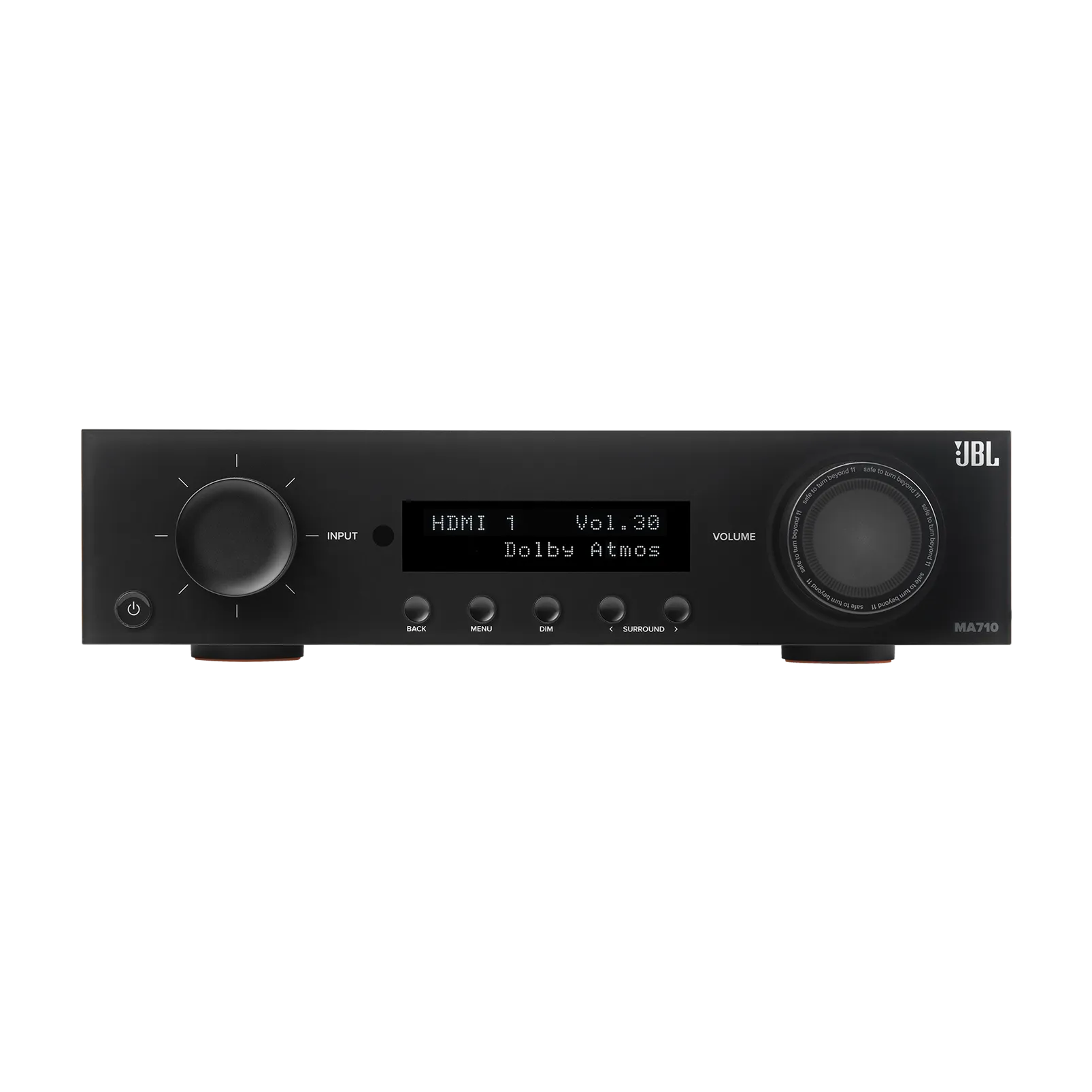

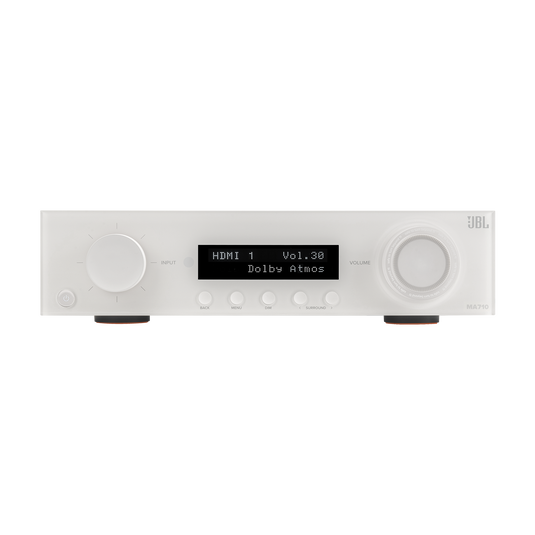

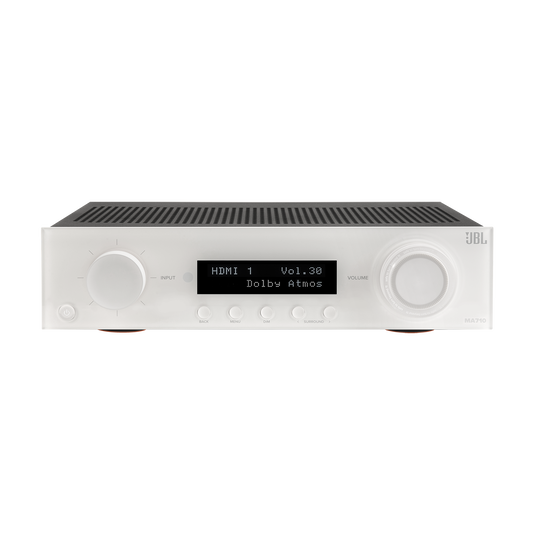

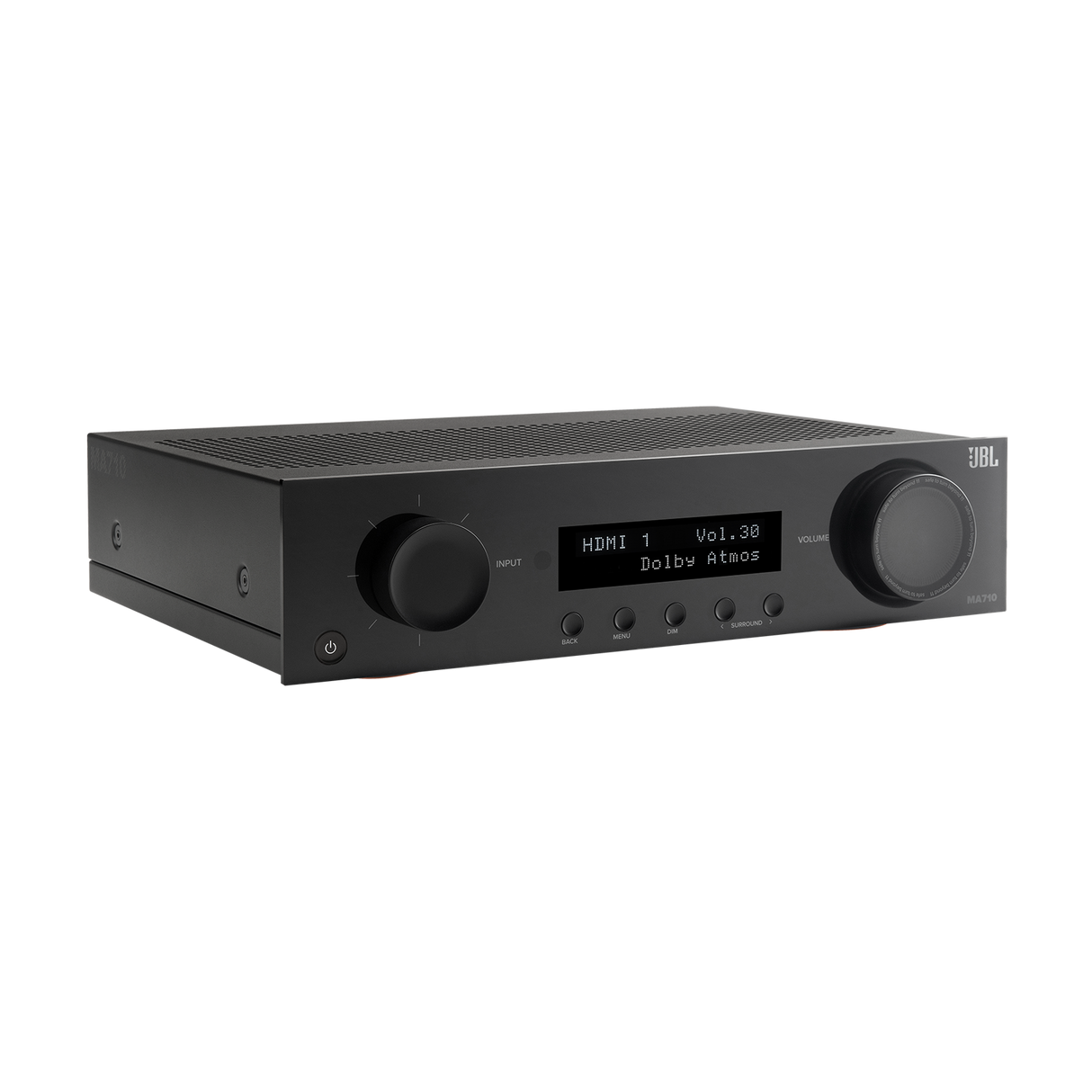

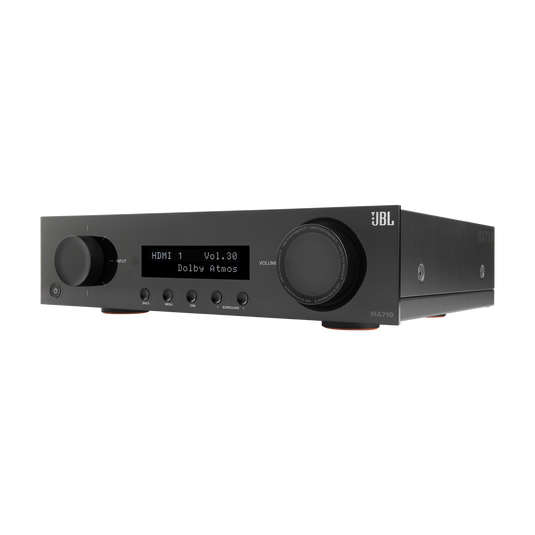

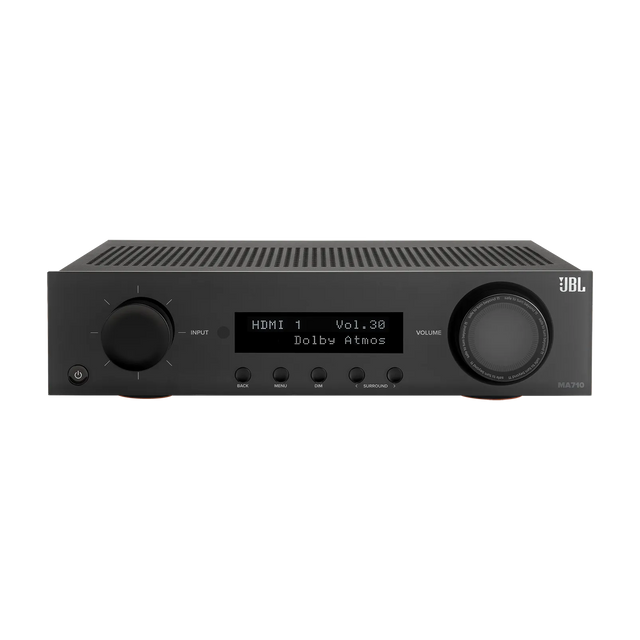

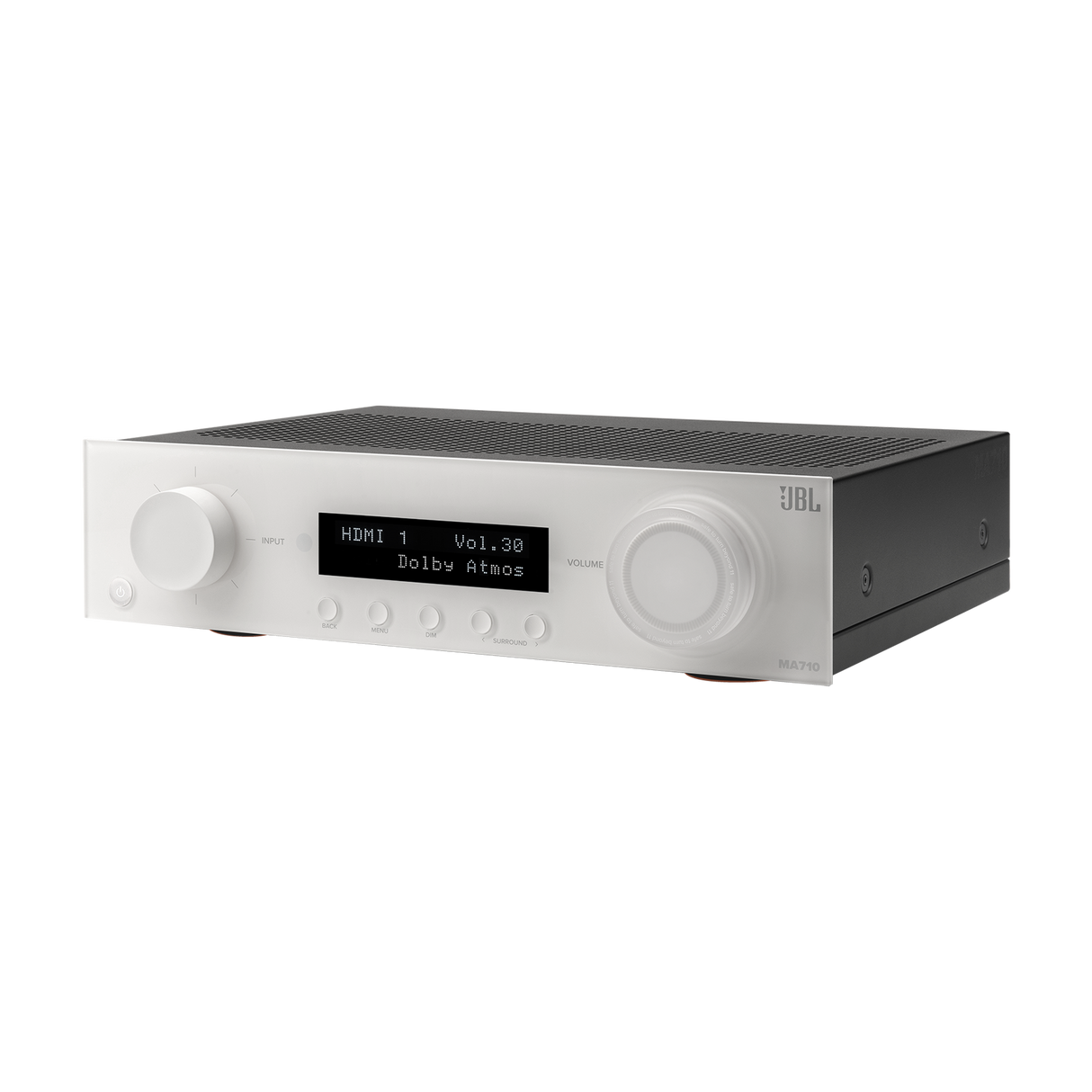

JBL MA710, 7.2-channel 8K home theater receiver with Dolby Atmos and DTS:X

INFORMACIJA

The JBL MA710 is a 7.2-channel AV receiver designed for true cinematic and music sound at home. It supports 8K video, Dolby Atmos / DTS:X, has powerful Class D amplification, smart EZ Set EQ calibration and extensive streaming capabilities (AirPlay 2, Chromecast, Bluetooth AptX Adaptive). Easy to use, convenient to connect, powerful to listen.

Channels: 7.2
FTC Power (20Hz-20kHz, 2ch, 1% THD, 8Ω): 110W
Rated Power @ 8 Ω (20 Hz-20 kHz, 0.5% THD): 110 W RMS
Rated Power @ 4 Ω (20 Hz - 20 kHz, 0.5% THD): 160 W RMS
HDMI eARC/ARC: Yes
8K HDMI inputs: 3 (HDMI 2.1, HDCP 2.3, up to 8K/60Hz and 4K/120Hz)
HDMI 2.1 gaming features: VRR, ALLM, QFT, HFR (4K@120Hz)
HDR support: HDR10+, Dolby Vision

DESCRIPTION

Description
Bring both music and movies to life with true high fidelity.

The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.

Stunning audio and video performance
7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC

High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations

Features

Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)

Enjoy your record collection
Moving magnet phono input for connecting a turntable.

On-screen setup and operation
On-screen display for easy system setup and operation (via HDMI)

Powerful amplification
Seven channels of low noise Class D amplification for real world power to all channels

EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality

TECHNICAL DATA

General Specifications
HDMI eARC
Yes
HDMI Audio Return Channel
Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
3
HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Yes, Yes
File format
File format up to 48 kHz / 320kbps WMA
MP3 / MPEG-4 AAC
Pure Analog
Yes
EZ Set EQ
Yes
Front channel bi-amp
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110-240V, 50-60Hz
Max. power consumption
500W
Standby power consumption
<0.5W
Audio Specifications
Channels
7.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
110W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
110W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
160W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight
13.8lb (6.3kg)

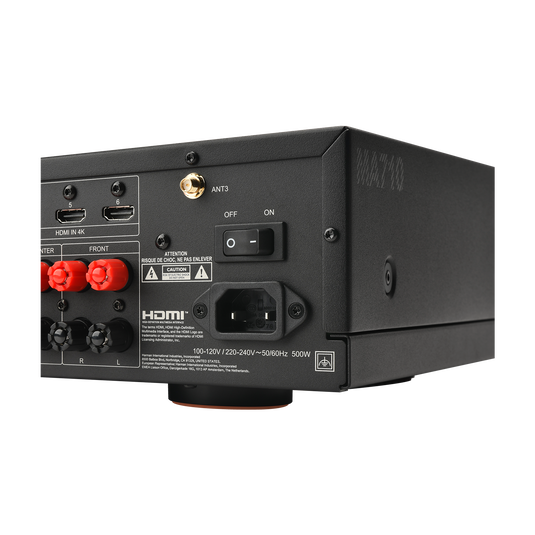

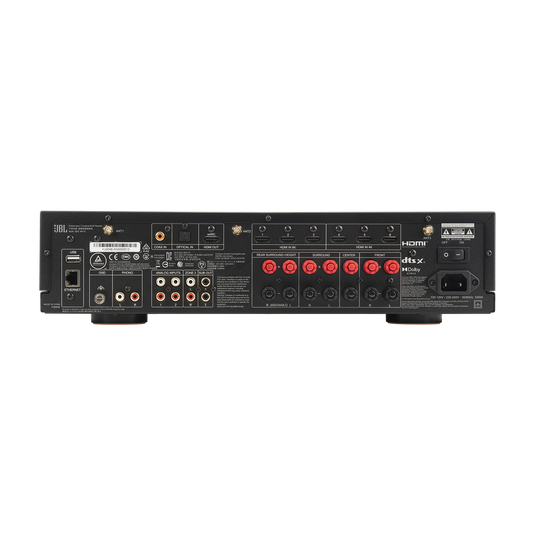

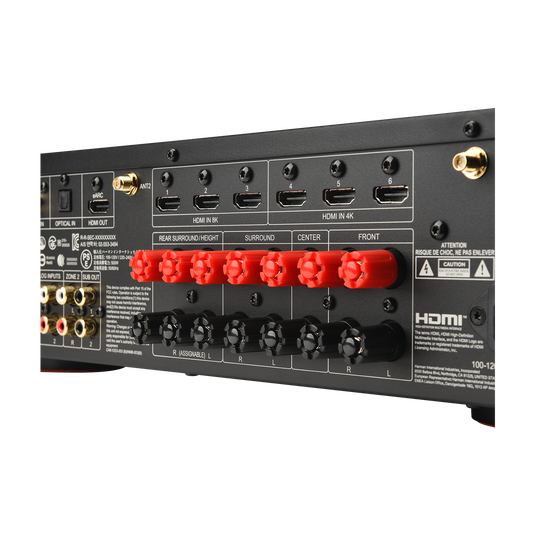

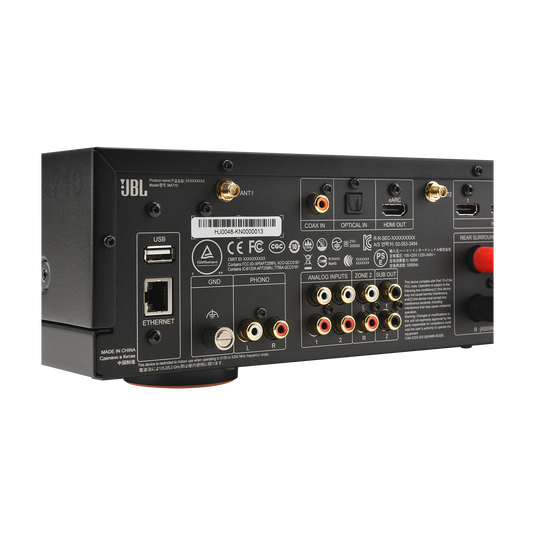

Control and Connection Specifications
HDMI Input/Output
6/ 1
Wi-Fi
Yes (2.4/5GHz)
Bluetooth receiver
Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Digital Audio Input
1 Coax, 1 Optical, 1 USB
Stereo analog input
2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA)
Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet Port (RJ45)
Yes

DOCUMENTS

User manual (EN)
