KEF

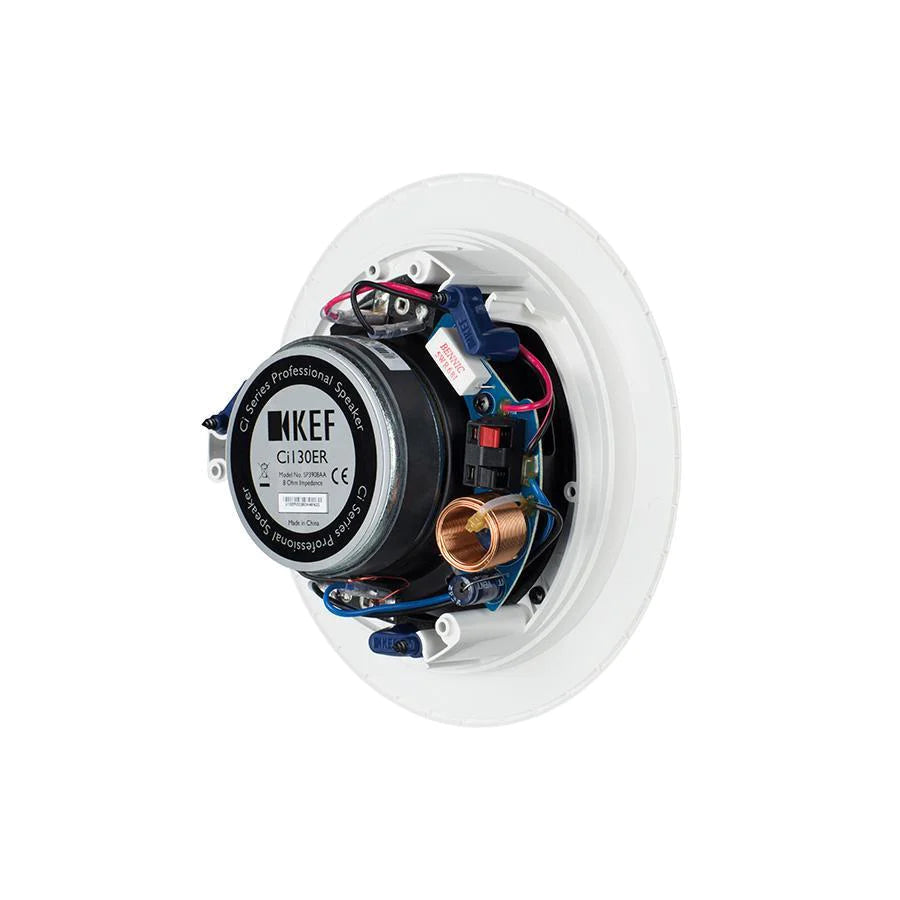

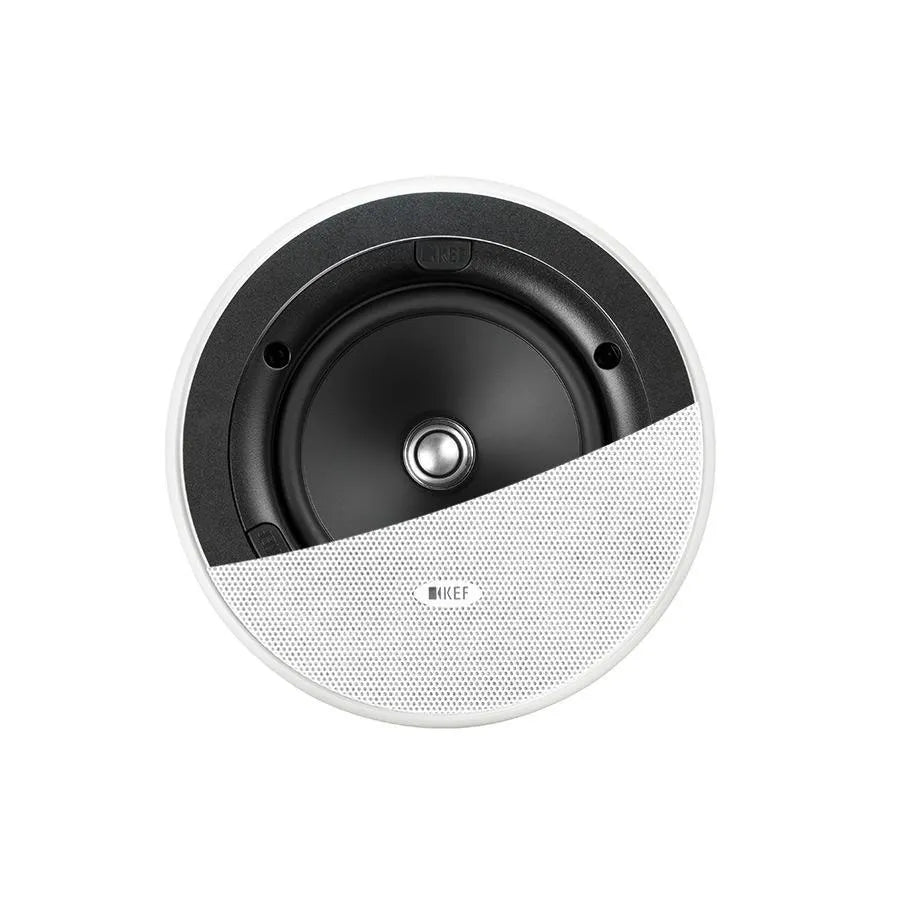

KEF Ci130ER, architectural loudspeaker (installation depth: 81mm)

The KEF Ci-E series of architectural loudspeakers are designed and manufactured to the same exacting standards as all KEF architectural loudspeakers, incorporating KEF's renowned Uni-Q loudspeaker technology.
€135.00 EUR

KEF Ci130ER, architectural loudspeaker (installation depth: 81mm) - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The KEF Ci-E series of architectural loudspeakers are designed and manufactured to the same exacting standards as all KEF architectural loudspeakers, incorporating KEF's renowned Uni-Q loudspeaker technology.

  • Recommended amplifier power: 10 - 80 W.
  • Frequency band: 52Hz - 20kHz (+/-6dB) open-backed .
  • Sensitivity: 90dB.
  • Resistance: 8 ohms.

DESCRIPTION

Ci130ER

Heard but not seen, with unprecedented value and performance, KEF's Ci-E series of architectural speakers are designed and manufactured to the same exacting standards as all KEF's architectural offerings and feature KEF's famed Uni-Q driver technology.

KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.

The Ci-E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior decor.

The speakers in the Ci-E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.


TECHNICAL DATA

SPECIFICATIONS

Nominal Impedance
8 Ohms
Sensitivity
90dB (2.83V/ 1m)
Frequency Response
52Hz - 20kHz (+/-6dB) open-backed
Crossover Frequencies
2.5kHz
Drive Units
LF: 130mm (5.25in.)
HF: 16mm (0.6in.)
Recommended Amplifier Power
10-80W
Product External Dimensions
Diameter : 193.4mm (7.61in.)
Depth : 81mm (3.19n.)
Cut-Out Dimensions
Diameter : 158mm (6.22in.)
Mounting Thickness
Ceiling Thickness (Maximum): 33mm (1.3 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
77.5mm (3.05in.)
Optional Rough In Frame
RIF130R
Optional Rear Enclosure
RNC130R
Even Weight
1.2kg (2.7lbs)
Unit Measurement
Piece

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
