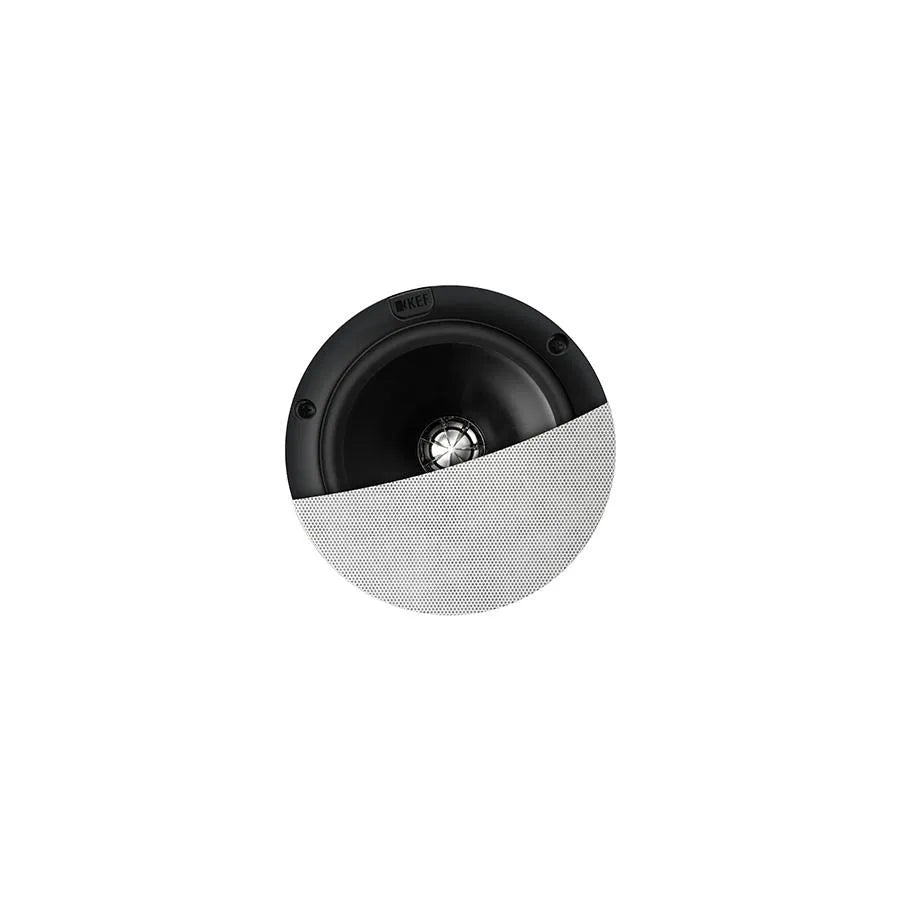

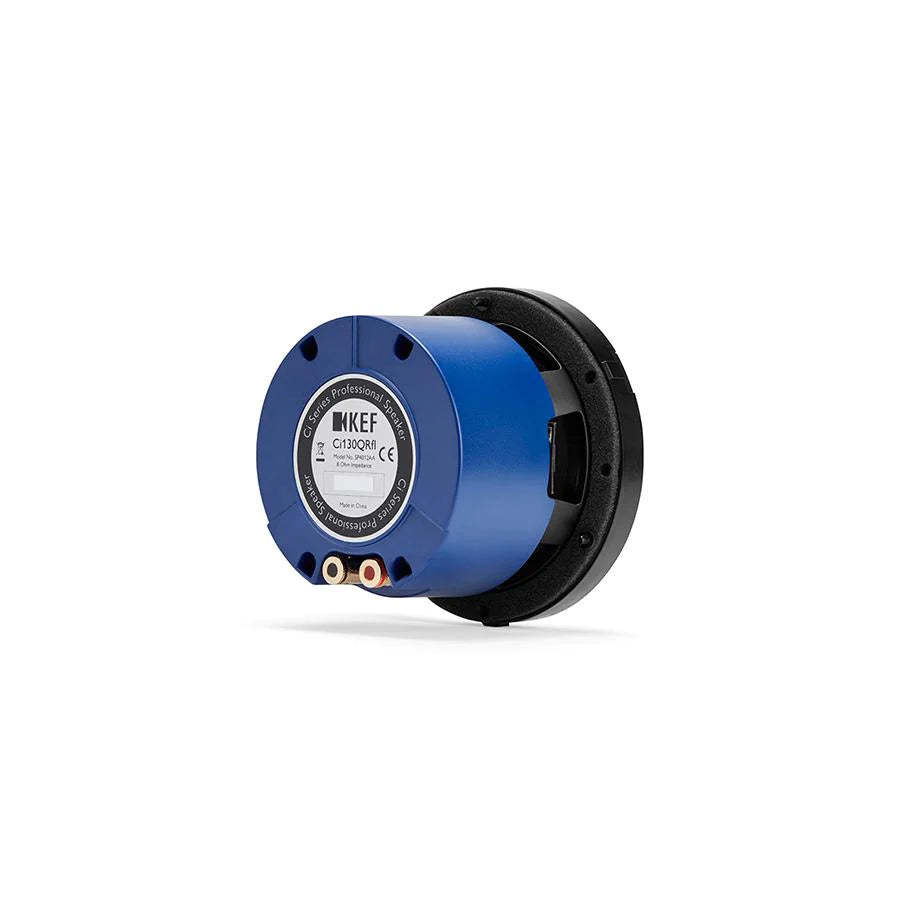

KEF Ci130QRfl, architectural speaker (installation depth: 104.6mm)

The KEF Ci130QRfl is an in-wall, wireless architectural speaker designed for high-quality sound and easy installation.
€450.00 EUR

KEF Ci130QRfl, architectural speaker (installation depth: 104.6mm) - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Recommended amplifier power: 10 - 100 W.
  • Frequency band: 45Hz - 34kHz .
  • Sensitivity: 87dB (2.83V/ 1m).
  • Resistance: 8 ohms.

DESCRIPTION

Ci130QRfl

Part of the Ci-Q Series, Ci130QRfl is built around KEF's signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QRfl is a round loudspeaker, while the Ci130QSfl features identical drivers in a square format.
Select a property

Intuitive Installation

Ci130QRfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QRfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.


TECHNICAL DATA

SPECIFICATIONS

Nominal Impedance
8 Ohms
Sensitivity
87dB (2.83V/ 1m)
Frequency Response (±6DB)
Open-Backed
45Hz - 34kHz
Frequency Range (-10DB)
38Hz-30kHz
Nominal Coverage (Degrees)
130
MAX SPL (DB)
103
Crossover Frequency
3.8kHz
Drive Units
LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)
Recommended Amplifier Power
10-100W
Recommended High-Pass Filter (HZ)
50 Hz
Product External Dimensions
Diameter Ø: 200.6mm (7.9in)
Depth: 104.6mm (4.12in)
Cut-Out Dimensions
Diameter Ø: 158mm (6.22in.)

Mounting Thickness

Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 7mm (0.276in.)
Even Weight
1.45kg (3.19Ibs.)
Mounting Depth From Surface
101mm (3.98in.)
Optional Rough In Frame
Nah
Optional Rear Enclosure
Nah
Ideal Rear Volume (L)
15
Minimum Rear Volume (L)
10
Safety And Regulatory Compliance
Nah

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
