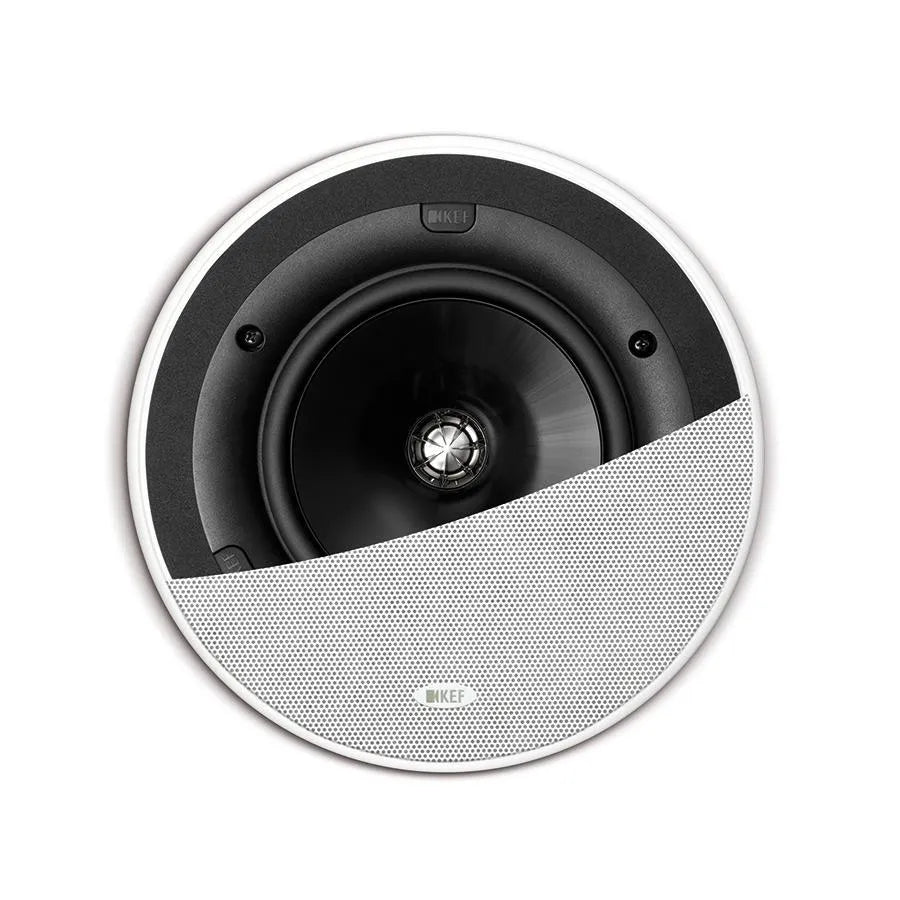

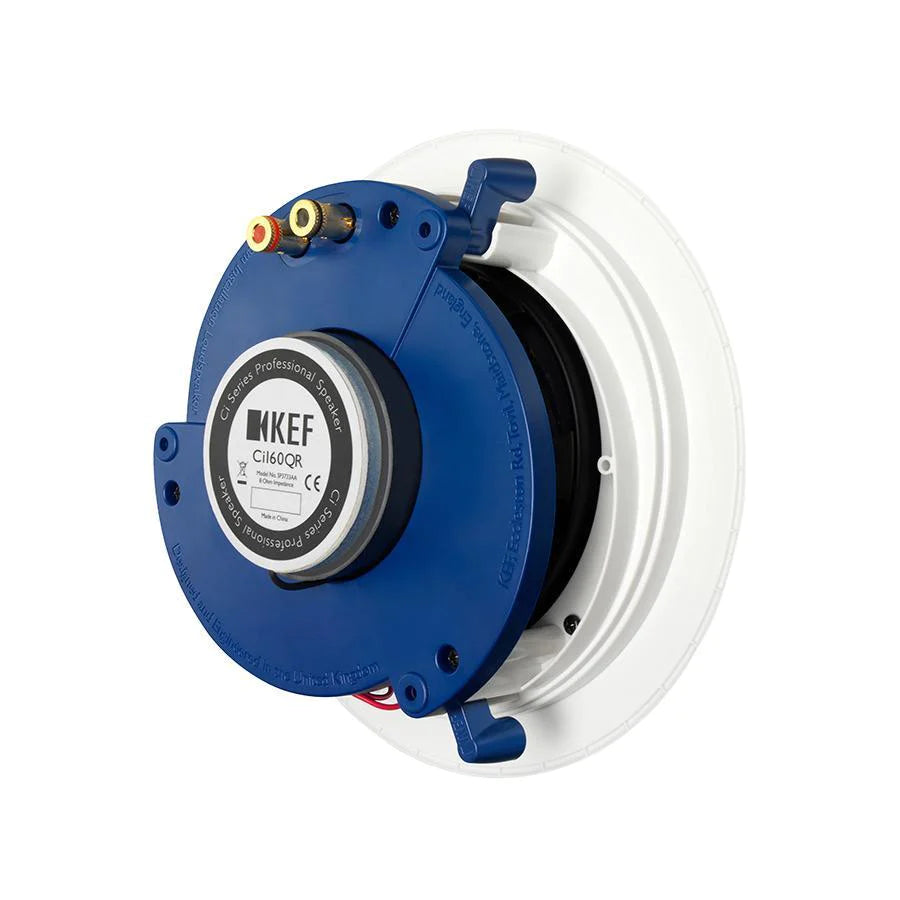

KEF Ci160QR, architectural speaker (installation depth: 91mm)

The stylish Ci160QR in-ceiling speaker with an ultra-slim frame has a narrow bezel for seamless integration into the ceiling.
€314.00 EUR

KEF Ci160QR, architectural speaker (installation depth: 91mm) - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Recommended amplifier power: 10 - 125W .
  • Frequency band: 38Hz - 34kHz (±6dB) 2pi/open-backed.
  • Sensitivity: 89dB (2.83V/ 1m).
  • Resistance: 8 ohms.

DESCRIPTION

Ci160QR

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic center of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.



TECHNICAL DATA

SPECIFICATIONS

Nominal Impedance
8 Ohms
Sensitivity
89dB (2.83V/ 1m)
Crossover Frequencies
3.0kHz
Frequency Response
38Hz - 34kHz (±6dB) 2pi/open-backed
Drive Units
LF: 160mm (6.5in.)
HF: 19mm (0.75in.)
Recommended Amplifier Power
10 - 125W
Product External Dimension (HXWXD)
Diameter : 234.6mm (9.24in.)
Depth: 98mm (3.86in.)
Cut-Out Dimensions (HXW)
Diameter: 196mm (7.71in.)
Mounting Thickness
Ceiling Thickness (Maximum): 36mm (1.42 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only: 91mm (3.58in.)
Optional Rough In Frame
RIF160R
Even Weight
2.05kg (4.51lbs.)
Unit Measurement
Piece

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
