Kenwood, DMX-5020DABCAMPER 2-DIN multimedia, Bluetooth, USB, Kem

INFORMACIJA

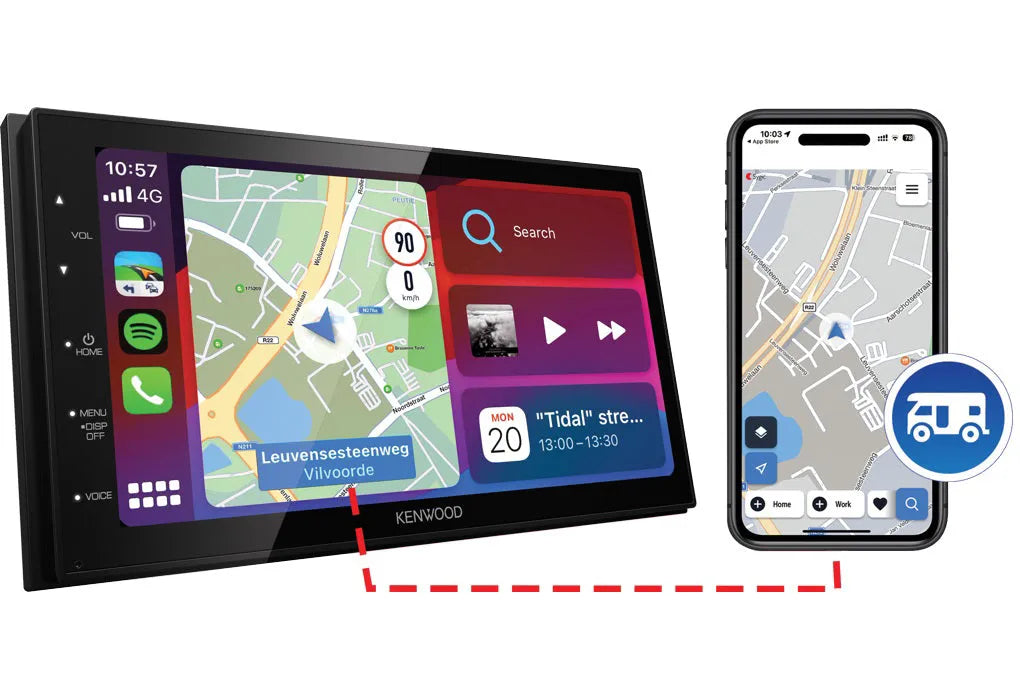

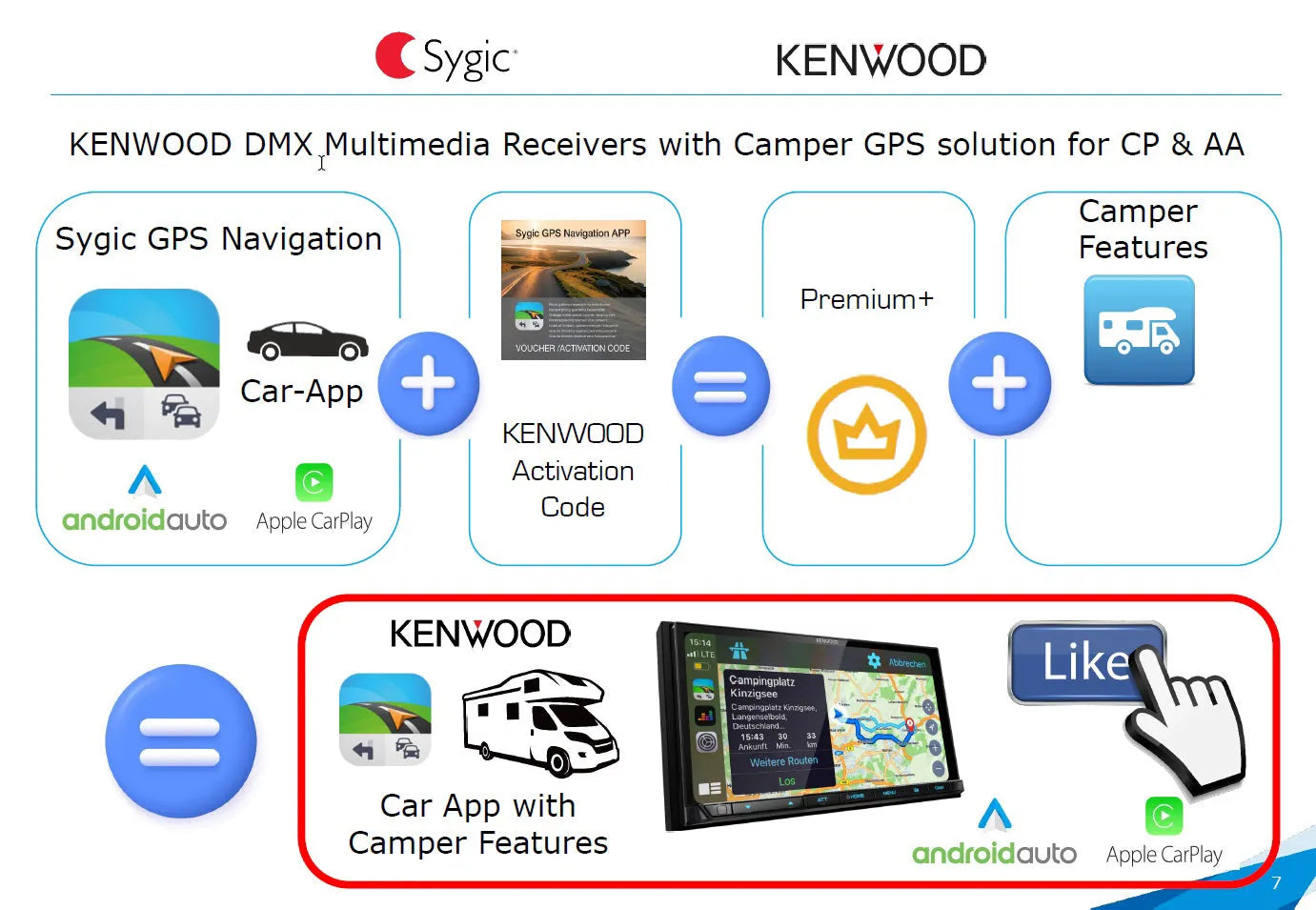

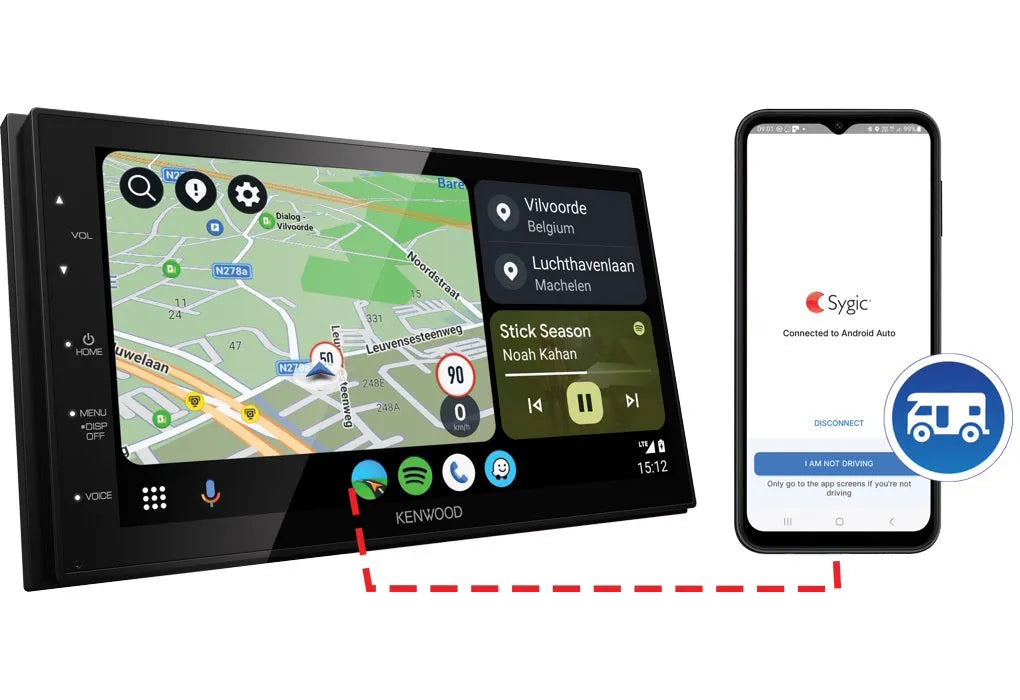

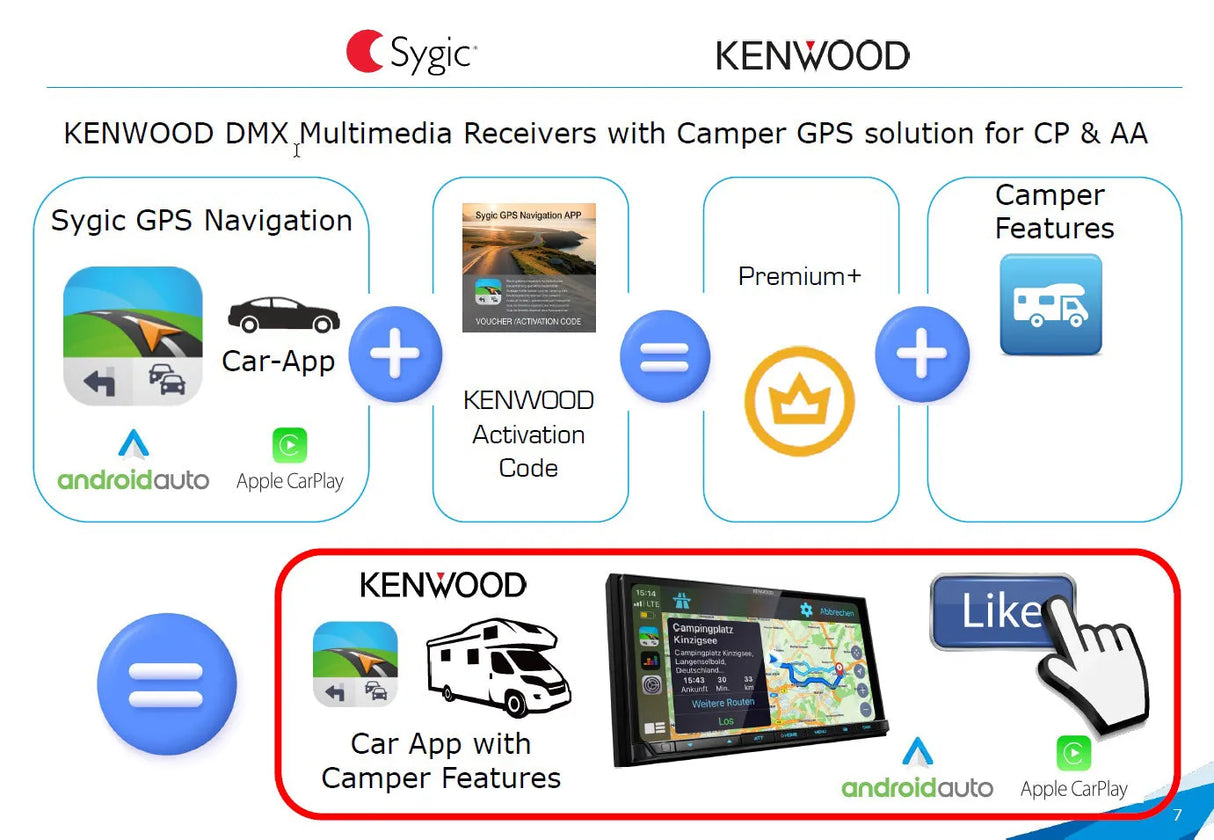

3-year "Sygic GPS Navigation with Caravan Routing" app subscription

The "Sygic GPS Navigation" with "Caravan Routing" app, compatible with "Android Auto" and "CarPlay", will safely guide you to your destination even without internet connection. Download any map of the world and get monthly updates. Never get stuck under low bridges, narrow roads, or tunnels, as the route is chosen based on your vehicle's dimensions and weight. It features voice-guided navigation, dynamic lane guidance, junction view, and speed limits. Real-time traffic information, live speed camera alerts, fuel prices, and much more. Preloaded POIs for campers, caravans, and cars will help you arrive smoothly at a RV park, campsite, or other destination. With the included QR code, you can download the app, available on "Google Play Store" and "Apple App Store", and activate a 3-year "Sygic GPS Navigation with Caravan Routing" app license.

• Shallow chassis (75mm), 6.8" WVGA receiver without CD mechanism
• Bluetooth for hands-free calling and audio streaming
• Works with Apple CarPlay and Android Auto
• Works with Waze app via Android Auto
• Works with Spotify app
• Rear USB 2.0 port, smartphone charging with 1.5A current
• FLAC file playback (96kHz/24bit)
• AV or rear view camera input (optional) / AV output
• Rear view camera image with parking lines
• 2 RCA + subwoofer (2.0V)
• DSP - 13-band EQ - DTA

• DIN size: 2 DIN
• Quick control
• Selectable background
• Button illumination: white
• Backup memory
• Optional IR remote control: KNA-RCDV331
• Digital clock (24H)
• ISO connector
• Bluetooth
• Works with iPod
• Works with Apple CarPlay
• Works with Android Auto
• Software update

• LCD type: 6.8" wide VGA
• High-resolution VGA display
• LCD display backlight: LED
• Full-screen mode: (Default)
• Image enlargement mode: 4 steps
• Auto display mode: Full - normal/regular
• Normal / regular display modes: Normal
• Display adjustment: Brightness
• Display adjustment: Color
• Display adjustment: Contrast
• Display dimming function: Manual/Sync
• Display dimming level: Auto/On/Off
• Video source selection: Mirroring/CarPlay/Android Auto
• Touch panel: Capacitive
• Screen type: Glossy
• Screen surface: Anti-fingerprint
• Mechanism type: Fixed
• NTSC/PAL system: Yes (automatic)

• Menu text: 14 languages: English (UK)(default), English (US), Spanish, French, German, Italian, Dutch, Russian, Portuguese, Hebrew, Greek, Polish, Czech, Hungarian
• Software update (SoC) via USB
• Graphics type: Graphics
• Spectrum analyzer
• Demo mode
• Main menu individual selection
• Screen opening type: Standard
• Background selection: 6 pre-saved + user selection

• Radio station selection: Manual / Saved (list)
• FM tuner
• AM (MW/LW) tuner
• Ability to save channels (FM/AM): 20 savable radio stations (15FM / 15AM)
• Search type (Auto1 / Auto2 / Manual): Auto1/Auto2/Manual
• Forward/backward search
• Automatic storage (AME)
• FM Stereo / Mono selection
• Radio Data System (RDS)
• Radio Text Plus
• Traffic event information
• Local search
• AF regional: Selectable: AF/AF Reg/OFF
• Automatic TP search
• Enhanced other network function (EON)
• Program Type function (PTY)

• Hands-free profile with high-quality sound: HFP V1.6
• Advanced Audio Distribution Profile (A2DP)
• High-quality audio streaming: SBC/AAC
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile
• Wireless music browsing (AVRCP 1.5)
• Multi-profile support
• iPhone and Android automatic pairing via USB
• Private mode
• Call interruption request
• Noise cancellation
• Echo cancellation
• Phone status display
• Signal strength display
• Battery charge level display
• High-quality noise-reducing microphone: Yes
• Bluetooth software update
• * Depends on phone model and Kenwood receiver

• AAC (*.m4a) files are playable via: USB
• MP3 files are playable via: USB
• WMA (.wma) files are playable via: USB
• WAV (.wav) files are playable via: USB
• FLAC files are playable via: USB

CE playable video files:

• MPEG1/2 files are playable via: USB
• MPEG4 files are playable via: USB
• WMV files are playable via: USB
• H.264 files are playable via: USB
• MKV files are playable via: USB
• JPEG files are playable via: USB
• BMP files are playable via: USB
• PNG files are playable via: USB

• USB connection: rear, 1m long cable
• USB type: 2.0 high-speed
• Android USB Mass Storage Class (MSC)
• Android Open Accessory support (AOA): Android Auto only
• Android Auto
• Android USB mirroring works only with "Mirroring OA for KENWOOD" app
• Repeat playback: Folder / File / All
• Random playback: Folder
• Category search
• Time display
• Smartphone battery charging with 1.5A current (BC 1.2)

• Compatible with iPod and iPhone
• USB direct control (Audio, 1 cable, Lightning connector): with optional KCA-iP103 cable
• Music playback
• Album art support
• Music library search
• Direct search
• Manual control
• App & iPod control mode
• iPod support standard (iAP): iAP2
• iAP via Bluetooth
• Works with Apple CarPlay
• Reverse search
• Battery charging + power management
• * Requires the latest Apple software

• Maximum output power (MOSFET Power IC): 4 x 50W
• Outputs: 2 pairs of RCA line outputs: Front/Rear + Subwoofer (mono)
• Line output voltage: 2V
• Volume control
• Balance and Fader control
• Mute (-20dB) with soft volume return

• DSP chip: AK7601
• Position control
• Position memory: 6 position memories
• Graphic equalizer
• Graphic equalizer: 13 bands
• G-EQ KBS: 8
• Manual G-EQ settings
• G-EQ adjustable level: -9dB/+9dB
• Time alignment: 0cm ~ 610cm
• High-pass filter (HPF): Yes (Front/Rear/Center)
• High-pass crossover frequency: 14
• High-pass crossover slope: 4 intervals
• Low-pass filter (LPF)
• Low-pass crossover frequency: 14
• Low-pass crossover slope: 4 intervals
• Crossover filter
• 3-way crossover filter
• User settings: Pops/Easy/Top40/Jazz/Powerful/Rock/Flat(Initial)/iPod/User1/User2/User3/User4
• Source DSP memory
• Speaker size selection
• Car type selection
• Channel level control
• Space enhancement
• Loudness
• High-frequency sound level
• Bass boost

• USB interface: rear
• OEM wired remote control: Requires additional interface
• Programmable OEM steering wheel remote control function
• DC cable
• Parking sensor wires
• Dimmer control wire
• AV input (non-switchable): (RCA)
• AV output: video RCA only
• Available AV output sources: USB/AV-in/Mirroring
• Reverse sensor wire
• Rear camera input
• Dashcam connection
• Amplifier output: RCA: Front/Rear/Subwoofer
• Third-party TV control (Mini-Jack)
• GPS antenna input
• FM antenna input
• DAB antenna input:
• External microphone input (mini-jack): Mini-jack

• FM frequency range: 87.5MHz - 108MHz (50Khz interval)
• FM usable sensitivity: 0.8μV/75ohm (S/N 9.3dB)
• FM quieting sensitivity: 1.6μV/75ohm (S/N 15.2dB)
• FM frequency response: 30Hz ~ 15kHz (± 3dB)
• FM signal-to-noise ratio (Mono): 68dB
• FM selectivity (DIN): over 80dB (±400kHz)
• FM Stereo separation (1kHz): 45 dB
• MW frequency range: 531kHz - 1611kHz (9kHz interval)
• MW usable sensitivity: 28.5μV
• LW frequency range: 153kHz - 279kHz (9kHz interval)
• LW usable sensitivity: 45μV

• Technology: Bluetooth V3.0
• Frequencies: 2.402 - 2.48 GHz
• Output power: +4dBm(max), 0dBm (AVE) power class 2
• Maximum range: Line of sight about 10 meters
• Hands-free profile (HFP): V1.6
• Serial Port Profile: V1.2
• Service Discovery Profile (SDP)
• Audio codec: SBC/AAC
• Generic Access Profile (GAP)
• Phonebook Access Profile (PBAP): V1.2

• Compatible USB version: USB 2.0 high-speed
• File system: FAT 16/32 / exFAT / NTFS
• Maximum usable current: 1500mA
• D/A converter: 24/32 bit
• MPEG1 decoder: MPEG-1 with MPEG Audio Layer 2
• MPEG2 decoder: MPEG-2 with MPEG Audio Layer 2
• MPEG4 decoder: (.mp4, .m4v)
• H.264 decoder: mp4, .m4v, .avi, flv, f4v
• MKV decoder: (.mkv)
• WMV decoder
• JPEG files
• BMP files
• PNG files
• MP3 decoder: Compatible with MPEG-1/2 Audio Layer-3
• WMA decoder: Compatible with Windows Media Audio
• AAC decoder: AAC-LC "m4a" files
• WAV decoder: Linear - PCM files
• FLAC decoder: FLAC files up to 96kHz/24bit
• Frequency response: 20Hz - 20kHz
• Signal-to-noise ratio: 104 dB (1kHz)
• Dynamic range: 90dB

• Maximum power: 50W x 4
• Output power (DIN45324,+B=14.4v): 22W x 4
• Output level: 4000mV / 10kOhm
• Output impedance: ≤ 600Ohm
• Speaker impedance: 4Ohm ~ 8Ohm

• Equalizer type: graphic
• Frequency band: 13 bands
• Position delay: 0 to 610cm (1cm step)
• Position gain: 8 to 0dB
• Time alignment: Front/rear/subwoofer
• Car type: ? Off ? Compact ? Sedan ? Wagon ? Minivan ? SUV ? Passenger Van
• Speaker type - Center: ? NONE ? 40mm X 70mm ? 5cm ? 10cm ? 13cm ? over 16cm
• 2-way crossover filter / Front/rear (HPF) / frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250 (Hz)
• 2-way crossover filter / Front/rear (HPF) / slope: 6/-12/-18/-24 (dB/oct)
• Subwoofer level: 50 to 10dB

• External video input color system: NTSC/PAL
• External video input level (mini-jack): 1 Vpp / 75 Ohm
• External audio maximum input level (mini-jack): 2 Vpp / 25 Ohm
• Analog RGB input: 0.7 Vpp, 75 Ohm
• Video input level (RCA): 1 Vpp, 75 Ohm
• Video output level (RCA): 1 Vpp / 75 Ohm

• Screen size (diagonal): 6.75 inch wide
• Screen size (WxH): 151.8 x 79.7 mm
• Display system: Transparent TN LCD panel
• Display system: TFT active matrix system
• Number of pixels: 1152000 pixels (800(W) x 480(H) x RGB)
• Effective pixels: 99.99%
• Pixel arrangement: RGB striped
• Backlight: LED (Light Emitting Diodes)

• Operating voltage: 14.4V (10.5 ~ 16V allowable)
• Maximum current consumption: 10A
• Dimensions (WxHxD): 178 x 100 x 75 mm
• Weight (with sleeve and trim plate): 2 kg
• Operating temperature range: -10°C ~ 60°C

• Release keys: 2 pcs.
• Trim plate
• Mounting sleeve
• Hands-free microphone: with 3 m cable
• Multi-language instruction manual
• Ability to download instruction manual
