Kenwood, DMX-7722DABS 2-DIN WIFI multimedia, Bluetooth, USB

INFORMACIJA

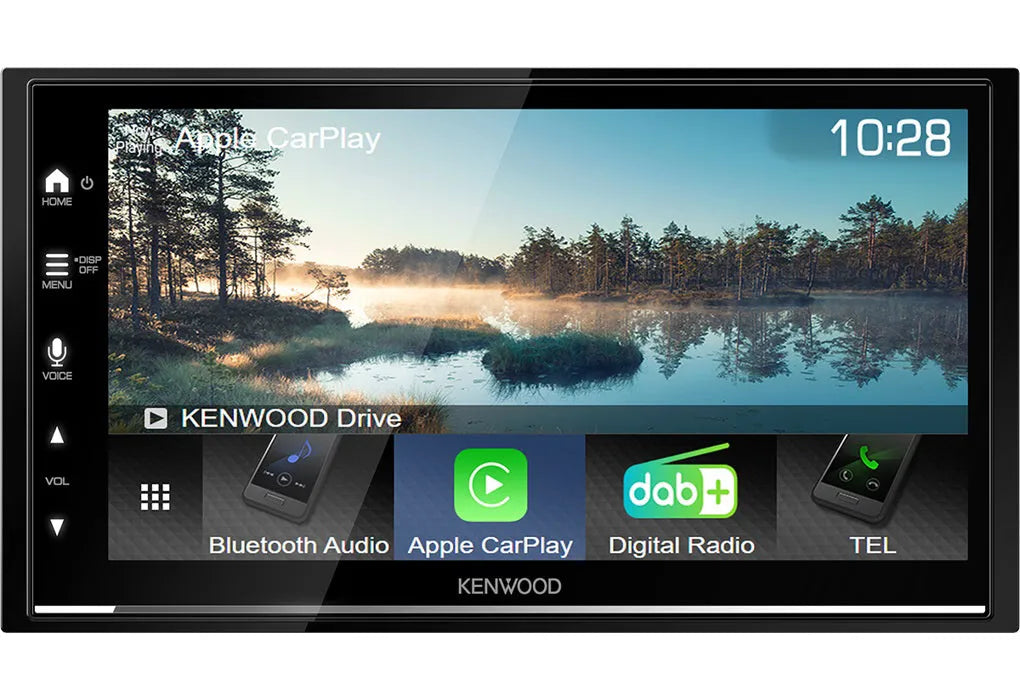

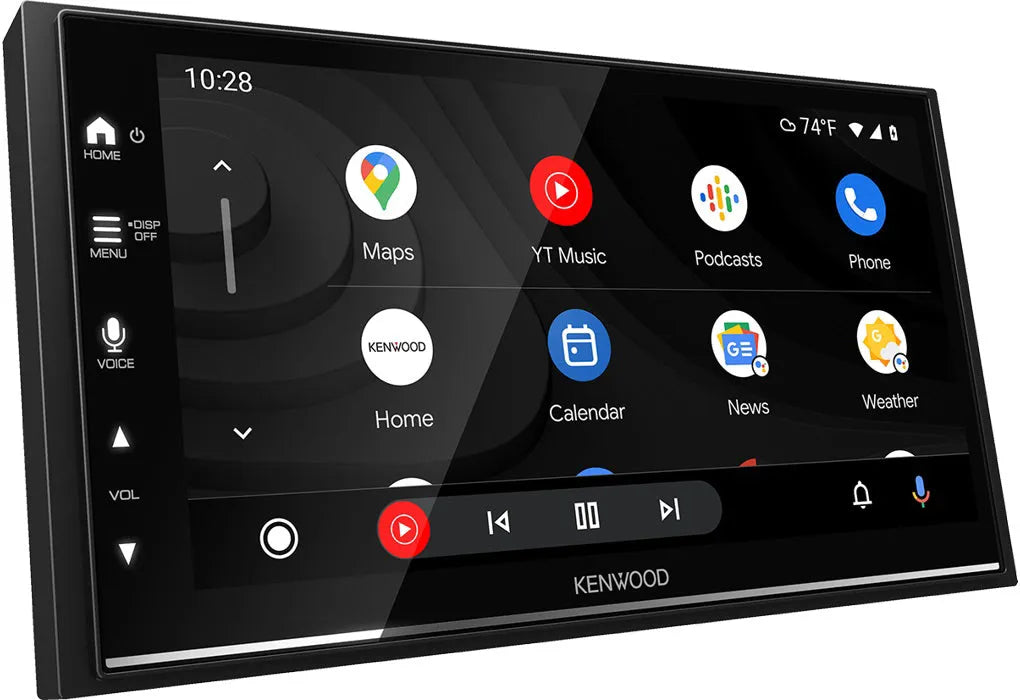

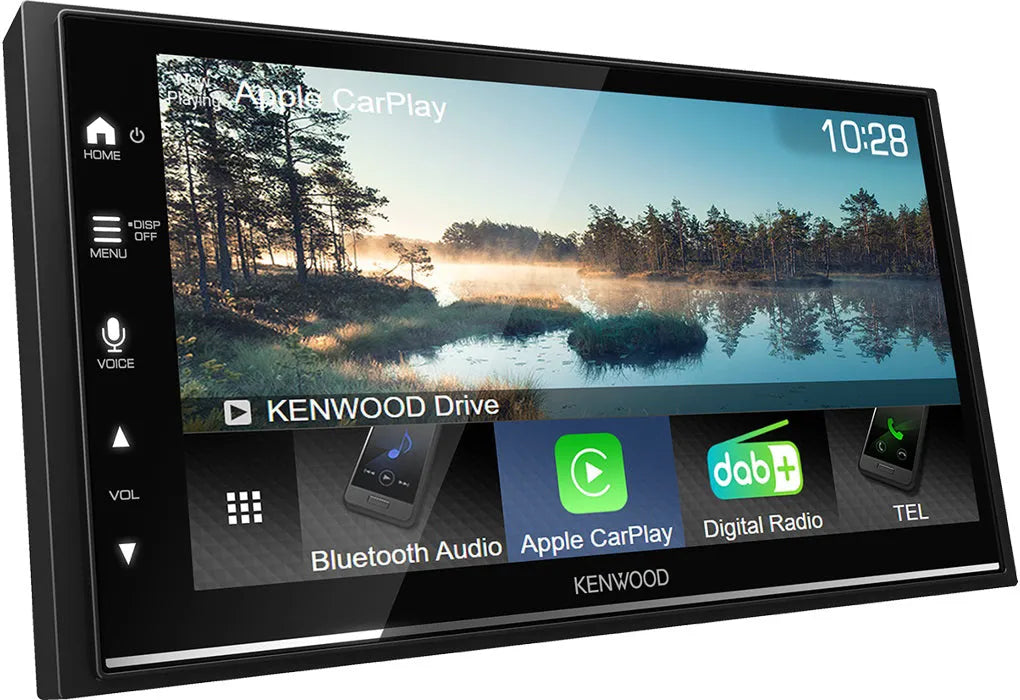

DMX-7722DABS 7" Digital Media AV Receiver with Smartphone Control, Bluetooth, WIFI. Wireless Apple CarPlay and Android Auto!

Key features:

• 7" WVGA receiver without CD mechanism
• Integrated WIFI
• DAB+
• Bluetooth for hands-free calling and audio streaming
• Works with Apple CarPlay and Android Auto wirelessly
• Dashcam connectivity
• Rear USB 2.0 port, smartphone charging with 1.5A current
• FLAC file playback (96kHz/24bit)
• AV input, Video output, rear camera input
• 3 RCA (Front-Rear-Subwoofer) outputs (4.0V)
• DSP - 13-band EQ - DTA

General features:

• DIN size: 2 DIN
• On-screen display (OSD) control
• Quick control
• Selectable control background
• Button illumination: Multi-color
• Backup memory
• Optional IR remote control: KCA-RCDV331
• Digital clock (24H)
• ISO connector
• Bluetooth
• Works with iPod
• Works with Apple CarPlay
• Works with Android Auto
• Software update

Display features:

• LCD type: 7" wide VGA
• High-resolution VGA display
• LCD screen backlight: LED
• Full-screen mode: (Default)
• Image enlargement mode: 3 steps
• Video-only mode
• Panoramic view mode
• Automatic screen mode: Full - normal/regular
• Normal / regular screen modes: Normal
• Screen adjustment: Brightness
• Screen adjustment: Color
• Screen adjustment: Contrast
• Screen dimming function: Manual/sync
• Screen dimming level: Auto/On/Off
• Video source selection: Mirroring/Apple CarPlay/Android Auto
• Screen type: Glossy
• Screen surface: Fingerprint-resistant
• Mechanism type: Fixed
• NTSC/PAL system: Yes (automatic)

Multimedia GUI features:

• Menu text: 14 languages: / English (UK) (default) / English (US) / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Hebrew / Greek / Polish / Czech / Hungarian
• Software update (SoC) via USB
• Graphics type: Graphics
• Spectrum analyzer
• Demo mode
• Customizable main menu
• Screen opening type: Standard
• Background selection: 6 preset + user selection
• Background color change
• Animation
• Screen capture
• Rear view camera display
• Rear view camera warning on screen
• Parking guide / auxiliary parking lines
• Dashcam control

Network and WIFI:

• Integrated WIFI
• Frequencies: dual band (2.4GHz / 5 GHz)
• WIFI Apple CarPlay
• WIFI Android Auto
• WIFI Android Mirroring

Radio features:

• Radio station selection: Manual / preset (list)
• FM tuner
• DAB+ tuner
• AM (MW/LW) tuner
• Preset channels (FM/AM): 20 preset radio stations (15FM / 5AM)
• Preset channels (DAB+): 15 stations
• Search type (Auto1 / Auto2 / Manual): Auto1/Auto2/Manual
• Forward/backward search
• Automatic memory entry (AME)
• FM Stereo / Mono selection
• Radio Data System (RDS)
• Radio Text Plus
• Traffic information
• Local search
• AF regional: Selectable: AF/AF Reg/OFF
• Automatic TP search
• Enhanced Other Networks function (EON)
• Program Type function (PTY)

DAB+ tuner:

• Integrated DAB+
• 15 channels
• Alphabetical search
• Stream information
• DLS
• PTY
• DMB audio
• TMC
• etc.

Bluetooth general features:

• Maximum number of registered phones for HFP and A2DP: 5 phones
• Hands-free profile with high-quality sound: HFP V1.6
• Advanced Audio Distribution Profile (A2DP)
• High-quality audio streaming: SBC/AAC
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phone Book Access Profile
• Wireless music browsing (AVRCP 1.6)
• Multi-profile support
• iPhone and Android automatic pairing via USB
• Private mode
• Interrupt call request
• Noise cancellation
• Echo cancellation
• Phone status display
• Signal strength display
• Battery charge level display
• High-quality noise-reducing microphone: Included
• Bluetooth software update
• * Depends on phone model and Kenwood receiver

CE playable audio files:

• AAC (*.m4a) files are played via: USB
• MP3 files are played via: USB
• WMA (.wma) files are played via: USB
• WAV (.wav) files are played via: USB
• FLAC files are played via: USB

CE playable video files:

• MPEG1/2 files are played via: USB
• MPEG4 files are played via: USB
• WMV files are played via: USB
• H.264 files are played via: USB
• MKV files are played via: USB
• JPEG files are played via: USB
• BMP files are played via: USB
• PNG files are played via: USB

USB features:

• USB connection: 2 units on the rear panel
• USB type: 2.0 high speed
• Android USB Mass Storage Class (MSC)
• Android Open Accessory support (AOA): Android Auto only
• Android Auto
• Repeat playback: Folder/File/All
• Random playback: Folder
• Category search
• Time display
• Smartphone battery charging with 1.5A current (BC 1.2)

iPod features:

• Compatible with iPod and iPhone
• USB direct control (Audio, 1 wire, Lightning connector): with optional KCA-iP103 cable
• Music playback
• Album art support
• Music library search
• Direct search
• Manual control
• App & iPod control mode
• iPod support standard (iAP): iAP2
• iAP via Bluetooth
• Works with Apple CarPlay
• Reverse search
• Battery charging + power management
• * Requires the latest Apple software

Audio features:

• Maximum output power (MOSFET Power IC): 4 x 50W
• Outputs: 3 pairs of RCA line outputs: Front/Rear/Subwoofer
• Line output voltage: 4V
• Volume control
• Balance and Front/Rear adjustment
• Mute (-20dB) with soft volume return

Multimedia DSP features

• DSP chip: AK7601
• Position control
• Position memory: 6 position memories
• Graphic equalizer
• Graphic equalizer: 13 bands
• G-EQ KBS: 8
• G-EQ manual settings
• G-EQ adjustable level: -9dB/+9dB
• Time alignment: 0cm ~ 610cm
• High-pass filter (HPF): Yes (Front/Rear/Center)
• High-pass crossover frequency: 14
• High-pass crossover slope: 4 intervals
• Low-pass filter (LPF)
• Low-pass crossover frequency: 14
• Low-pass crossover slope: 4 intervals
• Crossover filter
• 3-way crossover filter
• User settings: Pops/Easy/Top40/Jazz/Powerful/Rock/Flat(Initial)/iPod/User1/User2/User3/User4
• Source DSP memory
• Speaker size selection
• Car type selection
• Channel level control
• Space enhancement
• Loudness
• Treble boost level
• Bass boost

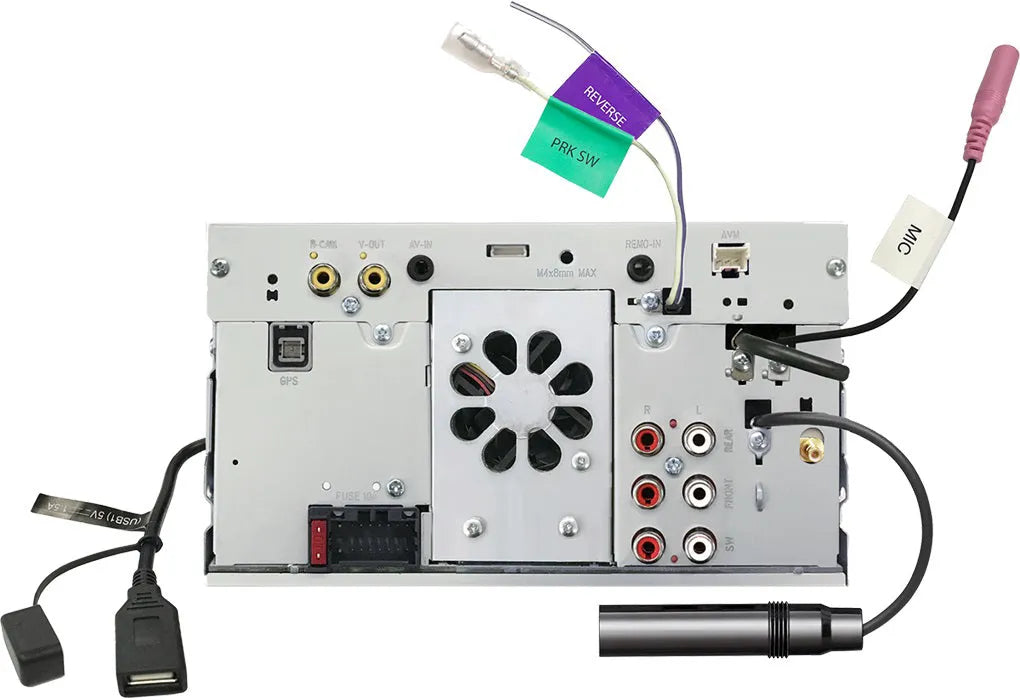

Connections:

• USB interface: on the rear panel
• OEM wired remote control: Requires additional interface
• Programmable OEM steering wheel remote control function
• DC cable
• Parking sensor wires
• Dimmer control wire
• AV input: 1x mini-jack (AV in, camera IN)
• AV output: RCA / Audio mini-jack
• Available AV output sources: USB/AV-in/Mirroring
• Reverse sensor wire
• Rear view camera input
• Dashcam connection
• Amplifier output: RCA: Front/Rear/Subwoofer
• Third-party TV control (Mini-Jack)
• GPS antenna input
• FM antenna input
• DAB antenna input:
• External microphone input (mini-jack): Mini-jack

Radio specification:

• FM range: 87.5Mhz - 108MHz (50Khz interval)
• FM usable sensitivity: 0.8μV/75ohm (S/N 9.3dB)
• FM quieting sensitivity: 1.6μV/75ohm (S/N 15.2dB)
• FM frequency response: 30Hz ~ 15kHz (± 3dB)
• FM signal-to-noise ratio (Mono): 68dB
• FM selectivity (DIN): over 80dB (±400kHz)
• FM Stereo separation (1kHz): 45 dB
• MW range: 531kHz - 1611kHz (9kHz interval)
• MW usable sensitivity: 28.5μV
• LW range: 153kHz - 279kHz (9kHz interval)
• LW usable sensitivity: 45μV

Bluetooth specification:

• Technology: Bluetooth V3.0
• Frequencies: 2.402 - 2.48 GHz
• Output power: +4dBm(max), 0dBm (AVE) power class 2
• Maximum range: Line of sight about 10 meters
• Hands-Free Profile (HFP): V1.6
• Serial Port Profile: V1.2
• Service Discovery Profile (SDP)
• Audio codec: SBC/AAC
• Generic Access Profile (GAP)
• Phone Book Access Profile (PBAP): V1.2

USB specification:

• Compatible USB version: USB 2.0 high speed
• File system: FAT 16/32 / exFAT / NTFS
• Maximum current consumption: 1500mA
• D/A converter: 24/32 bit
• MPEG1 decoder: MPEG-1 with MPEG Audio Layer 2
• MPEG2 decoder: MPEG-2 with MPEG Audio Layer 2
• MPEG4 decoder: (.mp4, .m4v)
• H.264 decoder: mp4, .m4v, .avi, flv, f4v
• MKV decoder: (.mkv)
• WMV decoder
• JPEG files
• BMP files
• PNG files
• MP3 decoder: Compatible with MPEG-1/2 Audio Layer-3
• WMA decoder: Compatible with Windows Media Audio
• AAC decoder: AAC-LC "m4a" files
• WAV decoder: Linear - PCM files
• FLAC decoder: FLAC files up to 96kHz/24bit
• Frequency response: 20Hz - 20kHz
• Signal-to-noise ratio: 104 dB (1kHz)
• Dynamic range: 90dB

Audio specification:

• Maximum power: 50W x 4
• Output power (DIN45324,+B=14.4v): 22W x 4
• Output level: 4000mV / 10kOhm
• Output impedance: ≤ 600Ohm
• Speaker impedance: 4Ohm ~ 8Ohm

DSP specification:

• Equalizer type: graphic
• Frequency band: 13 bands
• Position delay: 0 to 610cm (1cm step)
• Position gain: 8 to 0dB
• Time alignment: Front/Rear/Subwoofer
• Car type: Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van
• Speaker type - Center: /NONE / 40mm X 70mm / 5cm / 10cm to 13cm / over 16cm
• 2-way crossover filter / Front/Rear (HPF) / frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250 (Hz)
• 2-way crossover filter / Front/Rear (HPF) / slope: 6/-12/-18/-24 (dB/oct)
• Subwoofer level: 50 to 10dB

Video specification:

• External video input color system: NTSC/PAL
• External video input level (mini-jack): 1 Vpp / 75 Ohm
• External audio maximum input level (mini-jack): 2 Vpp / 25 Ohm
• Analog RGB input: 0.7 Vpp, 75 Ohm
• Video input level (RCA): 1 Vpp, 75 Ohm
• Video output level (RCA): 1 Vpp / 75 Ohm

Display specification:

• Screen size (diagonal): 7 inches wide
• Screen size (WxH): 156.6 x 81.6 mm
• Display system: Transparent TN LCD panel
• Display system: TFT active matrix system
• Number of pixels: 1152000 pixels (800(W) x 480(H) x RGB)
• Effective pixels: 99.99%
• Pixel arrangement: RGB striped
• Backlight: LED (Light Emitting Diodes)

General specifications:

• Operating voltage: 14.4V (10.5 ~ 16V allowable)
• Maximum current consumption: 10A
• Dimensions (WxHxD): 182 x 112 x 153 mm
• Weight (with sleeve and trim plate): 1.7 kg
• Operating temperature range: -10°C ~ 60°C

Accessories:

• Release keys: 2 pcs.
• Trim plate
• Installation sleeve
• USB cable 2x 1 meter each
• Hands-free microphone: with 3m cable
• GPS antenna: 3.5m
• Multi-language instruction manual
• Downloadable instruction manual
