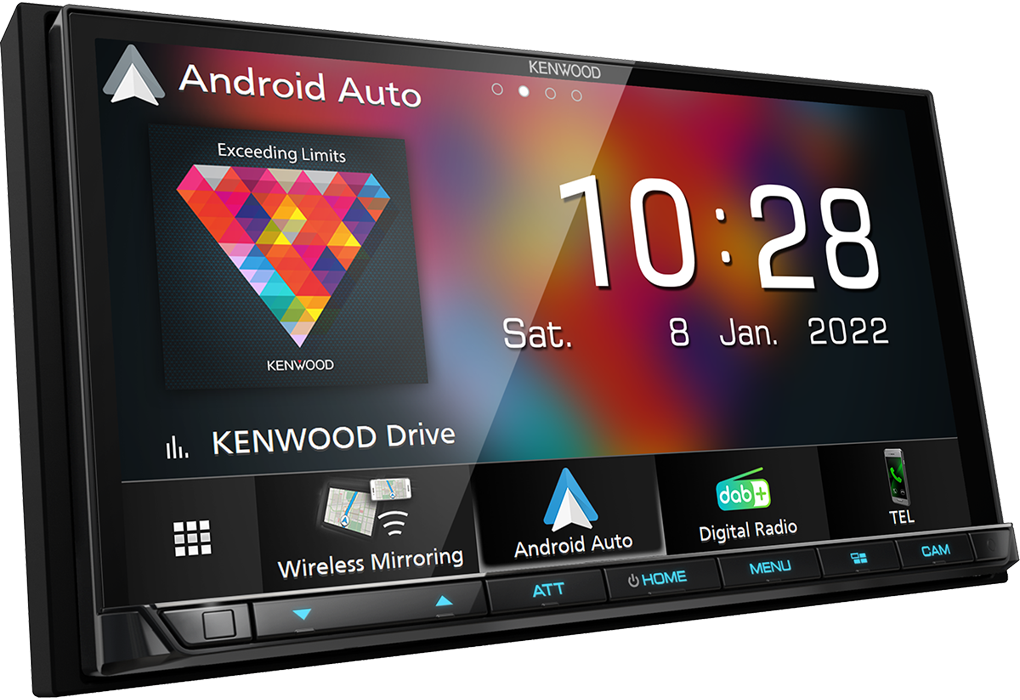

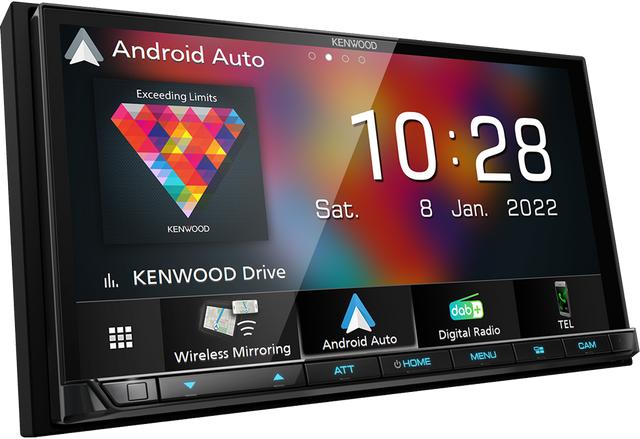

- Kenwood DMX8021DABS, multimedija

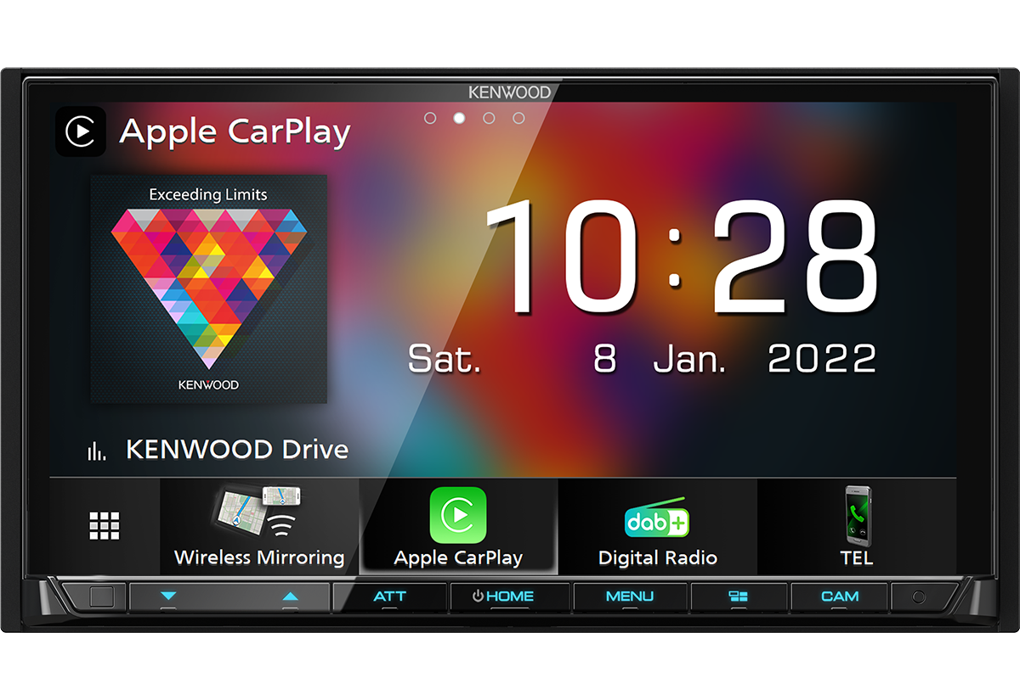

- Kenwood DMX8021DABS, multimedija- priekis
1
/
about
2
Loading ...
Kenwood | Bar code:
Kenwood DMX-8021 DABS, 7.0" multimedia with wireless Apple CarPlay, Android Auto and DAB+
By wirelessly connecting your smartphone to the DMX8021DABS, driving will be more fun and convenient: Safe, smart and comprehensive control with Apple CarPlay™ and Android Auto™ makes this multimedia a great choice for a reasonable price!
- 7.
Regular price
€749.00 EUR
Unit price
/
Unattainable
Kenwood DMX-8021 DABS, 7.0" multimedia with wireless Apple CarPlay, Android Auto and DAB+ - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
.0" WVGA touchscreen with bright, high-contrast images, vivid colors and wide viewing angles.DESCRIPTION
DMX8021DABS NEW
Digital Media AV Receiver with 7.0" WVGA Display, Enhanced Wireless Smartphone Connections, Bluetooth & Digital Radio DAB+.
By connecting your smartphone and DMX8021DABS wirelessly, your driving time will be more fun and convenient: Safe, Smart and Comprehensive Control with Apple CarPlay™ & Android Auto™ and the True Mirroring allows you to display and control your Android smartphone on the KENWOOD receiver screen. Furthermore enjoy the Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment and to enable a smarter driving experience, this receiver features 3 camera inputs which allow for the utmost in convenience, flexibility and safety.
Key Features
| 7.0 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles. |
| Wi-Fi built-in for convenient wireless connection with a compatible smartphone. |
| DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound |
| Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone). |
| Supports CarPlay wirelessly and with a USB cable. |
| Supports Android Auto wirelessly and with a USB cable |
| Supports Wireless Mirroring for Android including 2-way touch control capability. |
| 3 Dedicated camera inputs to connect optional cameras. |
| 3 RCA high power (5.0V) preouts (front/rear/sub) |
| Compatible with Hi-Res Audio which provides greater sound clarity and detail than standard compressed digital audio formats. |
| Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements. |
| Rear High Speed USB type-C port. Up to 3.0A Max Charge |
| Short body (85mm) for easy installation. |
TECHNICAL DATA
SPECIFICATIONS
General Features
| DIN Size | 2 DIN |
| Security Code Function (user set) | Yes, Set by user |
| Smooth GUI | Yes |
| Selectable GUI Background Wallpaper | Yes |
| Key Illumination | Variable color |
| Installer Memory | Yes |
| Backup Memory | Yes |
| Attenuator with Smooth Volume Return | Yes |
| Optional IR remote controller | Yes, (KCA-RCDV331) |
| Digital Clock (24H) | Yes |
| Built-in Bluetooth | Yes |
| DAB Tuner Built-in | Yes |
| Works with Apple CarPlay | Yes |
| Works Wireless with Apple CarPlay | Yes |
| Works with Android Auto | Yes |
| Works Wireless with Android Auto | Yes |
| Wireless Mirroring for Android | Yes |
| Firmware upgradeable | Yes |
| HDMI input | for video playback |
| Dashcam Link | Yes |
| GPS input | GPS & Glonass Antenna included |
Monitor Features
| Screen Type | 7.0" Wide VGA |
| Display Mode | 3 Mode (Full(default)/Auto/Normal) |
| Screen Adjustments | ► Noon & Night Memory. ► Brightness. ► Ink. ► Color. ► Contrast. ► Black Level. ► Backlight. |
| Dimmer function | Manual/Sync |
| Dimmer Level | Sync / On / Off |
| Visual Source Mode | Mirroring / CarPlay / Android Auto. |
| Touch Panel | Capacitive |
| Display Type | Glare |
| Display film | Anti-Fingerprint / Anti-Reflection / Anti-Glare) |
| LCD viewing angle control | "0" (Default) / "-1" / "-2" / "-3" |
| NTSC/PAL judge | Yes (Auto) |
Multimedia GUI Features
| Menu text | 22 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chinese (Traditional) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian |
| Software updates (SoC) | via USB |
| Graphics Type | Graphics |
| Spectrum Analyzer | Yes |
| Demonstration Mode | Yes |
| Top Menu Customize | Yes |
| Opening Screen Type | standard |
| Background Customize | Preset x6: ► Static x4. ► Color Customize x1. ► Sync Album Art x1. ► USER x2. |
| Wallpaper color change | Yes |
| Multi Widgets | Multi (up to 4), Clock, Weather & Photo Frame Widget |
| Picture-in-picture | Yes |
| Animation | Yes |
| Screen Capture | Yes |
| R-CAM interrupt | Yes |
| R-CAM Caution On Screen Display | Yes |
| R-CAM Parking Guide Lines | Yes |
| Front Camera Interruption | Yes |
| DashCam Control | Yes |
| Rapid charge indicator | Yes |
Network & Wifi features
| WiFi built-in | built-in |
| Frequency Range | Dual Band (2.4GHz / 5GHz) |
| IEEE standard | 802.11a/b/g/n/ac |
| Wifi connection for Apple CarPlay | Yes |
| Wifi connection for Android Auto | Yes |
| Wifi connection for Android Mirroring | Yes |
Tuner Features
| Station Select | Manual / Preset (List) |
| Tuner Type | Lithium |
| FM(RDS) + AM(MW/LW) Tuner | Yes |
| Tuner Presets (FM/AM) | 20 Presets (15FM / 5AM) |
| Preset memory w/o back-up power | Yes |
| Tuning mode | |
| Up/Down Seek/Scan | Yes |
| Automatic Memory Entry (AME) | Yes |
| FM Stereo / Mono Selector | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
CE DAB tuner features
| DAB+ tuner built-in | Yes |
| Digital Radio Certification Mark | Yes |
| Intelligent search | Yes, (Service, Ensemble & Component) |
| Ensemble seek | Yes |
| Tuning mode / Seek mode | Auto1/Auto2/Manual |
| Service preset | 15 channels * 1 bank presets, |
| Service list by alphabet order | Yes |
| Preset list | Yes |
| Alphabet Search | Yes |
| Related services | Yes |
| Traffic Information | Yes |
| DAB priority | Yes |
| DAB-DAB/DAB-FM auto switch | Yes |
| Seamless DAB-FM blending | Yes |
| DLS (Dynamic Label) | Yes |
| PTY (Programme Type) search | Yes |
| PTY (Programme Type) watch | Yes |
| Announcement Switching (ASW) Select | Yes |
| TMC (Traffic Message Channel) support | Yes |
| DMB Audio (Digital multimedia broadcasting) | Yes |
| Soft linking | Yes |
| Antenna power supply on/off switch | Yes |
Bluetooth General Features
| Module | Murata |
| Hands Free Profile (HPF) | V1.7 |
| Hands Free Profile with High Sound Quality | HFP V1.7 |
| 2 Phones Switchable Hands Free | Yes |
| 2 phones full time connection | Yes |
| Audio Streaming (A2DP) | Yes, (SBC/AAC) |
| High Quality Audio Streaming | SBC/AAC |
| Max no. of reg. units for A2DP | 5 units |
| Serial Port Profile (SPP) | Yes |
| Simple Secure Pairing (SSP) | Yes |
| Phonebook Access Profile (PBAP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | Yes, V1.6 |
| Multi Profile Support | Yes |
| iPhone & Android automatic pairing via USB | Yes |
| KENWOOD Remote App Ready | |
| KENWOOD Music Mix Support | Yes |
| Catchphone / Call Waiting | Yes |
| Private mode | Yes |
| Alphabet Search (Phonebook) | Yes |
| Noise Canceller | Yes |
| Echo Canceller | Yes |
| Phone device status display | Yes |
| Audio device status display | Yes |
| Signal strength display | Yes |
| Remaining battery display | Yes |
| High-quality noise canceling microphone | Included (rear wired) |
Playable Audio File
| AAC (*.m4a) files are playable | USB |
| AAC (*.aac) files are playable | USB |
| MP3 files are playable | USB |
| WMA (.wma) files are playable | USB |
| WAV (.wav) files are playable | USB |
| FLAC files are playable | USB |
CE_Playable Video file
| MPEG1/2 files are playable | USB |
| MPEG4 files are playable | USB |
| WMV files are playable | USB |
| H.264 files are playable | USB |
| mkv files are playable | USB |
| JPEG files are playable | USB |
| BMP files are playable | USB |
| PNG files are playable | USB |
USB Features
| USB terminal | Yes, Super Speed USB-C type. |
| USB Type | 3.0 Super speed |
| USB extension cable supplied | yes, 1m |
| Drive Change | Yes |
| Works with Android Auto | Yes |
| USB 1 wire Mirroring for Android | Yes |
| Tag Information Display | Yes |
| Album Art Display | Yes |
| Repeat/Scan/Random search | Yes |
| Repeat Play | Folder/File/All |
| Random play | Folder |
| Category search | Yes |
| Link Search | Yes |
| Resume play | Yes |
| Time code display | Yes |
iPod Features
| Made for iPod & iPhone * | Yes |
| USB Direct Control (Audio, 1 wire, Lightning-connector) | with optional cable KCA-iP103 |
| Album art support | Yes |
| Music library search | Yes |
| Alphabet search | Yes |
| Skip search | Yes |
| iPod Accessory Protocol (iAP) | iAP2 |
| iTunes Radio App | yes iAP2 |
| Works with Apple CarPlay | Wireless or Wired via USB |
| Reverse browsing | Yes |
| Voice control using Siri. | Yes |
| Bluetooth Auto Pairing for iPhone | Yes |
| Battery charge + power control | Yes |
| * Always update to the latest Apple firmware |
Audio features
| Max. Output Power (MOSFET Power IC) | 4x50W |
| Pre-out | 3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level | 5V |
| Volume Offset | Yes |
| 2 Zone Control | Yes |
| Balance/Fader Control | Yes, (via DSP) |
| Loudness Control | Yes, By DSP |
| Bass Boost | Yes, (Via DSP) |
| Att.(-20dB) with smooth Volume Return | Yes |
| Equalizer | Yes, 13 Band Graphic EQ |
| Digital Sound Processor (DSP) | Yes |
| Digital Time Alignment (DTA) | Yes |
| Beep On/Off | Yes |
Multimedia DSP Features
| Car type control | Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van |
| Speaker Size & Location Control | Yes |
| X'over network | 3-Way / 2-way X'over / HPF / LPF |
| Listening position control / Time Alignment | Yes |
| Equalizer type | Graphical |
| Equalizer | 13-Bands |
| Equalizer presets / User set | 8 presets / 4 User sets |
| Zone Control | 1 Zone / 2 Zone |
| Balance & Fader Control | Yes |
| Source Volume Offset | source independent |
| Sound Effects | ► Bass Boost ► Supreme ► Loudness ► Realizer ► Drive Equalizer ► Stage EQ ► Space Enhancer |
| Audio Setup Memory | Yes |
Connectivity
| iPod direct control | Yes |
| USB interface | USB-C (Detachable, Rear side) |
| OEM Wired Remote Control ready | Yes, Optional interface needed |
| OEM Display Control ready | Yes, Optional interface (KIM) needed |
| Programmable OEM Steeringwheel Remote Function | Yes |
| Display input/output control | Yes |
| DC-Cord | Mitsumi to ISO |
| Parking sensor (handbrake) wire | Yes |
| Power Control (P.CON) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
| Dimmer control wire | Yes |
| Speedpulse input wire | Yes |
| AV Input | 1x mini-jack (selectable: AV-in / Camera-in) |
| AV Output | Video: RCA / Audio: mini-jack |
| AV-Out source available | AV-in / Off |
| Reverse sensor wire | Yes |
| Rear View Camera Input | Dedicated RCA Video-in |
| Front View Camera Input | selectable: Front / Dash-Camera-in |
| Camera inputs | up to 3 cameras |
| Multi View Camera Control Line | Yes |
| Dashcam Link | Yes |
| Amplifier pre-out | 3 x RCA: Front/Rear/Subwoofer |
| 3rd Party TV Control (Mini-Jack) | Yes |
| HDMI input | Type A |
| GPS Aerial Input | HRS GT5-1S connector |
| FM Antenna Input | JASO connector |
| DAB Aerial input | SMB connector |
| External microphone input | 3.5mm mini-jack |
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.8μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity | 1.6μV/75ohm (S/N 15.2dBf) |
| FM Frequency Response | 30Hz~15kHz (±3dB) |
| FM Signal to noise ratio (Mono) | 65dB |
| FM Selectivity(DIN) | over 80dB (±400kHz) |
| FM Stereo Separation (1kHz) | 45dB |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 45μV |
| LW range: 153kHz - 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 25μV |
DAB Tuner specifications
| Band III - Frequency range | 174.928MHz - 239.2MHz |
| Fashion | I, II, III, IV |
| Sensitivity | - 100dBm |
| Signal-to-noise ratio | 90dB |
| Audio format | MPEG1 Audio Layer II, MPEG4 HE-AAC v2 |
| DAB Aerial Connector Type | SMB |
| Output Voltage | 14.4V (11V to 16V allowable) |
| Maximum Current | < 100mA |
Bluetooth specifications
| Technology | Bluetooth V5.0 |
| Frequency | 2.402 - 2.48 GHz |
| Output power | +4dBm(max), power class 2 |
| Maximum range | Line of sight approx. 10 meters |
| Hands-free profile (HFP) | Yes, V1.7 |
| Serial port profile (SPP) | Yes |
| Advanced audio distribution profile (A2DP) | Yes |
| Audio Codec | SBC/AAC |
| Audio/Video remote control profile (AVRCP) | Yes, V1.6 |
| Phonebook access profile (PBAP) | Yes |
| Multi Profile Support | Yes |
USB Specifications
| USB Version compatibility | USB-C 3.0 SuperSpeed |
| File System | FAT 16/32 / exFAT / NTFS |
| Maximum Supply current | 1500mA |
| D/A Converter | 24/32 bits |
| Video Decoder | MPEG1/MPEG2/MPEG4/WMV/H.264/MKV |
| Audio Decoder | MP3/WMA/AAC/WAV/FLAC/Vorbis |
| S/N Ratio | 98.5 dB (1kHz) |
| Dynamic Range | 89dB |
Audio Specifications
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22W x 4 |
| Output frequency band | 20Hz ~ 88kHz |
| Preout Level | 5000mV / 1kOhm, |
| Preout Impedance | ≤ 300Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
DSP Specifications
| Frequency band | 62.5/100/160/ ~ /6.3k/10k/16k Hz |
| Equalizer Gain | –9db ~ +9db |
| Time Alignment | 0 — 610cm (1cm step) |
| Speaker type - Center | ► NO ► 40mm X 70mm ► 5cm ► 10cm ► 13cm ► 16cm OVER |
| Speaker type - Front | ► OEM ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10" |
| Speaker type - Rear | ► NO ► OEM ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10" |
| Speaker type - Subwoofer | ► NO ► 16cm ► 20cm ► 25cm ► 30cm ► 30cm over |
| 2-Way X'over / Front/Rear (HPF) / Frequency | Through, 30/40/50/ ~ /220/250 Hz |
| 2-Way X'over / Front/Rear (HPF) / Slope | -6/-12/-18/-24 (dB/oct) |
| 2-Way X'over / Subwoofer (LPF) / Frequency | 30/40/50/ ~ /220/250 Hz, Through |
| 2-Way X'over / Subwoofer (LPF) / Slope | -6/-12/-18/-24 (dB/oct) |
| 3-Way X'Over / High Pass Filter Frequency | Through, 30/40/50/ ~ /220/250 Hz |
| 3-Way X'Over / High Pass Filter Slope | -12/-18/-24 (dB) |
| 3-Way X'Over / Low Pass Filter Frequency | 30/40/50/ ~ /220/250 Hz, Through |
| 3-Way X'Over / Low Pass Filter Slope | -12/-18/-24 (dB/Oct) |
| Subwoofer Level | -50dB ~ 10dB |
| Car type control | ► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUVs ► Passenger Van |
Video Specifications
| Color System of External Video Input | NTSC/PAL |
| External video input level (mini-jack) | 1 Vpp / 75 Ohm |
| External audio max. input level (mini-jack) | 2 Vpp / 25 kOhm |
| Video input level (RCA) | 1 Vpp, 75 Ohms |
| Video Output Level (RCA) | 1 Vpp / 75 Ohm |
| Audio Output Level (mini-jack) | 0.9 Vpp / 10 kOhm |
| HDMI - VGA input resolution | 640x480p @59.94Hz/60Hz |
| HDMI - 480p input resolution | 720x480p @59.94Hz/60Hz |
| HDMI - 720p input resolution | 1280x720p @59.94Hz/60Hz |
| HDMI - input Audio type | 16/20/24-bit Linear PCM |
Monitor Specifications
| Screen size (Diagonal) | 6.95 Inches Wide |
| Screen Size (WxH) | 156.6 x 81.6mm |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 1152000pixels (800(H) x 480(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Backlighting | LED (Light Emitting Diode) |
General Specifications
| Operating voltage | 14.4V (11~16V Allowable) |
| Dimensions (WxHxD) | 178 x 100 x 85mm |
| Weight | 1500 grams |
Accessories
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Mitsumi to ISO) | 20 cm |
| USB extension cable | 1 piece, 1 meter |
| GPS antenna | with 3.5 m cable |
| Hands-free Microphone | with 3 m cable |
| Multi-Language Instruction Manual Included | Quick-Guide + Instruction manual |
| Manuals Downloadable | Yes |
DOCUMENTS
INSTRUCTIONS
Kenwood DMX-8021 DABS, 7.0" multimedia with wireless Apple Car...
Regular price
€749.00 EUR
Unit price
/
Unattainable
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
INFORMACIJA
By wirelessly connecting your smartphone to the DMX8021DABS, driving will be more fun and convenient: Safe, smart and comprehensive control with Apple CarPlay™ and Android Auto™ makes this multimedia a great choice for a reasonable price!
- 7.0" WVGA touchscreen with bright, high-contrast images, vivid colors and wide viewing angles.
- Built-in Wi-Fi for convenient wireless connection to a compatible smartphone.
- DAB/DAB+ radio tuner for noise-free and interference-free reception and crystal-clear digital stereo sound
- Wireless Bluetooth(R) technology for hands-free calling and music streaming. (Available features depend on mobile phone).
- Supports CarPlay wirelessly and via USB cable.
- Supports Android Auto wirelessly and with a USB cable.
DESCRIPTION
DMX8021DABS NEW
Digital Media AV Receiver with 7.0" WVGA Display, Enhanced Wireless Smartphone Connections, Bluetooth & Digital Radio DAB+.
By connecting your smartphone and DMX8021DABS wirelessly, your driving time will be more fun and convenient: Safe, Smart and Comprehensive Control with Apple CarPlay™ & Android Auto™ and the True Mirroring allows you to display and control your Android smartphone on the KENWOOD receiver screen. Furthermore enjoy the Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment and to enable a smarter driving experience, this receiver features 3 camera inputs which allow for the utmost in convenience, flexibility and safety.Key Features
| 7.0 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles. |
| Wi-Fi built-in for convenient wireless connection with a compatible smartphone. |
| DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound |
| Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone). |
| Supports CarPlay wirelessly and with a USB cable. |
| Supports Android Auto wirelessly and with a USB cable |
| Supports Wireless Mirroring for Android including 2-way touch control capability. |
| 3 Dedicated camera inputs to connect optional cameras. |
| 3 RCA high power (5.0V) preouts (front/rear/sub) |
| Compatible with Hi-Res Audio which provides greater sound clarity and detail than standard compressed digital audio formats. |
| Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements. |
| Rear High Speed USB type-C port. Up to 3.0A Max Charge |
| Short body (85mm) for easy installation. |
TECHNICAL DATA
SPECIFICATIONS
General Features
| DIN Size | 2 DIN |
| Security Code Function (user set) | Yes, Set by user |
| Smooth GUI | Yes |
| Selectable GUI Background Wallpaper | Yes |
| Key Illumination | Variable color |
| Installer Memory | Yes |
| Backup Memory | Yes |
| Attenuator with Smooth Volume Return | Yes |
| Optional IR remote controller | Yes, (KCA-RCDV331) |
| Digital Clock (24H) | Yes |
| Built-in Bluetooth | Yes |
| DAB Tuner Built-in | Yes |
| Works with Apple CarPlay | Yes |
| Works Wireless with Apple CarPlay | Yes |
| Works with Android Auto | Yes |
| Works Wireless with Android Auto | Yes |
| Wireless Mirroring for Android | Yes |
| Firmware upgradeable | Yes |
| HDMI input | for video playback |
| Dashcam Link | Yes |
| GPS input | GPS & Glonass Antenna included |
Monitor Features
| Screen Type | 7.0" Wide VGA |
| Display Mode | 3 Mode (Full(default)/Auto/Normal) |
| Screen Adjustments | ► Noon & Night Memory. ► Brightness. ► Ink. ► Color. ► Contrast. ► Black Level. ► Backlight. |
| Dimmer function | Manual/Sync |
| Dimmer Level | Sync / On / Off |
| Visual Source Mode | Mirroring / CarPlay / Android Auto. |
| Touch Panel | Capacitive |
| Display Type | Glare |
| Display film | Anti-Fingerprint / Anti-Reflection / Anti-Glare) |
| LCD viewing angle control | "0" (Default) / "-1" / "-2" / "-3" |
| NTSC/PAL judge | Yes (Auto) |
Multimedia GUI Features
| Menu text | 22 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chinese (Traditional) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian |
| Software updates (SoC) | via USB |
| Graphics Type | Graphics |
| Spectrum Analyzer | Yes |
| Demonstration Mode | Yes |
| Top Menu Customize | Yes |
| Opening Screen Type | standard |
| Background Customize | Preset x6: ► Static x4. ► Color Customize x1. ► Sync Album Art x1. ► USER x2. |
| Wallpaper color change | Yes |
| Multi Widgets | Multi (up to 4), Clock, Weather & Photo Frame Widget |
| Picture-in-picture | Yes |
| Animation | Yes |
| Screen Capture | Yes |
| R-CAM interrupt | Yes |
| R-CAM Caution On Screen Display | Yes |
| R-CAM Parking Guide Lines | Yes |
| Front Camera Interruption | Yes |
| DashCam Control | Yes |
| Rapid charge indicator | Yes |
Network & Wifi features
| WiFi built-in | built-in |
| Frequency Range | Dual Band (2.4GHz / 5GHz) |
| IEEE standard | 802.11a/b/g/n/ac |
| Wifi connection for Apple CarPlay | Yes |
| Wifi connection for Android Auto | Yes |
| Wifi connection for Android Mirroring | Yes |
Tuner Features
| Station Select | Manual / Preset (List) |
| Tuner Type | Lithium |
| FM(RDS) + AM(MW/LW) Tuner | Yes |
| Tuner Presets (FM/AM) | 20 Presets (15FM / 5AM) |
| Preset memory w/o back-up power | Yes |
| Tuning mode | |
| Up/Down Seek/Scan | Yes |
| Automatic Memory Entry (AME) | Yes |
| FM Stereo / Mono Selector | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
CE DAB tuner features
| DAB+ tuner built-in | Yes |
| Digital Radio Certification Mark | Yes |
| Intelligent search | Yes, (Service, Ensemble & Component) |
| Ensemble seek | Yes |
| Tuning mode / Seek mode | Auto1/Auto2/Manual |
| Service preset | 15 channels * 1 bank presets, |
| Service list by alphabet order | Yes |
| Preset list | Yes |
| Alphabet Search | Yes |
| Related services | Yes |
| Traffic Information | Yes |
| DAB priority | Yes |
| DAB-DAB/DAB-FM auto switch | Yes |
| Seamless DAB-FM blending | Yes |
| DLS (Dynamic Label) | Yes |
| PTY (Programme Type) search | Yes |
| PTY (Programme Type) watch | Yes |
| Announcement Switching (ASW) Select | Yes |
| TMC (Traffic Message Channel) support | Yes |
| DMB Audio (Digital multimedia broadcasting) | Yes |
| Soft linking | Yes |
| Antenna power supply on/off switch | Yes |
Bluetooth General Features
| Module | Murata |
| Hands Free Profile (HPF) | V1.7 |
| Hands Free Profile with High Sound Quality | HFP V1.7 |
| 2 Phones Switchable Hands Free | Yes |
| 2 phones full time connection | Yes |
| Audio Streaming (A2DP) | Yes, (SBC/AAC) |
| High Quality Audio Streaming | SBC/AAC |
| Max no. of reg. units for A2DP | 5 units |
| Serial Port Profile (SPP) | Yes |
| Simple Secure Pairing (SSP) | Yes |
| Phonebook Access Profile (PBAP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | Yes, V1.6 |
| Multi Profile Support | Yes |
| iPhone & Android automatic pairing via USB | Yes |
| KENWOOD Remote App Ready | |
| KENWOOD Music Mix Support | Yes |
| Catchphone / Call Waiting | Yes |
| Private mode | Yes |
| Alphabet Search (Phonebook) | Yes |
| Noise Canceller | Yes |
| Echo Canceller | Yes |
| Phone device status display | Yes |
| Audio device status display | Yes |
| Signal strength display | Yes |
| Remaining battery display | Yes |
| High-quality noise canceling microphone | Included (rear wired) |
Playable Audio File
| AAC (*.m4a) files are playable | USB |
| AAC (*.aac) files are playable | USB |
| MP3 files are playable | USB |
| WMA (.wma) files are playable | USB |
| WAV (.wav) files are playable | USB |
| FLAC files are playable | USB |
CE_Playable Video file
| MPEG1/2 files are playable | USB |
| MPEG4 files are playable | USB |
| WMV files are playable | USB |
| H.264 files are playable | USB |
| mkv files are playable | USB |
| JPEG files are playable | USB |
| BMP files are playable | USB |
| PNG files are playable | USB |
USB Features
| USB terminal | Yes, Super Speed USB-C type. |
| USB Type | 3.0 Super speed |
| USB extension cable supplied | yes, 1m |
| Drive Change | Yes |
| Works with Android Auto | Yes |
| USB 1 wire Mirroring for Android | Yes |
| Tag Information Display | Yes |
| Album Art Display | Yes |
| Repeat/Scan/Random search | Yes |
| Repeat Play | Folder/File/All |
| Random play | Folder |
| Category search | Yes |
| Link Search | Yes |
| Resume play | Yes |
| Time code display | Yes |
iPod Features
| Made for iPod & iPhone * | Yes |
| USB Direct Control (Audio, 1 wire, Lightning-connector) | with optional cable KCA-iP103 |
| Album art support | Yes |
| Music library search | Yes |
| Alphabet search | Yes |
| Skip search | Yes |
| iPod Accessory Protocol (iAP) | iAP2 |
| iTunes Radio App | yes iAP2 |
| Works with Apple CarPlay | Wireless or Wired via USB |
| Reverse browsing | Yes |
| Voice control using Siri. | Yes |
| Bluetooth Auto Pairing for iPhone | Yes |
| Battery charge + power control | Yes |
| * Always update to the latest Apple firmware |
Audio features
| Max. Output Power (MOSFET Power IC) | 4x50W |
| Pre-out | 3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level | 5V |
| Volume Offset | Yes |
| 2 Zone Control | Yes |
| Balance/Fader Control | Yes, (via DSP) |
| Loudness Control | Yes, By DSP |
| Bass Boost | Yes, (Via DSP) |
| Att.(-20dB) with smooth Volume Return | Yes |
| Equalizer | Yes, 13 Band Graphic EQ |
| Digital Sound Processor (DSP) | Yes |
| Digital Time Alignment (DTA) | Yes |
| Beep On/Off | Yes |
Multimedia DSP Features
| Car type control | Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van |
| Speaker Size & Location Control | Yes |
| X'over network | 3-Way / 2-way X'over / HPF / LPF |
| Listening position control / Time Alignment | Yes |
| Equalizer type | Graphical |
| Equalizer | 13-Bands |
| Equalizer presets / User set | 8 presets / 4 User sets |
| Zone Control | 1 Zone / 2 Zone |
| Balance & Fader Control | Yes |
| Source Volume Offset | source independent |
| Sound Effects | ► Bass Boost ► Supreme ► Loudness ► Realizer ► Drive Equalizer ► Stage EQ ► Space Enhancer |
| Audio Setup Memory | Yes |
Connectivity
| iPod direct control | Yes |
| USB interface | USB-C (Detachable, Rear side) |
| OEM Wired Remote Control ready | Yes, Optional interface needed |
| OEM Display Control ready | Yes, Optional interface (KIM) needed |
| Programmable OEM Steeringwheel Remote Function | Yes |
| Display input/output control | Yes |
| DC-Cord | Mitsumi to ISO |
| Parking sensor (handbrake) wire | Yes |
| Power Control (P.CON) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
| Dimmer control wire | Yes |
| Speedpulse input wire | Yes |
| AV Input | 1x mini-jack (selectable: AV-in / Camera-in) |
| AV Output | Video: RCA / Audio: mini-jack |
| AV-Out source available | AV-in / Off |
| Reverse sensor wire | Yes |
| Rear View Camera Input | Dedicated RCA Video-in |
| Front View Camera Input | selectable: Front / Dash-Camera-in |
| Camera inputs | up to 3 cameras |
| Multi View Camera Control Line | Yes |
| Dashcam Link | Yes |
| Amplifier pre-out | 3 x RCA: Front/Rear/Subwoofer |
| 3rd Party TV Control (Mini-Jack) | Yes |
| HDMI input | Type A |
| GPS Aerial Input | HRS GT5-1S connector |
| FM Antenna Input | JASO connector |
| DAB Aerial input | SMB connector |
| External microphone input | 3.5mm mini-jack |
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.8μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity | 1.6μV/75ohm (S/N 15.2dBf) |
| FM Frequency Response | 30Hz~15kHz (±3dB) |
| FM Signal to noise ratio (Mono) | 65dB |
| FM Selectivity(DIN) | over 80dB (±400kHz) |
| FM Stereo Separation (1kHz) | 45dB |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 45μV |
| LW range: 153kHz - 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 25μV |
DAB Tuner specifications
| Band III - Frequency range | 174.928MHz - 239.2MHz |
| Fashion | I, II, III, IV |
| Sensitivity | - 100dBm |
| Signal-to-noise ratio | 90dB |
| Audio format | MPEG1 Audio Layer II, MPEG4 HE-AAC v2 |
| DAB Aerial Connector Type | SMB |
| Output Voltage | 14.4V (11V to 16V allowable) |
| Maximum Current | < 100mA |
Bluetooth specifications
| Technology | Bluetooth V5.0 |
| Frequency | 2.402 - 2.48 GHz |
| Output power | +4dBm(max), power class 2 |
| Maximum range | Line of sight approx. 10 meters |
| Hands-free profile (HFP) | Yes, V1.7 |
| Serial port profile (SPP) | Yes |
| Advanced audio distribution profile (A2DP) | Yes |
| Audio Codec | SBC/AAC |
| Audio/Video remote control profile (AVRCP) | Yes, V1.6 |
| Phonebook access profile (PBAP) | Yes |
| Multi Profile Support | Yes |
USB Specifications
| USB Version compatibility | USB-C 3.0 SuperSpeed |
| File System | FAT 16/32 / exFAT / NTFS |
| Maximum Supply current | 1500mA |
| D/A Converter | 24/32 bits |
| Video Decoder | MPEG1/MPEG2/MPEG4/WMV/H.264/MKV |
| Audio Decoder | MP3/WMA/AAC/WAV/FLAC/Vorbis |
| S/N Ratio | 98.5 dB (1kHz) |
| Dynamic Range | 89dB |
Audio Specifications
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22W x 4 |
| Output frequency band | 20Hz ~ 88kHz |
| Preout Level | 5000mV / 1kOhm, |
| Preout Impedance | ≤ 300Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
DSP Specifications
| Frequency band | 62.5/100/160/ ~ /6.3k/10k/16k Hz |
| Equalizer Gain | –9db ~ +9db |
| Time Alignment | 0 — 610cm (1cm step) |
| Speaker type - Center | ► NO ► 40mm X 70mm ► 5cm ► 10cm ► 13cm ► 16cm OVER |
| Speaker type - Front | ► OEM ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10" |
| Speaker type - Rear | ► NO ► OEM ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10" |
| Speaker type - Subwoofer | ► NO ► 16cm ► 20cm ► 25cm ► 30cm ► 30cm over |
| 2-Way X'over / Front/Rear (HPF) / Frequency | Through, 30/40/50/ ~ /220/250 Hz |
| 2-Way X'over / Front/Rear (HPF) / Slope | -6/-12/-18/-24 (dB/oct) |
| 2-Way X'over / Subwoofer (LPF) / Frequency | 30/40/50/ ~ /220/250 Hz, Through |
| 2-Way X'over / Subwoofer (LPF) / Slope | -6/-12/-18/-24 (dB/oct) |
| 3-Way X'Over / High Pass Filter Frequency | Through, 30/40/50/ ~ /220/250 Hz |
| 3-Way X'Over / High Pass Filter Slope | -12/-18/-24 (dB) |
| 3-Way X'Over / Low Pass Filter Frequency | 30/40/50/ ~ /220/250 Hz, Through |
| 3-Way X'Over / Low Pass Filter Slope | -12/-18/-24 (dB/Oct) |
| Subwoofer Level | -50dB ~ 10dB |
| Car type control | ► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUVs ► Passenger Van |
Video Specifications
| Color System of External Video Input | NTSC/PAL |
| External video input level (mini-jack) | 1 Vpp / 75 Ohm |
| External audio max. input level (mini-jack) | 2 Vpp / 25 kOhm |
| Video input level (RCA) | 1 Vpp, 75 Ohms |
| Video Output Level (RCA) | 1 Vpp / 75 Ohm |
| Audio Output Level (mini-jack) | 0.9 Vpp / 10 kOhm |
| HDMI - VGA input resolution | 640x480p @59.94Hz/60Hz |
| HDMI - 480p input resolution | 720x480p @59.94Hz/60Hz |
| HDMI - 720p input resolution | 1280x720p @59.94Hz/60Hz |
| HDMI - input Audio type | 16/20/24-bit Linear PCM |
Monitor Specifications
| Screen size (Diagonal) | 6.95 Inches Wide |
| Screen Size (WxH) | 156.6 x 81.6mm |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 1152000pixels (800(H) x 480(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Backlighting | LED (Light Emitting Diode) |
General Specifications
| Operating voltage | 14.4V (11~16V Allowable) |
| Dimensions (WxHxD) | 178 x 100 x 85mm |
| Weight | 1500 grams |
Accessories
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Mitsumi to ISO) | 20 cm |
| USB extension cable | 1 piece, 1 meter |
| GPS antenna | with 3.5 m cable |
| Hands-free Microphone | with 3 m cable |
| Multi-Language Instruction Manual Included | Quick-Guide + Instruction manual |
| Manuals Downloadable | Yes |
DOCUMENTS
