Kenwood DMX9724XDS, 10.1" multimedia with CarPlay, Android Auto and DAB+

INFORMACIJA

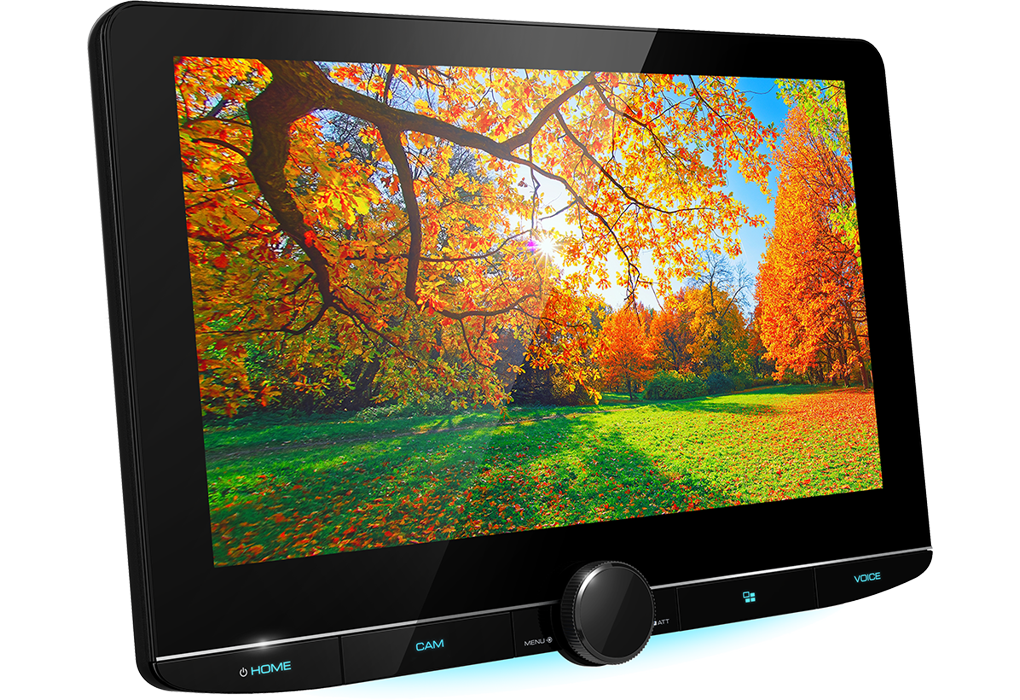

Kenwood DMX9724XDS is a high-end 10.1-inch HD car multimedia receiver designed for those who appreciate impeccable picture and sound. This modern device offers wireless Apple CarPlay and Android Auto, Wi-Fi and DAB+ digital radio, and its floating adjustable screen allows you to customize the installation in almost any car.

Display: 10.1″ floating LCD (adjustable height, depth and tilt)
Resolution: 1280 × 720 (HD)
Apple CarPlay: Wireless and Wired Mode
Android Auto: wireless and wired mode
DAB+ radio: integrated
Bluetooth: Music and call support (with LDAC)
Hi-Res Audio: support (up to 192 kHz / 24 bit)

DESCRIPTION

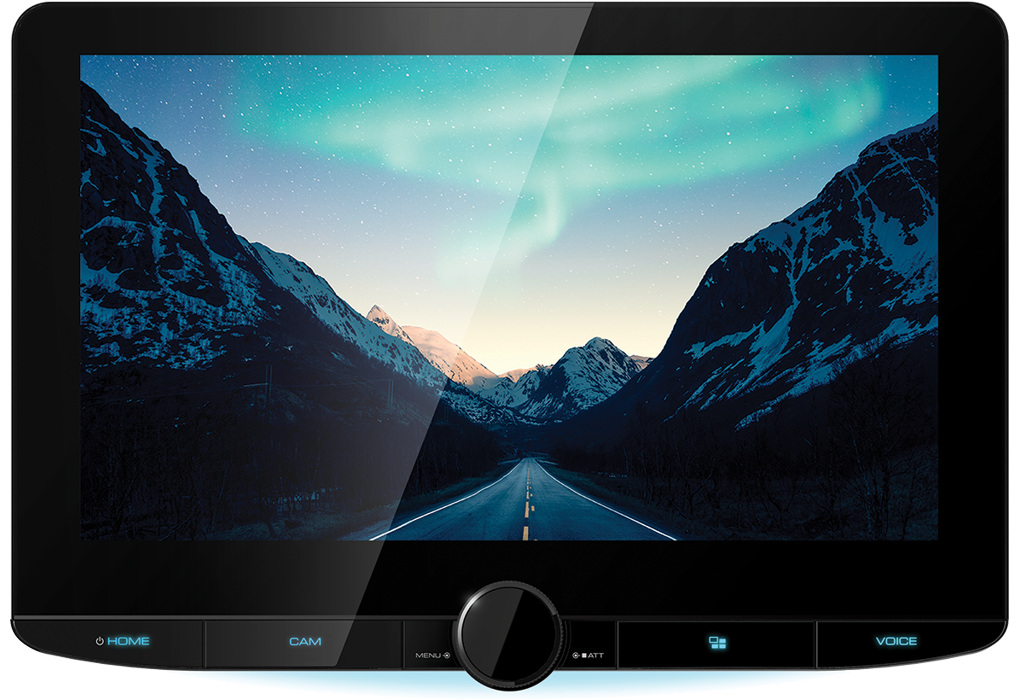

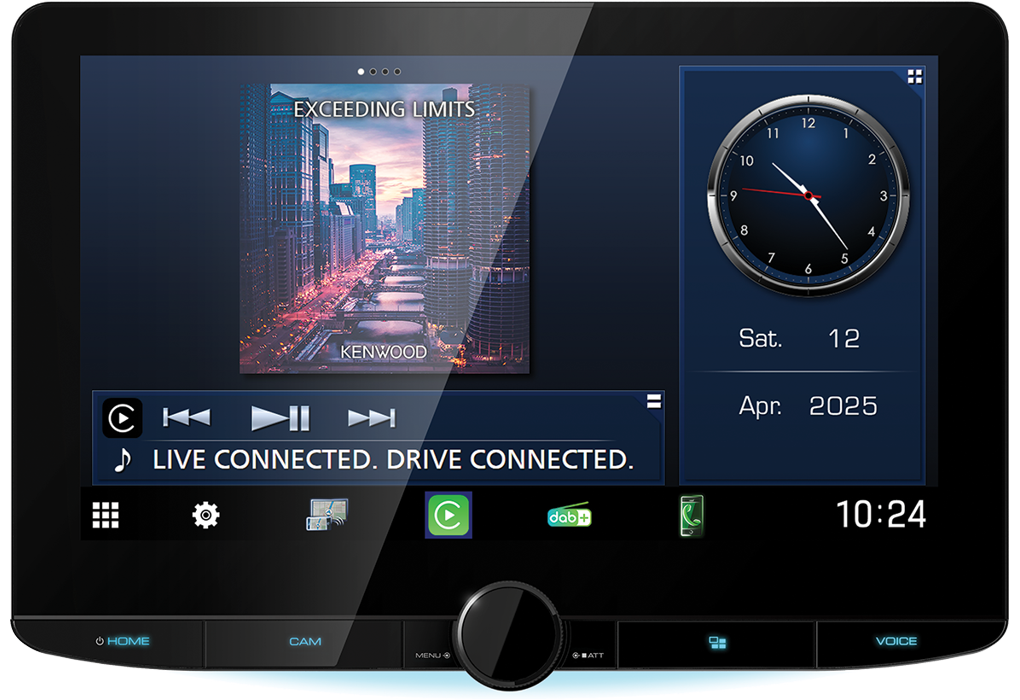

Large 10.1 inch HD display
This multimedia receiver adopts a 10.1 inch HD display providing room for more information that is large and easy to understand with just a glance.

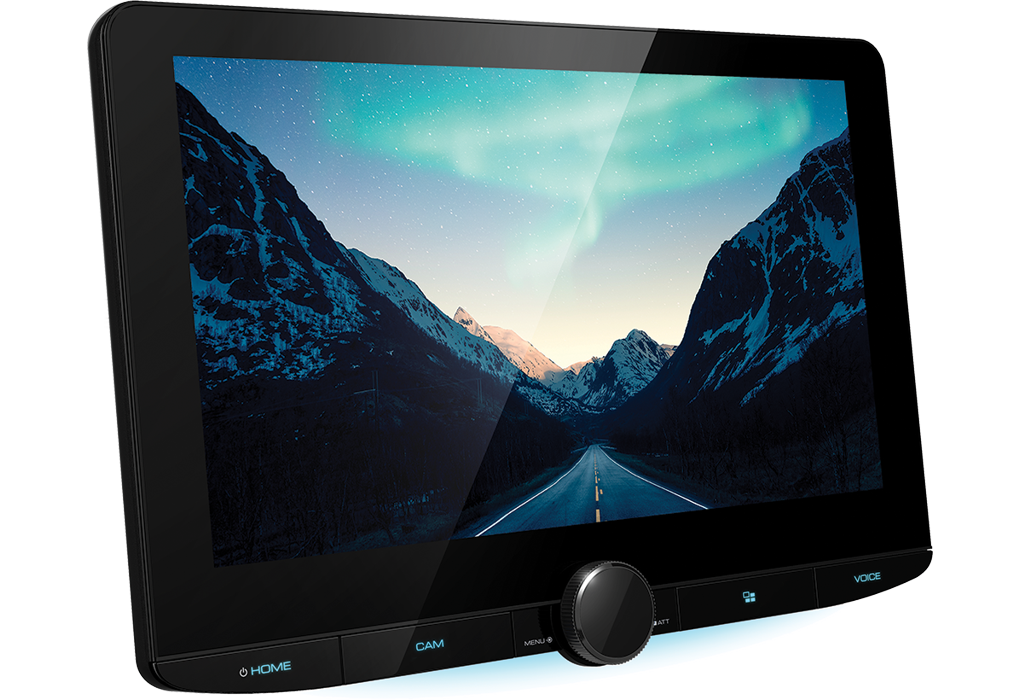

High Definition Display — Overwhelming Power of Expression —
The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

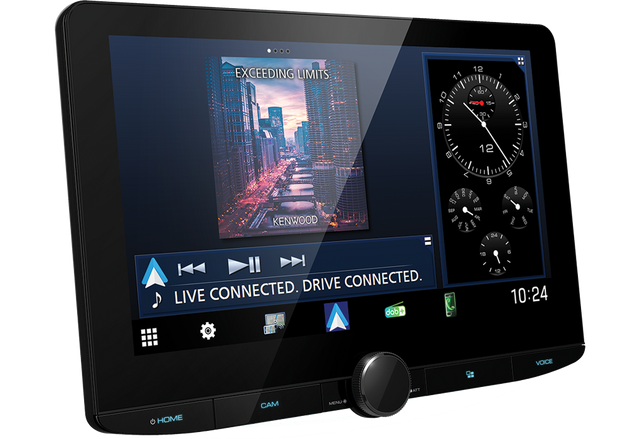

Floating Panel Mechanism with 4-Way Position Adjustment
Fully adjustable display allows you to change the depth, height, angle, and left / right for easy vehicle fitment.

Depth: 2steps (0 / 19mm) ■ Height: 4 Steps (0 / 15 / 30 / 45mm) ■ Left/Right: 3 Steps (-30 / 0/ 30mm) ■ Tilt: -10° ~ 45°.

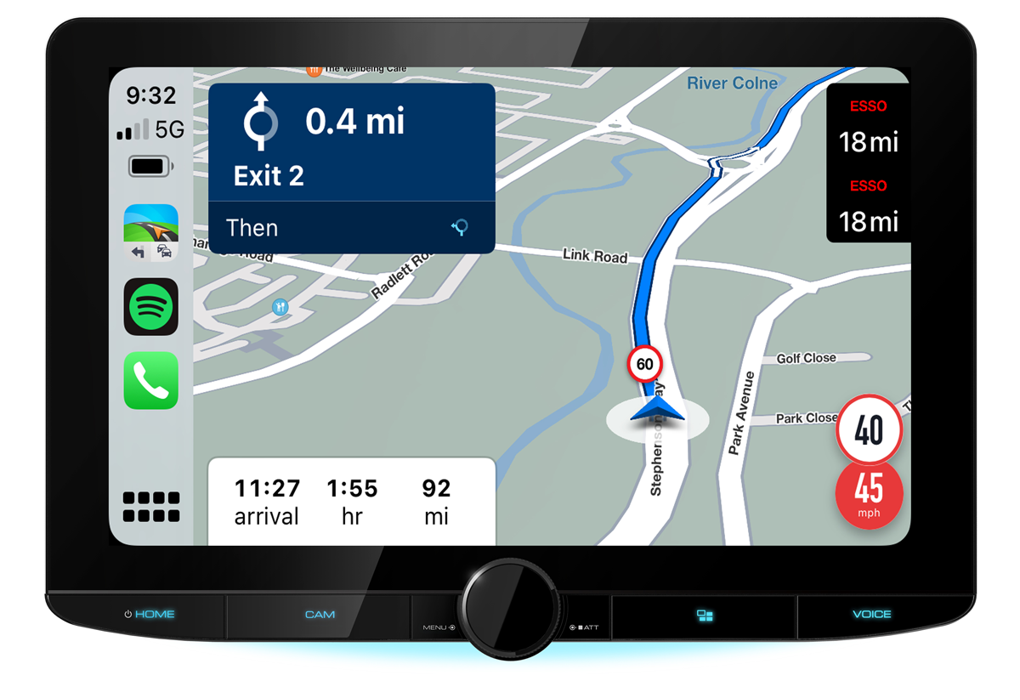

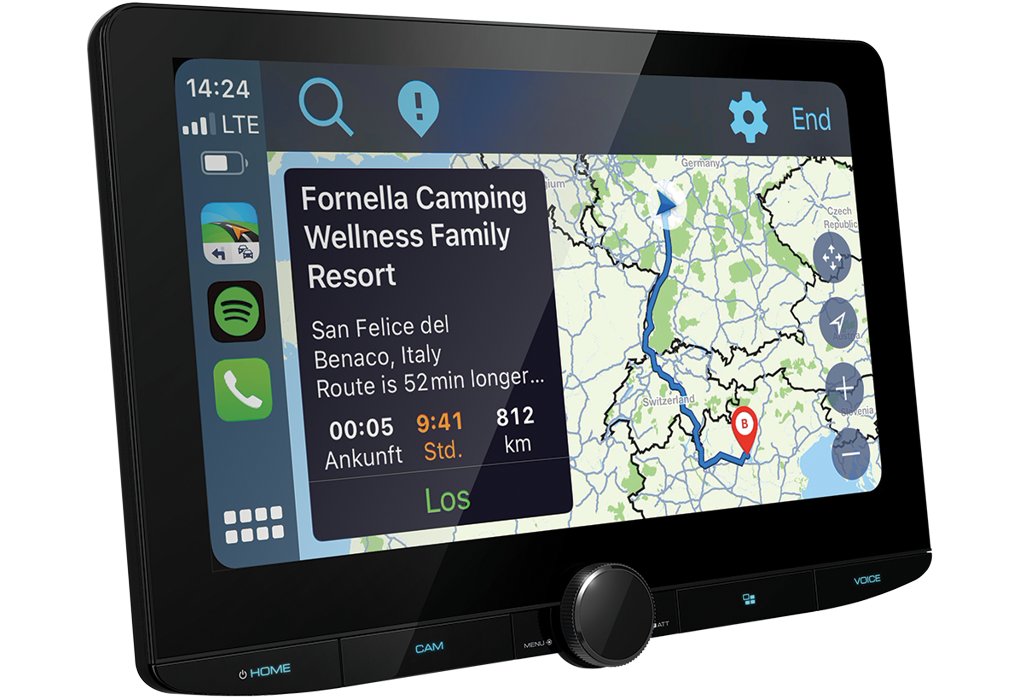

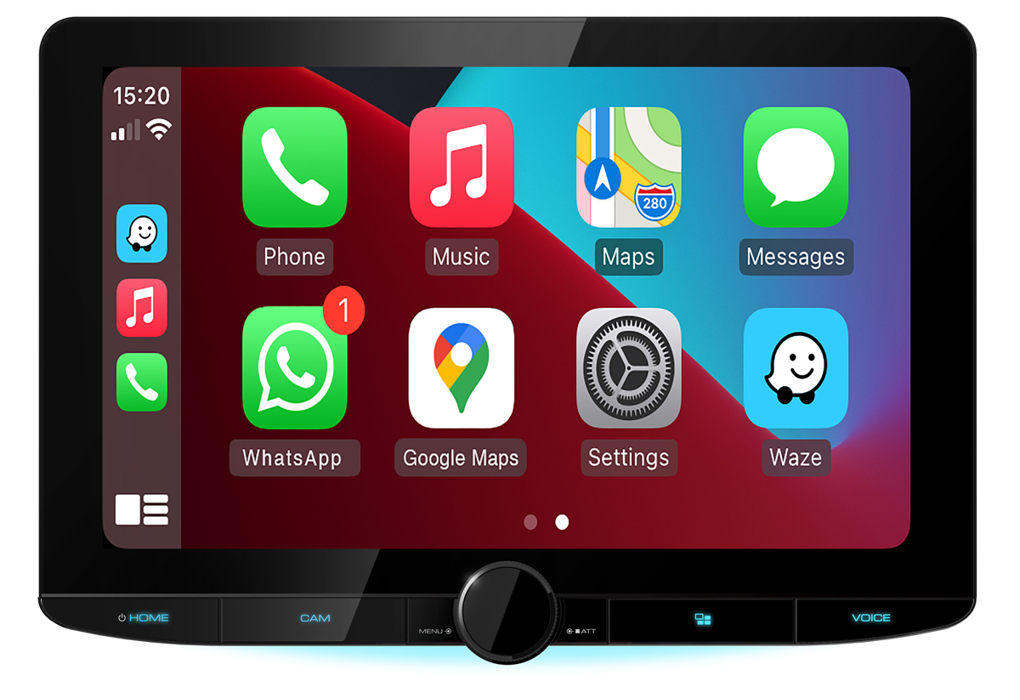

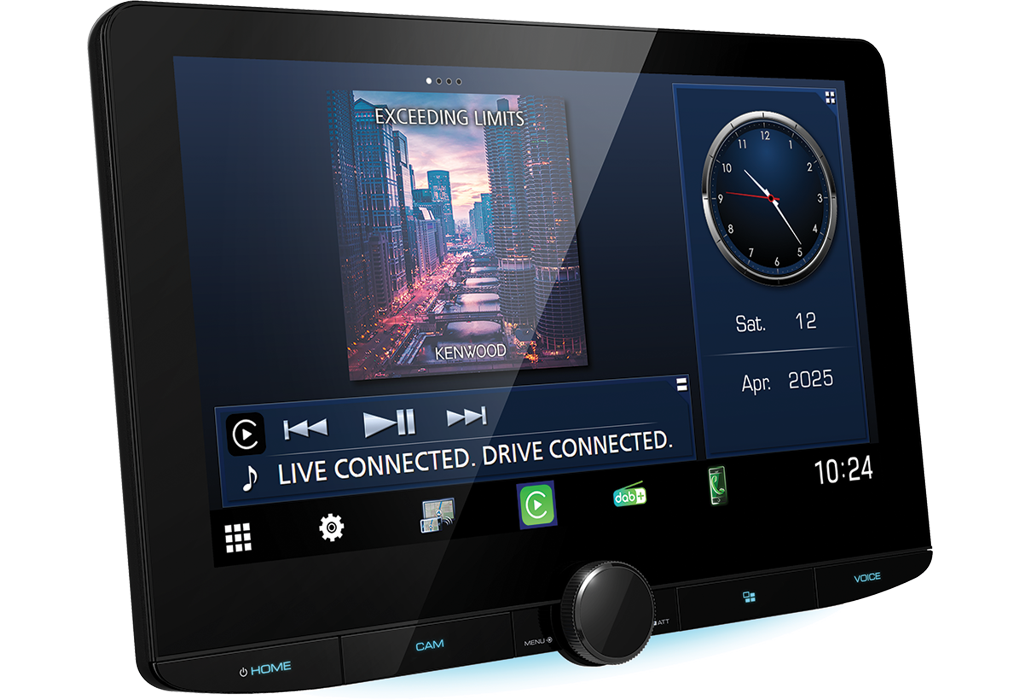

Apple CarPlay - Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

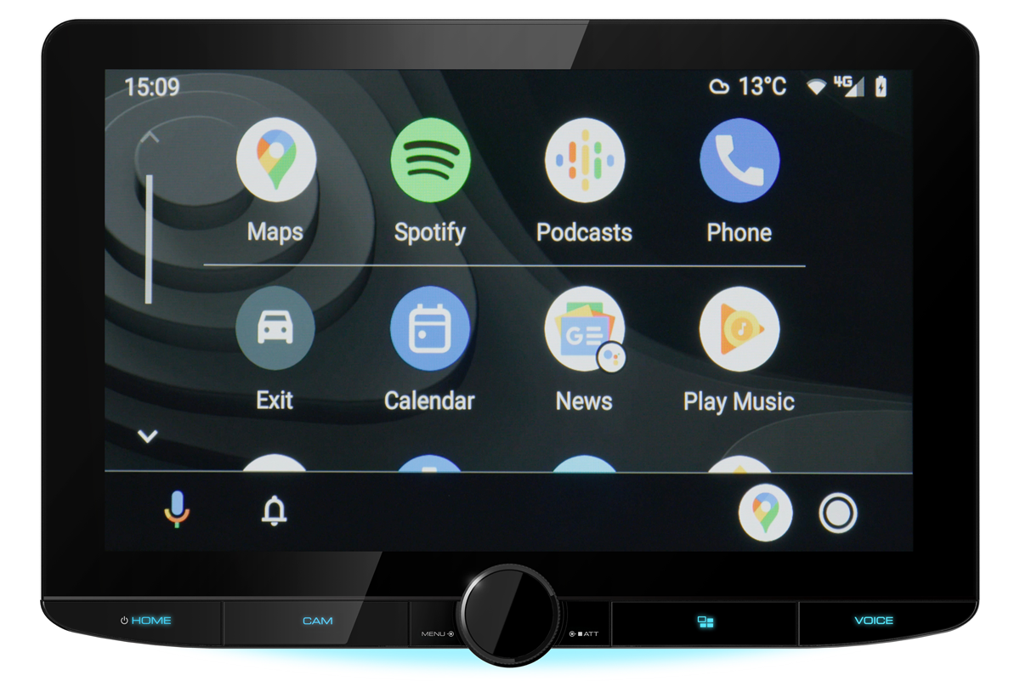

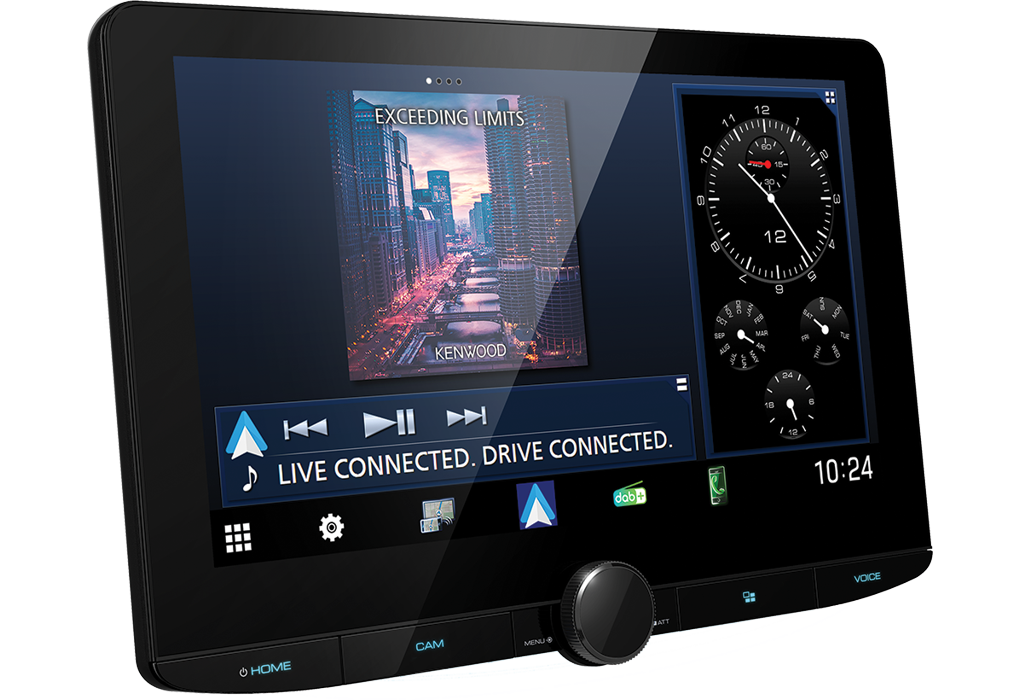

Android Auto™ - Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

Wireless Mirroring for Android
Wireless Mirroring is a groundbreaking solution for seamlessly displaying and controlling your Android smartphone* apps on the wide touchscreen of the KENWOOD receiver without any cable or network connection *.

Built-in DAB+ Digital radio Tuner
DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality, crystal clear reception with low noise and no audio distortion. Tuning is also easier: simply select your favorite radio station from the alphabetical station list.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).

HD Front / Rear Camera Input for Enhanced Safety and Visibility
Supports HD camera systems with 1280×720 pixel resolution to be connected to this receiver's front and/or rear camera input, displaying the camera's footage on the High Definition Screen.

Dash Camera Linkage with DRV-N520
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

Digital Optical Output
This unit features a TOSLINK digital optical audio output; using fiber optics to transmit high-quality digital audio signals without interference or signal losses to other audio components.

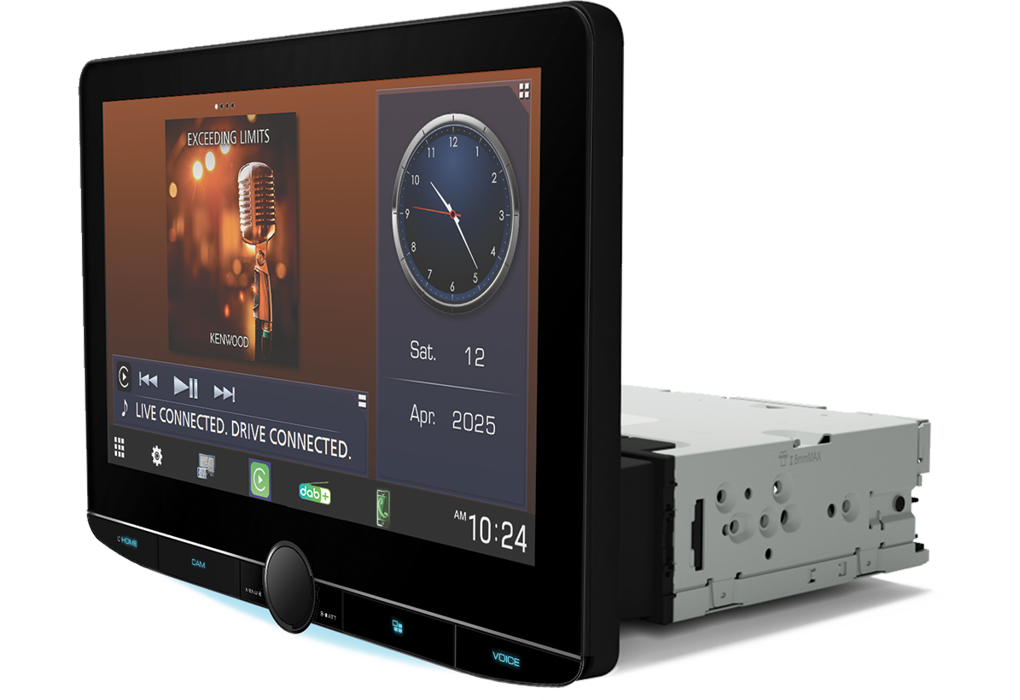

Modular System
The display and chassis are separated, allowing for flexible installation in a variety of vehicles.
If the cable connecting the Display and Chassis is not long enough, you can solve the problem by connecting a 1.5m extension cable (KCA-A150EX - sold separately).

Key Features

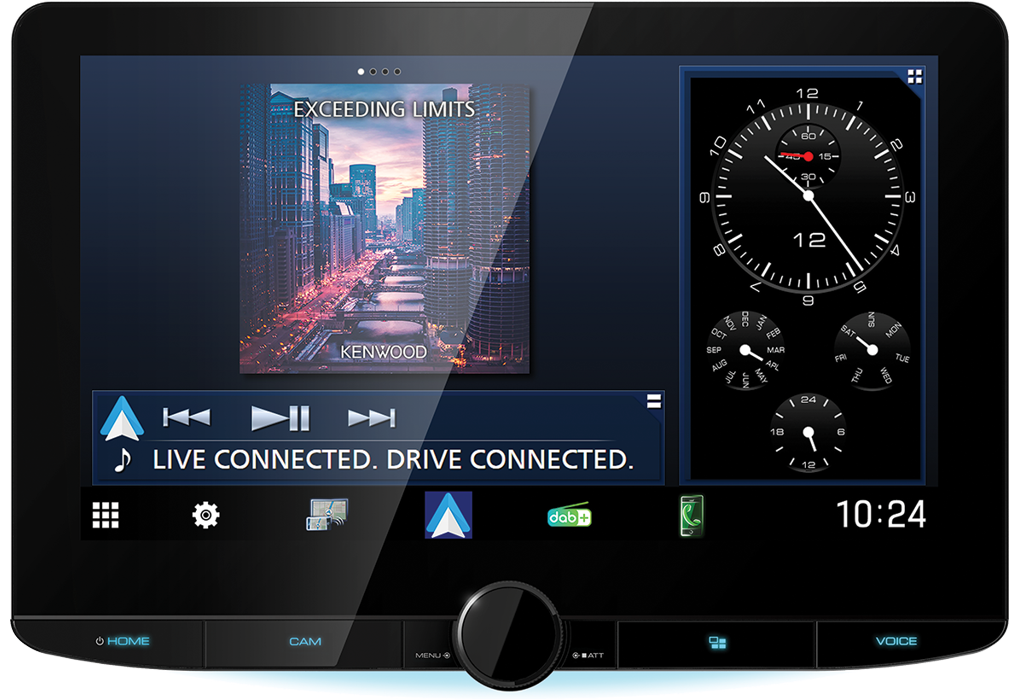

Large 10.1" High Definition Monitor with Capacitive Touch Panel
Floating Panel Mechanism with 4-way Position Adjustment
Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.
Apple CarPlay® & Android Auto™ - Split Screen Support
Wireless Mirroring for Android
Bluetooth Hands Free & Audio Streaming
DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,
HDMI Input & 4 Camera Inputs: HD Front/Rear Camera Ready + DashCam Link Ready
3 RCA high power (5V) pre-outs • Digital Optical Output
DSP for optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
High Quality Audio Parts Supporting High-Resolution Audio Reproduction
Monitor panel and chassis can be separated, allowing flexible installation in a variety of vehicles.

TECHNICAL DATA

General Features
DIN Size 1 DIN
Modular System Yes
Security Code Function (user set) Yes, (4 digits)
Selectable GUI Background Wallpaper Yes
Key Illumination Variable color
Installer Memory Yes
Backup Memory Yes
Attenuator with Smooth Volume Return Yes
Optional IR remote controller Yes, KNA-RCDV340
Digital Clock (24H) Yes
Built-in Bluetooth Yes
DAB Tuner Built-in Yes
Wifi built-in Yes
Made for iPhone Yes
Apple CarPlay - Connect Wirelessly or via USB Yes
Android Auto™ - Connect Wirelessly or via USB Yes
Wireless Mirroring for Android Yes
Firmware upgradeable Yes
HDMI input for video playback
Dashcam Link Yes
Monitor Features
Screen Type 10.1" HD
Display film Anti-Fingerprint / Anti-Reflection / Anti-Glare)
High Definition Display Yes
Touch Panel Capacitive
Display Mode 3 Mode (Full(default)/Auto/Normal)
Screen Adjustments ► Noon & Night Memory.
► Brightness.
► Ink.
► Color.
► Contrast.
► Black Level.
► Backlight.
Dimmer function Manual/Sync
Dimmer Level Sync / On / Off
Visual Source Mode Mirroring / CarPlay / Android Auto.
Mechanism type Floating panel with 4-way position adjustment
Panel Tilt Adjustment -10° ~ +45°
Panel Depth Adjustment 2 steps: 0 / 19mm
Panel Height Adjustment 4 steps: 0 / 15 / 30 / 45mm
Panel Left/Right Adjustment 3 steps: -30 / 0 / 30mm
LCD viewing angle control "0" (Default) / "-1" / "-2" / "-3"
NTSC/PAL judge Yes (Auto)
Display Off Mode Yes
Multimedia GUI Features
Menu text 22 languages:
► English(UK)(Default)
► English(US)
► Spanish
► French
► German
► Italian
► Dutch
► Russian
► Portuguese
► Chinese (Simplified)
► Chinese (Traditional)
► Thai
► Turkish
► Arabic
► Persian
► Hebrew
► Greek
► Malaysian
► Indonesian
► Polish
► Czech
► Hungarian
Software updates (SoC) via USB
Graphics Type Graphics
Spectrum Analyzer Yes
Demonstration Mode Yes
Top Menu Customize Yes
Opening Screen Type standard
Preset Wallpaper Type Yes, 5 presets, 1x user, 1x Sync Album Art, 1x color customize.
Wallpaper color change Yes
Multi Widgets Driving Widget / Full Screen Widget
Animation Yes
R-CAM interrupt Yes
R-CAM Caution On Screen Display Yes
R-CAM Parking Guide Lines Yes
Front view camera mirror Yes
DashCam Control (DashCam Link) Yes
Rapid charge indicator Yes
Network & Wifi features
WiFi built-in built-in
Frequency Range Dual Band (2.4GHz / 5GHz)
IEEE standard 802.11a/b/g/n/ac
Wireless connection for Apple CarPlay Yes
Wireless connection for Android Auto Yes
Wireless connection for Android Mirroring Yes
Tuner Features
Tuner Type Eagle
FM(RDS) + AM(MW/LW) Tuner Yes
FM Stereo / Mono Selector Yes
Tuning mode Auto1/Auto2/Manual
Up/Down Seek/Scan Yes
Station Select Manual / Preset (List)
Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
Automatic Memory Entry (AME) Yes
Radio Data System Yes
Radio Text Plus Yes
Traffic Information Yes
Local search Yes
AF Regional Selectable: AF/AF Reg/OFF
Auto TP search Yes
Enhanced Other Networks Function (EON) Yes
Program Type Function (PTY) Yes
CE DAB tuner features
DAB+ tuner built-in Yes
DAB/DAB+ Band Band III
DAB-DAB/DAB-FM auto switch Yes
Seamless DAB-FM blending Yes
Tuning mode / Seek mode Auto1/Auto2/Manual
Service preset 15 ch * 1 bank presets,
Alphabet Search Yes
Service list by alphabet order Yes
Intelligent seek Yes, (Service, Ensemble & Component)
Ensemble seek Yes
Announcement Switching (ASW) Select Yes
DLS (Dynamic Label) Yes
DMB Audio (Digital multimedia broadcasting) Yes
PTY (Program Type) search Yes
PTY (Program Type) watch Yes
Slide Show Yes
Soft linking Yes
Antenna power supply on/off switch Yes
Digital Radio Certification Mark Yes
Bluetooth General Features
Module Shinwa
Hands Free Profile with High Sound Quality HFP V1.7
2 phones full time connection Yes
Audio Streaming (A2DP) Yes, (LDAC / SBC / AAC)
LDAC - High Resolution Audio Streaming Yes
Max no. of reg. units for A2DP 5 units
Serial Port Profile (SPP) Yes
Simple Secure Pairing (SSP) Yes
Phonebook Access Profile (PBAP) Yes
Audio/Video Remote Control Profile (AVRCP) Yes, V1.6
Multi Profile Support Yes
iPhone & Android automatic pairing via USB Yes
KENWOOD Remote App Ready
KENWOOD Portal App Ready Yes
KENWOOD Music Mix Support Yes
Catchphone / Call Waiting Yes
Private mode Yes
Noise Canceller Yes
Echo Canceller Yes
High-quality noise canceling microphone Included (rear wired)
Playable Audio File
AAC (*.m4a) files are playable on USB
AAC (*.aac) files are playable on USB
MP3 files are playable via USB
WMA (.wma) files are playable on USB
WAV (.wav) files are playable on USB
FLAC files are playable on USB
CE_Playable Video file
MPEG1/2 files are playable on USB
MPEG4 files are playable on USB
WMV files are playable on USB
H.264 files are playable on USB
mkv files are playable on USB
USB Features
USB Type 1x Type C
USB extension cable supplied yes, 1m
Yes
Drive Change Yes
Works with Android Auto Yes
Works with Apple CarPlay Yes
Tag Information Display Yes
Album Art Display Yes
Repeat/Scan/Random search Yes
Repeat Play Folder/File/All
Random play Folder
Category search Yes
Link Search Yes
Last Position Memory / Resume Yes
Time code display Yes
USB ports maximum output current 5V / 3.0A
iPhone Features
Connection via: USB / BT / Wifi
Plug & Play Yes
Made for iPhone Yes
Tag Information Display Yes
List Access Yes
Album art support Yes
Music library search Yes
Alphabet search Yes
Skip search Yes
Random Play Yes
Repeat Play Yes
Skip Yes
iPod Accessory Protocol (iAP) iAP2
iAP over Bluetooth Yes
Works with Apple CarPlay Wireless or Wired via USB
Reverse browsing Yes
Voice Control using Siri. Yes
Bluetooth Auto Pairing for iPhone Yes
Battery charge + power control Yes
* Always update to the latest Apple firmware
Android Phone Control
Connection via USB/Wifi/Bluetooth
Works with Android Auto Wired & Wireless
Android Open Accessory Protocol Yes (For Android Auto)
Kenwood Smartphone Control Yes
Audio features
Max. Output Power (MOSFET Power IC) 4 x 50W
Primary Power Output 4 x 22W
Pre-out 3RCA: Front/Rear/Subwoofer
Pre-out Output Level 5V
Volume Offset Yes
Balance/Fader Control Yes, (via DSP)
Loudness Control Yes, By DSP
Bass Boost Yes, (Via DSP)
Att.(-20dB) with smooth Volume Return Yes
Equalizer Yes, 13 Band Graphic EQ
Digital Sound Processor (DSP) Yes
Digital Time Alignment (DTA) Yes
Beep On/Off Yes
Multimedia DSP Features
Car type control Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van
Speaker Size & Location Control Yes
X'over network 3-Way / 2-way X'over / HPF / LPF
Listening position control / Time Alignment Yes
Equalizer type Graphical
Equalizer 13-Bands
Equalizer presets / User set 8 presets / 4 User set
Balance & Fader Control Yes
Source Volume Offset source independent
Sound Effects ► Bass Boost
► Supreme
► Loudness
► Sound Realizer
► Drive Equalizer
► Stage EQ
► Space Enhancer
Audio Setup Memory Yes

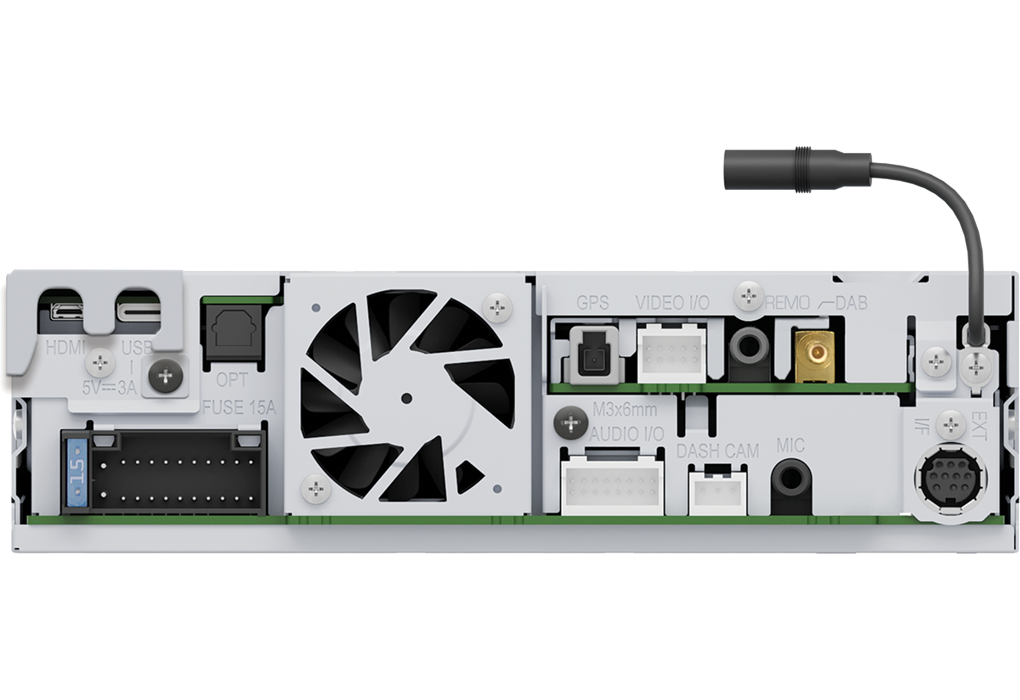

Connectivity
USB interface Rear Side
DC-Cord 20pin (New Type) to ISO
Reverse sensor wire Yes
Parking sensor (handbrake) wire Yes
Power Control (P.CON) wire Yes
2-way (Tel/Navi) mute wire Yes
Dimmer control wire Yes
Speedpulse input wire Yes
Amplifier pre-out 3 x RCA: Front/Rear/Subwoofer
Digital Optical Output Yes
AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
AV Output Video: RCA / Audio: mini-jack
Available AV-Out source AV-in / Off
Camera inputs up to 4 cameras
Rear View Camera Input NTSC or HD-TVI input
Front View Camera Input selectable: Front (NTSC or HD-TVI) or DashCam (NTSC)
Front Camera / DashCam selectable Yes
HD camera input Front & Rear camera input are HD Camera ready
HDMI input Type-D
Dashcam Link Yes
GPS Aerial Input GPS antenna included
FM Antenna Input JASO connector
DAB Aerial input SMB connector
External microphone input 3.5mm mini-jack
OEM Wired Remote Control ready Yes, Optional interface needed
OEM Display Control ready Yes, Optional interface (KIM) needed
Learning Steering Remote Function Yes
Display input/output control Yes
Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step) Yes
FM Usable Sensitivity 0.8μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity 1.6μV/75ohm (S/N 15.2dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 65dB
FM Selectivity (DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 45dB
MW range: 531kHz - 1611kHz (9kHz step) Yes
MW Usable Sensitivity 45μV
LW range: 153kHz - 279kHz (9kHz step) Yes
LW Usable Sensitivity 25μV
DAB Tuner specifications
Band III - Frequency range 174.928 MHz - 239.2 MHz
Mode I, II, III, IV
Sensitivity - 100dBm
Signal to noise ratio 90dB
Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC v2
DAB Aerial Connector Type SMB
Output Voltage 14.4V (11V to 16V allowable)
Maximum Current < 100 mA
Bluetooth specifications
Bluetooth V5.0
Frequency 2.402 - 2.48 GHz
Output power +4dBm(max), power class 2
Maximum range Line of sight approx. 10 meters
Handsfree profile (HFP) Yes, V1.7
Serial port profile (SPP) Yes
Advanced audio distribution profile (A2DP) Yes
Audio Codec SBC/AAC/LDAC
Audio/Video remote control profile (AVRCP) Yes, V1.6
Phonebook access profile (PBAP) Yes
Multi Profile Support Yes
USB Specifications
USB Version compatibility USB 2.0 High Speed
File System FAT 16/32 / exFAT / NTFS
Maximum supply current 1500mA
D/A Converter 24/32 bit
Video Decoder MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
Audio Decoder MP3/WMA/AAC/WAV/FLAC/Vorbis
S/N Ratio 98.5 dB (1kHz)
Dynamic Range 89dB
Audio Specifications
Maximum Power 50 W x 4
Output Power (DIN45324,+B=14.4v) 22 W x 4
Output frequency band 20 Hz ~ 88 kHz
Preout Level 5000 mV / 1 kOhm,
Preout Impedance ≤ 300 Ohm
Speaker Impedance 4 Ohm ~ 8 Ohm
DSP Specifications
Frequency band 62.5/100/160/ ~ /6.3k/10k/16k Hz
Equalizer Gain -9db ~ +9db
Time Alignment 0 — 610cm (1 cm step)
Speaker type - Center ► NONE
► 40mm X 70mm
► 5cm
► 10cm
► 13cm
► 16cm OVER
Speaker type - Front ► OEM
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4" x 6"
► 5" x 7"
► 6" x 8"
► 6" x 9"
► 7" x 10"
Speaker type - Rear ► NONE
► OEM
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4" x 6"
► 5" x 7"
► 6" x 8"
► 6" x 9"
► 7" x 10"
Speaker type - Sub woofer ► NONE
► 16cm
► 20cm
► 25cm
► 30cm
► 30cm over
2-Way X'over / Front/Rear (HPF) / Frequency Through, 30/40/50/ ~ /220/250 Hz
2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct)
2-Way X'over / Subwoofer (LPF) / Frequency 30/40/50/ ~ /220/250 Hz, Through
2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct)
3-Way X'Over / High Pass Filter Frequency Through, 30/40/50/ ~ /220/250 Hz
3-Way X'Over / High Pass Filter Slope -12/-18/-24 (dB)
3-Way X'Over / Low Pass Filter Frequency 30/40/50/ ~ /220/250 Hz, Through
3-Way X'Over / Low Pass Filter Slope -12/-18/-24 (dB/Oct
Subwoofer Level -50dB ~ 10dB
Car type control ► Off
► Compact
► Sedan
► Wagon
► Minivan
► SUVs
► Passenger Van
Video Specifications
Color System of External Video Input NTSC/PAL
External video input level (mini-jack) 1 Vpp / 75 Ohm
External audio max. input level (mini-jack) 2 Vpp / 25 kOhm
Video input level (RCA) 1 Vpp, 75 Ohms
Video Output Level (RCA) 1 Vpp / 75 Ohm
Audio Output Level (mini-jack) 0.9 Vpp / 10 kOhm
HDMI - VGA input resolution 640x480p @59.94Hz/60Hz
HDMI - 480p input resolution 720x480p @59.94Hz/60Hz
HDMI - 720p input resolution 1280x720p @59.94Hz/60Hz
HDMI - input Audio type 16/20/24-bit Linear PCM
Monitor Specifications
Screen size (Diagonal) 10.1 Inches Wide
Screen Size (WxH) 223.7 x 125.8mm
Display system AAS (Azimuthal Anchoring Switch) LCD panel
Drive system TFT Active Matrix System
Number of Pixels 2764800pixels (1280(H) x 720(V) x RGB)
Effective pixels 99.99%
Pixel arrangement RGB Striped
Back lighting LED (Light Emitting Diode)
General Specifications
Operating voltage 14.4V (11 ~ 16V Allowable)
Dimensions Monitor unit (WxHxD) 262 x 181 x 52mm
Weight Monitor unit 1.1 kg
Dimensions chassis unit (WxHxD) 178 x 50 x 158mm
Weight chassis unit 1.3 kg.
Weight Chassis + Monitor 2.4 kg.
Accessories
Bracket Arm bracket for the monitor unit
DC cord 25 cm
RCA Audio-In/Out Connection Cable Yes
RCA Video-In/Out Connection Cable Yes
usb extension cable Type-C, 1 meter
USB Adapter Type-C to Type-A
Screws (Parker-type) Ø 3 x 6mm, 3 pieces
Pan Head Screw (M-Type) M4 x 8mm, 8 pieces
Hex Head Screw (M-Type) M4 x 12mm, 4 pieces
GPS antenna with 3.5 m cable
GPS Antenna Ground Plane Mount (Adhesive Metal Pad) Yes
Handsfree Microphone with 3 m cable
Multi-Language Instruction Manual Included Quick-Guide + Instruction manual
