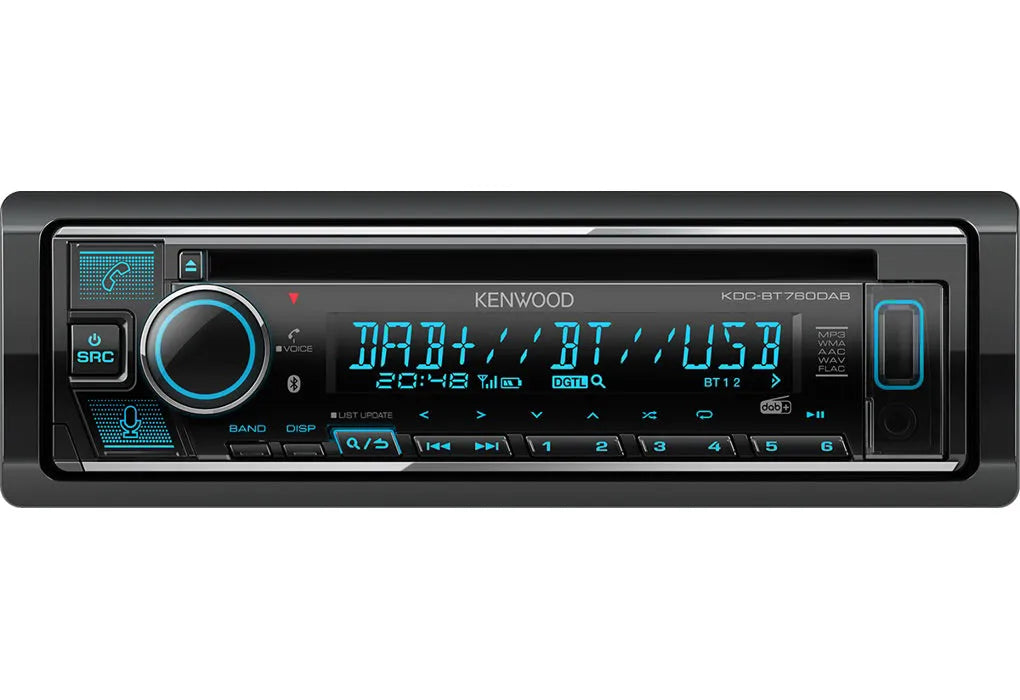

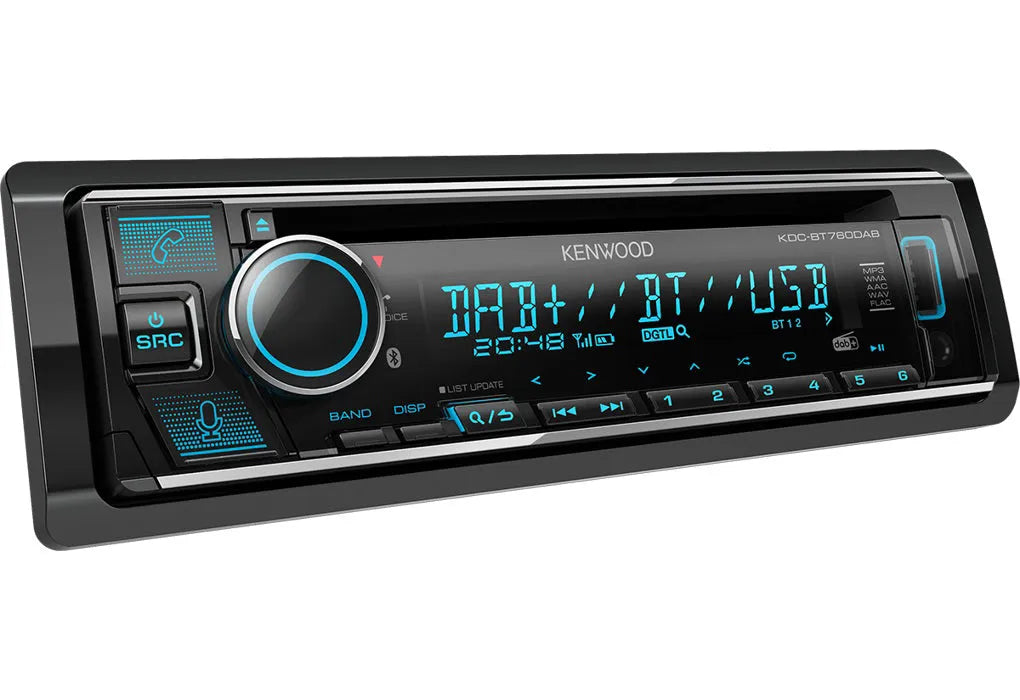

Kenwood, KDC-BT760DAB CD/USB MP3/WMA car stereo with AUX input

KENWOOD KDC-BT740DAB - Digital media receiver with CD/AUX/USB, Bluetooth and DAB+ Key Features: Bluetooth music streaming and hands-free calling Front USB and AUX connections Smartphone charging with 1.
€198.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

KENWOOD KDC-BT740DAB - Digital media receiver with CD/AUX/USB, Bluetooth and DAB+
Key Features:
  • Bluetooth music streaming and hands-free calling
  • Front USB and AUX connections
  • Smartphone charging with 1.5A current via USB
  • iPhone / Android music playback
  • FLAC playback (48kHz - 16bit)
  • 2 x RCA: Front + Rear/Subwoofer (selectable)
  • 3-band EQ for easy tuning
  • Less than 1mA power consumption in dark mode
  • RGB adjustable button illumination
  • Amazon Alexa
  • Kenwood remote control app for smartphone
General Features:
  • DIN size: 1 DIN
  • Removable faceplate
  • Button illumination: Red
  • Volume and control knob
  • Highlighted button: iPod / USB
  • Backup memory: Radio station presets only
  • Touch screen tone
  • Digital clock (24H)
  • Auto power off function (20/40/60 minutes)
  • ISO connector: New Mitsumi to ISO cable
  • USB interface x 1
  • Software update
Display Features:
  • Display type: Liquid Crystal Display (LCD)
  • Display size: 13 segments x 13 digits
  • Vertical Alignment LCD
  • Display illumination: White LED
  • Dimmer control: Manual / Timer set
  • Brightness control: 0 - 31 range
  • Demo mode
  • Selectable menu language: English, Spanish, Russian
  • Tag display languages: English, Spanish, Russian, Greek
Exterior Design Features:
  • Front/Bezel: Black
  • Volume and control buttons or rotary knob: Chromed
  • Panel finish: Black
  • Panel removal button illumination: Red
  • Button illumination: RGB
  • Display illumination: RGB
  • Brightness control (buttons): 0 - 31 range
  • Brightness control (display): 0 - 31 range
  • Dimmer control (buttons): Manual / Timer set
  • Dimmer control (display): Manual / Timer set
  • Dust protection for front connections
Radio Features:
  • FM tuner
  • AM (MW/LW) tuner
  • Station presets (FM/AM): 24 preset stations (18FM / 6AM)
  • Station presets without backup power
  • Mixed preset memory (FM and AM): 6 preset stations
  • Search type (Auto1 / Auto2 / Manual)
  • Seek up/down
  • Automatic Memory Entry (AME)
  • FM Stereo / Mono selection
  • Radio Data System (RDS)
  • Radio Text Plus
  • Traffic Information
  • Local search
  • Auto TP search
  • Enhanced Other Networks (EON) function
  • Program Type (PTY) function
  • PTY News: Off/0/10/20/.../80/90min
CE DAB Radio Features:
  • DAB+ tuner
  • Intelligent search
  • Ensemble search
  • Search mode: Auto1/Auto2/Manual
  • Station presets: 6 stations * 3 bands
  • Automatic station memory (AME)
  • Automatic ensemble memory (AME)
  • Alphabetical station list
  • Preset list
  • Alphabetical search
  • Related stations
  • PTY audio interrupt standby
  • Announcement audio interrupt standby
  • DAB-RDS integrated TI
  • Traffic Information
  • DAB-AF (Alternative Frequencies)
  • DAB priority
  • DAB-DAB/DAB-FM auto switch
  • Seamless DAB-FM blending
  • DLS function
  • DCR (Dynamic Range Control)
  • DMB (Digital Multimedia Broadcasting) support
  • PTY (Program Type) search
  • PTY (Program Type) scan
  • Announcement Switching (ASW) selection
  • Antenna power control
CE Playable Audio Files:
  • MP3 files are playable via: USB
  • WMA (.wma) files are playable via: USB
  • WAV (.wav) files are playable via: USB
  • FLAC files are playable via: USB
USB Features:
  • USB connection: Front USB 2.0 (Full Speed)
  • Android USB Mass Storage Class (MSC)
  • Android Open Accessory support (AOA): V 2.0
  • MP3, WMA, WAV, FLAC playback
  • Repeat / Random playback
  • Direct search
  • Time display
  • Smartphone battery charging with 1A current
iPod Features:
  • Compatible with iPod and iPhone
  • USB direct control with optional cable KCA-iP102 (40pin) or iP103 (Lightning connector)
  • Music playback
  • Interval search
  • Direct search
  • App & iPod control mode
  • iPod support standard (iAP) via Bluetooth
  • Reverse search
  • Voice control with Siri
  • Works with iPod Touch*: 5th and 6th generation
  • Works with iPod Nano*: 7th generation
  • Works with iPhone*: 4S/5/5S/5C/6/6Plus/6S/6S Plus/SE
  • Battery charging + power management
  • 1A current support
  • * Requires latest Apple software
  • ** Requires Apple Lightning to 30-pin adapter
  • *** Apple device with Lightning connectors only plays audio
Audio Features:
  • Maximum output power: 50W x 4
  • MOSFET Power IC
  • Aux input: Front Mini-jack
  • Pre-outs: 1 RCA
  • Line output voltage: 2.5V
  • Pre-out rear / subwoofer switchable
  • Subwoofer detailed settings
  • Selected source tone sound control and memory: Bass / Mid / Treble
  • Tone control / Easy EQ: 13-band, 8 presets
  • Balance and Fader control
  • Loudness control: Off/Low/High
  • Bass Boost circuit: Off/+1/+2/+3/+4/+5
  • Q System
  • Parametric equalizer + presets: 13-band parametric equalizer + 8 presets
  • Speaker Time Alignment
  • Low Pass Filter
  • Kenwood Sound Reconstruction
  • Drive EQ

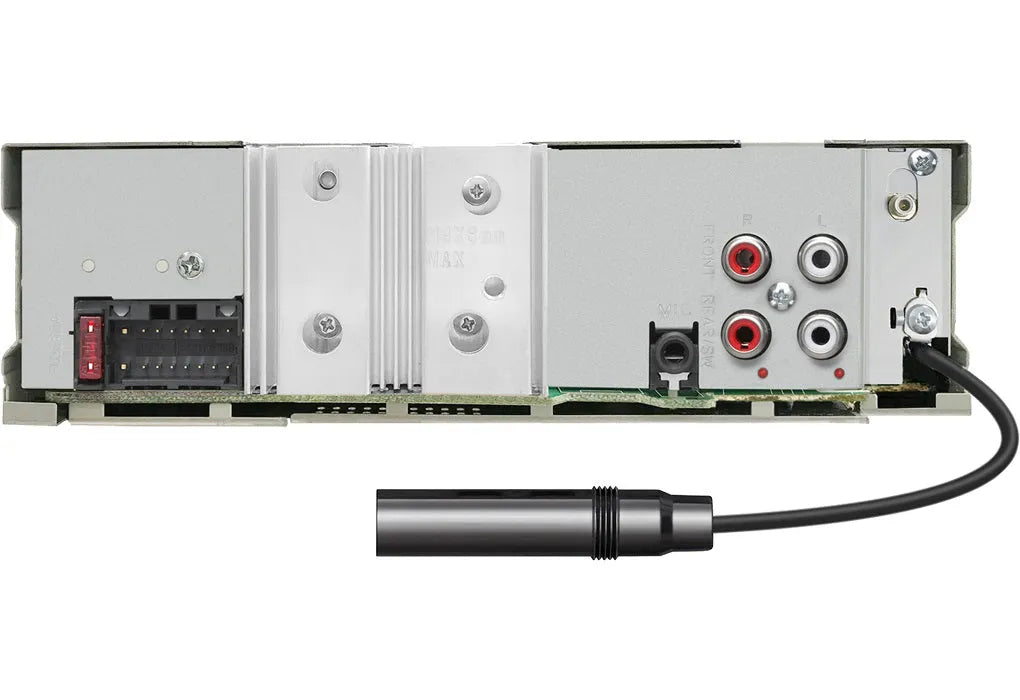

Connectivity:
  • 2 x RCA: Front + Rear/Subwoofer (selectable)
  • iPod digital connection (1 wire): with optional KCA-ip102 cable
  • Front USB and AUX input
  • OEM wired remote control
  • DC cable: NEW Mitsumi to ISO
  • Power control (P.CON) cable
  • FM antenna input
Radio Specifications:
  • FM range: 87.5Mhz - 108MHz (50Khz interval)
  • FM usable sensitivity: 0.71μV/75ohm (S/N 26dB)
  • FM quieting sensitivity: 2μV/75ohm (S/N 46dB)
  • FM frequency response: 30Hz ~ 15kHz (± 3dB)
  • FM signal to noise ratio (Mono): 64dB
  • FM Stereo separation (1kHz): 40dB
  • MW range: 531kHz - 1611kHz (9kHz interval)
  • MW usable sensitivity: 28.2μV
  • LW range: 153kHz - 279kHz (9kHz interval)
  • LW usable sensitivity: 50μV
CE Codec Specification:
  • MP3 format: MPEG 1/2 Audio Layer 3-Files
  • AAC (.m4a, .acc) format
  • WMA format: Compatible with Windows Media Audio
  • WAV format: RIFF waveform audio format (for Linear PCM only)
  • FLAC format: FLAC files (up to 48kHz/24bit)
USB Specification:
  • Compatible USB version: USB 2.0 Full Speed
  • File system: FAT 32/16/12
  • Maximum current consumption: 1500mA
  • D/A converter: 16bit
  • MP3 decoder: Compatible with MPEG-1/2 Audio Layer-3
  • WMA decoder: Compatible with Windows Media Audio
  • WAV decoder: Linear - PCM files
  • FLAC decoder: FLAC files up to 96kHz/24bit
Audio Specification:
  • Maximum power: 50W x 4
  • Output power (DIN45324,+B=14.4v): 22W x 4
  • Pre-out level: 2500mV / 10kOhm
  • Pre-out impedance: ≤ 600Ohm
  • Speaker impedance: 4Ohm ~ 8Ohm
  • AUX frequency response: 20Hz ~ 20kHz (±1dB)
  • AUX maximum input voltage: 1000mV
  • AUX input impedance: 30kOhm
  • Subwoofer level (dB): -15 dB to +15dB
Bluetooth:
  • Bluetooth version: 4.2
  • Operating distance: 10m
  • Hands-free calling
  • Audio codec: SBC/AAC
  • Phonebook transfer
  • Music streaming
Accessories:
  • Removal keys: 2 pieces
  • Escutcheon
  • Installation sleeve
  • DC cable (Mitsumi to ISO): 15 cm
  • Microphone: 3m long cable
General Specifications:
  • Operating voltage: 14.4 V (10.5 ~ 16V allowable)
  • Maximum current consumption: 10A
  • Dimensions (WxHxD): 182 x 53 x 155.5 mm
  • Weight (with sleeve and escutcheon): 1.2kg
  • Operating temperature range: -10°C ~ 60°C
