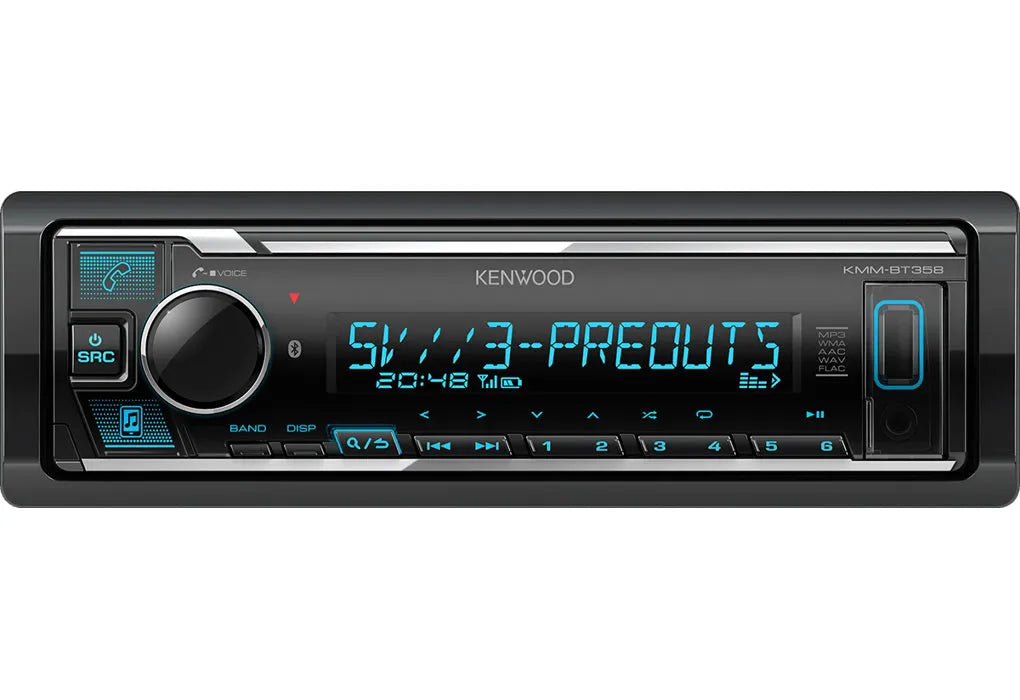

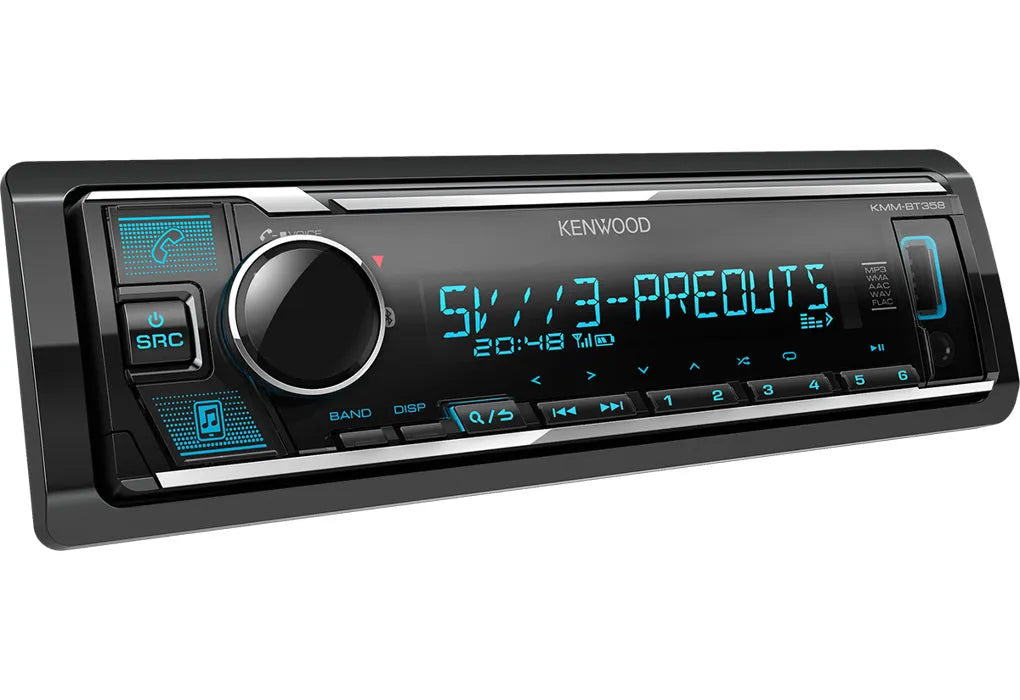

Kenwood, KMM-BT358 Bluetooth, USB MP3/WMA Car Stereo with AUX input

INFORMACIJA

• Bluetooth music streaming and hands-free calling
• Front USB and AUX inputs
• Smartphone charging with 1.5A current via USB
• iPhone / Android music playback
• FLAC playback (48kHz - 16bit)
• 3 RCA pre-outs / 2.5V
• 3-band EQ for easy tuning
• Less than 1mA power consumption in dark mode
• White display and red button illumination
• Amazon Alexa
• Spotify App Link
• Kenwood remote control app for phone

• DIN Size: 1 DIN
• Detachable faceplate
• Button illumination: RGB
• Rotary encoder and control knob
• Accent key: iPod / USB
• Backup memory: Radio station presets only
• Touch sensor tone
• Digital clock (24H)
• All-off select (20/40/60 minutes)
• ISO connector: New Mitsumi to ISO cable
• USB interface x 1
• Software update

• Display Type: Liquid Crystal Display (LCD)
• Display size: 13 segments x 13 digits
• Vertical Alignment LCD
• Display Illumination: Variable RGB LED
• Dimmer Control: Manual / By Timer
• Brightness control: 0 - 31 range
• Demo mode
• Menu language selectable: English, Spanish, Russian
• Display language tags: English, Spanish, Russian and Greek

• Front/edges: Black
• Volume and control knobs or rotary encoder: Black
• Panel finish: Black
• Faceplate removal button illumination: Red
• Button illumination: Variable RGB LED
• Display illumination: Variable RGB LED
• Brightness control (buttons): 0 - 31 range
• Brightness control (display): 0 - 31 range
• Dimmer control (buttons): Manual / By Timer
• Dimmer control (display): Manual / By Timer
• Front input dust cover

• FM tuner
• AM (MW/LW) tuner
• Station Presets (FM/AM): 24 Presets (18FM / 6AM)
• Backup Memory for radio presets
• Mixed preset memory (FM & AM): 6 presets
• Tuning mode (Auto1 / Auto2 / Manual)
• Up/down seek tuning
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System (RDS)
• Radio Text Plus
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks function (EON)
• Program Type Function (PTY)
• PTY news: Off/0/10/20/.../80/90min

• MP3 files are played via: USB
• WMA (.wma) files are played via: USB
• WAV (.wav) files are played via: USB
• FLAC files are played via: USB

• USB interface: Front USB 2.0 (Full Speed)
• Android USB Mass Storage Class (MSC)
• Android Open Accessory Support (AOA): V 2.0
• MP3, WMA, WAV, FLAC playback
• Repeat / Random playback
• Direct Search
• Time display
• Smartphone battery charging with 1A current

• Compatible with iPod & iPhone
• USB Direct Control with optional cable KCA-iP102 (40pin) or iP103 (Lightning connector)
• Music playback
• Interval search
• Direct Search
• App & iPod Control Mode
• iPod Accessory Protocol (iAP) via Bluetooth
• Reverse Search
• Voice control with Siri
• Works with iPod Touch*: 5th and 6th generation
• Works with iPod Nano*: 7th generation
• Works with iPhone*: 4S/5/5S/5C/6/6Plus/6S/6S Plus/SE
• Battery charging + power management
• 1A current support
• * Requires latest Apple software
• ** Requires Apple Lightning - 30 pin adapter
• *** Apple device with Lightning connectors only plays audio

• Maximum output power: 50W x 4
• MOSFET Power IC
• Aux input: Front Mini-jack
• Pre-outs: 3 RCA
• Pre-out Output Level: 2.5V
• Rear / Subwoofer switchable pre-out
• Subwoofer detailed settings
• Selected source tone control and memory: Bass / Mid / Treble
• Tone control / Easy EQ: 13-band, 8 presets
• Balance and Fader control
• Loudness control: Off/Low/High
• Bass Boost Circuit: Off/+1/+2/+3/+4/+5
• Q System
• Parametric Equalizer + Presets: 13-band parametric equalizer + 8 presets
• Speaker Time Alignment
• Low Pass Filter
• Kenwood Sound Reconstruction
• Drive EQ

• iPod digital connection (1-wire): with optional KCA-ip102 cable
• USB & AUX input in front
• OEM wired remote control
• DC wire: NEW Mitsumi to ISO
• Power control (P.CON) wire
• FM antenna input

• FM range: 87.5Mhz - 108MHz (50Khz interval)
• FM usable sensitivity: 0.71μV/75ohm (S/N 26dB)
• FM quieting sensitivity: 2μV/75ohm (S/N 46dB)
• FM frequency response: 30Hz ~ 15kHz (± 3dB)
• FM signal to noise ratio (Mono): 64dB
• FM Stereo separation (1kHz): 40dB
• MW range: 531kHz - 1611kHz (9kHz interval)
• MW usable sensitivity: 28.2μV
• LW range: 153kHz - 279kHz (9kHz interval)
• LW usable sensitivity: 50μV

• MP3 format: MPEG 1/2 Audio Layer 3-Files
• AAC (.m4a, .acc) format
• WMA format: Compatible with Windows Media Audio
• WAV format: RIFF waveform audio format (Linear PCM only)
• FLAC format: FLAC files (up to 48kHz/24bit)

• USB version compatibility: USB 2.0 full speed
• File System: FAT 32/16/12
• Maximum current consumption: 1500mA
• D/A converter: 16bit
• MP3 decoder: Compatible with MPEG-1/2 Audio Layer-3
• WMA decoder: Compatible with Windows Media Audio
• WAV decoder: Linear - PCM files
• FLAC decoder: FLAC files up to 48kHz/24bit

• Maximum power: 50W x 4
• Output power (DIN45324,+B=14.4v): 22W x 4
• Output level: 2500mV / 10kOhm
• Output impedance: ≤ 600Ohm
• Speaker impedance: 4Ohm ~ 8Ohm
• AUX frequency response: 20Hz ~ 20kHz (±1dB)
• AUX maximum input voltage: 1000mV
• AUX input impedance: 30kOhm
• Subwoofer level (dB): -15 dB to +15dB

• Bluetooth version: 4.2
• Operating distance: 10m
• Hands-free calling
• Audio codec: SBC/AAC
• Phonebook transfer
• Music streaming
• Microphone with 3m cable

• Removal keys: 2 pieces
• Trim plate
• Installation sleeve
• DC cable (Mitsumi to ISO): 15 cm
• Microphone: 3m long cable

• Operating voltage: 14.4 V (10.5 ~ 16V acceptable)
• Maximum current consumption: 10A
• Dimensions (WxHxD): 182 x 53 x 100 mm
• Weight (with sleeve and trim plate): 0.6kg
• Operating temperature range: -10°C ~ 60°C
