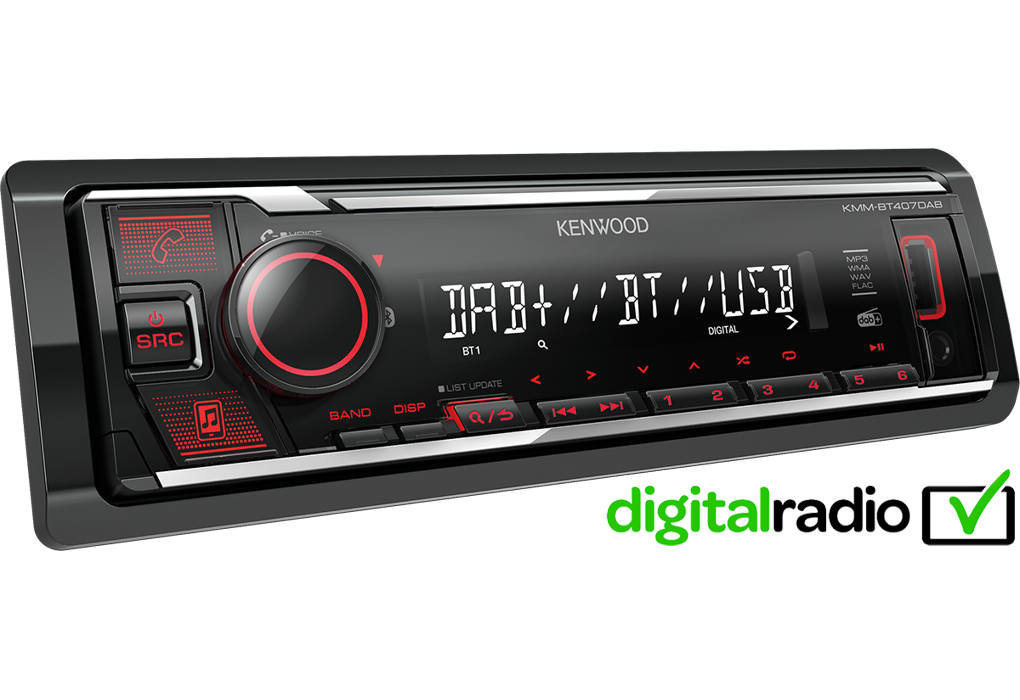

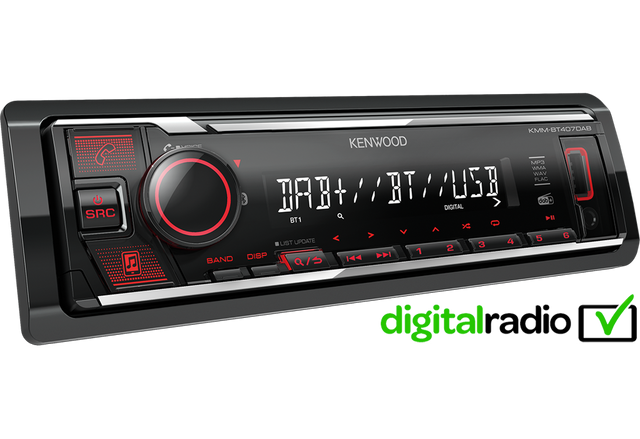

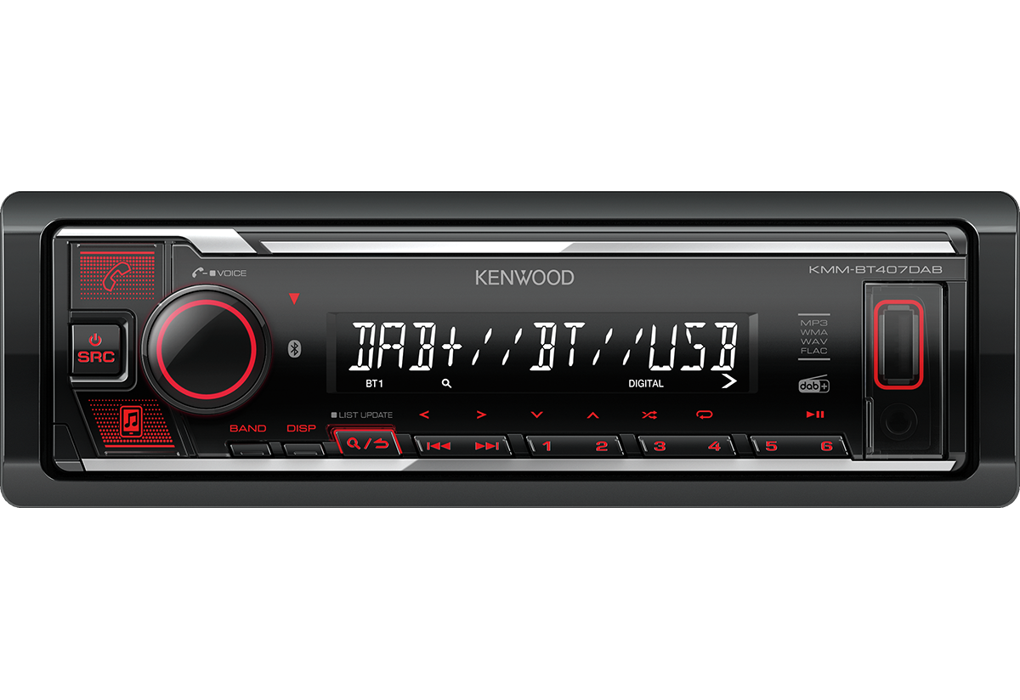

Kenwood KMM-BT407DAB, car stereo

ABOUT THE TAPE...

Digital Media Receiver with Bluetooth & Digital Radio DAB+ built-in.

Sound quality enthusiasts will love the USB playback support of various types of music formats, including compatibility with FLAC files. Digital Radio DAB+ can carry far more stations, and all stations can be delivered at far higher audio quality than on FM. Built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control. Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Main features:

• Bluetooth music listening and "hands free"
• DAB+ radio
• MP3/WMA/AAC/WAV/FLAC formats
• Front USB and AUX connections
• Charging smartphones with 1.5A current via USB
• iPhone/Android music playback
• flac playback (48kHz - 16bit)
• 2 RCA outputs (front + rear or subwoofer) / 2.5V
• 3-band EQ for easy tuning
• Less than 1mA consumption in dark mode
• Various screen and button lighting
• Amazon Alexa
• Kenwood remote control app for phone

SPECIFICATIONS

General features:

• DIN size: 1 DIN
• Removable panel
• Button lighting: RGB LED
• Volume and control wheel
• Highlighted button: iPod / USB
• Backup memory: Only for saving radio stations
• Screen touch tone
• Digital clock (24H)
• Power off function (20/40/60 minutes)
• ISO Connector: New Mitsumi to ISO cable
• USB interface x 1
• Software update

Screen features:

• Display type: Liquid crystal display (LCD)
• Screen size: 2 lines + various icons
• Vertical alignment liquid crystal display
• Display lighting: RGB
• Screen Dimming Control: Manual / Timer
• Brightness control: 0 - 31 range
• Demo mode
• Selectable menu language: English, Spanish, Russian
• Language tag display: English, Spanish, Russian and Greek

Exterior design features:

• Front/Edges: Black
• Volume and control buttons or dial: Chrome
• Panel finish: Black
• Panel removal button illumination: Red
• Button lighting: RGB
• Display lighting: RGB LED
• Brightness control (buttons): 0 - 31 range
• Brightness control (screen): 0 - 31 range
• Screen dimming control (buttons): Manual / Set timer
• Screen dimming adjustment: Manually / Set timer
• Dust protection for front connections

Radio features:

• FM receiver
• AM (MW/LW) receiver
• Ability to save channels (FM/AM): 24 saved radio stations (18FM / 6AM)
• Storing radio stations without backup power
• Ability to store mixed radio stations (FM and AM): 6 radio stations can be stored
• Search type (Auto1 / Auto2 / Manual)
• Forward/backward search
• Automatic Save (AME)
• FM Stereo / Mono selection
• Radio Data System (RDS)
• Radio Text Plus
• Traffic accident information
• Local search
• Automatic TP search
• Enhanced Other Networks Feature (EON)
• Program Type Function (PTY)
• PTY News: Off/0/10/20/.../80/90min

CE DAB radio features:

• DAB+ radio receiver
• Advanced search
• General search
• Search mode: Auto1/Auto2/Manual
• Saving radio stations: 6 radio stations * in 3 bands
• Automatic Radio Station Memory (AME)
• Auto Maintain Memory (AME)
• List of radio stations in alphabetical order
• List of saved stations
• Alphabetical search
• Related radio stations
• PTY audio interrupt standby mode
• Notification audio interrupt standby mode
• DAB-RDS integrated TI
• Traffic accident information
• DAB-AF (alternative frequencies)
• The priority of DAB
• DAB-DAB/DAB-FM automatic switching
• Easy DAB-FM transition
• DLS function
• DCR (Dynamic Range Control)
• DMB (Digital Multimedia Broadcast) support
• PTY (Program Type) search
• PTY (Program Type) Review
• Message Switching (ASW) option
• Antenna power management

CE playable audio files:

• MP3 files are played via: USB
• AAC files are played via: USB
• WMA (.wma) files are played via: USB
• WAV (.wav) files are played via: USB
• FLAC files are played via: USB

USB features:

• USB connection: USB 2.0 (Full Speed) on the front
• Android USB Mass Storage Class (MSC)
• Android Open Accessory Support (AOA): V 2.0
• MP3, WMA, WAV, FLAC playback
• Repeatable/random playback
• Direct search
• Time display
• Smartphone battery charging with 1.5A current

iPod Features:

• Compatible with iPod and iPhone
• USB direct control with optional cable KCA-iP102 (40pin) or iP103 (Lightning connector)
• Music playback
• Interval search
• Direct search
• App & iPod control mode
• iPod Support Standard (iAP) via Bluetooth
• Reverse search
• Voice control with Siri
• Works with iPod Touch*: 5th and 6th generation
• Works with iPod Nano*: 7th generation
• Works with iPhone*: 4S/5/5S/5C/6/6Plus/6S/6S Plus/SE
• Battery charging + power management
• 1A current support
• *Requires the latest Apple software
• ** Requires Apple Lightning - 30 pin adapter
• *** An Apple device with Lightning connectors only plays audio recordings

Audio Features:

• Maximum output power: 50W x 4
• MOSFET Power ICs
• Aux input: Front Mini-jack
• Outputs: 1 RCA
• Voltage of linear outputs: 2.5V
• Outputs front/subwoofer switching
• Subwoofer detailed settings
• Sound control and memory of the selected source tone: Bass / Mid / Treble
• Tone control / Easy EQ: 13 bands, 8 presets
• Balance and Front/Rear adjustment
• Volume control: Off/Low/High
• Bass Boost Circuit: Off/+1/+2/+3/+4/+5
• Q system
• Parametric EQ + Saves: 13-band parametric EQ + 8 saves
• Speaker timing corrections
• Low pass filter
• Kenwood sound reconstruction
• Drive EQ

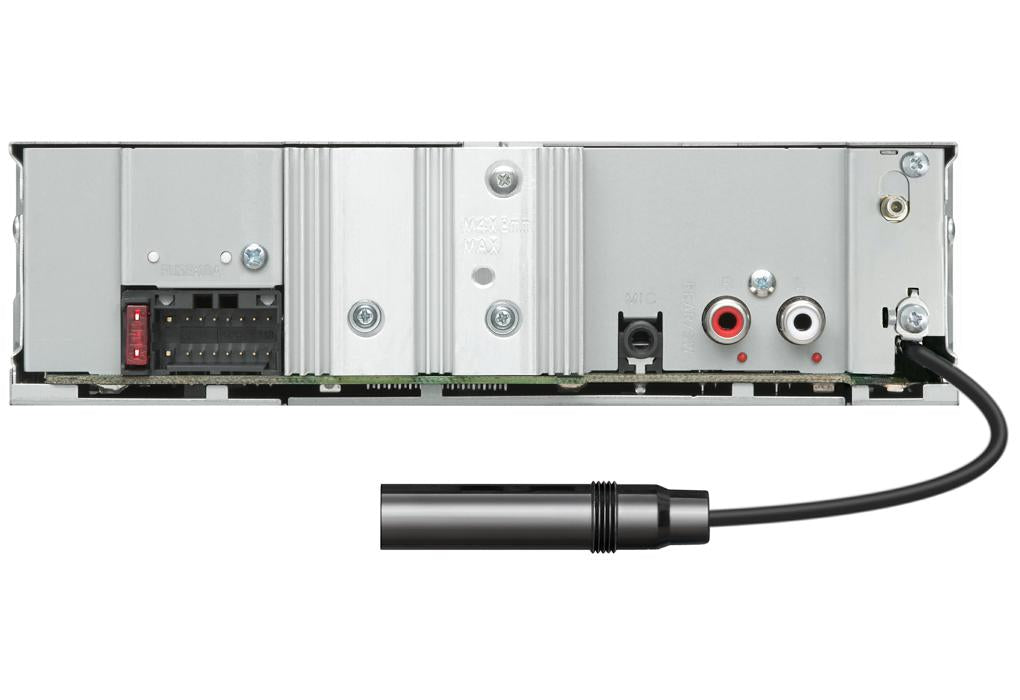

Connectors:

• iPod digital connector (1 cable): with optional cable KCA-ip102
• USB and AUX input on the front
• OEM wired remote control
• DC Wire: NEW Mitsumi to ISO
• Power Control (P.CON) cable
• FM antenna input

Radio specification:

• FM range: 87.5Mhz - 108MHz (50Khz interval)
• FM used sensitivity: 0.71μV/75ohm (S/N 26dB)
• FM muting sensitivity: 2μV/75ohm (S/N 46dB)
• FM playback frequency band: 30Hz ~ 15kHz (± 3dB)
• FM signal-to-noise ratio (Mono): 64dB
• FM Stereo separation (1kHz): 40dB
• MW range: 531kHz - 1611kHz (9kHz interval)
• MW used sensitivity: 28.2μV
• LW range: 153kHz - 279kHz (9kHz interval)
• Sensitivity used for LW: 50μV

CE Codec Specification:

• MP3 format: MPEG 1/2 Audio Layer 3-Files
• AAC (.m4a, .acc) format
• WMA format: Compatible with Windows Media Audio
• WAV format: RIFF signal audio format (for linear PCM only)
• FLAC format: FLAC files (up to 48kHz/24bit)

USB specification:

• Compatible USB version: USB 2.0 full speed
• File system: FAT 32/16/12
• Maximum current used: 1500mA
• D/A converter: 16bit
• MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decoder: Compatible with Windows Media Audio
• WAV decoder: Linear - PCM files
• flac decoder: FLAC files up to 48kHz/24bit

Audio specification:

• Maximum power: 50W x 4
• Output power (DIN45324,+B=14.4v): 22W x 4
• Output level: 2500mV / 10kOhm
• Output resistance: ≤ 600Ohm
• Speaker impedance: 4Ohm ~ 8Ohm
• AUX frequency response: 20Hz ~ 20kHz (±1dB)
• AUX maximum input voltage: 1000mV
• AUX input impedance: 30kOhm
• Subwoofer level (dB): -15dB to +15dB

Bluetooth:

• Bluetooth version: 4.2
• Operating distance: 10m
• "Free hands"
• Audio codec: SBC/AAC
• Phonebook transfer
• Music streaming

Accessories:

• Removal keys: 2 units
• Decorative bow
• Mounting drawer
• DC cable (Mitsumi to ISO): 15 cm
• Microphone: 3m long cable

General Specifications:

• Operating voltage: 14.4 V (10.5 ~ 16V allowed)
• Maximum current consumption: 10A
• Dimensions (LxWxD): 182 x 53 x 100 mm
• Weight (with drawer and bow): 0.6kg
• Operating temperature range: -10°C ~ 60°C
