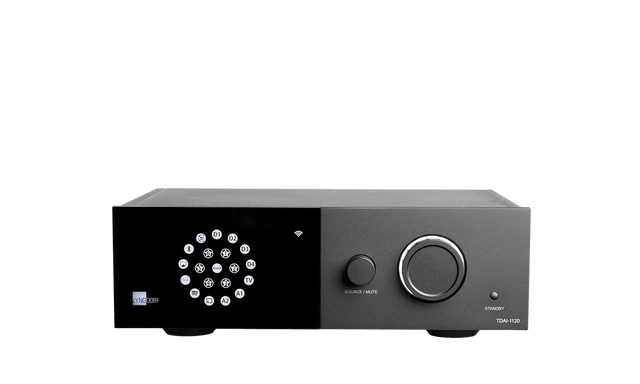

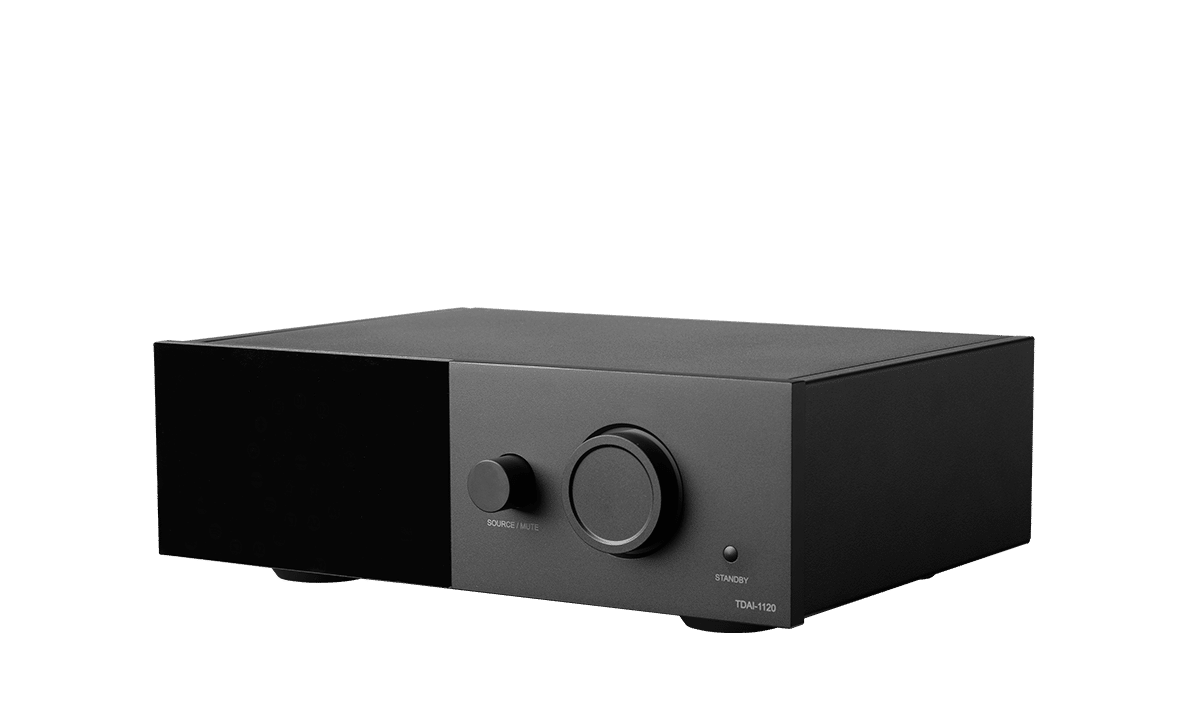

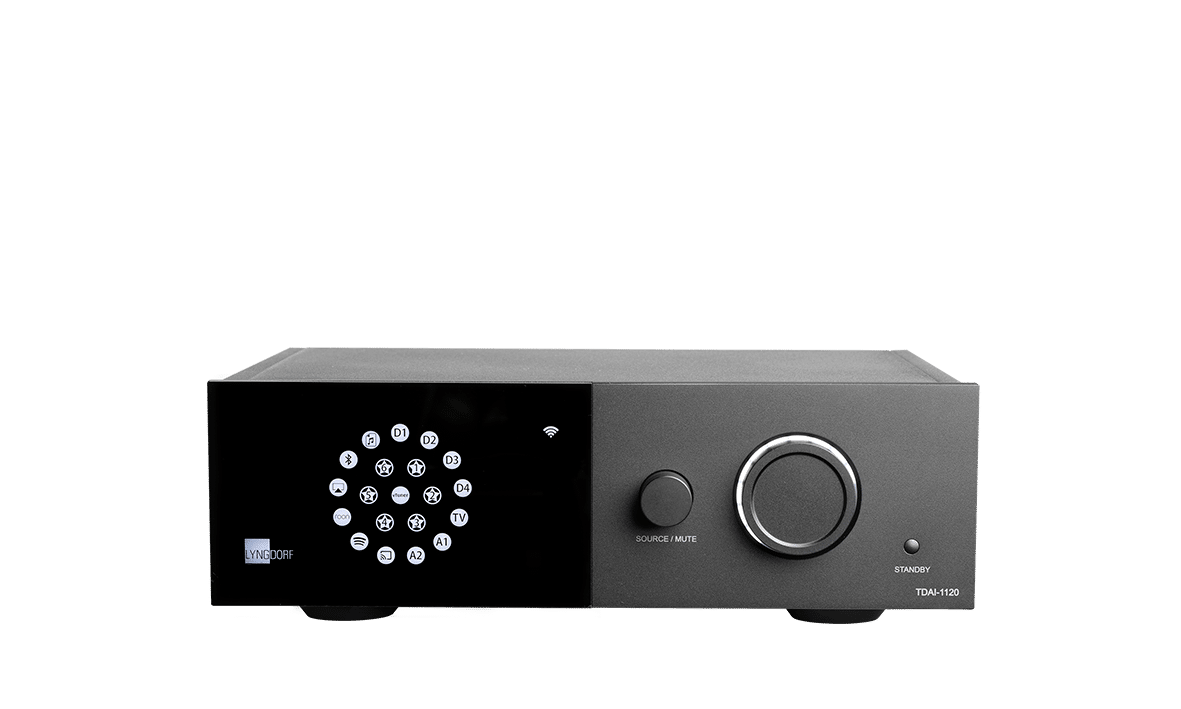

LYNGDORF TDAI-1120, tinklinis stereo stiprintuvas su RoomPerfect

INFORMACIJA

LYNGDORF TDAI-1120 - tai itin universalus, kompaktiškas ir modernus 2 kanalų skaitmeninis tinklinis stiprintuvas, sukurtas užtikrinti aukščiausios kokybės garsą bet kuriame kambaryje. Nedidelis korpusas leidžia jį patogiai įkomponuoti į bet kokią erdvę, o integruotos streamingo ir valdymo funkcijos suteikia išskirtinį lankstumą.

Galia: 2 × 120 W (4 Ω), 2 × 60 W (8 Ω)
Dažnių diapazonas: 20–20 000 Hz ±0,5 dB
Belaidis ryšys: Wi-Fi (802.11n), Bluetooth
Bendras harmoninis iškraipymas: 0,05 % maks. nuo 20 iki 20 000 Hz

APRAŠYMAS

Lyngdorf TDAI-1120 provides the ultimate in flexibility. Its small design footprint allows it to be easily placed anywhere in the home, and the vast feature set offers a great variety of streaming options. All the user-friendly features you could ask for and paired with Lyngdorf Audio’s world-famous digital amplification technology and patented RoomPerfect™ room correction for the ultimate listening experience.

Connecting the TDAI-1120 to the HDMI (ARC) output of a television, will turn the TDAI-1120 into the best sound system possible for your movies. With CEC and eARC lip-sync functionality the TDAI-1120 can connect perfectly with tomorrows televisions and receive the on-off and volume commands from your television remote.

True digital amplification
The TDAI-1120 amplification is 100% digital, without sound-deteriorating digital-to-analog conversion. The digital signal drives the speakers directly. This unique and technically demanding solution eliminates several analog components and signal paths, which are a major source of noise, hiss, crosstalk, and distortion in conventional amplifiers. TDAI amplifiers offer the best sound quality at all volume levels and will deliver the most enjoyable and uncolored sound you have ever experienced.

New world of streaming
Connect the TDAI-1120 to your WiFi and enjoy all the integrated streaming services.

Google Cast
Spotify® Connect
TIDAL Connect including MQA decoding
Qobuz Connect
Roon Ready
AirPlay2
Bluetooth connectivity
Internet Radio (vTuner, airable)
Network/local file playback
The TDAI-1120 accepts all your media interfaces and holds itself an advanced media player of the highest quality. Through the network or via the USB connectors, you can access your library of music through the DLNA/ UPnP enabled player. All can intuitively be controlled with your smart phone, tablet, or computer.

The ultimate experience
The TDAI-1120 ships complete with RoomPerfect™, providing the ultimate listening experience. With RoomPerfect™, the TDAI-1120 delivers a perfect musical experience in all living rooms. Without the need for extensive acoustic treatment, you get a sound system with optimal frequency response, seamless level alignment, and bass management that perfectly integrates the speakers and subwoofers.

Control the TDAI-1120 with an app

The My Lyngdorf App gives you full control of your TDAI-1120 from your phone or tablet. Adjust inputs, volume, RoomPerfect settings, and Voicings with an intuitive, icon-based interface. You can even personalize the app layout and explore internet radio with smart search filters.

Available for free on iOS and Android.

TECHNINIAI DUOMENYS

Description: 2-channel streaming amplifier
Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm
Standby power consumption: < 0.5W
Max output current: 30A
Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%
Digital inputs (Asynchronous): 2 x Coaxial (≤192kHz/24bit) 2 x Optical (≤96 kHz/24bit) 1 x HDMI eARC (≤192 kHz/24 bit)
Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS) 1 x Microphone input (XLR) for RoomPerfect™ calibration
Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)
EQ: RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings holding ≤8 filters with adjustable gain and Q
Media player: Internet Radio (vTuner, airable), Spotify Connect, TIDAL Connect including MQA decoding, Qobuz Connect, Roon Ready, Google Cast, Apple AirPlay2, DLNA Support (UPnP/see DLNA formats), Local file playback (USB), Bluetooth (BLE)
Wireless connections: Bluetooth connectivity, Wi-Fi (802.11 n)

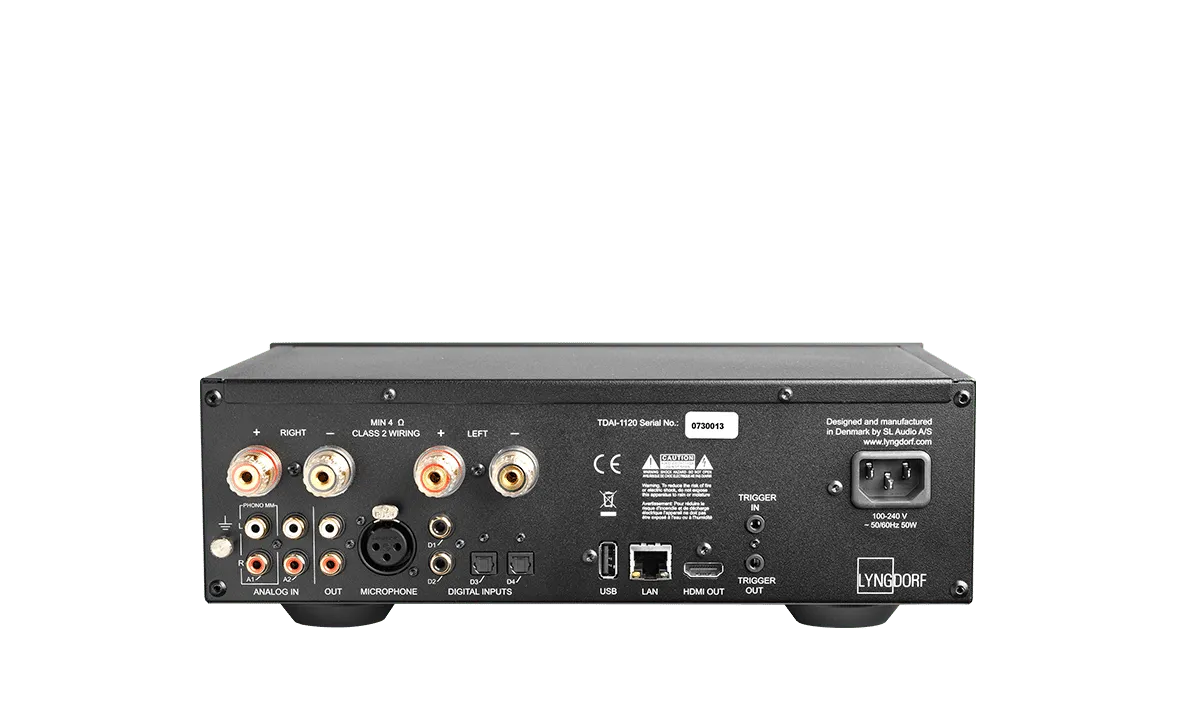

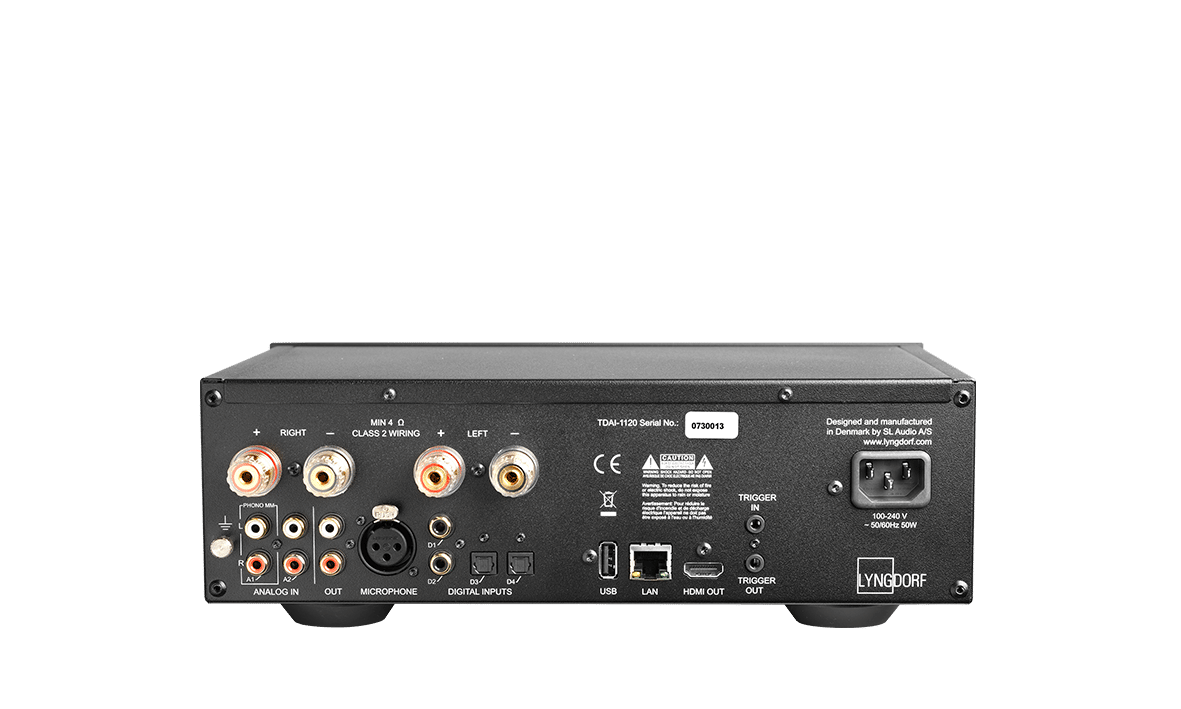

Interfaces: Intuitive input selector, Web-interface for setup and media player, Remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connectors (Type A)
Remote control: Infrared
Accessories included: RoomPerfect™ microphone, Microphone stand, Microphone cable
Optional accessory: IR remote control, rack mounting kit
Placement options: Freestanding
Heat dissipation value: 170 BTU
Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors), 3.98 x 11.8 x 10.3 inches (including connectors)
Weight: 3,3 kg / 7.3 lb
Finish: Anodized aluminum, matte black

DOKUMENTAI

Vartotojo vadovas (EN)
