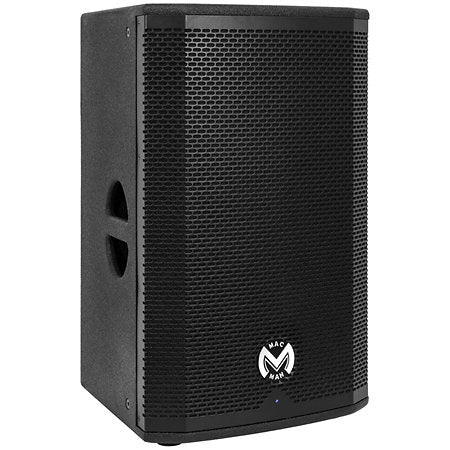

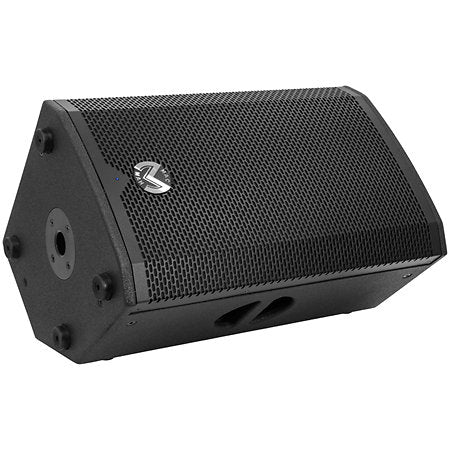

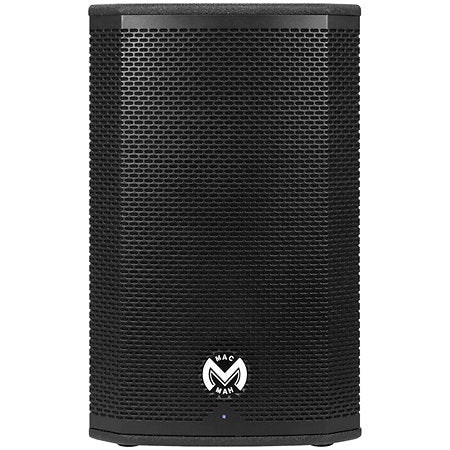

MAC MAH AS Pro 12, professional active speaker with integrated mixer and Bluetooth

INFORMACIJA

MAC MAH AS Pro 12 - bi-amp active speaker for professional use. It is perfect for concerts, conferences, outdoor events and anywhere where powerful, clear and precisely controlled sound is needed. The speaker is easily compatible with microphones, instruments or audio players. The integrated Bluetooth 5.0 module allows you to stream music wirelessly, and TWS technology allows you to connect two speakers into a stereo system.

DSP processor: 24-bit/96kHz
Amplifiers: LF – Class D / HF – Class AB
RMS power: LF 650 W + HF 150 W
Peak power: LF 1300 W + HF 300 W
Distortion (THD): ≤ 0.1 %
Crossover frequency: 2 kHz
Frequency range: 35 Hz - 20 kHz

DESCRIPTION

Active Loudspeaker

The Mac Mah AS Pro 12 is a bi-amplified active loudspeaker, ideal for events requiring powerful, clear sound. With its 12" woofer, integrated DSP and Bluetooth module, it offers extensive connectivity and great flexibility of use. Its 2-channel mixer and multiple protections make it a reliable, high-performance tool for all your sound applications.

Presentation

The Mac Mah AS Pro 12 active loudspeaker is the perfect ally for those looking for a powerful, clear and versatile sound solution, whether for concerts, conferences or outdoor events.

Featuring a bi-amplifier with DSP, this speaker delivers deep bass and crystal-clear highs thanks to its 12-inch woofer and 1.75-inch titanium tweeter. With a frequency response ranging from 35 Hz to 20 kHz, it ensures full coverage of the sound spectrum, while its maximum SPL of 126 dB guarantees intense sound diffusion, ideal for medium to large spaces.

The Mac Mah AS Pro 12 is equipped with a high-precision DSP with a sampling frequency of 96 kHz / 24-bits, enabling superior audio processing. You can easily adjust the sound to suit different environments or configurations thanks to its built-in 2-channel mixer, which allows you to control several audio sources independently.

With its XLR / 6.35 mm jack combo inputs and 3.5 mm mini-jack AUX input, it gives you maximum flexibility for connecting microphones, instruments or external audio devices.

Its built-in Bluetooth module simplifies wireless streaming, allowing you to play your tracks directly from a smartphone or tablet. Designed for professional use, the speaker is protected against overheating, overloading, power surges and much more.

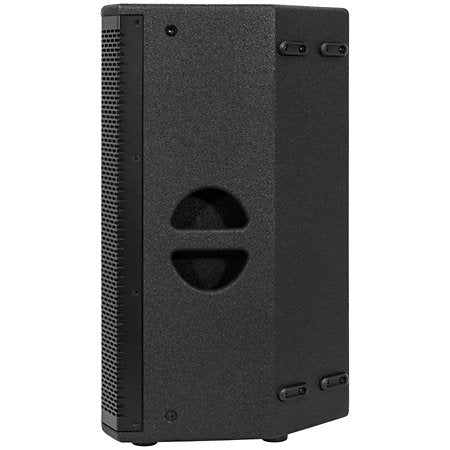

Its robust wooden cabinet makes it suitable for both indoor and outdoor use, and thanks to its 35 mm base, it can be easily mounted on a standard stand for quick and convenient installation.

TECHNICAL DATA

Speaker type: Active PA speaker with Bass Reflex system
Channels: 2
Mixer: Integrated 2-channel mixer with independent volume control
DSP: 24-bit resolution / 96 kHz sampling
Amplifier type: LF - Class D, HF - Class AB
RMS Power: LF 650 W + HF 150 W
Peak Power: LF 1300 W + HF 300 W
THD: ≤ 0.1%
Maximum SPL: 126 dB
Woofer: ∅12" (305 mm)
Tweeter: ∅1.75" (44 mm) titanium
Crossover Frequency: 2 kHz
Frequency Response: 35 Hz - 20 kHz
Dispersion: 90° horizontal x 60° vertical
Bluetooth: Version 5.0, audio streaming
TWS Technology: Pair 2 speakers for stereo streaming

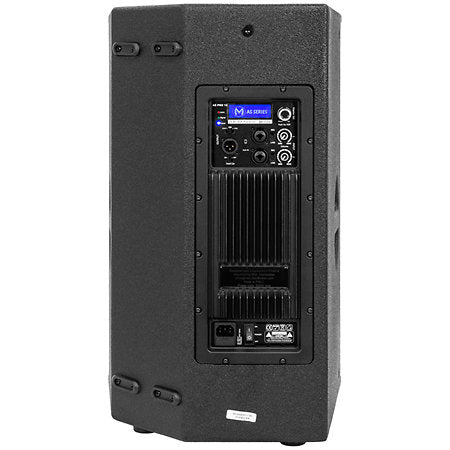

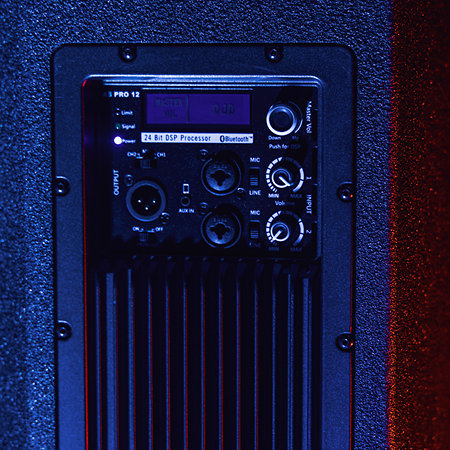

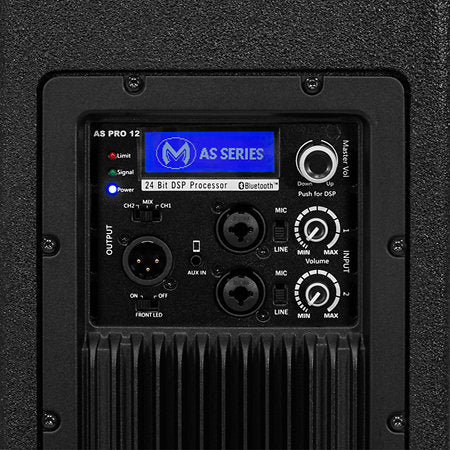

Connections
Mic/Line Inputs: 2 × combo XLR / 6.35 mm Jack
Auxiliary Input: 3.5 mm mini-Jack (TRS)
Outputs: Ch1 / Ch2 / Mix output via XLR
Physical Features
Enclosure Material: Wood

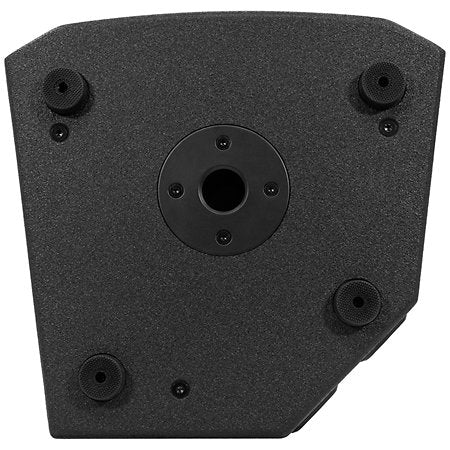

Pole Mount: ∅35 mm base plate

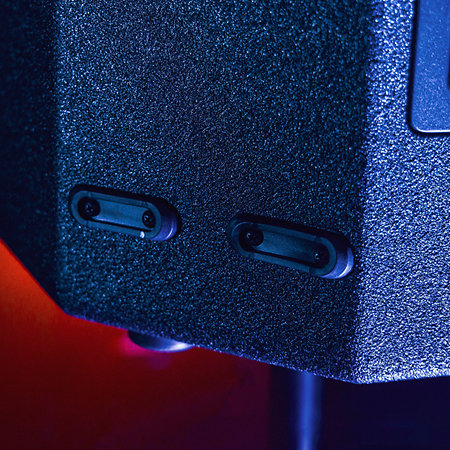

Mounting Options: Suspension points included
Protections: Overtemperature, Underload, Overvoltage, Undervoltage, DC protection, Soft start

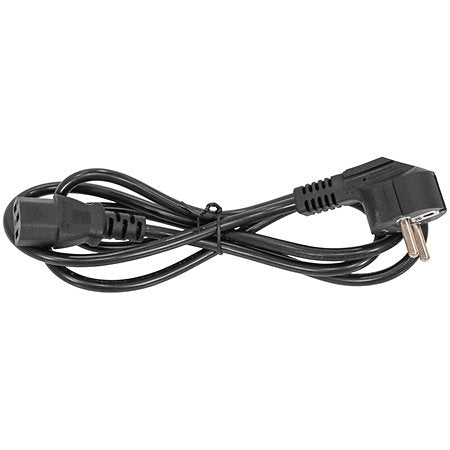

Power Supply: 220-230 V AC / 60 Hz
Fuse: Time-delay fuse T 5 A / 250 V
Dimensions (H × W × D): 670 × 435 × 425 mm
Weight: 21.6 kg
