Magnat Signature IWT 162, built-in speaker (installation depth: 102 mm)

INFORMACIJA

• Recommended amplifier power: 110-180W.
• Frequency band: 32 - 28000 Hz.
• Sensitivity: 91 dB.
• Resistance: 4 Ohms.
• Installation depth: 102 mm.
• The possibility of installation both on the wall and on the ceiling.

DESCRIPTION

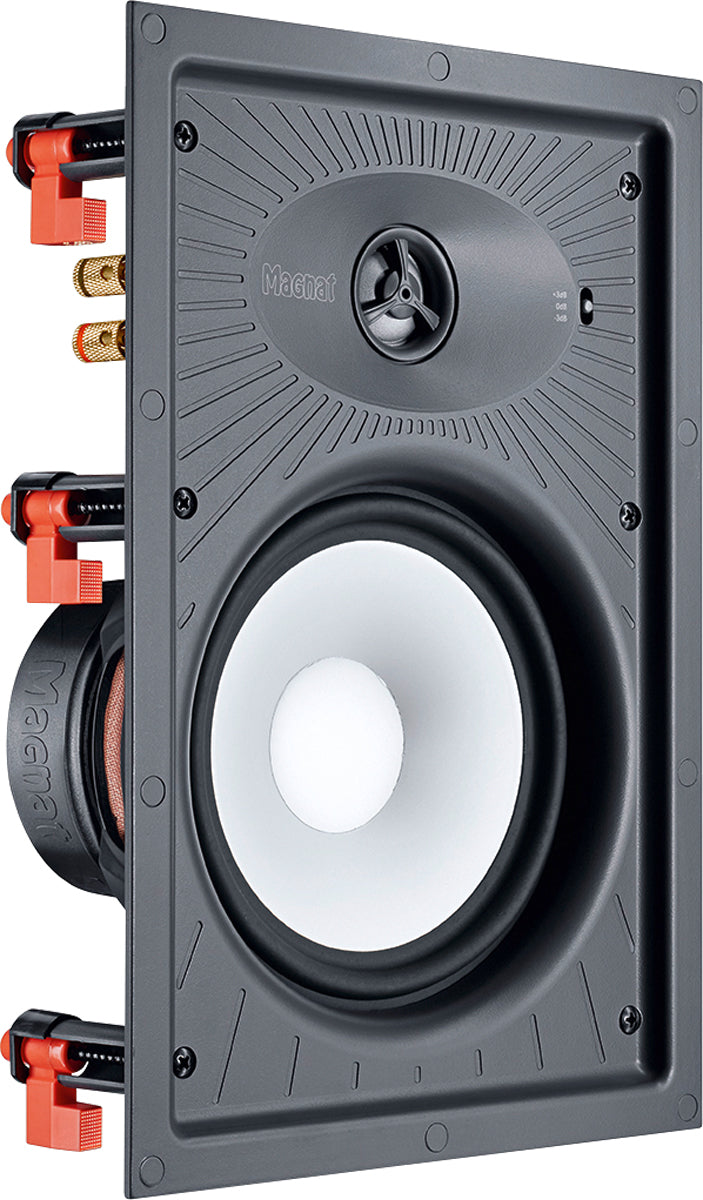

The compact version for wall installation is the IWT 162, which features one woofer and a tweeter, yet still ensures a full-blooded sound. The 16 cm woofer with its aluminum/ceramic cone and a tweeter with coated fabric dome cater for the full frequency range down to 32 Hz. The treble level can be adjusted in three stages here as well, thereby enabling a wide range of installation positions. Measuring 320 x 220 mm with a mounting depth of 102 mm, the Signature IWT 162 does not pose any problems during installation. It doesn´t require a special housing and is perfectly accommodated in any drywall and from a volume of 20 liters. The IWT 162 is suitable for use as a front speaker, as a fully-fledged front channel in a home cinema setup, as well as a luxurious rear channel speaker.

• High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
• High load capacity with compact dimensions
• Uncomplicated installation thanks to a sophisticated mounting system
• Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
• Treble level can be adjusted in 3 stages

TECHNICAL DATA

SPECIFICATIONS

PRINCIPLE

• 2-way in-wall/in-ceiling loudspeaker

DRIVERS

• 1 x 6.5" woofer-midrange

• 1 x 1” dome tweeter

POWER HANDLING (RMS/MAX.)

• 110 / 180 watts

SENSITIVITY (2.8V/1M)

• 91 dB

IMPEDANCE

• 4 Ohms

FREQUENCY RESPONSE

• 32 - 28000 Hz

CROSSOVER FREQUENCIES

• 3.100 Hz

RECOMMENDED AMPLIFIER OUTPUT

• 20 - 180 Watts

MOUNTING DEPTH

• 102 mm

OUTER DIMENSIONS (WXH)

• 220 x 320 mm

CUTTING OUT (WXH)

• 186 x 286 mm

WEIGHT

• 2.15 kg

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
