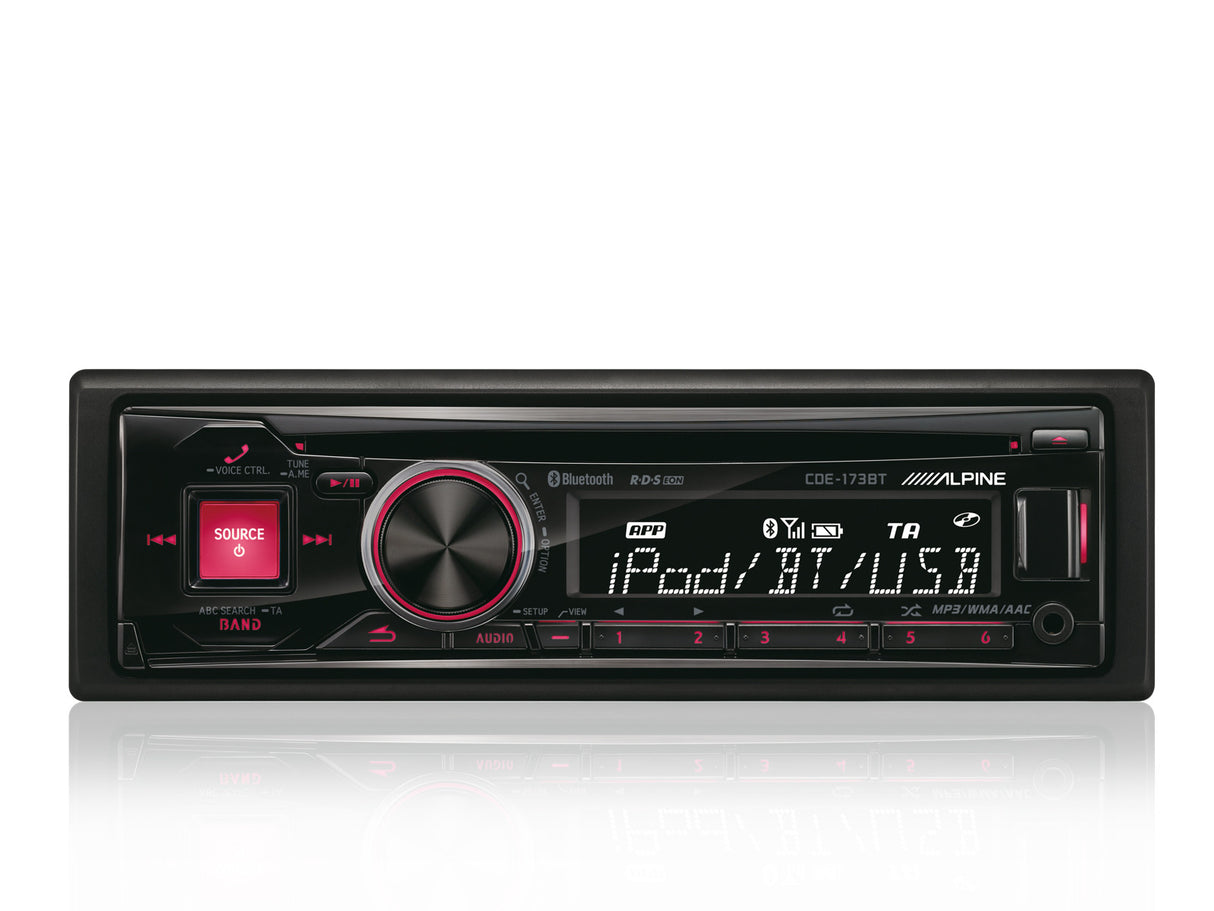

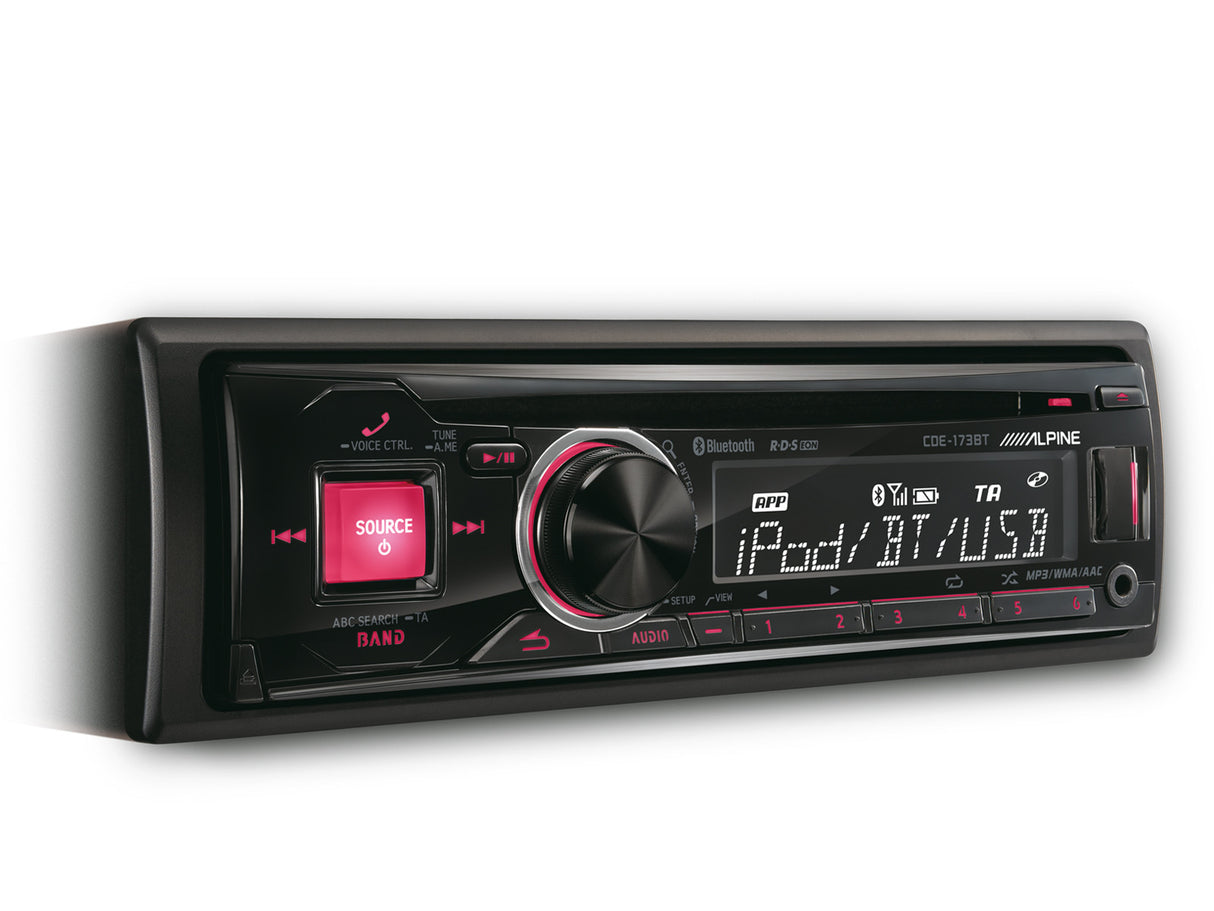

Car magnetola Alpine CDE-173BT, USB, AUX, BLUETOOTH

INFORMACIJA

Connect your iPod or iPhone via USB cable and control music playback and search directly from the digital media receiver.

• Maximum power: 4 x 50W
• Integrated: Bluetooth, hands-free function
• USB and AUX connectors
• Aux input: 1.4 V/10k ohms
• Weight: 1.5 kg
• Display: 14 segment white LCD
• USB Playback: MP3, WMA, AAC
• Front panel size: 170 x 46 x 25 mm

DESCRIPTION

Integrated Bluetooth® Plus: easier and more functional
Bluetooth® Plus is even more user-friendly, with enhanced and new features for phone use in the car.

Bluetooth® audio streaming
In addition to hands-free calling, Bluetooth® allows you to use your phone for wireless audio streaming.

Using this convenient feature, your phone connects wirelessly and you can listen to music files on your phone. In addition, you can listen to and switch between online radio station broadcasts and web radio streams, such as Spotify, TuneIn, AUPEO, Last FM, or Audible. With Alpine's fast and reliable Bluetooth® connection, the sound quality remains excellent as always.

New phone functions
Bluetooth® Plus allows you to hold and switch between 2 incoming calls. Five settings options improve call sound quality by reducing audio echo. Various indicator icons, such as battery charge or mobile signal strength, provide necessary information.

Improved phonebook functionality
Convenient new features include automatic phonebook updates and alphabetical contact search. You can also quickly scroll through the contact list or search for a contact by name.

Advanced media control
You can enjoy music files stored on your Bluetooth®-enabled phone. The player will display song, artist, and tag information. A fast, stable Bluetooth® connection always ensures the best sound quality.

Ability to connect portable HDDs
The power supply of this player provides up to 1A current for devices connected to the USB port, so you can connect portable USB HDD devices and enjoy your entire music collection in the car.

Fast iPhone charging
The faster you charge your iPhone, the better! The player provides up to 1A current during fast charging, so connect your iPhone to the USB and your battery will charge really fast.

Bass Engine functions
This player integrates a 10-preset equalizer. You can quickly select the setting that best suits the music you are listening to. For more detailed adjustment, a 3-band parametric equalizer is available.

Enjoy all the benefits of iPod and iPhone
The CDE-173BT player uses a high-speed USB connection, allowing you to enjoy the benefits of iPod and iPhone. This means not only excellent sound quality and easy control, but also fast music search by song title, artist, album, or other criteria.

Stay connected
Using the Alpine AppDirect function, you can hear music from any iPhone application through your car's sound system. Enjoy music or internet radio broadcasts.

FEATURES

Radio tuner

• Radio station memory: (FM:18/MW:6/LW:6)
• Automatic memory storage
• Search: Local / DX

• RDS functions: AF, TA, TP, PTY, EON, Radio Text

• Integrated BLUETOOTH® module
• Hands-free profile, Headset Profile (HSP) only works with phones that support this function
• Music streaming: A2DP (Advanced Audio Distribution Profile)
• Streamed music control: AVRCP (Audio/Video Remote Control Profile) compatible with ver.1.4
• BT Plus advanced BLUETOOTH technology
• Connection: SSP (Secure Simple Pairing)
• Phone book synchronization
• Contact search: alphabetical (3 letters)
• Speed dialing: 6 number memory
• Multiple phone registration: up to 3 phones can be registered
• Display of phone number type (mobile, home, office, other)
• Voice dialing
• Automatic answering
• Call waiting
• Call history display: Dialed/Received/Missed
• Call volume level adjustment for incoming and outgoing calls
• 5 echo cancellation settings
• GSM signal level display
• Phone battery charge level display
• Menu language selection: English, German, French, Italian, Spanish, Dutch, Russian
• Software update capability
• Microphone included

• Compatible with iPod/iPhone: iPod touch 4th/3rd/2nd/1st Gen., iPod nano 6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
• Connection: KCU-445i required (sold separately)
• Available selections: playlist, artist, album, song, podcast, genre, composer, audiobook
• Alphabetical search
• Percentage search
• App Direct function
• Direct up/down control: selectable playlist / artist / album / genre / composer / episode
• M.I.X. (mixing) options: song, album, all
• Repeat
• Battery charging

• Disc type: CD
• Playable discs: CD, CD-R/RW
• Playable files: CDDA, MP3, WMA, AAC
• M.I.X. (mixing): track / folder / all
• Repeat
• CD Text display
• CD Text title search
• Percentage search
• DAC: Multi Bit DAC

• USB connection on the front panel with 1000mA charging current limit and iPhone fast charging function
• Playable files: MP3, WMA, AAC
• USB type: storage device
• File / directory name search
• Percentage search
• Directory switching up / down
• M.I.X. (mixing): directory, all
• Repeat

• Bass Engine™
• Subwoofer volume control
• Subwoofer phase selection
• Subwoofer level adjustment
• Low pass filter
• High pass filter
• 3-band parametric equalizer
• Audio source frequency settings memory
• MediaXpander
• Power IC control system

• Maximum power: 4 x 50W
• Display: 14 segment white LCD
• Control: rotary encoder with push function

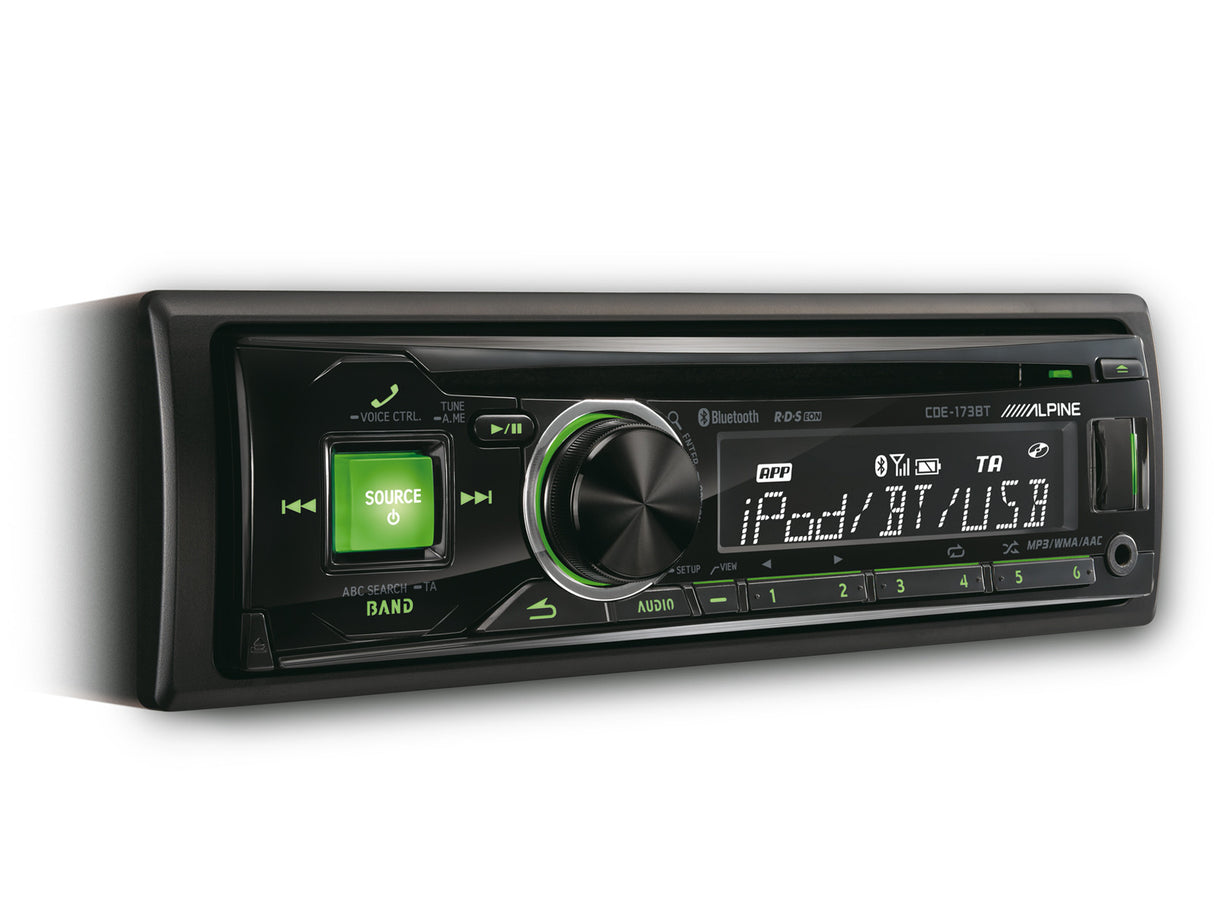

• Button illumination: selectable red or green illumination color
• 2 pairs of line outputs (2V, front + rear / subwoofer)
• AUX input 3.5mm mini jack on the front panel
• Steering wheel control ready
• Remote control ready
• Menu languages: English, German, French, Italian, Spanish, Dutch, Russian
• Removable DIN bezel
• Removable control panel
• Input for dimmer signal connection
• Automatic antenna control output
• Amplifier turn-on control output
• Input for audio mute signal connection

TECHNICAL DATA

Power

• Maximum power: 4 x 50W

• Frequency range: 87.5-108.0 MHz
• Mono sensitivity: 0.7 µV
• Channel separation: 80 dB
• Signal/noise ratio (S/N): 65 dB
• Stereo separation: 35 dB
• Reception ratio: 2 dB

• Frequency range: 531-1,602 kHz
• Sensitivity (IEC Standard): 25.1 / 28 (µV/dB)

• Frequency range: 153-281kHz
• Sensitivity (IEC Standard): 31.6 / 30 (µV/dB)

• Playable frequency range: 5 - 20k Hz (±1 dB)
• Total harmonic distortion (at 1kHz): 0.008 %
• Dynamic range (at 1kHz): 95 dB
• Audio signal/noise ratio: 105 dB
• Channel separation (at 1kHz): 85 dB
• Wow & Flutter (%WRMS): B.M.L.

• USB requirements: 1.1/2.0
• Current limit: 1,000 mA
• USB type: storage device
• File system: FAT 12/16/32
• MP3 decoding: MPEG Audio Layer-3
• WMA decoding: Windows Media™ Audio
• AAC decoding: AAC-LC Format ′′.m4a′′ File
• Number of channels: 2-channel (Stereo)
• Playable frequency range: 5-20 kHz ±1 dB (playable frequency range may vary depending on encoding software and compression ratio)
• Total harmonic distortion: 0.008% (at 1 kHz)
• Dynamic range: 95 dB (at 1 kHz)
• Audio signal/noise ratio: 105 dB
• Channel separation: 85dB (at 1kHz)
• BLUETOOTH®
• BLUETOOTH® version: Bluetooth V 3.0
• Output power: +4 dBm Max. (Power Class 2)
• HFP: (Hands-Free Profile)
• HSP: (Headset Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile) V1.4

• Subwoofer volume control from 0 to +15
• Subwoofer phase selection 0° or 180°
• Low pass filter: off, 60/80/120/160 Hz
• High pass filter: off, 60/80/120/160 Hz
• Bass level adjustment: from -7 to +7 dB
• Bass center frequency setting: 60/80/100/120 Hz
• Bass adjustment bandwidth setting (Q): 4 options (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
• Midrange level adjustment: from -7 to +7 dB
• Midrange center frequency setting: 500/1k/1.5k/2k Hz
• Midrange adjustment bandwidth setting (Q): 4 options (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
• Treble level adjustment: from -7 to +7 dB
• Treble center frequency setting: 7.5k/10k/12.5k/15k Hz
• Treble adjustment bandwidth setting (Q): 2 options (0.75=wide, 1.25=narrow)
• Application volume settings: from -14 to +14 dB

• Power supply 14.4 V DC (allowed 11 - 16 V)
• Line output voltage (before distortion): 2 V / 10k ohms
• Aux input: 1.4 V/10k ohms
• Maximum mounting angle: 35° from horizontal
• Weight: 1.5 kg

• DIN size: 1 DIN
• Chassis size (W x H x D) mm: 178 x 50 x 161 mm
• Front panel size (W x H x D) mm: 170 x 46 x 25 mm

DOCUMENTS

User manual (EN)
