Car magnetola Alpine CDE-195BT, USB, AUX, BLUETOOTH, TuneIt App

INFORMACIJA

Radio receiver with CD/USB and conveniently integrated advanced Bluetooth Plus wireless technology. Connect your iPod or iPhone via USB cable and control music playback and search directly with the digital media receiver. Alpine TuneIt App allows you to conveniently change all audio settings and share this information using your smartphone, as well as receive notifications about incoming Facebook messages. BassEngine SQ with 24-Bit DAC ensures the highest sound quality.

• Maximum power: 4 x 50W
• Integrated: Bluetooth v2.1 + EDR, hands-free function
• USB and AUX connections
• Weight: 1.4 kg
• USB Playback: MP3, WMA, AAC
• Front panel size: 169.8 x 45.8 x 24 mm
• If the car has an engine Start-Stop system, music will continue to play even when the car engine stops at an intersection.
• The player is ready for control via a multi-functional steering wheel, allowing convenient use of the player in many cars.

DESCRIPTION

Adjust sound, get Facebook updates
Download the Alpine TuneIt App for your smartphone and connect your iPhone via USB cable or your Android phone via Bluetooth. Now you can adjust the sound system settings with your phone. If you are connected to Facebook, the app will display notifications about incoming messages on both your phone and the player screen. More information can be found in the Alpine TuneIt App section.


3-way crossover

By adjusting the crossovers, you can select HPF (low-pass filter) or LPF (high-pass filter) settings for each band, as well as select the appropriate attenuation coefficient. Settings must be made according to the characteristics of the system's speakers. Depending on the system's speaker configuration, passive filters may not be necessary. If you need more advice on these settings, please contact Alpine representatives.

Integrated Bluetooth provides many advantages
The player has integrated Bluetooth®, allowing you to use hands-free and other convenient and useful functions: hold or switch incoming calls, update your phone's address book data or quickly find a desired contact, stream music and switch desired songs. When you first connect your iPhone via USB cable, Bluetooth settings will be configured automatically.

BASS ENGINE SQ
The BASS button directly activates advanced bass control functions. Choose one of six settings, and the crossovers, Q parameter, and subwoofer gain level will be automatically adjusted for optimal sound.

Listen to your favorite music using smartphone apps!
App Direct - the next step in Alpine player / iPhone integration. Connect your iPhone via USB and use App Direct to hear the sound of many smartphone apps through your car's audio system. Choose music streaming, internet radio stations, or game sounds - you'll hear it all through your car's audio system while fully controlling your iPhone.

Take advantage of all iPod and iPhone features
The CDE-195BT player uses a high-speed USB connection, allowing you to enjoy the benefits of iPod and iPhone. This means not only excellent sound quality and easy control, but also fast music search by song title, artist, album, or other criteria.

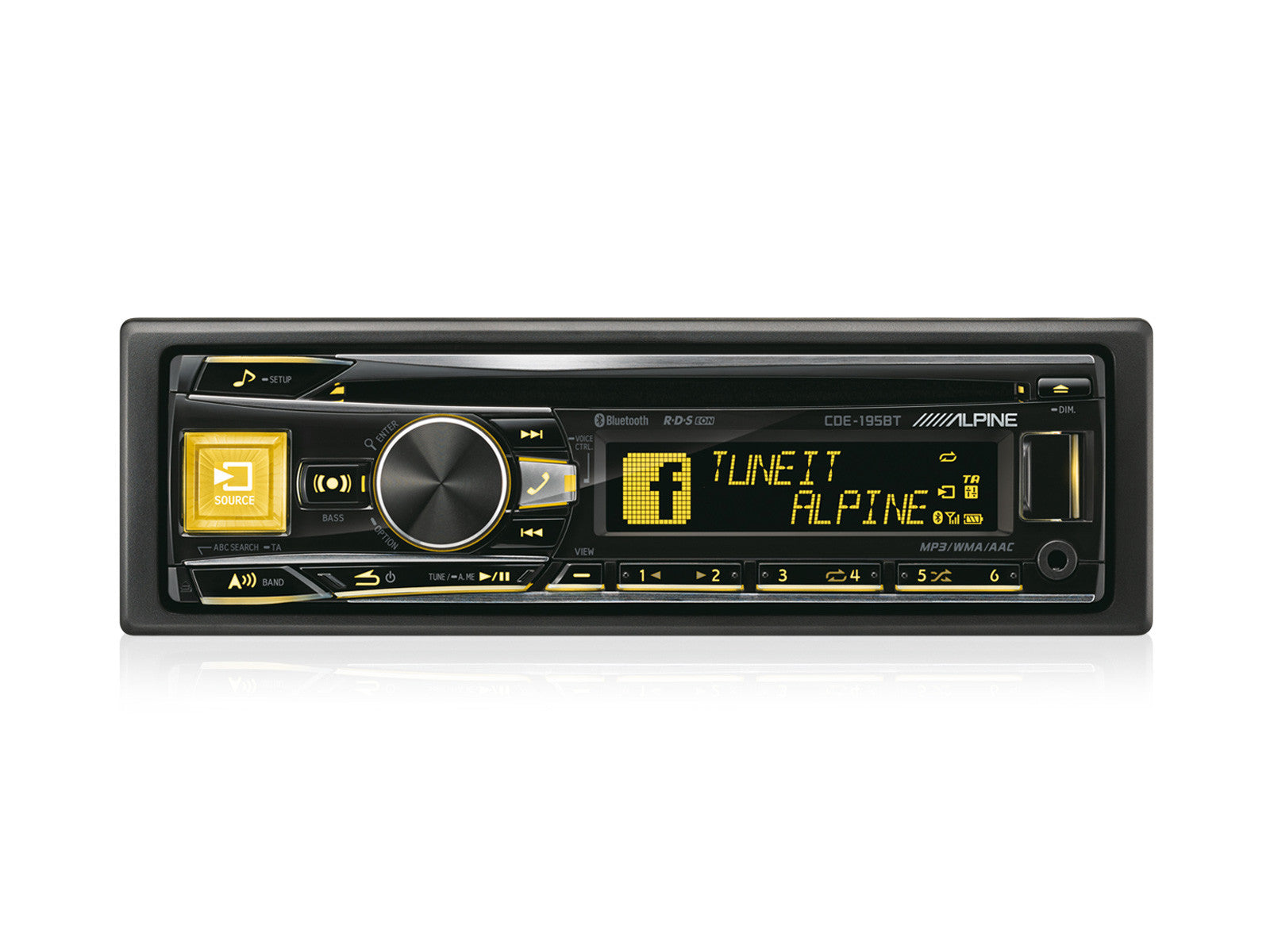

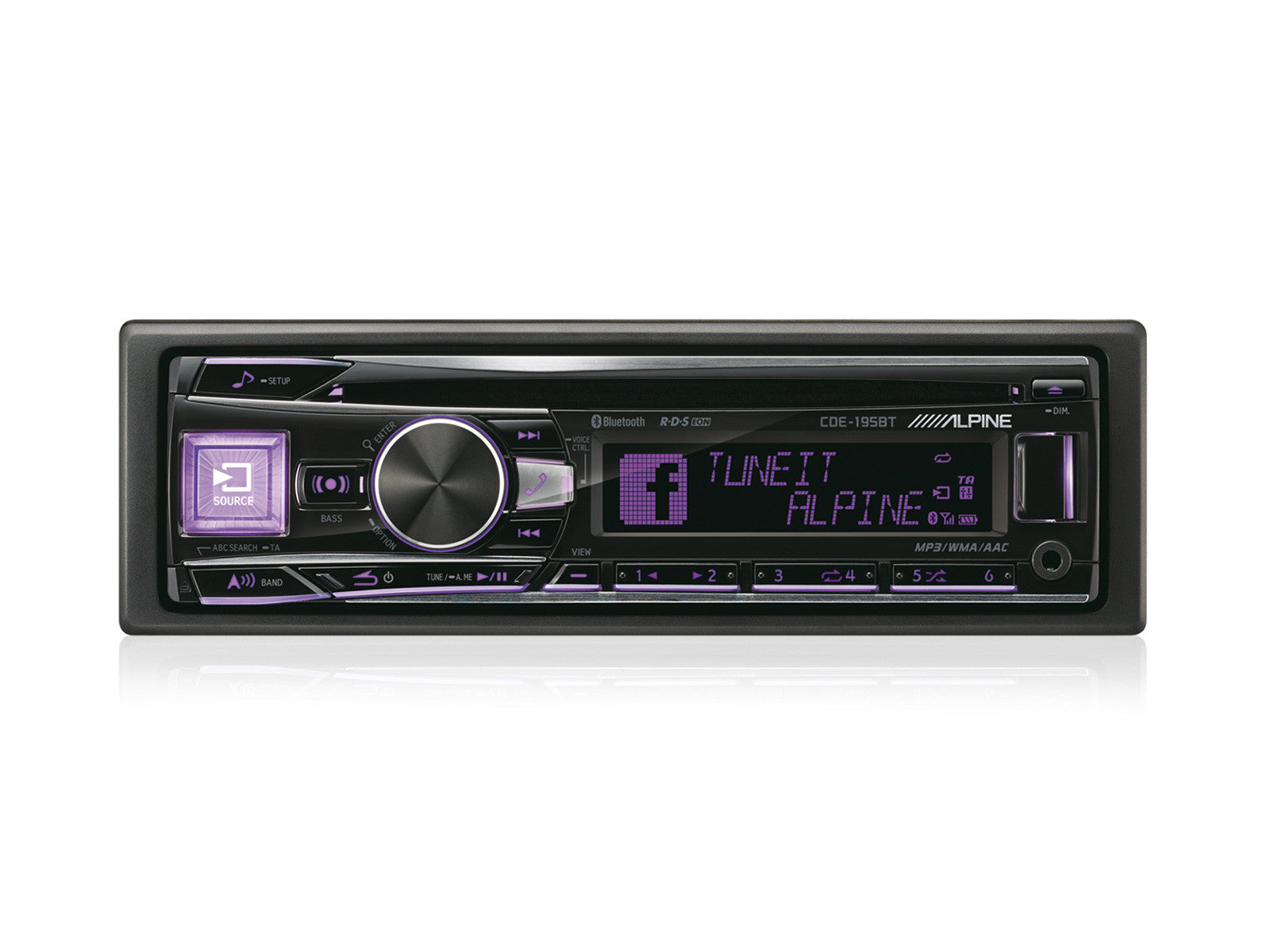

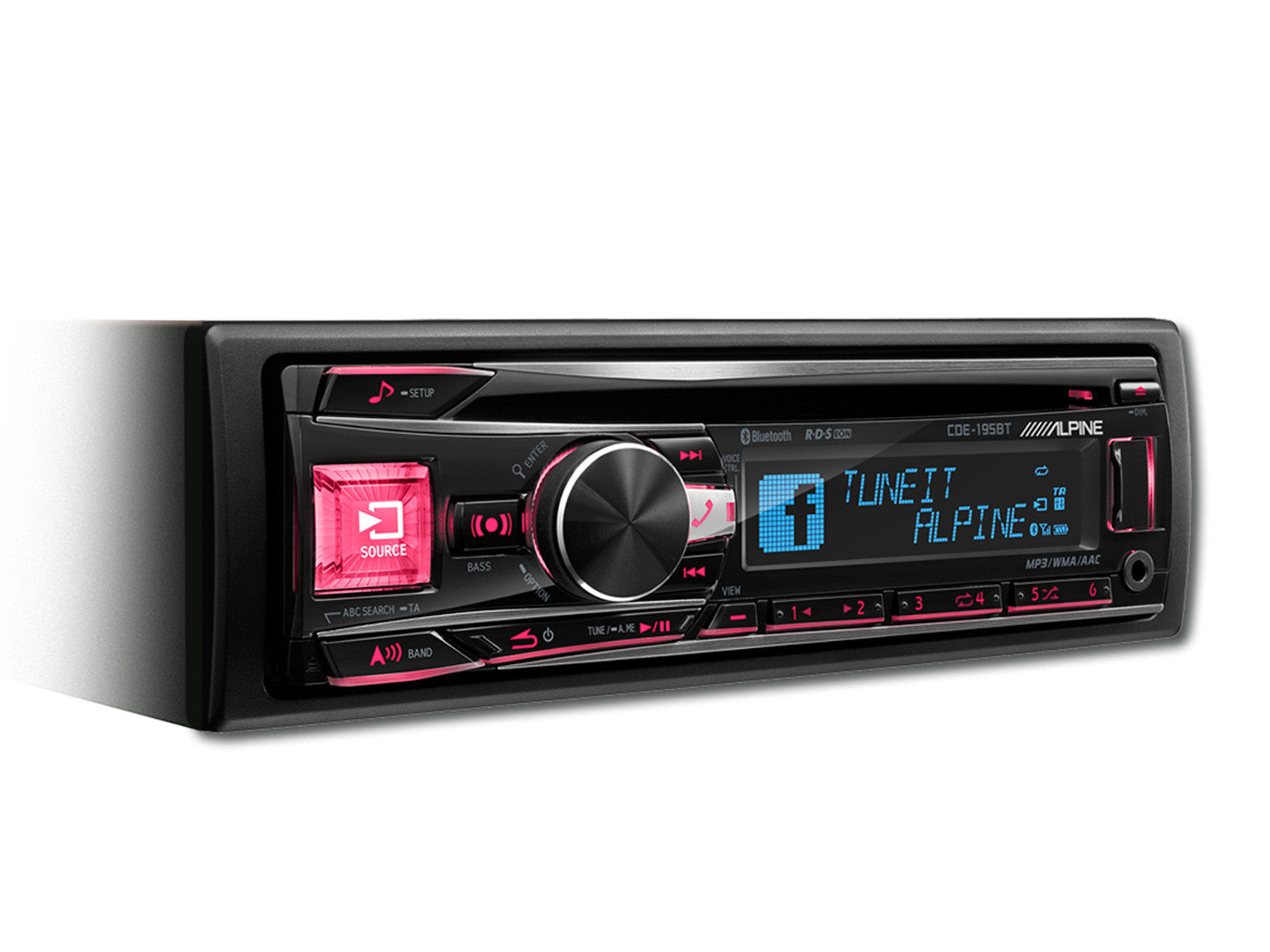

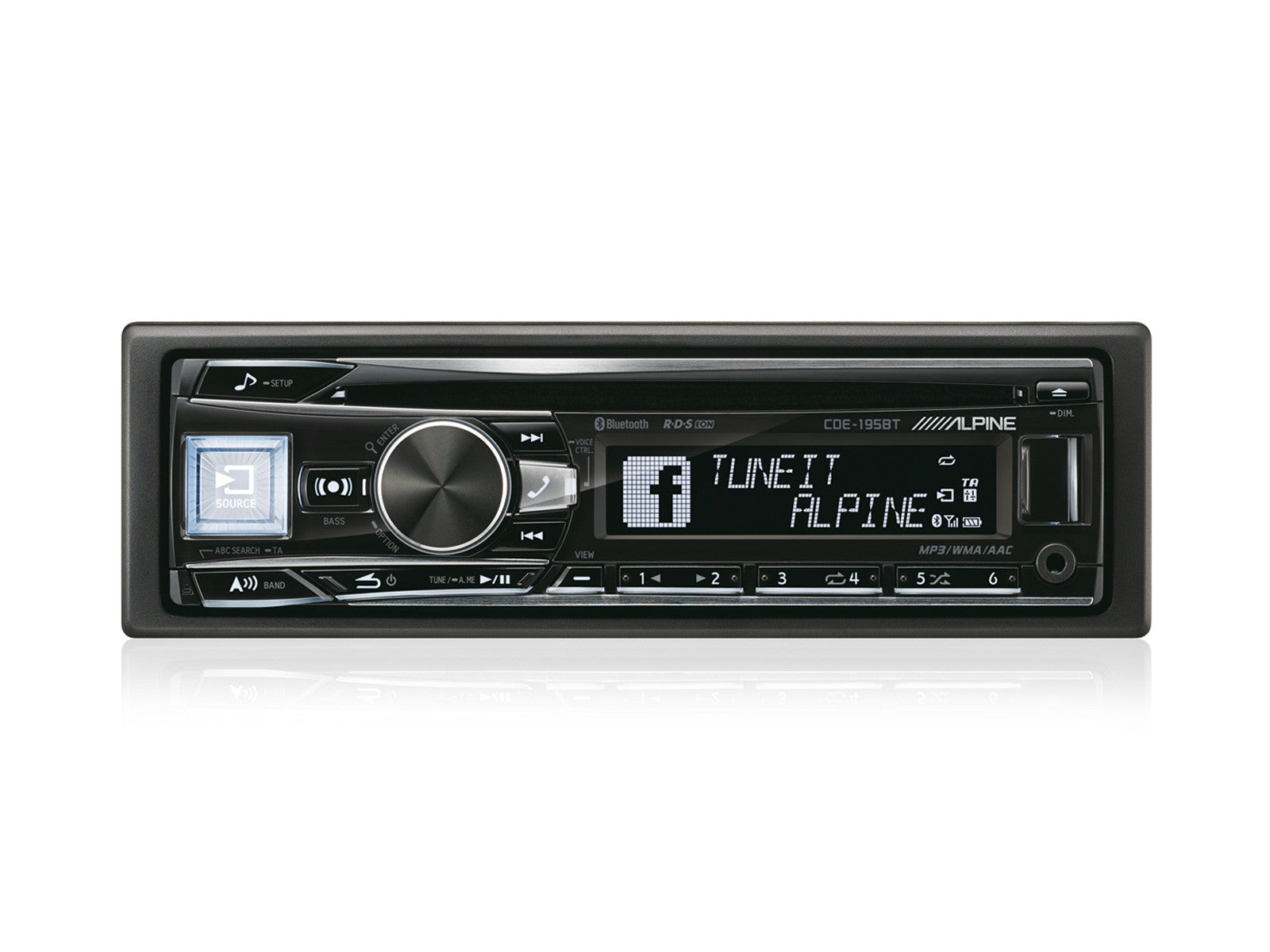

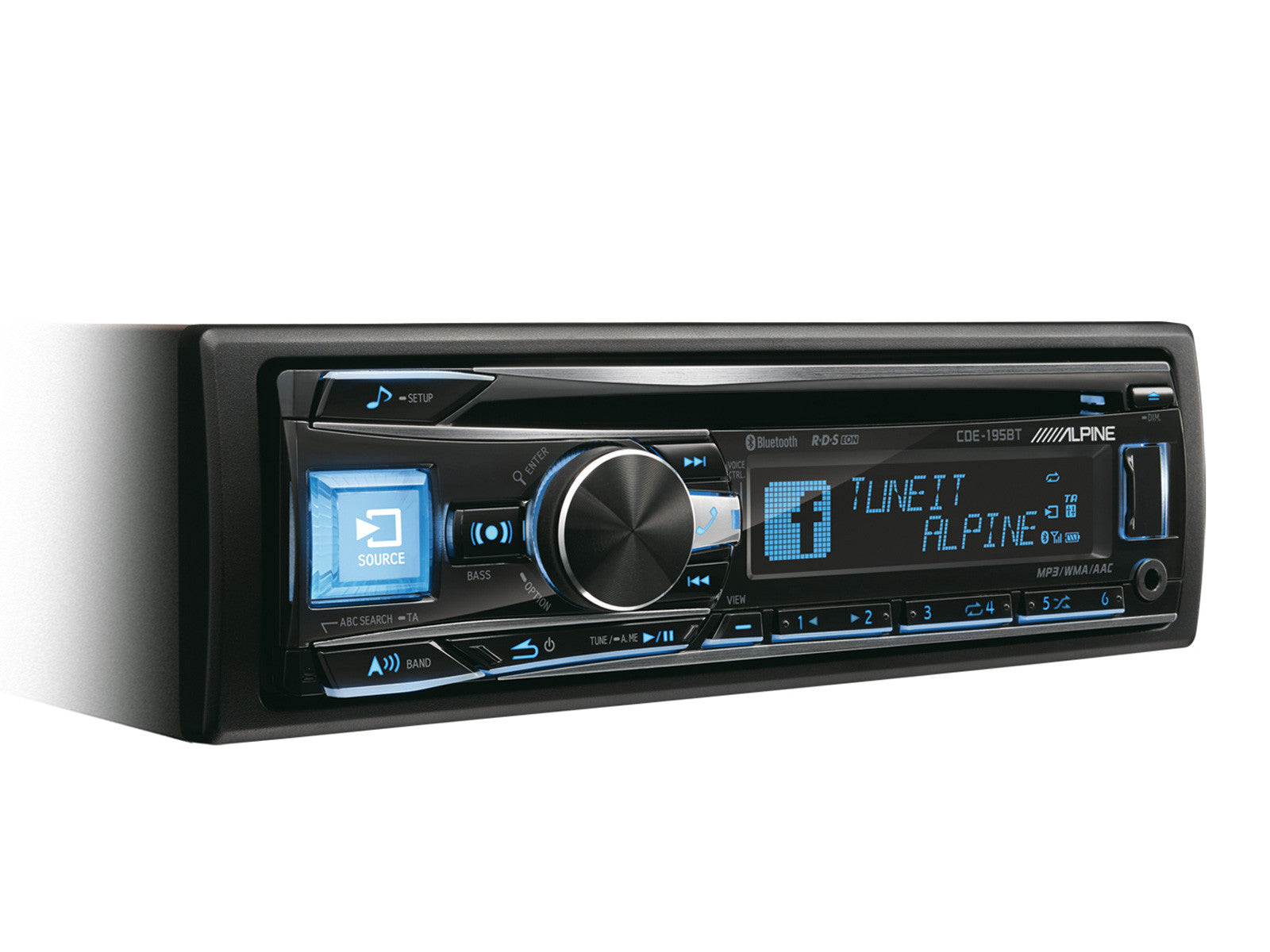

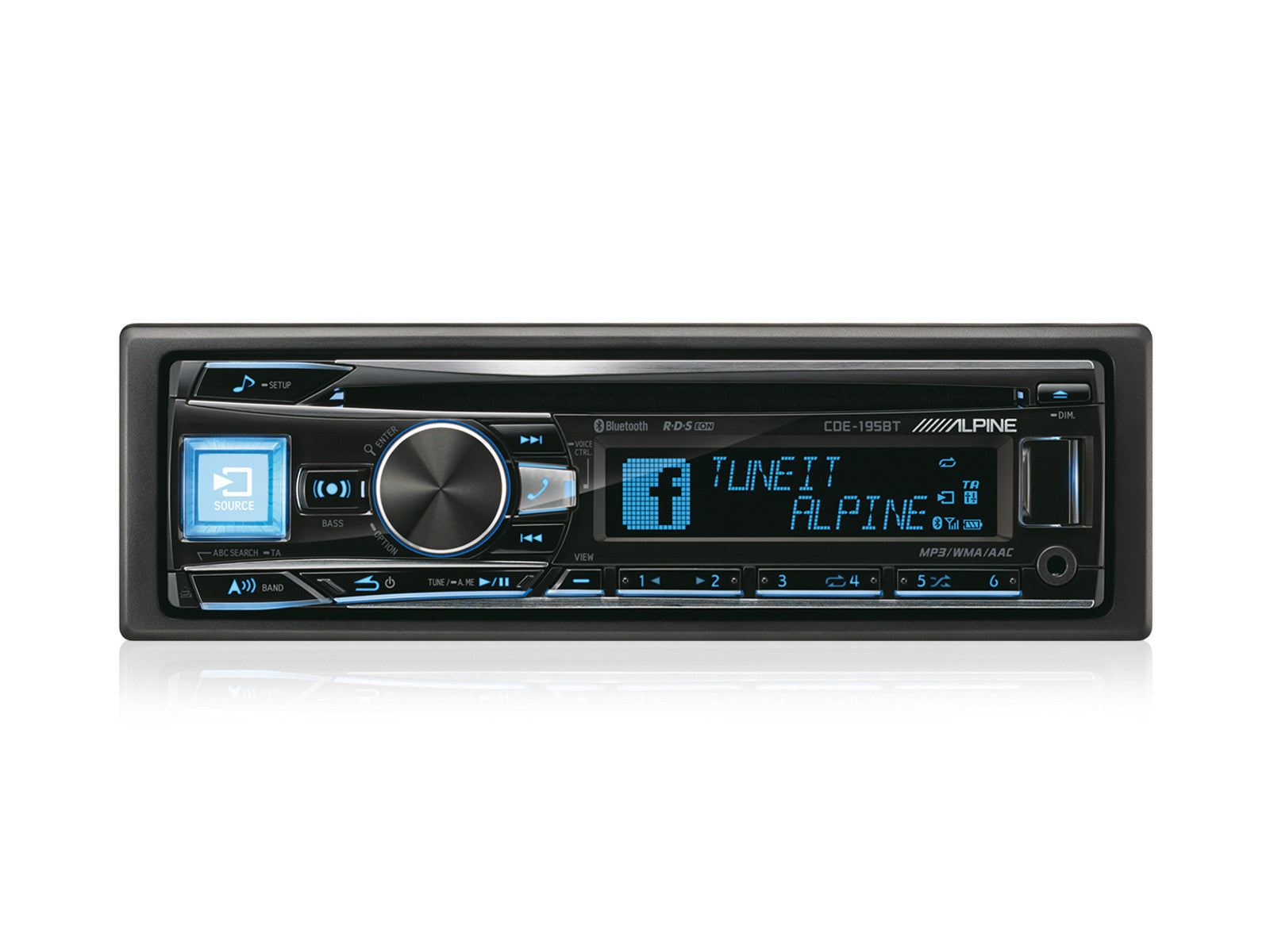

Illumination settings create a world of color
Illumination settings are not limited to a few color choices. You can simply wander through a world of more than 150,000 colors and shades and choose the most suitable lighting option for you. There are also many quick setting options. You can select screen and button illumination colors separately, allowing you to match the player to the interior of different car models, e.g., VW red control buttons and a blue screen.

Siri voice control
Activate Siri on your iPhone 4S / iPhone 5 / iPhone 6 or 6 Plus with a button and control music playback or calls by voice. Voice control will also work for Android phones with voice control functionality.

FEATURES

• Radio station memory: (FM:18/MW:6/LW:6)
• Automatic memory storage
• Search: Local / DX

• RDS functions: AF, TA, TP, PTY, EON, Radio Text+
• PTY (Programme Type) display

• Integrated BLUETOOTH® module
• Hands-Free Profile
• Music streaming: A2DP (Advanced Audio Distribution Profile)
• Streaming music control: AVRCP (Audio/Video Remote Control Profile) compatible with ver.1.4
• BT Plus advanced BLUETOOTH technology
• Connection: SSP (Secure Simple Pairing)
• Phone book synchronization
• Contact search: alphabetical (3 letters)
• Speed dial: 6 number memory
• Multiple phone registration: up to 5 phones can be registered
• Phone number type display (mobile, home, office, other)
• iPhone voice control
• Auto answer
• Call waiting
• Call history display: dialed/received/missed
• Speech volume level adjustment for incoming and outgoing calls
• 5 echo cancellation settings
• GSM signal level display
• Phone battery charge level display
• Speaker selection for call transmission
• Menu language selection: English, German, French, Italian, Spanish, Dutch, Russian
• Software update capability
• Microphone included

• Compatible with iPod/iPhone: iPod touch 5G/4G/3G/2G/1G, iPod nano 7G/6G/5G/4G/3G, iPod classic 160GB/120GB/80GB, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
• Connection: KCU-445i required (iPods / iPhones with 30-pin connector, sold separately)
• Available selections: playlist, artist, album, song, podcast, genre, composer, audiobook, mix
• Alphabetical search
• Percentage search
• App Direct function
• M.I.X. (mix) capabilities: song, album
• Repeat
• Battery charging
• iPhone: automatic Bluetooth settings synchronization when connected via USB

• Alpine TuneIt App for iPhone and Android
• Audio parameter settings
• Transfer audio parameter settings to Alpine Cloud server (share settings information)
• Facebook notifications
• Compatible with iPhone and Android smartphones: available for download from Apple App Store and Google Play Store

• Disc type: CD
• Playable discs: CD, CD-R/RW
• Playable formats: CDDA, MP3, WMA, AAC
• M.I.X. (mix)
• Repeat
• CD Text display
• CD Text title search
• Percentage search
• DAC: 24 bit DAC
• Zero data Mute
• Digital Servo

• USB connection on the front panel
• Playable formats: MP3, WMA, AAC
• USB type: storage devices
• File / directory name search
• Directory switching up / down
• M.I.X. (mix): directory, all
• Repeat

• Subwoofer level adjustment
• BassEngine
• BassEngine SQ
• Subwoofer phase selection
• Subwoofer system selection
• Preset equalizer adjustment
• Equalizer settings: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• 9-band parametric equalizer
• Digital time correction
• Digital filter settings: 2-way / 3-way system
• Application sound volume settings
• MediaXpander
• Power IC control system
• Alpine TuneIt App readiness

• Maximum power: 4 x 50W
• LCD display: two-line 14-segment RGB LCD display
• Control: knob with push function
• Panel color: black
• Selectable RGB button illumination
• Selectable RGB screen illumination
• Separately selectable screen and button illumination colors
• 3 pairs of line outputs (2V, front / rear / subwoofer)
• DAC: 24-bit DAC
• AUX input 3.5mm mini jack connector on the front panel
• Steering wheel control readiness
• Mute: -20dB (activated / deactivated only by remote control)
• Remote control readiness
• Menu languages: English, German, French, Italian, Spanish, Dutch, Russian
• Clock
• Software update via USB
• Removable DIN frame
• Removable control panel
• Input for dimmer signal connection
• Automatic antenna control output
• Amplifier turn-on control output
• Adapted for cars with Start-Stop engine system
• Voice control (activating SIRI)

TECHNICAL DATA

Power

• Maximum power: 4 x 50W

• Frequency range: 87.5-108.0 MHz
• Mono sensitivity: 0.7 µV
• Channel separation: 80 dB
• Signal-to-noise ratio (S/N): 65 dB
• Stereo separation: 35 dB
• Reception ratio: 2 dB

• Frequency range: 531 - 1,602 kHz
• Sensitivity (IEC standard): 25.1 μV / 28 dB

• Frequency range: 153k - 281k Hz
• Sensitivity (IEC standard): 31.6 μV / 30 dB

• Reproducible frequency range: 5 - 20k Hz (±1 dB)
• Total harmonic distortion (at 1kHz): 0.008 %
• Dynamic range (at 1kHz): 95 dB
• Audio signal / noise level: 105 dB
• Channel separation (at 1kHz): 85 dB
• Wow & Flutter (%WRMS): B.M.L.

• USB requirements: 1.1/2.0
• Current limit: 1,000 mA
• USB type: memory device
• File system: FAT 12/16/32
• MP3 decoding: MPEG Audio Layer-3
• WMA decoding: Windows Media™ Audio
• AAC decoding: AAC-LC Format ′′.m4a′′ File
• Number of channels: 2-channel (Stereo)
• Reproducible frequency range: 5-20 k ±1 dB (reproducible frequency range may vary depending on encoding software and compression ratio)
• Total harmonic distortion: 0.008% (at 1 kHz)
• Dynamic range: 95 dB (at 1 kHz)
• Audio signal / noise level: 105 dB
• Channel separation: 85dB (at 1kHz)

• BLUETOOTH version: Bluetooth v2.1 + EDR
• Output power: +4 dBm Max. (power class 2)
• HFP: (hands-free profile)
• HSP: (headset profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile) V1.4
• OPP
• PBAP (phone book access)
• SPP (simple secure pairing)

• Subwoofer volume adjustment from 0 to +15
• Subwoofer phase selection 0° or 180°
• Bass Engine SQ: steps 0 – 6
• Bass boost adjustment range: ±9.1dB at 100Hz
• Treble boost adjustment range: ±9.1dB at 10kHz
• Parametric equalizer (1 band): 20 - 100 Hz
• Parametric equalizer (2 band): 63 - 315 Hz
• Parametric equalizer (3 band): 125 - 500 Hz
• Parametric equalizer (4 band): 250 - 1k Hz
• Parametric equalizer (5 band): 500 - 2k Hz
• Parametric equalizer (6 band): 1k - 4k Hz
• Parametric equalizer (7 band): 2k - 7.2k Hz
• Parametric equalizer (8 band): 5.8k - 12k Hz
• Parametric equalizer (9 band): 9k - 20k Hz
• Parametric equalizer (gain): -7 to +7 dB
• Parametric equalizer (bandwidth adjustment): 3, 4, 5
• 2-way crossover: crossover frequency 20-200Hz, slope off/6/12/18/24 dB/oct, level from -12 to 0dB
• 3-way crossover: crossover frequencies 20-800Hz (low/mid), 20-20kHz (mid/high), 1k-20kHz (high), slope off/6/12 dB/oct, level from -12 to 0dB
• Application sound volume settings: ±14 dB

• Power supply voltage 14.4 V DC (allowed 11 - 16 V)
• Line output voltage (before distortion): 2 V / 10k ohms
• Aux input: 1.4 V/10k ohms
• Operating temperature: from 60 °C (140 °F) to -10 °C (14 °F)
• Maximum mounting angle: 35° from horizontal
• Weight: 1.4kg

• 1 DIN
• Chassis size (W x H x D) mm: 178 x 50 x 164.7 mm
• Front panel size (W x H x D) mm: 169.8 x 45.8 x 24 mm

DOCUMENTS

User Manual
