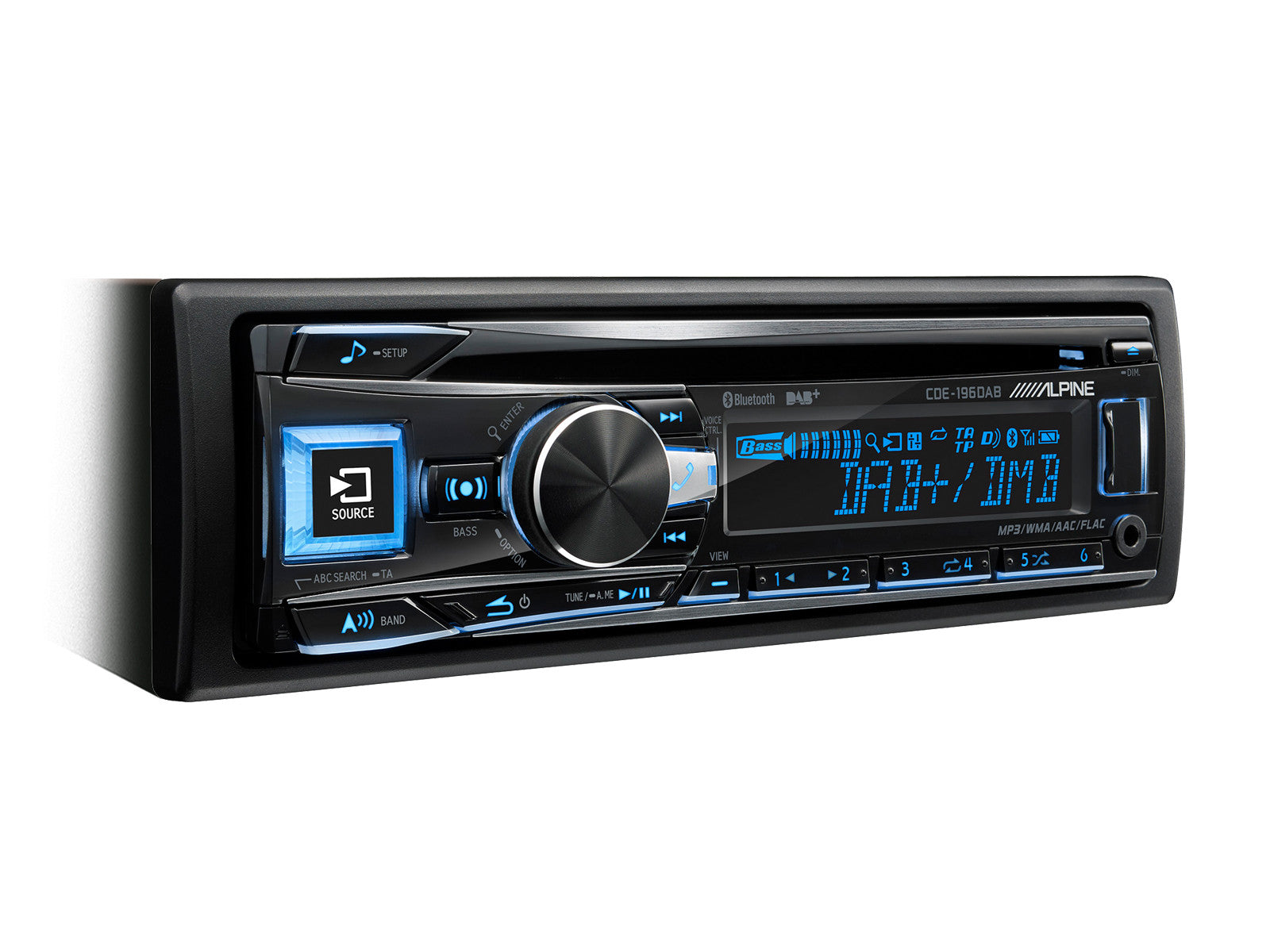

Car stereo Alpine CDE-196DAB, USB, AUX, BLUETOOTH, DAB+

INFORMACIJA

Features a customizable welcome message on startup, 3-way crossover filters, professional sound equalizer, and digital time correction. You can even individually select the button and display lighting color from 150,000 color options.

• Maximum power: 4 x 50W
• Integrated: Bluetooth v2.1 + EDR, hands-free function
• USB and AUX connections
• Weight: 1.4 kg
• USB Playback Formats: MP3, WMA, AAC
• Front panel size: 170 x 46 x 25 mm
• If your car has an engine start-stop function, the player will be perfect for you, as it will continue to operate even when the engine temporarily stops at intersections.
• The player is ready for control via multi-function steering wheel buttons, found in almost every car.

DESCRIPTION

Adjust sound, get Facebook news
Download the Alpine TuneIt App for your smartphone and connect your iPhone via USB cable or an Android phone via Bluetooth. Now you can adjust sound system settings from your phone. If you're logged into Facebook, the app will display news alerts on both your phone and the player screen. More information can be found in the Alpine TuneIt App section.


3-way Crossover Filter

This player features active crossover filters. Crossover filters limit the frequency bands of output signals. The crossover filters for each channel are adjusted separately. This way, the filters can be tuned so that each pair of speakers receives an optimal signal.

The crossover filter for each band adjusts the HPF (high-pass filter) or LPF (low-pass filter) and also the damping coefficient. Adjustments must be made according to the speaker characteristics. Depending on the speakers, passive filters may become unnecessary. If you have questions about these settings, please contact your Alpine dealer.

Built-in DAB, DAB+ and DMB Tuners

The unit lets you enjoy radio with excellent digital sound quality via its built-in DAB, DAB+ and DMB tuners. It provides Service Search and automatic switching between DAB and RDS (depending on regional availability). It also has a DAB antenna power supply. A compatible DAB Antenna is required.

Expand your music selection with USB and AUX input

Front ConnectorsExpand your music selection by connecting your USB storage device to the USB port on the panel. There is also a 3.5mm mini jack socket for connecting an MP3 player.

Features and Technologies - for Exceptional Sound Quality

The player incorporates our best components and technologies - BassEngine Pro features - digital time correction, 9-band parametric equalizer, factory equalizer presets, crossover filters, 24-Bit DAC, and three pairs of 2V line outputs.

Illumination Brightness

Customisable Opening ScreenSet the most suitable brightness for the main button illumination - choose from 5 possible brightness levels.

Create your own welcome message

You can easily create your own player welcome message (up to 10 characters). Personalize your player - write down your car model, your name, or simply HELLO.

Integrated Bluetooth offers many advantages
The player has integrated Bluetooth®, so you can use hands-free and other convenient and useful functions: hold or switch incoming calls, update your phone's address book data, quickly find a contact, stream music and switch desired songs. When connecting an iPhone via USB cable for the first time, the Bluetooth setup process will automatically start.

BASS ENGINE SQ
The BASS button, located next to the central control knob, directly activates advanced bass adjustment functions. Select one of six settings, and the player will automatically adjust the crossover filters, damping coefficient, and subwoofer level for optimal sound quality and frequency balance.

Listen to your favorite music using smartphone apps!
App Direct - the next step in Alpine player / iPhone integration. Connect your iPhone via USB and use App Direct to hear the sound of many smartphone apps through your car's audio system. Choose music streaming, internet radio stations, or game sounds - all this can be heard through your car's audio system, while fully controlling your iPhone.

Enjoy all the benefits of iPod and iPhone
This player uses a high-speed USB connection to let you enjoy the benefits of iPod and iPhone. This means not only excellent sound quality and easy control, but also fast music search by song title, artist, album or other criteria.

Illumination settings create a world of color
Different illumination does not limit the lighting choice to just a few colors. You can choose the most suitable from 150,000 colors. Several color combinations are prepared for your convenience. The display and button illumination colors can be set separately, thus adapting the player to the car's style, for example, VW red buttons and blue display illumination.

Siri Voice Control
Activate Siri on your iPhone 4S / iPhone 5 / iPhone 6 / 6S or 6 Plus / 6S Plus with the voice control button and control your phone by voice. Also works with Android phones that have voice control functionality.

FEATURES

• Station Presets: (FM:18/MW:6/LW:6)
• Automatic Memory Storage
• Search Mode: Local / DX Selection

• RDS Functions: TA, TP, PTY, EON, Radio Text+
• PTY (Programme Type) Display

• DAB Tuner Built-in
• DAB+/DMB Supported
• Service Preset: 18 Preset Memory (6 services for each band, DAB 1/2/3)
• Auto Ensemble/Service Memory
• RDS Fallback (where available)
• Service Search Function
• PTY Search Function
• Antenna Power Supply Selection
• A compatible DAB Antenna is required.

• Built-in BLUETOOTH® Module
• Hands-Free Profile (HFP), Head Set Profile (HSP) only works with phones that support this function
• Music Streaming: A2DP (Advanced Audio Distribution Profile)
• Music Streaming Control: AVRCP (Audio/Video Remote Control Profile) compatible with ver.1.4
• BT Plus Advanced BLUETOOTH Technology
• Connection: SSP (Secure Simple Pairing)
• Phone Book Synchronization
• Contact Search: Alphabetical (3 letters)
• Speed Dial: 6 Number Memory
• Multiple Phone Registration: up to 5 phones can be registered
• Display of Phone Number Type (mobile, home, office, other)
• Voice Dialing
• Auto Answer
• Call History Display: Dialed/Received/Missed Calls
• Speaking Volume Level Adjustment for Incoming and Outgoing Calls
• 5 Echo Cancellation Settings
• GSM Signal Level Display
• Phone Battery Charge Level Display
• Speaker Selection
• Menu Language Selection: English, German, French, Italian, Spanish, Dutch, Russian
• Software Update via USB
• Microphone Included

• Compatible with iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPhone6Plus,iPhone6, iPhone 5S, iPhone 5, iPhone 5C, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
• Connection: KCU-445i (for iPhone/iPod with 30-pin connector) or KCU-471i (for iPhone/iPod with Lightning connector) required
• Available Selections: playlist, artist, album, song, podcast, genre, composer, audiobook
• Alphabetical Search
• Percentage Search
• App Direct Function
• Direct Up / Down Control: selectable playlist / artist / album / genre / composer / episode
• M.I.X. (Shuffle) Capabilities: song, album, all
• Repeat
• Battery Charging

• Sound Setting Adjustment
• Sound Setting Data Upload to "Cloud" Server (data sharing)
• Facebook Notifications
• Works with iPhone and Android smartphones
• Downloadable from Apple App Store and Google Play Store

• Disc Type: CD
• Playable Discs: CD, CD-R/RW
• Playable Formats: CDDA, MP3, WMA, AAC
• M.I.X. (Shuffle)
• Repeat
• CD Text Display
• CD Text Name Search
• Percentage Search
• DAC: 24 bit DAC
• Zero data Mute
• Digital Servo

• USB Connection on Front Panel
• Playable Formats: FLAC, MP3, WMA, AAC
• USB Type: Mass Storage Device
• File / Folder Name Search
• Folder Up / Down Change
• M.I.X. (Shuffle): folder, all
• Repeat

• Subwoofer Volume Control
• Bass Engine SQ
• Subwoofer Phase Selection 0°/ 180°
• Subwoofer Level Adjustment
• Low Pass Filter
• High Pass Filter
• Factory Equalizer Presets
• Preset Equalizer Settings: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
• 9-Band Graphic Equalizer
• Digital Time Correction
• Digital Crossover Filter System: 2-way or 3-way system
• Application Sound Volume Adjustment
• MediaXpander
• Power IC Control System

• Maximum Power Output: 4 x 50W
• Display LCD: two-line 13 segment RGB LCD display
• Control: rotary encoder with push function
• Panel Color: black
• Selectable RGB Button Illumination
• Selectable RGB Display Illumination
• Separately Selectable Display and Button Illumination Colors
• Source Switch Button with Adjustable Brightness Illumination
• Customizable Welcome Message
• 3 Pairs of Line Outputs (2V, front / rear / subwoofer)
• DAC: 24-bit DAC
• AUX Input 3.5mm Mini Jack on Front Panel
• Steering Wheel Remote Control Ready
• OEM Display Connection Ready
• Dimmer: 4 levels
• Mute: -20dB (activated / deactivated only via remote control)
• Remote Control Ready
• Menu Languages: English, German, French, Italian, Spanish, Dutch, Russian
• Clock
• Software Update via USB
• Removable DIN Trim Plate
• Removable Control Panel
• Input for Dimmer Signal Connection
• Power Antenna Lead
• Remote Turn-On Lead
• Compatible with cars with Start-Stop engine system

TECHNICAL SPECIFICATIONS

• Maximum Power Output: 4 x 50W

• Frequency Range: 87.5-108.0 MHz
• Mono Sensitivity: 0.7 µV
• Channel Separation: 80 dB
• Signal to Noise Ratio (S/N): 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

• Frequency Range: 531-1,602 kHz
• Sensitivity (IEC Standard): 25.1 / 28 (µV/dB)

• Frequency Range: 153-281kHz
• Sensitivity (IEC Standard): 31.6 / 30 (µV/dB)

• Frequency Response: 5 - 20k Hz (±1 dB)
• Total Harmonic Distortion (at 1kHz): 0.008 %
• Dynamic Range (at 1kHz): 95 dB
• Audio Signal to Noise Ratio: 105 dB
• Channel Separation (at 1kHz): 85 dB
• Wow & Flutter (%WRMS): B.M.L.

• USB Requirements: 1.1/2.0
• Current Limit: 1,000 mA
• USB Type: Mass Storage Device
• File System: FAT 12/16/32
• FLAC Decoding: Free Lossless Audio Codec format
• MP3 Decoding: MPEG Audio Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: AAC-LC Format ′′.m4a′′ File
• Number of Channels: 2-channels (Stereo)
• Frequency Response: 5-20 k ±1 dB (frequency response may vary depending on encoding software and compression level)
• Total Harmonic Distortion: 0.008% (at 1 kHz)
• Dynamic Range: 95 dB (at 1 kHz)
• Audio Signal to Noise Ratio: 105 dB
• Channel Separation: 85dB (at 1kHz)

• BLUETOOTH® Version: Bluetooth v2.1 + EDR
• Output Power: +4 dBm Max. (Power Class 2)
• HFP: (Hands-Free Profile)
• HSP: (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile) V1.4
• OPP
• PBAP (Phone Book Access Profile)
• SPP (Simple Secure Pairing)

• Subwoofer Volume Control: 0 to +15
• Subwoofer Phase Selection: 0° or 180°
• BASS ENGINE SQ: steps 0 - 6
• Bass Boost Control Range: ±9.1dB at 100Hz
• Treble Boost Control Range: ±9.1dB at 10kHz
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -7 to +7 dB
• Parametric Equalizer (Bandwidth): 3, 4, 5
• 2-Way Crossover Filter Settings: frequency settings 20-200HZ, slope off, 6, 12, 18, 24 dB/oct, level from -12 to 0 dB
• 3-Way Crossover Filter Settings: frequency settings low / low-mid 20-800Hz / mid-high 20-20kHz / high 1k-20kHz, slope off, 6, 12, 18, 24 dB/oct, level from -12 to 0 dB
• Application Sound Volume Adjustment: ±14 dB

• Power Requirement: 14.4 V DC (11 - 16 V allowable)
• Pre Output Voltage (Before Clipping): 2V / 10k ohms
• Aux Input: 1.4V / 10k ohms
• Maximum Mounting Angle: 35° from Horizontal
• Weight: 1.4 kg

• Din Size: 1 DIN
• Chassis Size (W x H x D) mm: 178 x 50 x 161.5 mm
• Face Plate Size (W x H x D) mm: 170 x 46 x 25 mm

DOCUMENTS

User Manual
