Marantz  |  Bar code: 4951035045084

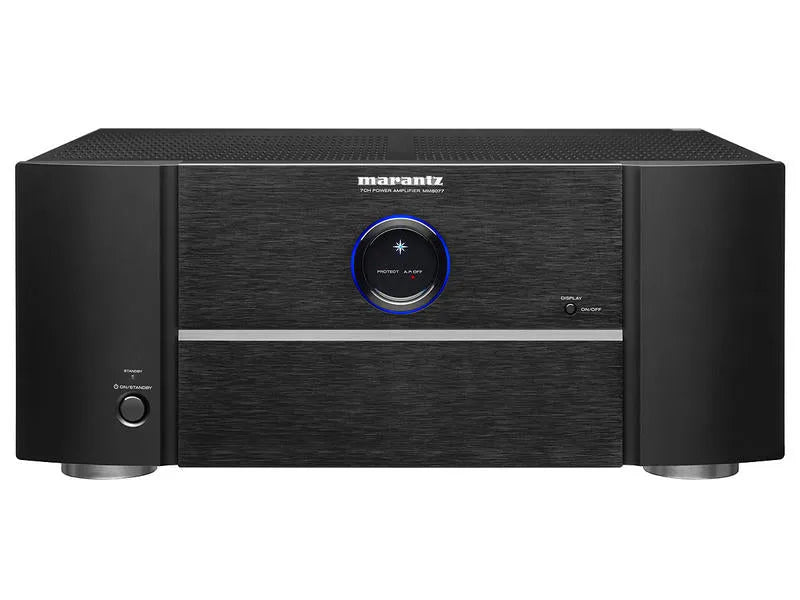

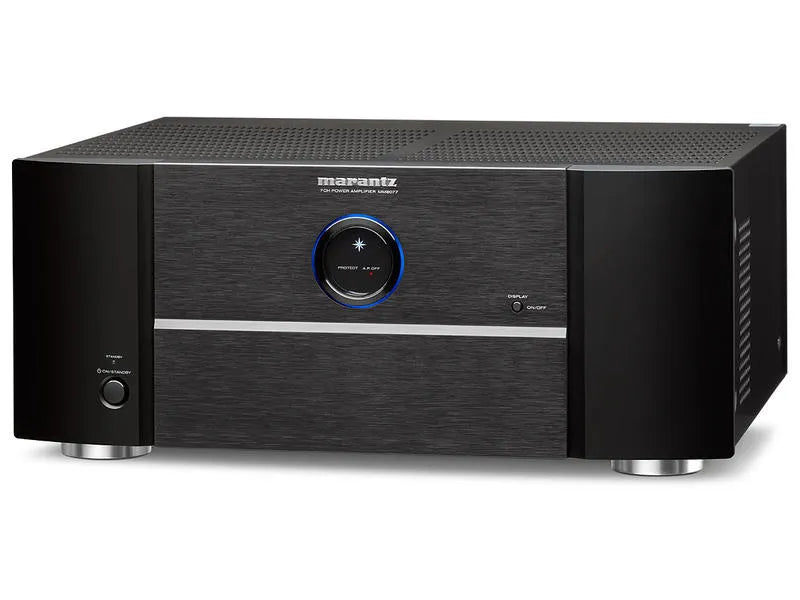

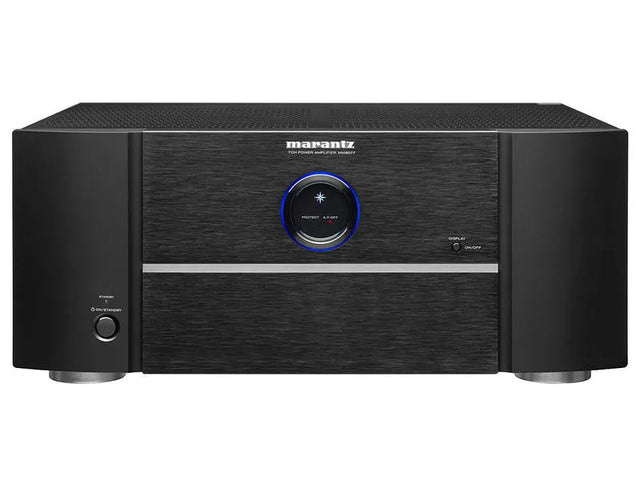

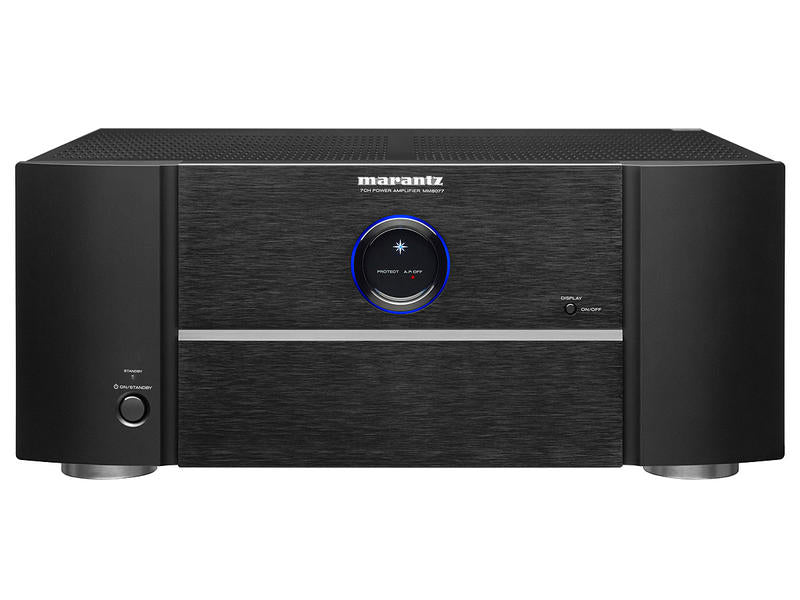

Marantz MM8077, A/V Power Amplifier

The MM8077 has been expertly engineered to meet all your high power needs and deliver the performance of even the most demanding speakers, as the entire unit is engineered to deliver consistent and accurate power wherever and whenever it is needed.
€2,299.00 EUR

Marantz MM8077, A/V Power Amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Power: 7x 150W (8 ohm), 7x 180W (6 ohm).
  • Current feedback discrete power amplifier.
  • High bandwidth power supply with toroidal power transformer.
  • Marantz reference-grade power delivery via high-speed capacitors, high-pass discrete power transistors.

DESCRIPTION

  • Clean And Consistent Power

    The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000µF capacitance to easily handle sharp short-term transient peaks.

  • Ultimate Powerhouse

    Designed for the ultimate music and movie surround sound experience, the Marantz MM8077 7-channel power amplifier delivers power and detail, and is rated at 150 watts per channel into 8 ohms, and 180 watts per channel into 6 ohms.

Power The Most Demanding Of Systems

Designed for the ultimate music and movie surround sound experience, the Marantz MM8077 7-channel power amplifier delivers power and detail, and is rated at 150 watts per channel into 8 ohms, and 180 watts per channel into 6 ohms.

Toroidal Transformer Power Supply

The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000µF capacitance to easily handle sharp short-term transient peaks.

Featuring Our Unique Current Feedback

Featuring our unique current feedback discrete power amp output stages that are identical for all channels, the MM8077 is equipped with multiple high current discrete power transistors that feature high slew rate and wide operating bandwidth to extract the most detail from today's high resolution audio formats.

Masterfully Built

The output devices are mounted on our unique dual extruded aluminum alloy heat sink assembly, configured in a tunnel arrangement that provides both passive and active cooling. The massive heat sinks feature multiple ribbed fins that provide a large passive cooling area, and the assembly is book-ended with a whisper quiet fan that automatically kicks in to provide near silent active cooling when the soundtrack heats up. As the fan is mounted internally directly to the heat sinks, and not externally to the chassis cover as is often the case, even when it's running, it's designed to be whisper quiet.

TECHNICAL DATA

SPECIFICATIONS

  • 7x 150W (8 ohm), 7x 180W (6 ohm) RMS power (20 Hz - 20 kHz)
  • Current feedback discrete power amplifier;
  • High bandwidth power supply with toroidal power transformer;
  • Marantz "reference-grade" power delivery through ultra-fast capacitors, high-pass discrete power transistors;
  • Low impedance drive capability;
  • The highest sound quality is created based on the philosophy of surround sound;
  • Copper clad chassis;
  • Gold plate, high quality speaker terminals;

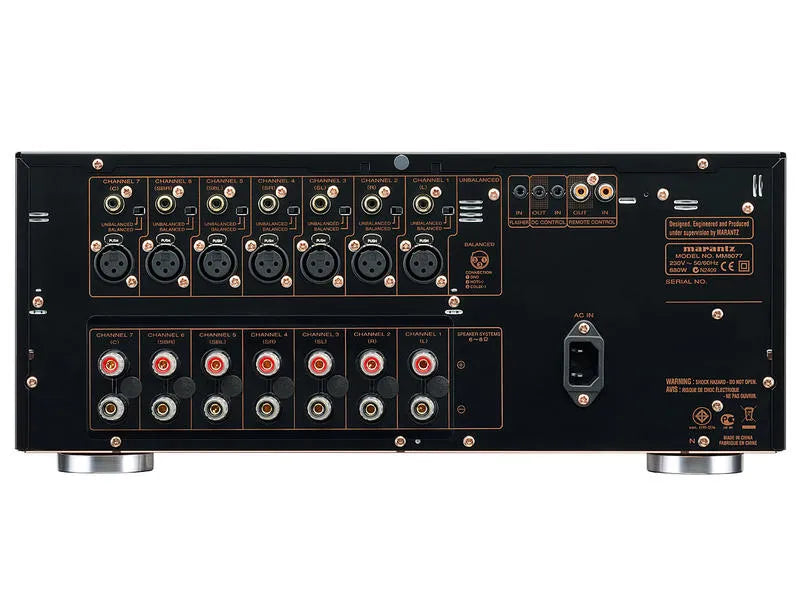

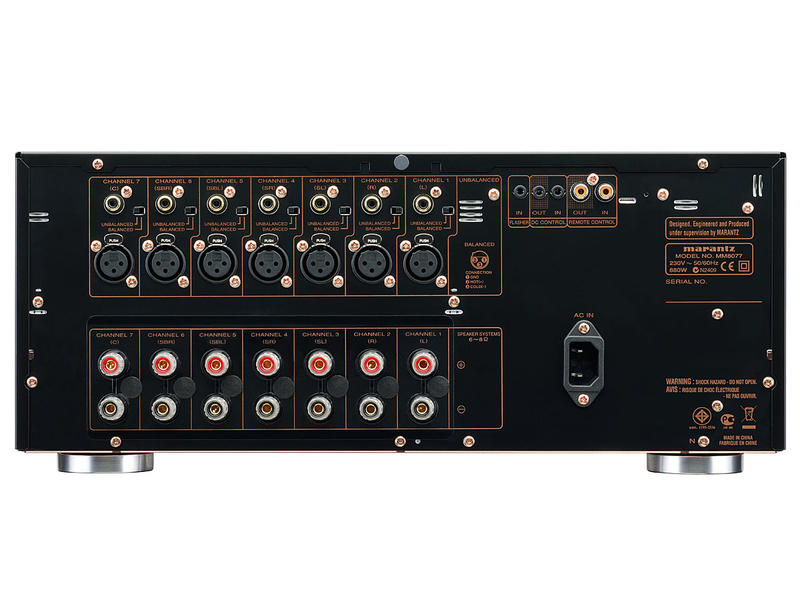

  • Flasher input, DC trigger (in/out), control control (in/out)

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
